Finish Thompson FTI Pump End UC438EOCSSVS82521 Centrifugal Mag Drive, UC Series Heavy Duty, UC438 ULTRA Chem, 4" Suction, 3" Discharge, FKM O-Ring, 8.25" Impeller Size, 300 psi, 825 GPM
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
UC438EOCSSVS82521
Finish Thompson FTI Pump End UC438EOCSSVS82521 Centrifugal Mag Drive, UC Series Heavy Duty, UC438 ULTRA Chem, 4" Suction, 3" Discharge, FKM O-Ring, 8.25" Impeller Size, 300 psi, 825 GPM
| Bushing | SiC |
| Discharge NPT (Inches) | 3" |
| Flange | ANSI 150# |
| Heads To (Feet) | 290 |
| Impeller Size (Inches) | 8.25" (8 1/4") |
| Magnet | to 75hp |
| Maximum Flow (GPM) | 825 |
| Maximum Operating Temperature | 250°F (121 °C) |
| Maximum Pressure (PSI) | 300 psi (2068 kPa) |
| Motor Frame Size | 213/215TC |
| Pressure Rating BAR | 20.7 bar |
| Shaft Seal Material | Silicon Carbide |
| Spec. Gravity | up to 1.8 |
| Suction NPT (Inches) | 4" |
| Thrust Ring | SiC |
| Valve/Seat/O-Ring | FKM |
UC Heavy Duty Magnetic Drive Centrifugal Pumps Information
| Features & Benefits |
|---|
| UC Pump Series Typical Pumping Applications: • Chemical manufacturing, blending, distribution • Water treatment • Plating and metal finishing • Paper mills • Fume scrubbers • Metals manufacturing • Electronics • Pharmaceuticals • Biodiesel Typical Chamicals: • Sodium hydroxide, sulfuric acid, hydrochloric acid, sodium hypochlorite, plating solutions, corrosive blends, wastewater, solvents |
| General Description |
| UC Heavy Duty Magnetic Drive Centrifugal Pump Capabilities: Casing: ANSI/ASME B73.1m Max. Working Pressure: to 300 psi (20 Bar) Max. Temp.: 250oF (121oC) Max. Viscocity: 200 cP Specific Gravity: over 1.8 Flanges: ANSI or ISO Casing: ANSI/ASME B73.1m Motor Frames: NEMA: 143 through 365 IEC: 90 through 225 |
Categories
Acids
2913 productsAir Scrubbers
128 products
Corrosives
1869 productsManufacturing
20389 productsMining
6084 productsPharmaceutical / Chemical
15972 productsPlating
24408 productsPulp & Paper
6474 productsSewage / Wastewater
20311 productsTank Filling
436 productsWater Treatment
8820 products
| Type | Title | Link | |
|---|---|---|---|
UC Series Repair Cartridges Flyer (2022) | View | ||
UC Series Pumps Brochure (2022) | View | ||
UC Series Basetek Baseplates Selection Flyer (2022) | View | ||
UC Series SiC Dri Coat Option Flyer (2022) | View | ||
Chemical Processing Applications Flyer (2022) | View | ||
UC438 Centrifugal Chemical Pumps Datasheet (2022) | View | ||
UC Series Baseplates Datasheet (2022) | View | ||
UC Series Basetek Composite Baseplates Datasheet (2022) | View | ||
UC Series Bearing Frame Datasheet (2022) | View | ||
DB, SP, UC, Series M20 Power Monitor Datasheet (2022) | View | ||
UC Series Centrifugal Chemical Pumps Performance Curves (2022) | View | ||
UC Series Below Serial# 125040 Pumps Installation & Operation Manual (2022) | View | ||
UC Series UCII Group Pumps Installation & Operation Manual (2022) | View | ||

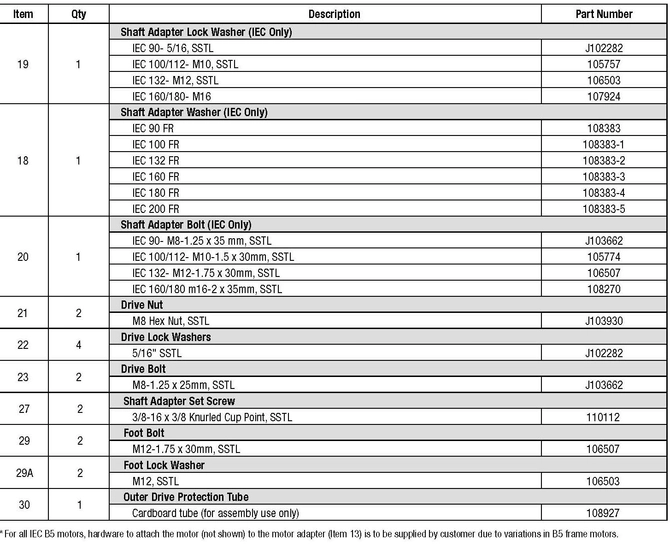

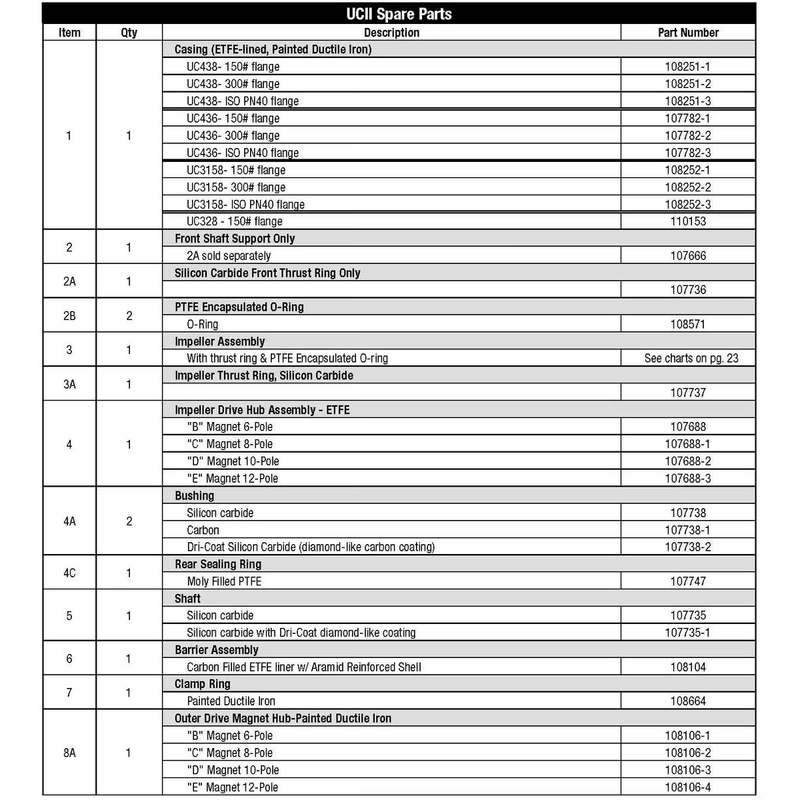

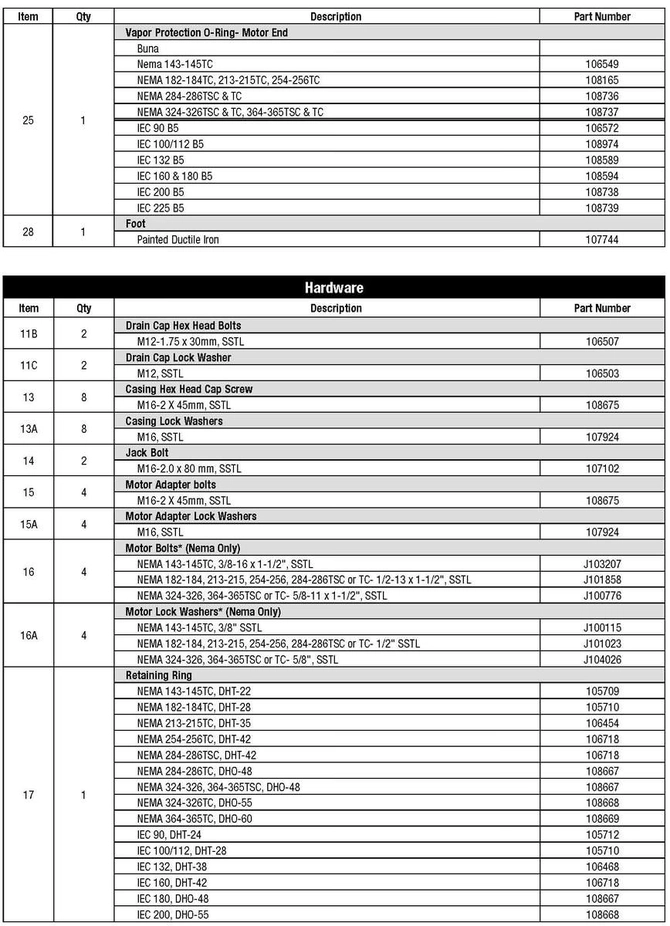

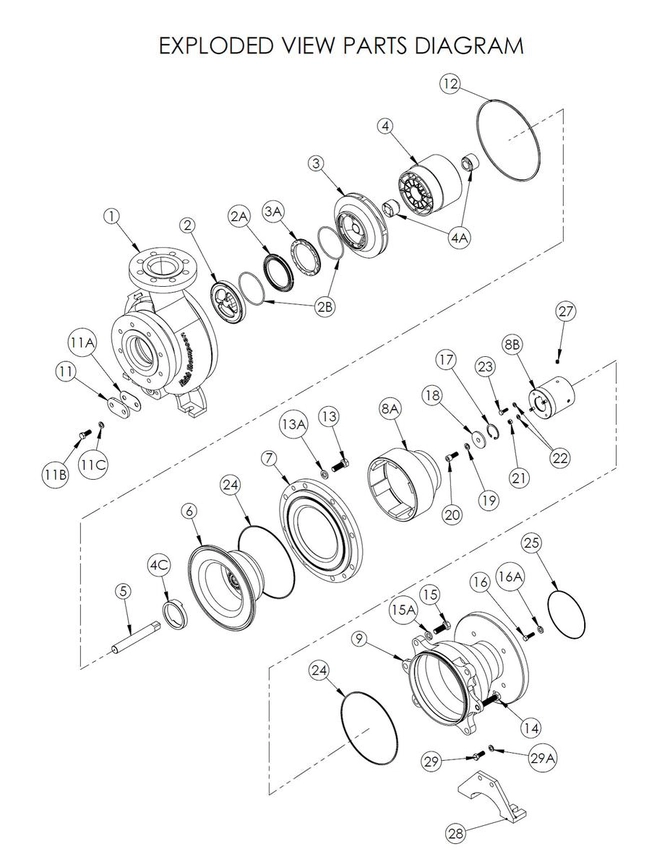

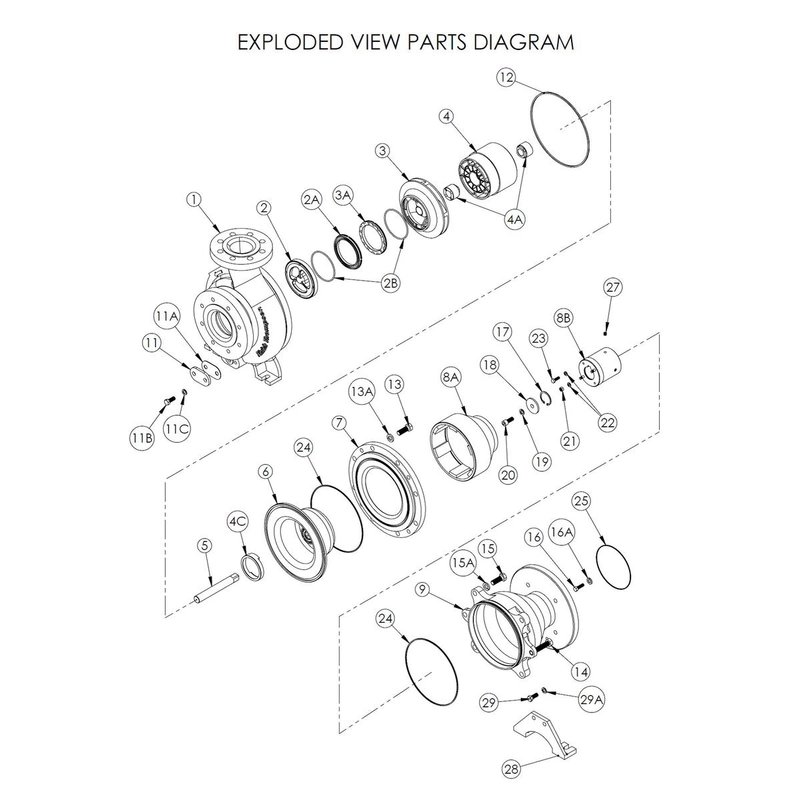

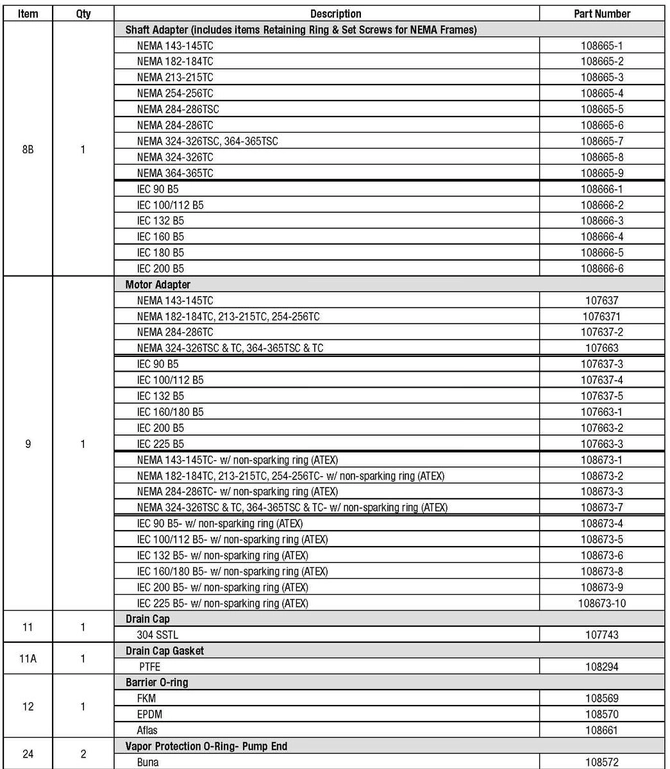

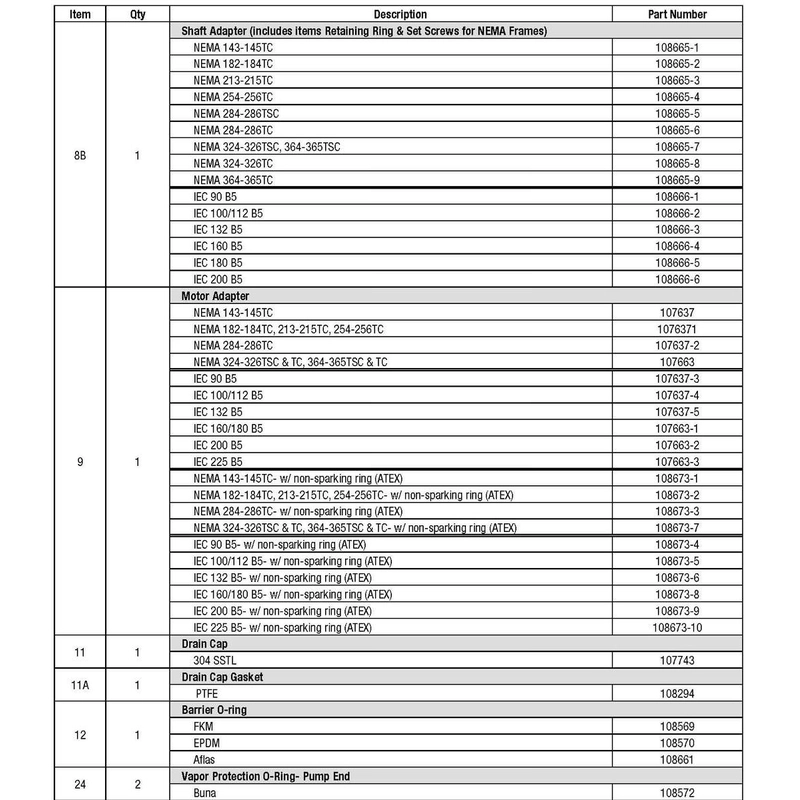

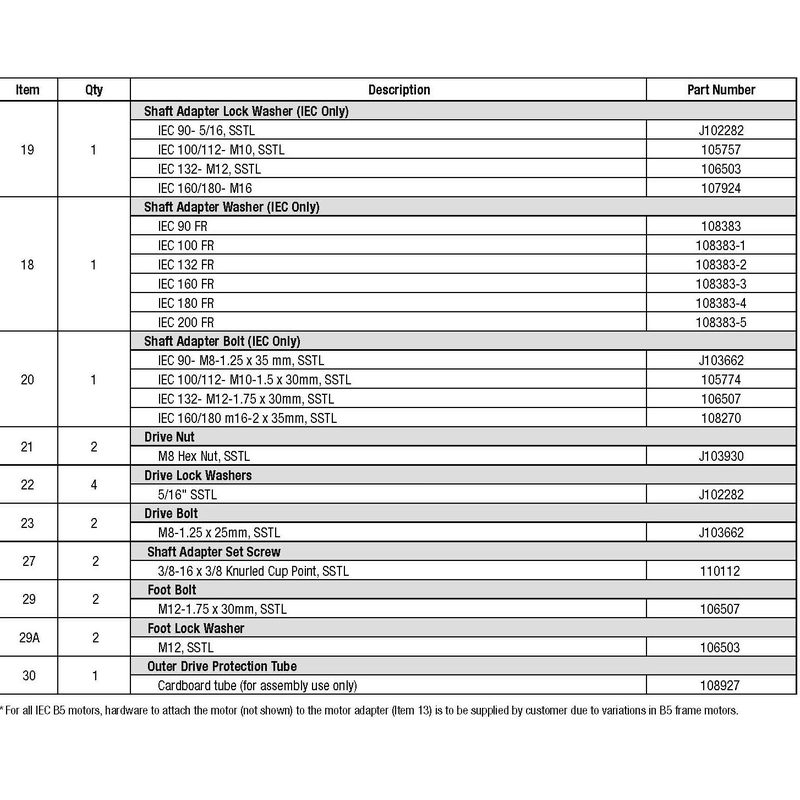

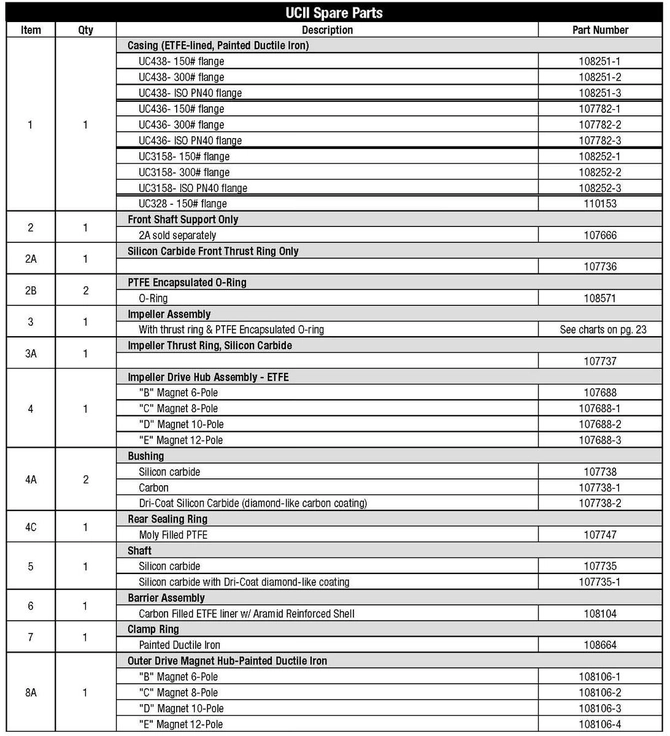

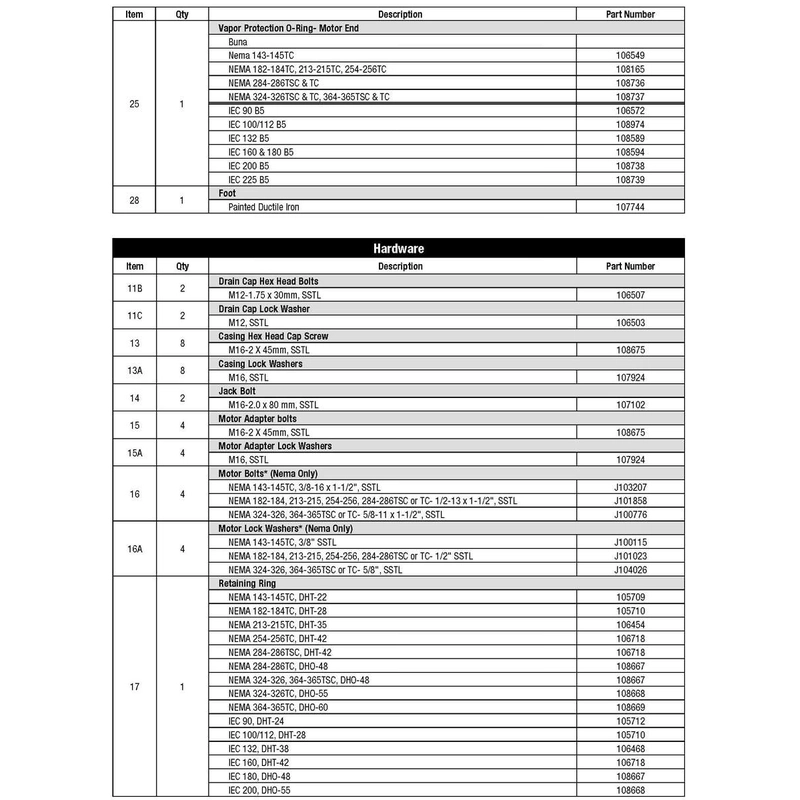

Repair Parts for UC438EOCSSVS82521
