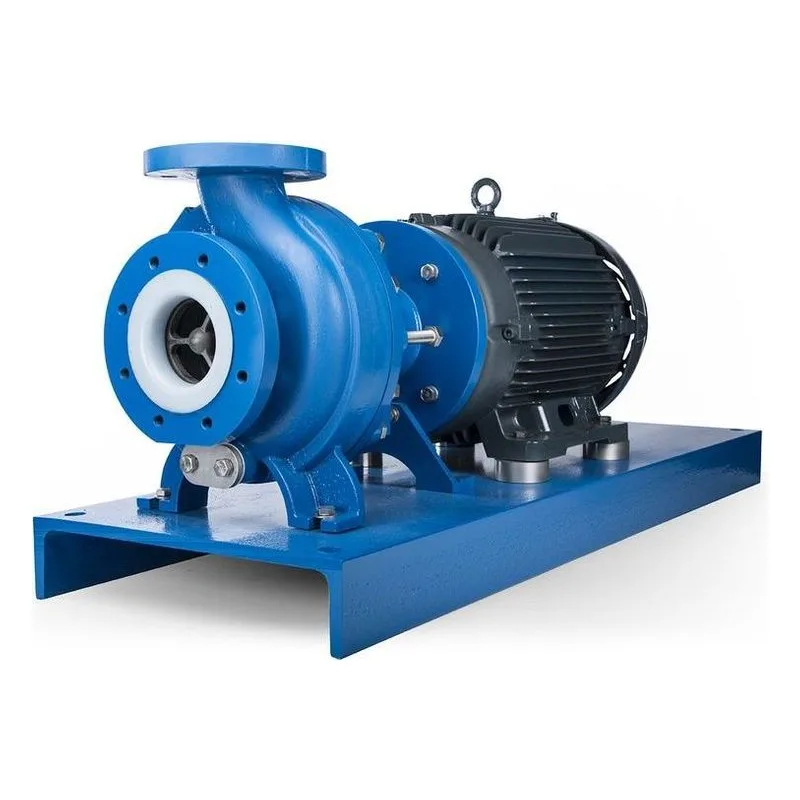

Finish Thompson FTI Wet End Assembly UC436DOCSSVS625 Centrifugal Mag Drive, UC Series Heavy Duty, UC436 ULTRA Chem, 4" Suction, 3" Discharge, FKM O-Ring, 6.25" Impeller Size, 300 psi, 670 GPM

Call for Pricing

Best Price Guarantee!

Item: UC436DOCSSVS625

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

UC436DOCSSVS625

Finish Thompson FTI Wet End Assembly UC436DOCSSVS625 Centrifugal Mag Drive, UC Series Heavy Duty, UC436 ULTRA Chem, 4" Suction, 3" Discharge, FKM O-Ring, 6.25" Impeller Size, 300 psi, 670 GPM

Bushing	SiC
Discharge NPT (Inches)	3"
Flange	ANSI 150#
Heads To (Feet)	190
Impeller Size (Inches)	6.25" (6 1/4")
Magnet	to 60hp
Maximum Flow (GPM)	670
Maximum Operating Temperature	250°F (121 °C)

Maximum Pressure (PSI)	300 psi (2068 kPa)
Pressure Rating BAR	20.7 bar
Shaft Seal Material	Silicon Carbide
Spec. Gravity	up to 1.8
Suction NPT (Inches)	4"
Thrust Ring	SiC
Valve/Seat/O-Ring	FKM

UC Heavy Duty Magnetic Drive Centrifugal Pumps Information

Features & Benefits
UC Pump Series Typical Pumping Applications: • Chemical manufacturing, blending, distribution • Water treatment • Plating and metal finishing • Paper mills • Fume scrubbers • Metals manufacturing • Electronics • Pharmaceuticals • Biodiesel Typical Chamicals: • Sodium hydroxide, sulfuric acid, hydrochloric acid, sodium hypochlorite, plating solutions, corrosive blends, wastewater, solvents
General Description
UC Heavy Duty Magnetic Drive Centrifugal Pump Capabilities: Casing: ANSI/ASME B73.1m Max. Working Pressure: to 300 psi (20 Bar) Max. Temp.: 250oF (121oC) Max. Viscocity: 200 cP Specific Gravity: over 1.8 Flanges: ANSI or ISO Casing: ANSI/ASME B73.1m Motor Frames: NEMA: 143 through 365 IEC: 90 through 225

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	UC Series Pumps Brochure (2022)		View
	UC Series Basetek Baseplates Selection Flyer (2022)		View
	UC Series SiC Dri Coat Option Flyer (2022)		View
	UC Series Repair Cartridges Flyer (2022)		View
	Chemical Processing Applications Flyer (2022)		View
	UC436 Centrifugal Chemical Pumps Datasheet (2022)		View
	UC Series Baseplates Datasheet (2022)		View
	UC Series Basetek Composite Baseplates Datasheet (2022)		View
	UC Series Bearing Frame Datasheet (2022)		View
	DB, SP, UC, Series M20 Power Monitor Datasheet (2022)		View
	UC Series Centrifugal Chemical Pumps Performance Curves (2022)		View
	UC Series Below Serial# 125040 Pumps Installation & Operation Manual (2022)		View
	UC Series UCII Group Pumps Installation & Operation Manual (2022)		View

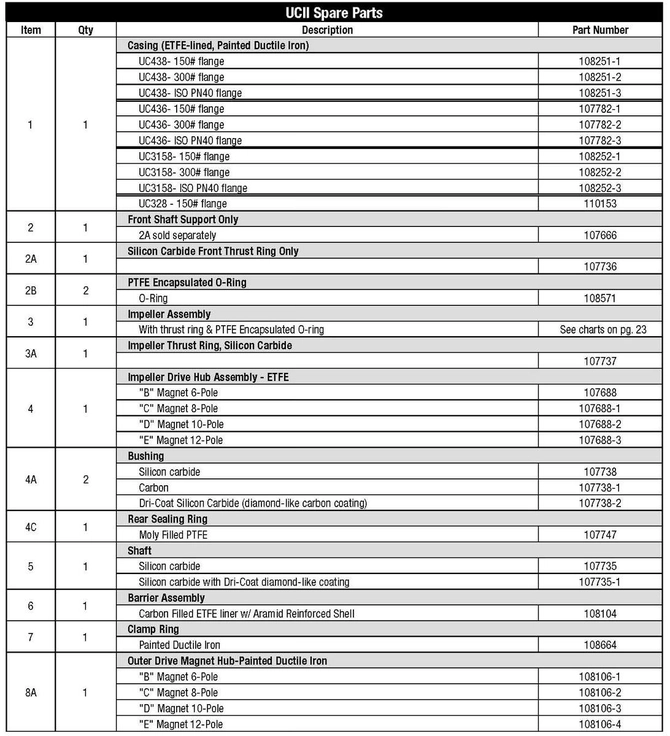

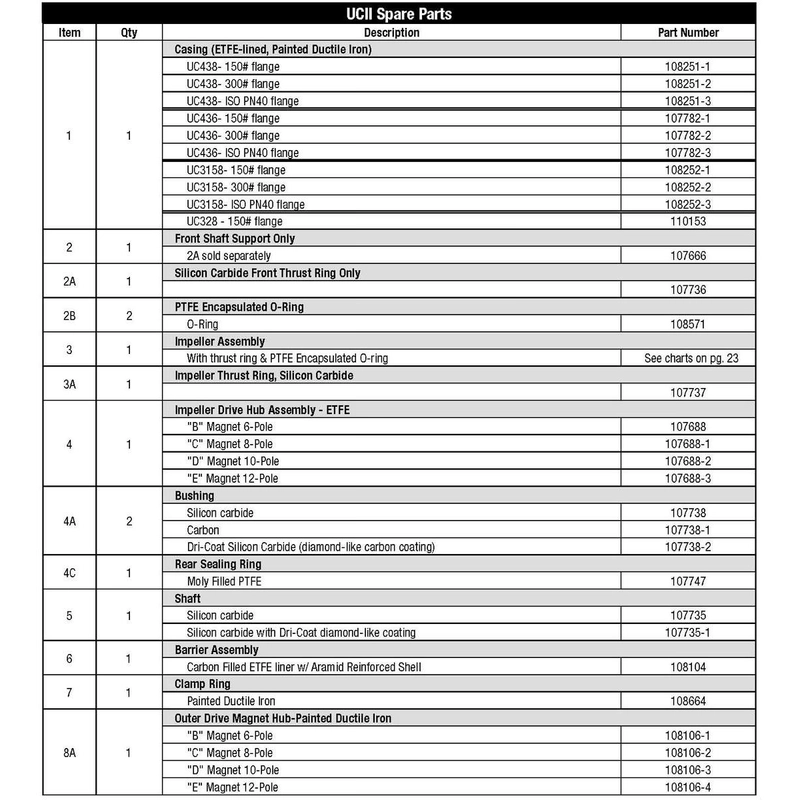

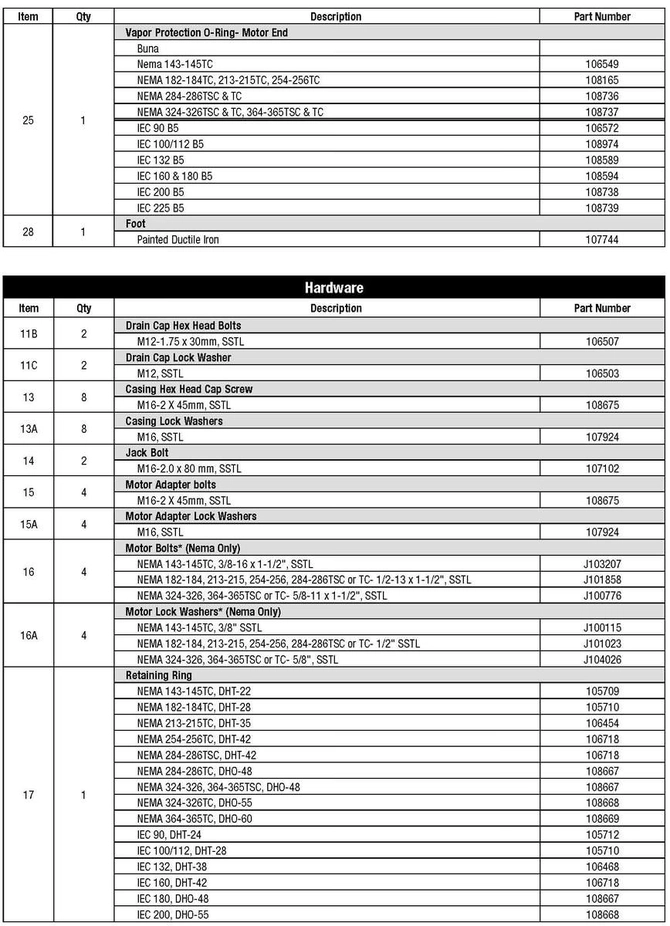

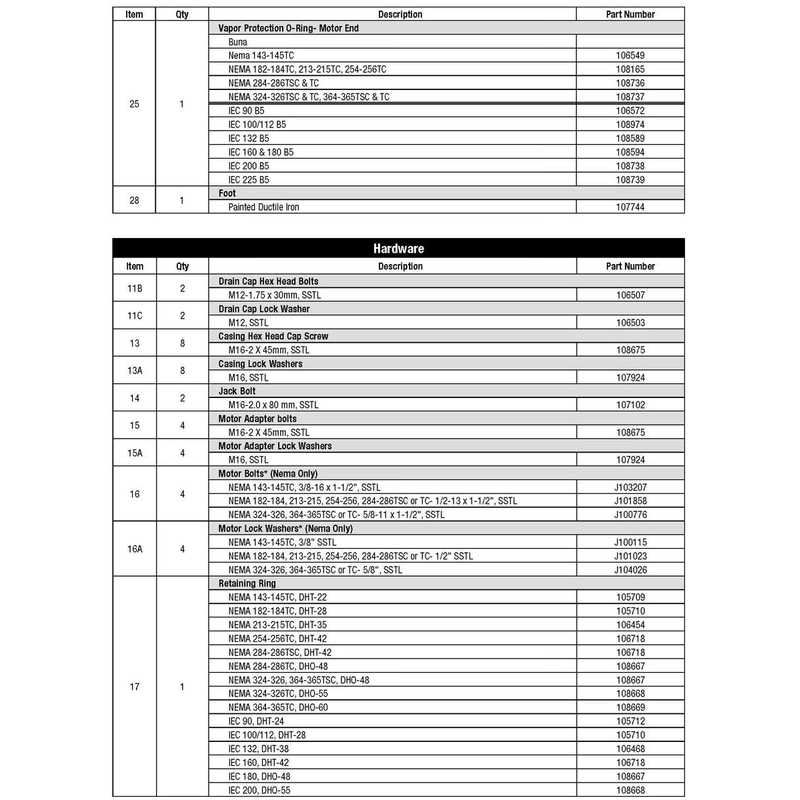

Repair Parts for UC436DOCSSVS625

	shipping	price
107782-1	Ships in	Call for pricing
107666	Ships in	$106.40	Select item
107736-NEP	Ships in	$168.00	Select item
107737	Ships in	$327.75	Select item
107688-2	Ships in	$1,952.25	Select item
107738	Ships in	$333.45	Select item
107747	Ships in	$171.95	Select item
107735-NEP	Ships in	$11.00	Select item
108664	Ships in	$416.10	Select item
108106-3	Ships in	$2,546.95	Select item
108665-3	Ships in	$708.70	Select item
107637-1	Ships in	$825.55	Select item
108673-2	Ships in	$1,406.95	Select item
107743	Ships in	Call for pricing
108294	Ships in	$17.76	Select item
108569	Ships in	$74.10	Select item
108165	Ships in	$3.52	Select item
107744	Ships in	$239.40	Select item
106507-NEP	Ships in	$11.00	Select item
106503-FTI	Ships in	$0.29	Select item
108675	Ships in	$9.47	Select item
107924	Ships in	$3.82	Select item
107102	Ships in	$17.76	Select item
108675	Ships in	$9.47	Select item
107924	Ships in	$3.82	Select item
J101858	Ships in	$2.63	Select item
J101023	Ships in	$0.30	Select item
106454	Ships in	$9.14	Select item
J103930	Ships in	$0.57	Select item
J102282	Ships in	$0.10	Select item
J103662	Ships in	$0.54	Select item
110112	Ships in	$1.60	Select item
106507-NEP	Ships in	$11.00	Select item
106503-FTI	Ships in	$0.29	Select item
108927	Ships in	Call for pricing
