Finish Thompson FTI Pump End UC328BOCSSVS82521 Centrifugal Mag Drive, UC Series Heavy Duty, UC328 ULTRA Chem, 3" Suction, 2" Discharge, FKM O-Ring, 8.25" Impeller Size, 300 psi, 445 GPM
Finish Thompson FTI Pump End UC328BOCSSVS82521 Centrifugal Mag Drive, UC Series Heavy Duty, UC328 ULTRA Chem, 3" Suction, 2" Discharge, FKM O-Ring, 8.25" Impeller Size, 300 psi, 445 GPM
Bushing | SiC |
Discharge NPT (Inches) | 2" |
Flange | ANSI 150# |
Heads To (Feet) | 290 |
Impeller Size (Inches) | 8.25" (8 1/4") |
Magnet | to 20hp |
Maximum Flow (GPM) | 445 |
Maximum Operating Temperature | 250°F (121 °C) |
Maximum Pressure (PSI) | 300 psi (2068 kPa) |
Motor Frame Size | 213/215TC |
Pressure Rating BAR | 20.7 bar |
Shaft Seal Material | Silicon Carbide |
Spec. Gravity | up to 1.8 |
Suction NPT (Inches) | 3" |
Thrust Ring | SiC |
Valve/Seat/O-Ring | FKM |
Features & Benefits |
---|
UC Pump Series Typical Pumping Applications: • Chemical manufacturing, blending, distribution • Water treatment • Plating and metal finishing • Paper mills • Fume scrubbers • Metals manufacturing • Electronics • Pharmaceuticals • Biodiesel Typical Chamicals: • Sodium hydroxide, sulfuric acid, hydrochloric acid, sodium hypochlorite, plating solutions, corrosive blends, wastewater, solvents |
General Description |
UC Heavy Duty Magnetic Drive Centrifugal Pump Capabilities: Casing: ANSI/ASME B73.1m Max. Working Pressure: to 300 psi (20 Bar) Max. Temp.: 250oF (121oC) Max. Viscocity: 200 cP Specific Gravity: over 1.8 Flanges: ANSI or ISO Casing: ANSI/ASME B73.1m Motor Frames: NEMA: 143 through 365 IEC: 90 through 225 |
Acids
1895 productsAir Scrubbers
128 productsCorrosives
909 productsManufacturing
20389 productsMining
6084 productsPharmaceutical / Chemical
15972 productsPlating
23448 productsPulp & Paper
6474 productsSewage / Wastewater
20311 productsTank Filling
436 productsWater Treatment
7855 productsType | Title | Link | |
---|---|---|---|
UC Series Pumps Brochure (2022) | View | ||
UC Series Basetek Baseplates Selection Flyer (2022) | View | ||
UC Series SiC Dri Coat Option Flyer (2022) | View | ||
UC Series Repair Cartridges Flyer (2022) | View | ||
Chemical Processing Applications Flyer (2022) | View | ||
UC328 Centrifugal Chemical Pumps Datasheet (2022) | View | ||
UC Series Baseplates Datasheet (2022) | View | ||
UC Series Basetek Composite Baseplates Datasheet (2022) | View | ||
UC Series Bearing Frame Datasheet (2022) | View | ||
DB, SP, UC, Series M20 Power Monitor Datasheet (2022) | View | ||
UC Series Centrifugal Chemical Pumps Performance Curves (2022) | View | ||
UC Series Below Serial# 125040 Pumps Installation & Operation Manual (2022) | View | ||
UC Series UCII Group Pumps Installation & Operation Manual (2022) | View |

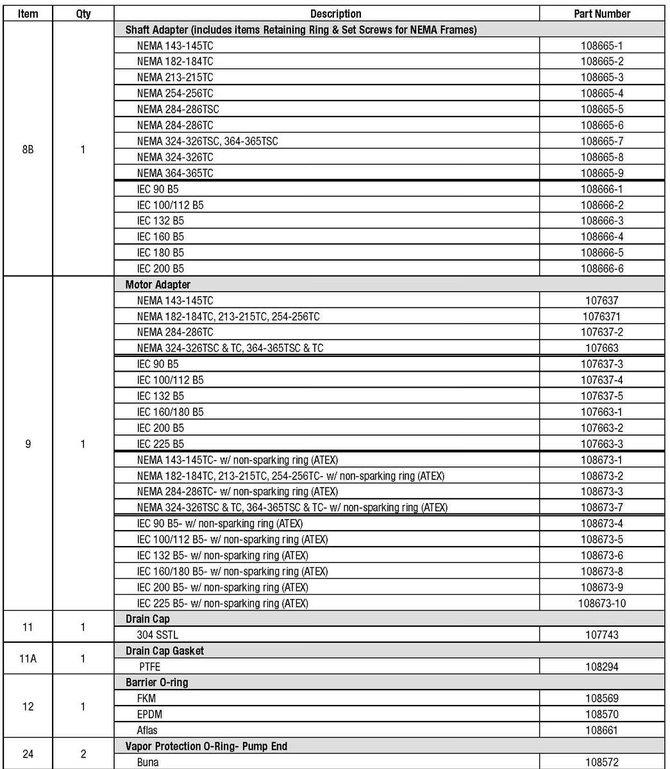

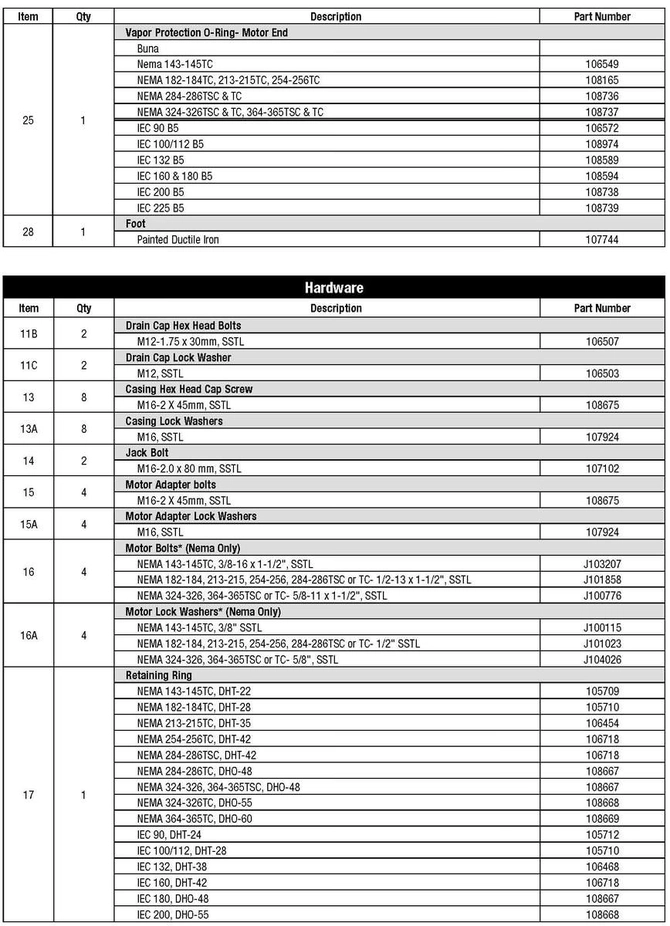

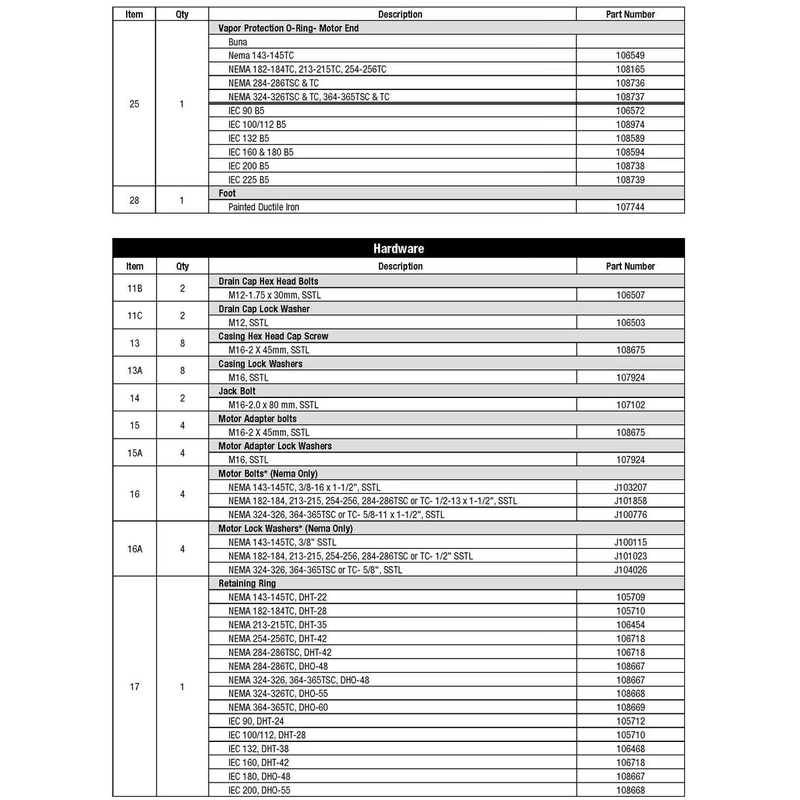

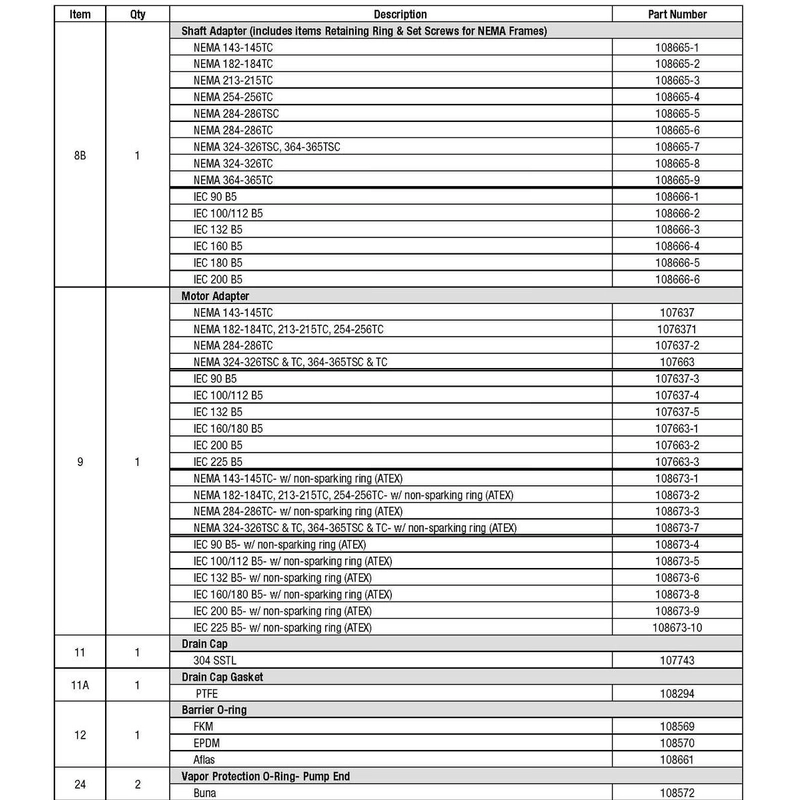

Product | qty. | shipping | price | ||
---|---|---|---|---|---|
110153 | Ships in | Call for pricing | |||
107666 | Ships in | $106.40 | |||
107736-NEP | Ships in | $168.00 | |||
107737 | Ships in | $327.75 | |||
107688 | Ships in | $1,548.50 | |||
107738 | Ships in | $333.45 | |||
107747 | Ships in | $171.95 | |||
107735-NEP | Ships in | $11.00 | |||
108664 | Ships in | $416.10 | |||
108106-1 | Ships in | $1,062.10 | |||
108665-3 | Ships in | $708.70 | |||
107637-1 | Ships in | $825.55 | |||
108673-2 | Ships in | $1,406.95 | |||
107743 | Ships in | Call for pricing | |||
108294 | Ships in | $17.76 | |||
108569 | Ships in | $74.10 | |||
108165 | Ships in | $3.52 | |||
107744 | Ships in | $239.40 | |||
106507-NEP | Ships in | $11.00 | |||
106503-FTI | Ships in | $0.29 | |||
108675 | Ships in | $9.47 | |||
107924 | Ships in | $3.82 | |||
107102 | Ships in | $17.76 | |||
108675 | Ships in | $9.47 | |||
107924 | Ships in | $3.82 | |||
J101858 | Ships in | $2.63 | |||
J101023 | Ships in | $0.30 | |||
106454 | Ships in | $9.14 | |||
J103930 | Ships in | $0.57 | |||
J102282 | Ships in | $0.10 | |||
J103662 | Ships in | $0.54 | |||
110112 | Ships in | $1.60 | |||
106507-NEP | Ships in | $11.00 | |||
106503-FTI | Ships in | $0.29 | |||
108927 | Ships in | Call for pricing |
