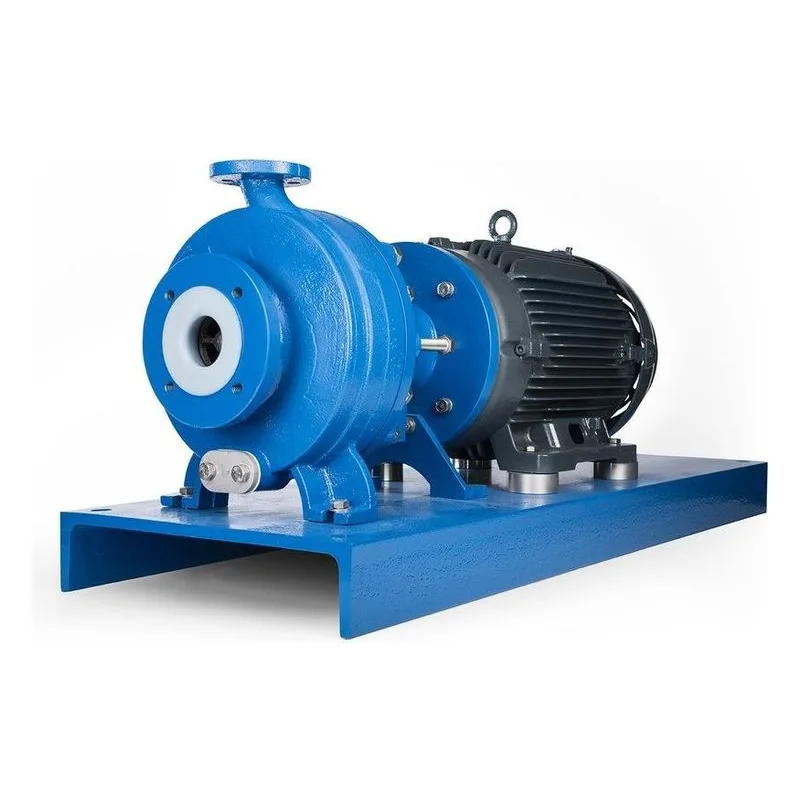

• Finish Thompson Pump End UC3158COCSSVS82521 Mag Drive Pumps

Image shown may not be actual product

Finish Thompson FTI

UC3158COCSSVS82521

0 reviews

Finish Thompson FTI Pump End UC3158COCSSVS82521 Centrifugal Mag Drive, UC Series Heavy Duty, UC3158 ULTRA Chem, 3" Suction, 1 1/2" Discharge, FKM O-Ring, 8.25" Impeller Size, 300 psi, 445 GPM

$5,851.20

Item: UC3158COCSSVS82521
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

UC3158COCSSVS82521

Finish Thompson FTI Pump End UC3158COCSSVS82521 Centrifugal Mag Drive, UC Series Heavy Duty, UC3158 ULTRA Chem, 3" Suction, 1 1/2" Discharge, FKM O-Ring, 8.25" Impeller Size, 300 psi, 445 GPM

BushingSiC
Discharge NPT (Inches)1 1/2"
FlangeANSI 150#
Heads To (Feet)290
Impeller Size (Inches)8.25"
Magnetto 40hp
Maximum Flow (GPM)445
MaxImum Operating Temperature250°F (121°C)
Maximum Pressure (PSI)300 psi
Motor Frame Size213/215TC
Pressure Rating BAR20.7 bar
Shaft Seal MaterialSiC
Spec. Gravityup to 1.8
Suction NPT (Inches)3"
Thrust RingSiC
Valve/Seat/O-RingFKM

UC Heavy Duty Magnetic Drive Centrifugal Pumps Information

Features & Benefits
UC Pump Series Typical Pumping Applications:
• Chemical manufacturing, blending, distribution
• Water treatment
• Plating and metal finishing
• Paper mills
• Fume scrubbers
• Metals manufacturing
• Electronics
• Pharmaceuticals
• Biodiesel

Typical Chamicals:
• Sodium hydroxide, sulfuric acid, hydrochloric acid, sodium hypochlorite, plating solutions, corrosive blends, wastewater, solvents
General Description
UC Heavy Duty Magnetic Drive Centrifugal Pump Capabilities:
Casing: ANSI/ASME B73.1m
Max. Working
Pressure: to 300 psi (20 Bar)
Max. Temp.: 250oF (121oC)
Max. Viscocity: 200 cP
Specific Gravity: over 1.8
Flanges: ANSI or ISO
Casing: ANSI/ASME B73.1m
Motor Frames:
NEMA: 143 through 365
IEC: 90 through 225

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

UC Heavy Duty Magnetic Drive Centrifugal Pumps

UC Ultrachem Series Pump Curves

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachecm UC1516 UC1518 UC326 Pump Manual

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachecm UC Pump Manual

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachem Pump Brochure

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachem UC326 Pump Datasheet

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachem UC328 Pump Datasheet

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachem UC436 Pump Datasheet

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

FTI Ultrachem UC438 Pump Datasheet

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachem UC1516 Pump Datasheet

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachem UC1518 Pump Datasheet

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachem UC3158 Pump Datasheet

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachem Series Bearing Frame Option Datasheet

View

Repair Parts for UC3158COCSSVS82521

  • FTI-UC328-UC3158-UC436-UC438-Pump-Parts-1.jpg

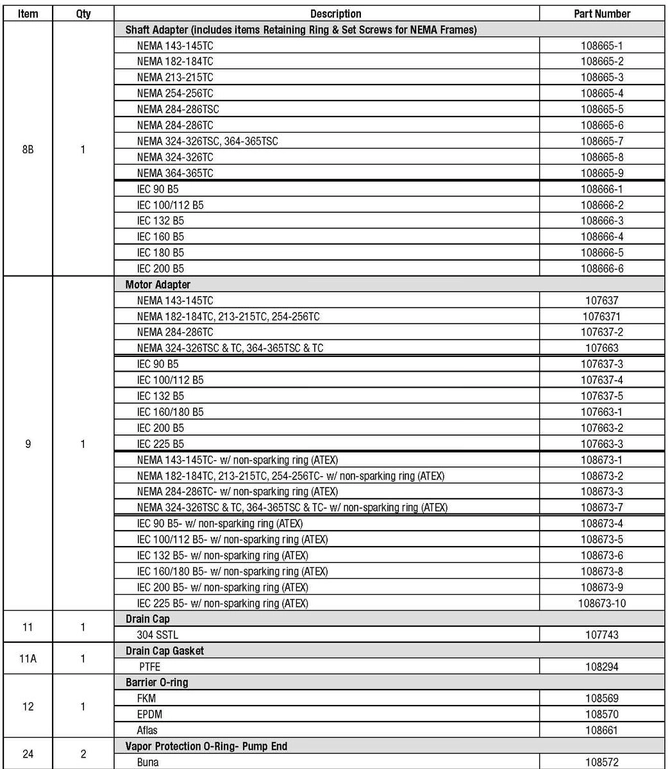

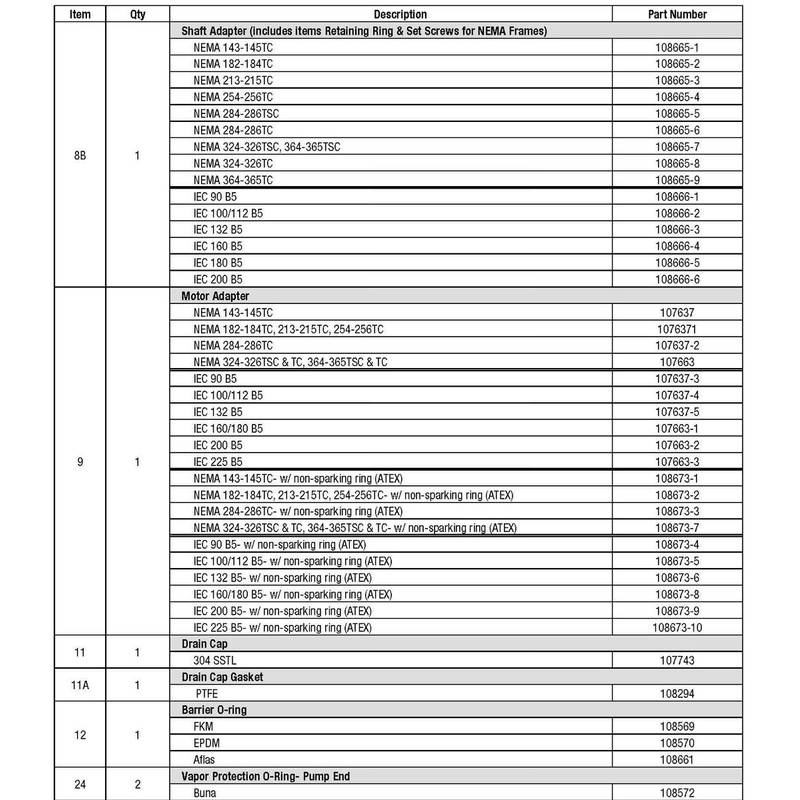

  • FTI-UC328-UC3158-UC436-UC438-Pump-Parts-2.jpg
  • FTI-UC328-UC3158-UC436-UC438-Pump-Parts-3.jpg

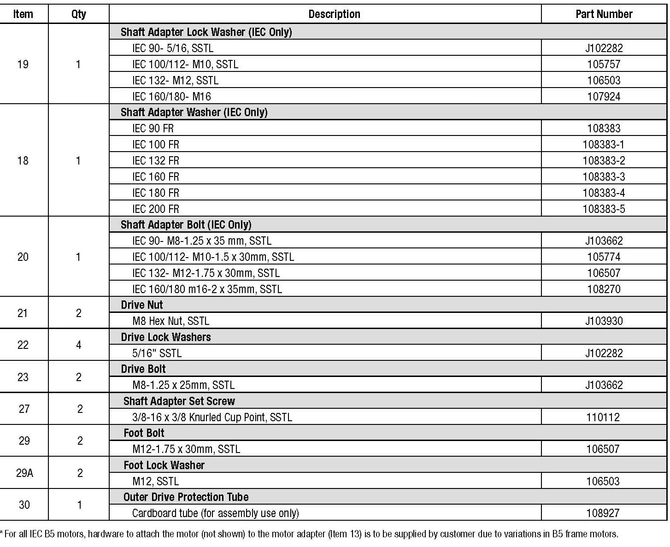

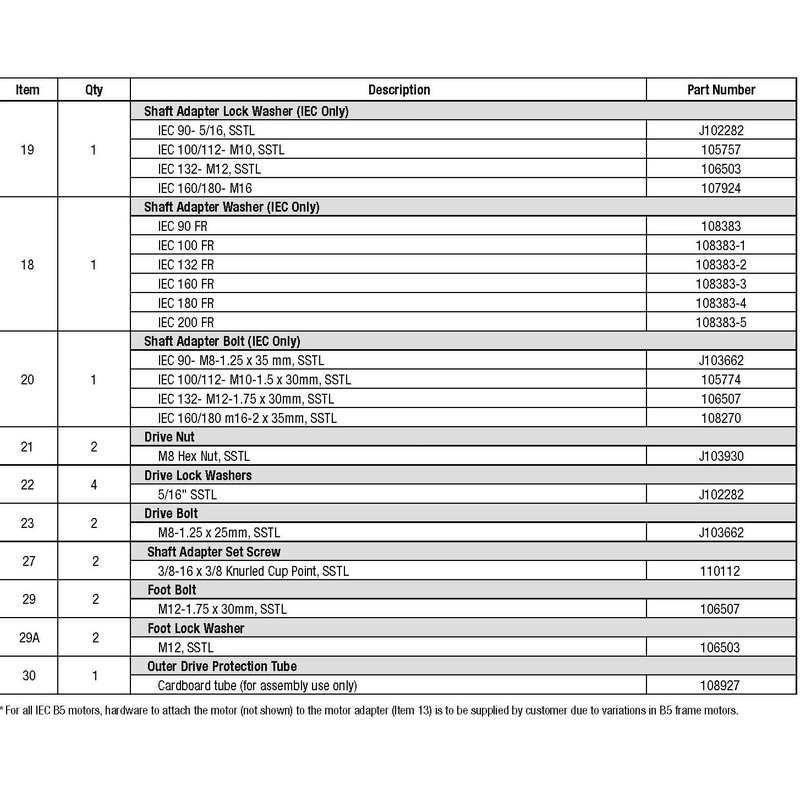

  • FTI-UC328-UC3158-UC436-UC438-Pump-Parts-4.jpg

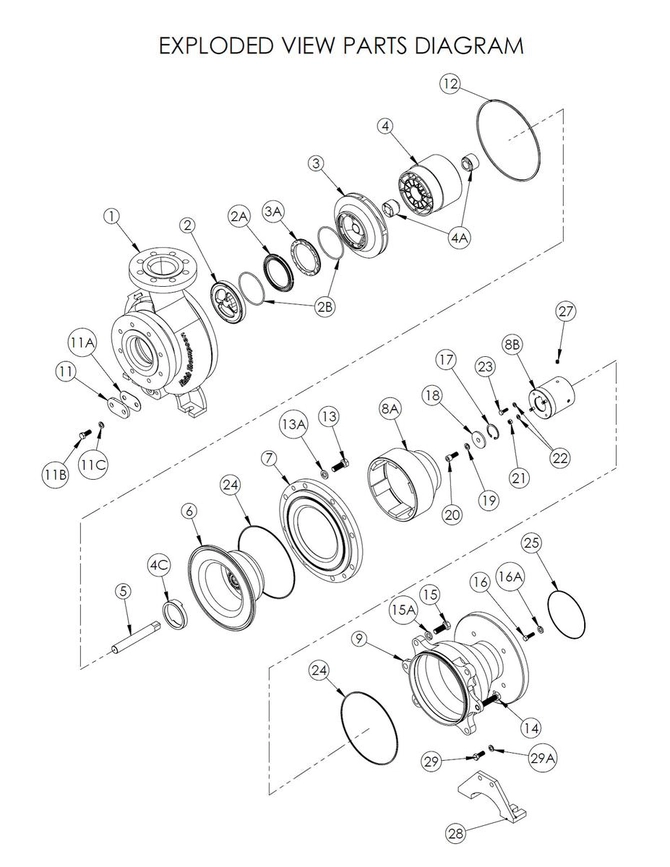

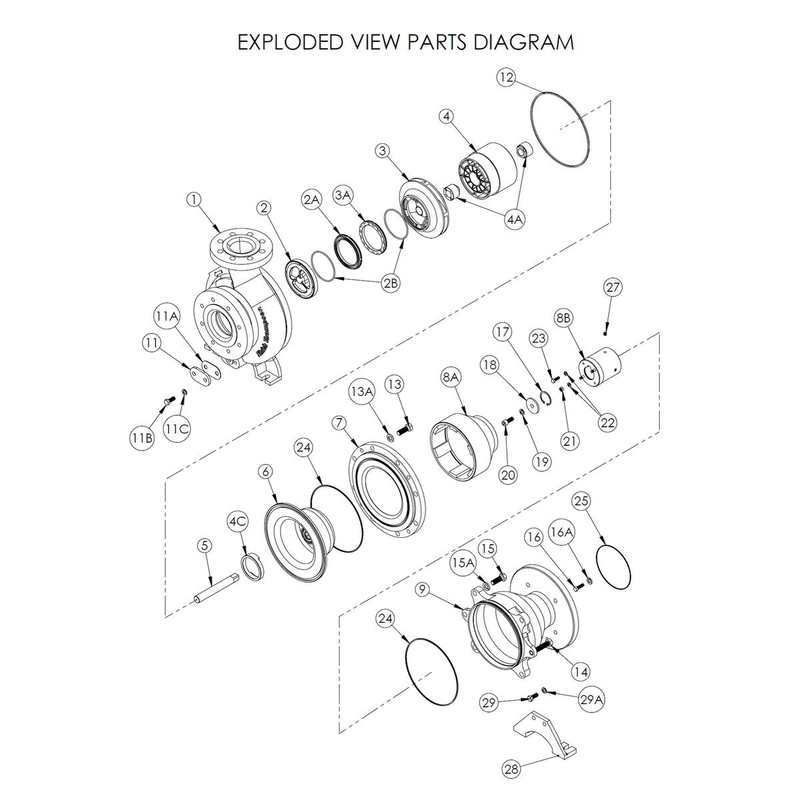

  • FTI-UC328-UC3158-UC436-UC438-Pump-Parts-Exploded-View.jpg
Productqty.shippingprice
108252-1

108252-1

Ships in $1,571.40
107666

107666

Ships in $79.20
107736

107736

Ships in $226.80
107737

107737

Ships in $247.50
107688-1

107688-1

Ships in $1,271.70
107738

107738

Ships in $252.00
107747

107747

Ships in $127.80
107735

107735

Ships in $472.50
108664

108664

Ships in $315.00
108106-2

108106-2

Ships in $1,440.00
108665-3

108665-3

Ships in $537.30
107637-1

107637-1

Ships in $625.50
108673-2

108673-2

Ships in $1,068.30
107743

107743

Ships in $49.50
108294

108294

Ships in $13.50
108569

108569

Ships in $54.00
108165

108165

Ships in $2.68
107744

107744

Ships in $180.00
106507

106507

Ships in $1.58
106503

106503

Ships in $0.22
108675

108675

Ships in $7.20
107924

107924

Ships in $2.91
107102

107102

Ships in $13.50
108675

108675

Ships in $7.20
107924

107924

Ships in $2.91
J101858

J101858

Ships in $1.87
J101023

J101023

Ships in $0.23
106454

106454

Ships in $6.95
J103930

J103930

Ships in $0.43
J102282

J102282

Ships in $0.08
J103662

J103662

Ships in $0.41
110112

110112

Ships in $1.22
106507

106507

Ships in $1.58
106503

106503

Ships in $0.22
108927

108927

Ships in $9.22
