Finish Thompson FTI Wet End Assembly UC1518BECSSVF637 Centrifugal Mag Drive, UC Series Heavy Duty, UC1518 ULTRA Chem, 1 1/2" Suction, 1" Discharge, FKM O-Ring, 6.375" Impeller Size, 175 psi, 181 GPM

Call for Pricing

Best Price Guarantee!

Item: UC1518BECSSVF637

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

UC1518BECSSVF637

Finish Thompson FTI Wet End Assembly UC1518BECSSVF637 Centrifugal Mag Drive, UC Series Heavy Duty, UC1518 ULTRA Chem, 1 1/2" Suction, 1" Discharge, FKM O-Ring, 6.375" Impeller Size, 175 psi, 181 GPM

Bushing	SiC
Discharge NPT (Inches)	1"
Flange	ANSI 150#
Heads To (Feet)	331
Impeller Size (Inches)	6.375" (6 3/8")
Magnet	to 20hp
Maximum Flow (GPM)	181
Maximum Operating Temperature	250°F (121 °C)

Maximum Pressure (PSI)	175 PSI (12.1 Bar)
Pressure Rating BAR	12 bar
Shaft Seal Material	Silicon Carbide
Spec. Gravity	up to 1.8
Suction NPT (Inches)	1-1/2"
Thrust Ring	Fluorosint
Valve/Seat/O-Ring	FKM

UC Heavy Duty Magnetic Drive Centrifugal Pumps Information

Features & Benefits
UC Pump Series Typical Pumping Applications: • Chemical manufacturing, blending, distribution • Water treatment • Plating and metal finishing • Paper mills • Fume scrubbers • Metals manufacturing • Electronics • Pharmaceuticals • Biodiesel Typical Chamicals: • Sodium hydroxide, sulfuric acid, hydrochloric acid, sodium hypochlorite, plating solutions, corrosive blends, wastewater, solvents
General Description
UC Heavy Duty Magnetic Drive Centrifugal Pump Capabilities: Casing: ANSI/ASME B73.1m Max. Working Pressure: to 300 psi (20 Bar) Max. Temp.: 250oF (121oC) Max. Viscocity: 200 cP Specific Gravity: over 1.8 Flanges: ANSI or ISO Casing: ANSI/ASME B73.1m Motor Frames: NEMA: 143 through 365 IEC: 90 through 225

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	UC Series Pumps Brochure (2022)		View
	UC Series Basetek Baseplates Selection Flyer (2022)		View
	UC Series SiC Dri Coat Option Flyer (2022)		View
	UC Series Repair Cartridges Flyer (2022)		View
	Chemical Processing Applications Flyer (2022)		View
	UC1518 Centrifugal Chemical Pumps Datasheet (2022)		View
	UC Series Baseplates Datasheet (2022)		View
	UC Series Basetek Composite Baseplates Datasheet (2022)		View
	UC Series Bearing Frame Datasheet (2022)		View
	DB, SP, UC, Series M20 Power Monitor Datasheet (2022)		View
	UC Series Centrifugal Chemical Pumps Performance Curves (2022)		View
	UC Series Below Serial# 125040 Pumps Installation & Operation Manual (2022)		View
	UC Series UCI Group Pumps Installation & Operation Manual (2022)		View

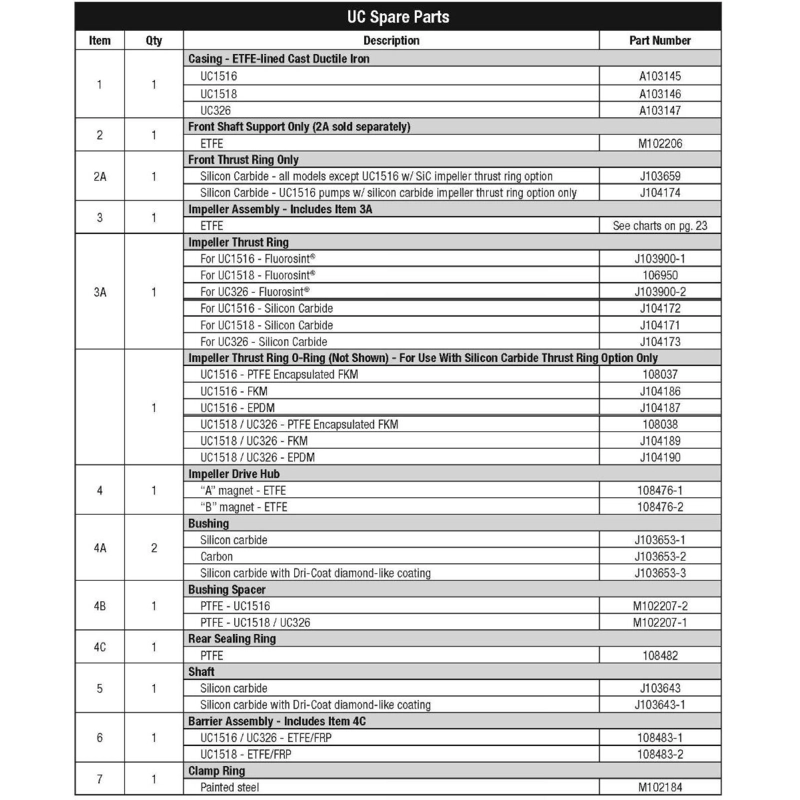

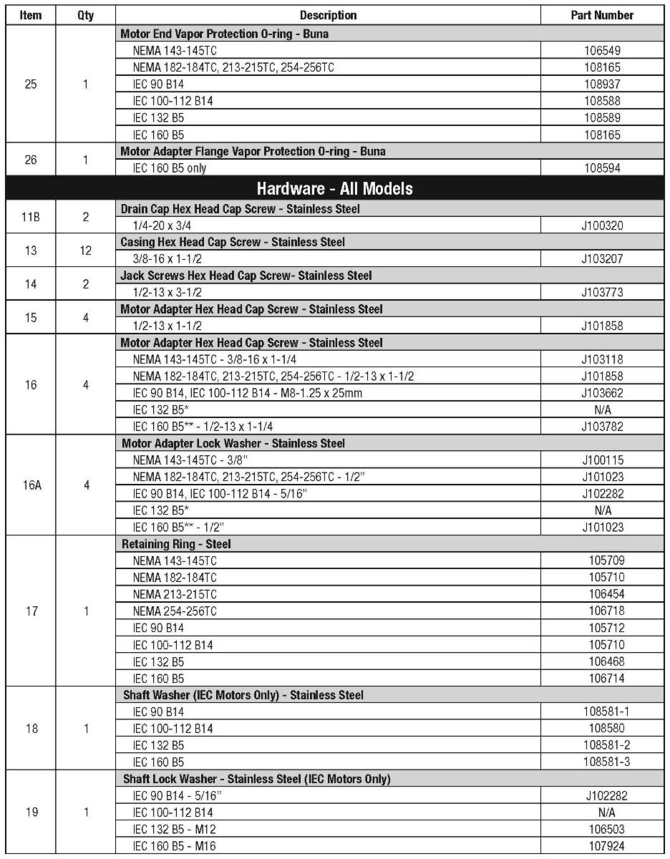

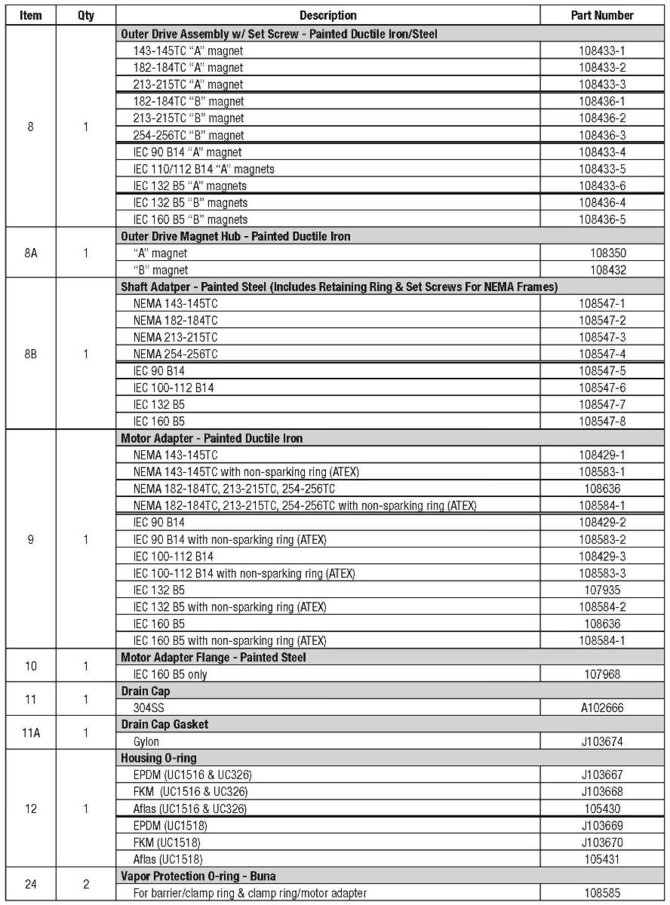

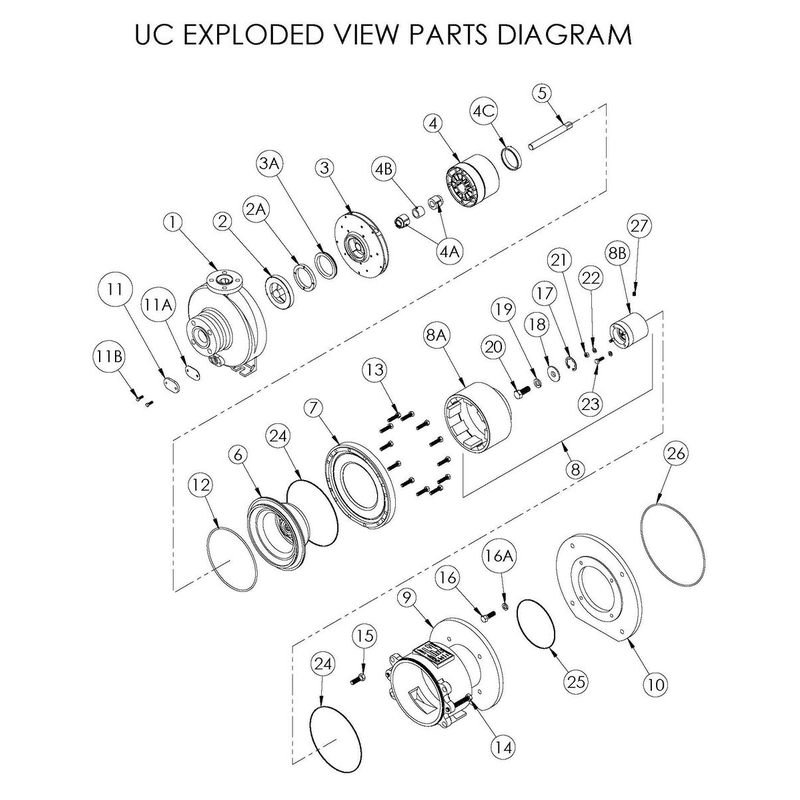

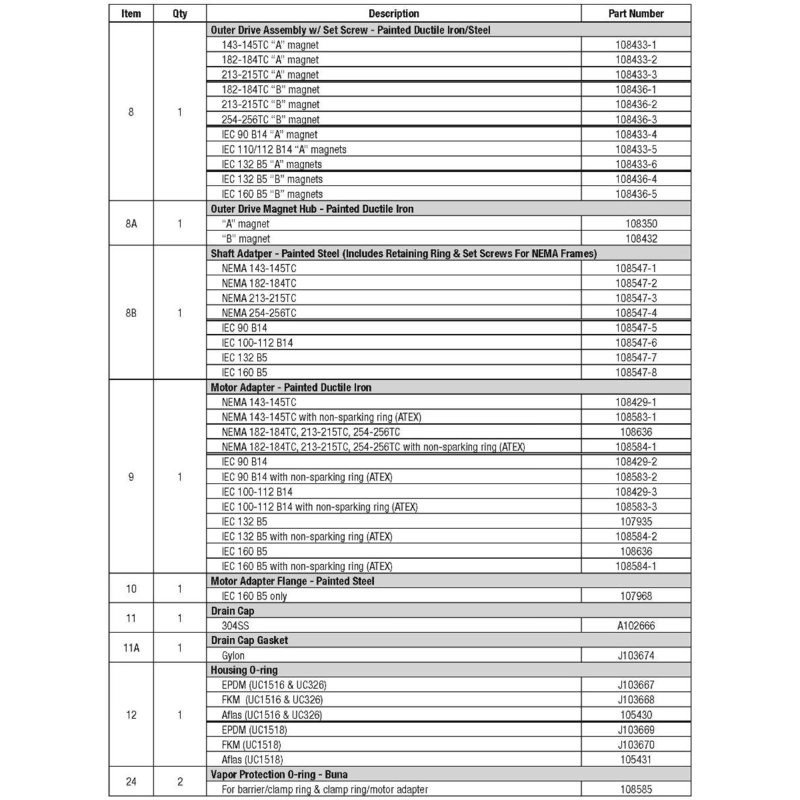

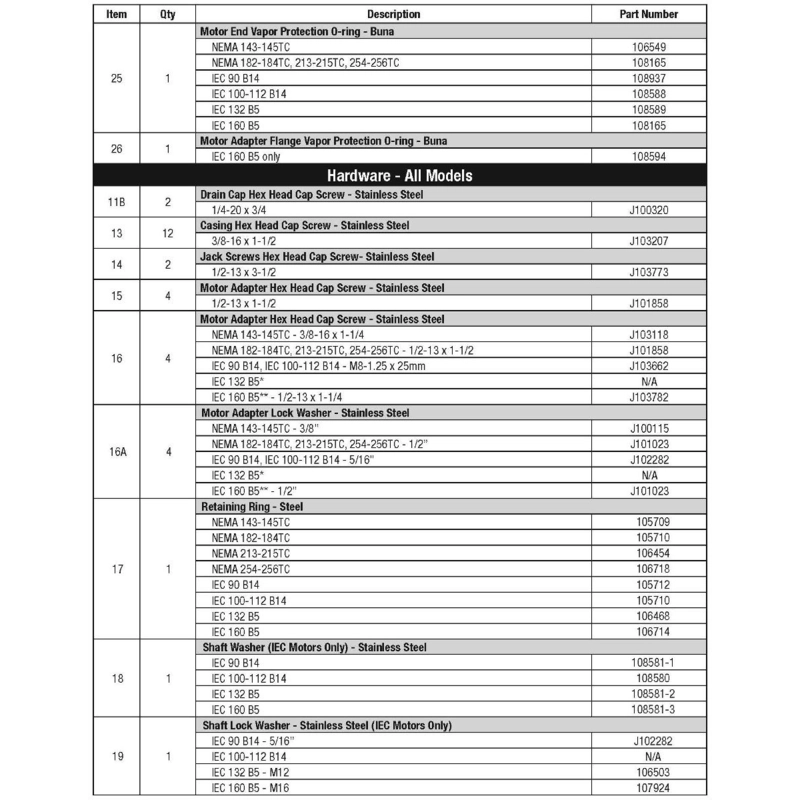

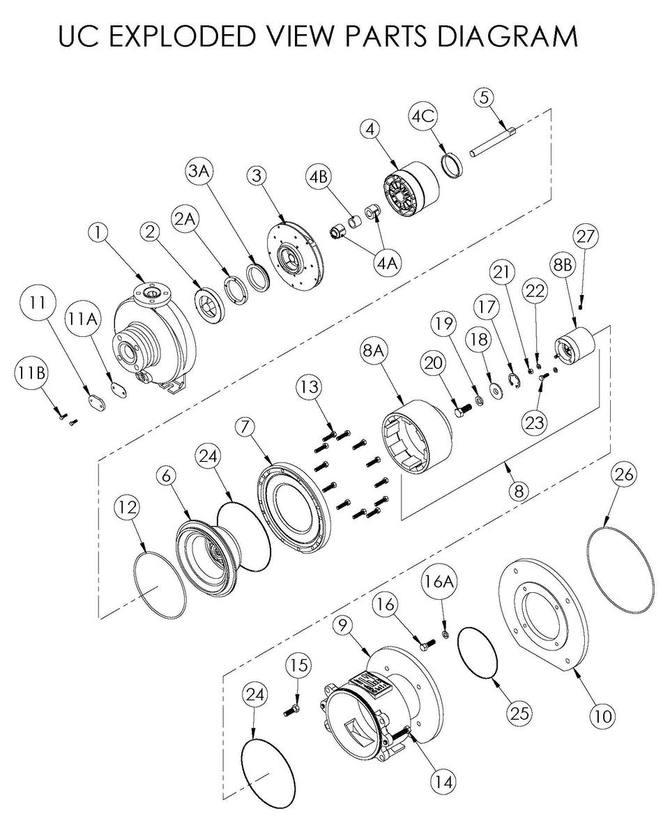

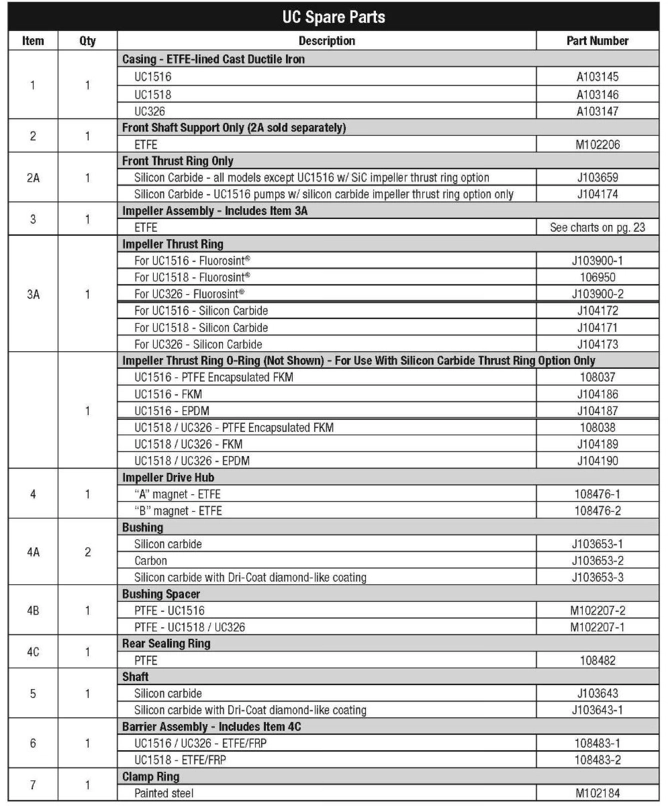

Repair Parts for UC1518BECSSVF637

	shipping	price
A103146	Ships in	$1,531.40	Select item
M102206	Ships in	$82.65	Select item
J103659	Ships in	$288.80	Select item
106950-NEP	Ships in	$11.00	Select item
108476-2	Ships in	$1,351.85	Select item
A103155-1	Ships in	Call for pricing
J103653-1	Ships in	$486.40	Select item
M102207-1	Ships in	$85.50	Select item
J103643	Ships in	$615.60	Select item
108483-2	Ships in	$986.10	Select item
A103152-2	Ships in	Call for pricing
108436-1	Ships in	$1,833.50	Select item
108432	Ships in	$1,127.65	Select item
108547-2	Ships in	$708.70	Select item
J103670	Ships in	$15.98	Select item
108585	Ships in	$12.52	Select item
108165	Ships in	$3.52	Select item
J100320	Ships in	$0.27	Select item
J103207	Ships in	$1.21	Select item
J103773	Ships in	$3.50	Select item
J101858	Ships in	$2.63	Select item
J101858	Ships in	$2.63	Select item
J101023	Ships in	$0.30	Select item
105710	Ships in	$7.60	Select item
J103930	Ships in	$0.57	Select item
J102282	Ships in	$0.10	Select item
J103662	Ships in	$0.54	Select item
110112	Ships in	$1.60	Select item
108952	Ships in	Call for pricing
