UC1518AECSSVF637
Finish Thompson FTI Wet End Assembly UC1518AECSSVF637 Centrifugal Mag Drive, UC Series Heavy Duty, UC1518 ULTRA Chem, 1 1/2" Suction, 1" Discharge, FKM O-Ring, 6.375" Impeller Size, 175 psi, 181 GPM
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
UC1518AECSSVF637
Finish Thompson FTI Wet End Assembly UC1518AECSSVF637 Centrifugal Mag Drive, UC Series Heavy Duty, UC1518 ULTRA Chem, 1 1/2" Suction, 1" Discharge, FKM O-Ring, 6.375" Impeller Size, 175 psi, 181 GPM
| Bushing | SiC |
| Discharge NPT (Inches) | 1" |
| Flange | ANSI 150# |
| Heads To (Feet) | 331 |
| Impeller Size (Inches) | 6.375" (6 3/8") |
| Magnet | to 10hp |
| Maximum Flow (GPM) | 181 |
| Maximum Operating Temperature | 250°F (121 °C) |
| Maximum Pressure (PSI) | 175 PSI (12.1 Bar) |
| Pressure Rating BAR | 12 bar |
| Shaft Seal Material | Silicon Carbide |
| Spec. Gravity | up to 1.8 |
| Suction NPT (Inches) | 1-1/2" |
| Thrust Ring | Fluorosint |
| Valve/Seat/O-Ring | FKM |
UC Heavy Duty Magnetic Drive Centrifugal Pumps Information
| Features & Benefits |
|---|
| UC Pump Series Typical Pumping Applications: • Chemical manufacturing, blending, distribution • Water treatment • Plating and metal finishing • Paper mills • Fume scrubbers • Metals manufacturing • Electronics • Pharmaceuticals • Biodiesel Typical Chamicals: • Sodium hydroxide, sulfuric acid, hydrochloric acid, sodium hypochlorite, plating solutions, corrosive blends, wastewater, solvents |
| General Description |
| UC Heavy Duty Magnetic Drive Centrifugal Pump Capabilities: Casing: ANSI/ASME B73.1m Max. Working Pressure: to 300 psi (20 Bar) Max. Temp.: 250oF (121oC) Max. Viscocity: 200 cP Specific Gravity: over 1.8 Flanges: ANSI or ISO Casing: ANSI/ASME B73.1m Motor Frames: NEMA: 143 through 365 IEC: 90 through 225 |
Categories
Acids
2913 productsAir Scrubbers
128 products
Corrosives
1869 productsManufacturing
20389 productsMining
6084 productsPharmaceutical / Chemical
15972 productsPlating
24408 productsPulp & Paper
6474 productsSewage / Wastewater
20311 productsTank Filling
436 productsWater Treatment
8820 products
| Type | Title | Link | |
|---|---|---|---|
UC Series Pumps Brochure (2022) | View | ||
UC Series Basetek Baseplates Selection Flyer (2022) | View | ||
UC Series SiC Dri Coat Option Flyer (2022) | View | ||
UC Series Repair Cartridges Flyer (2022) | View | ||
Chemical Processing Applications Flyer (2022) | View | ||
UC1518 Centrifugal Chemical Pumps Datasheet (2022) | View | ||
UC Series Baseplates Datasheet (2022) | View | ||
UC Series Basetek Composite Baseplates Datasheet (2022) | View | ||
UC Series Bearing Frame Datasheet (2022) | View | ||
DB, SP, UC, Series M20 Power Monitor Datasheet (2022) | View | ||
UC Series Centrifugal Chemical Pumps Performance Curves (2022) | View | ||
UC Series Below Serial# 125040 Pumps Installation & Operation Manual (2022) | View | ||
UC Series UCI Group Pumps Installation & Operation Manual (2022) | View | ||

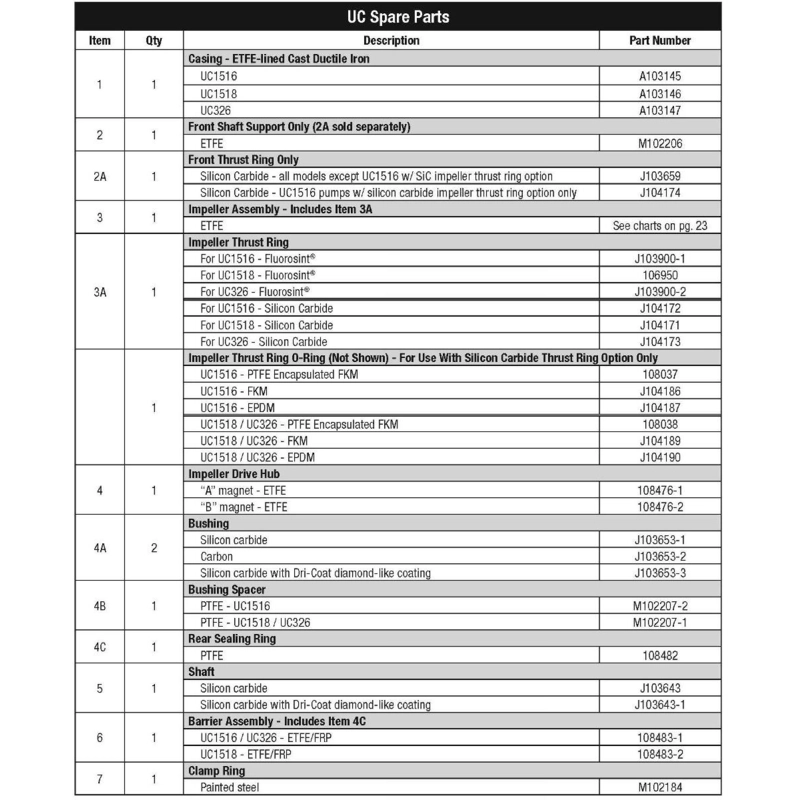

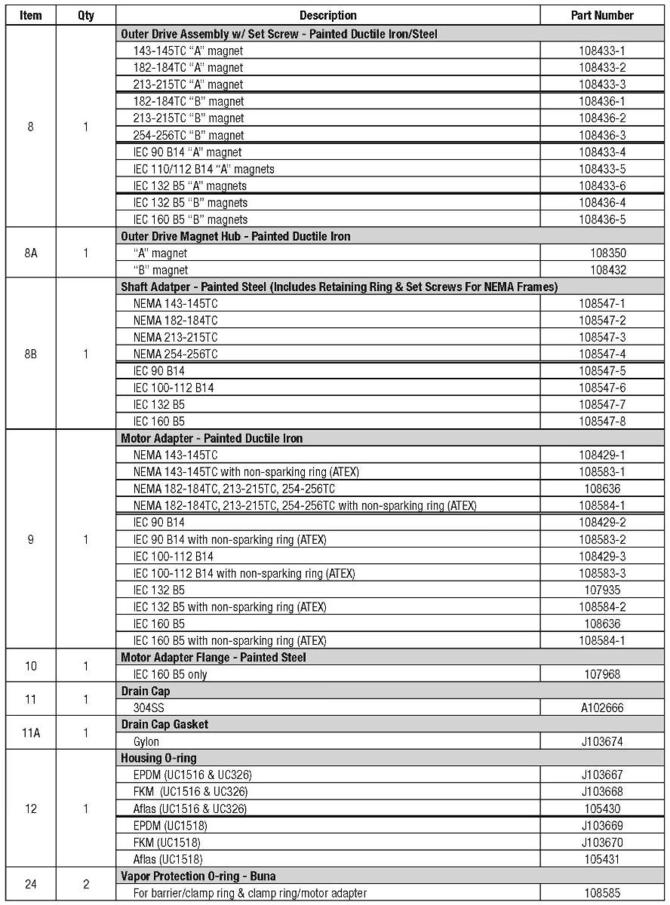

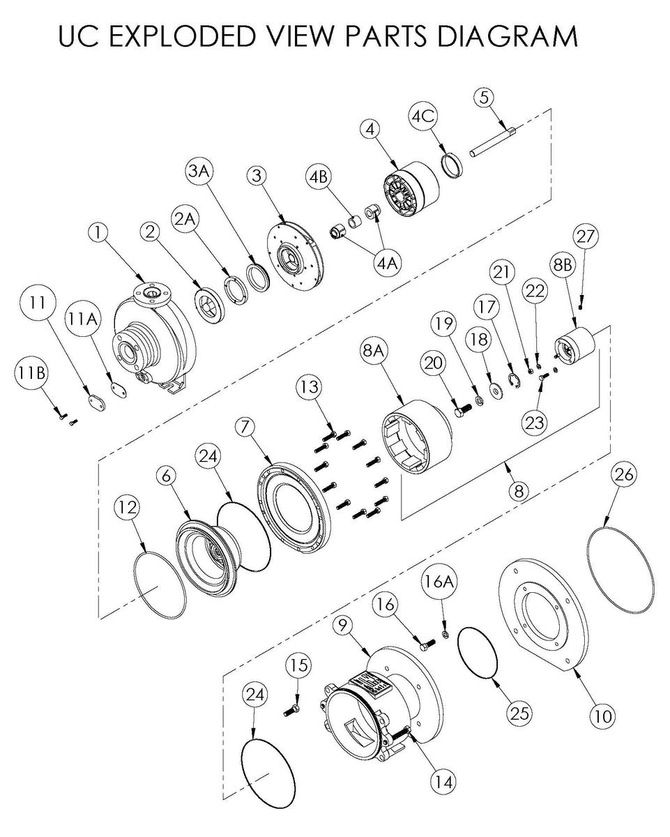

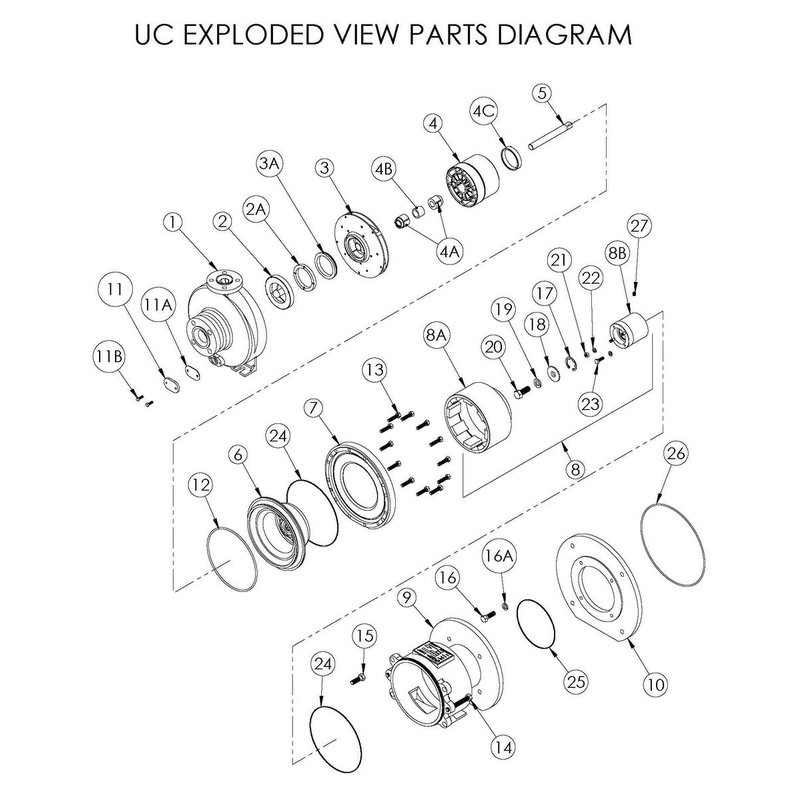

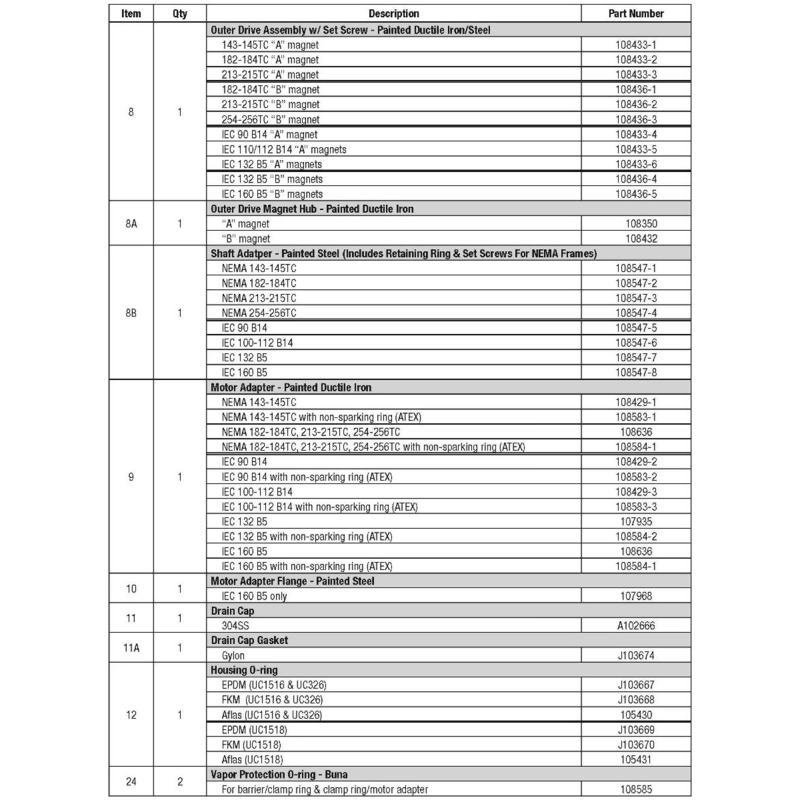

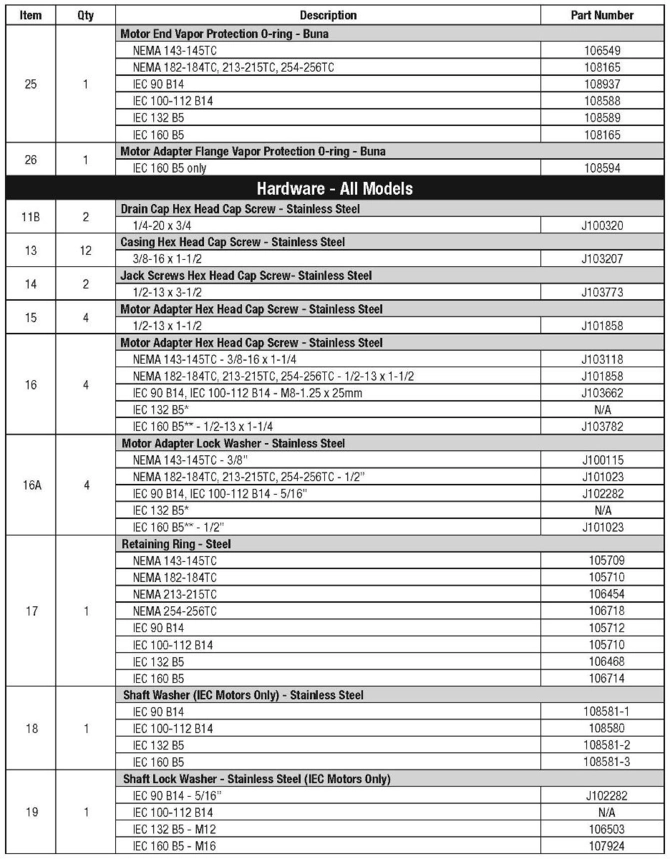

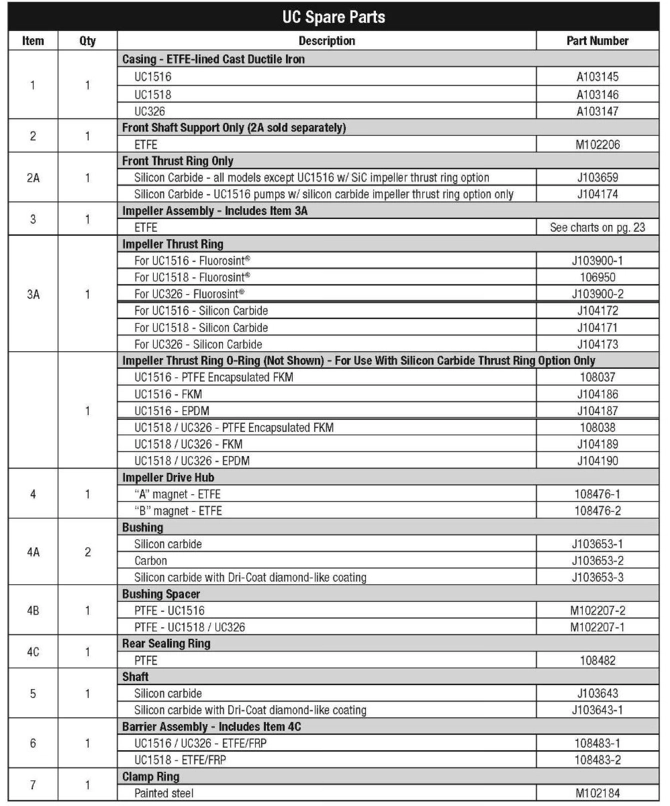

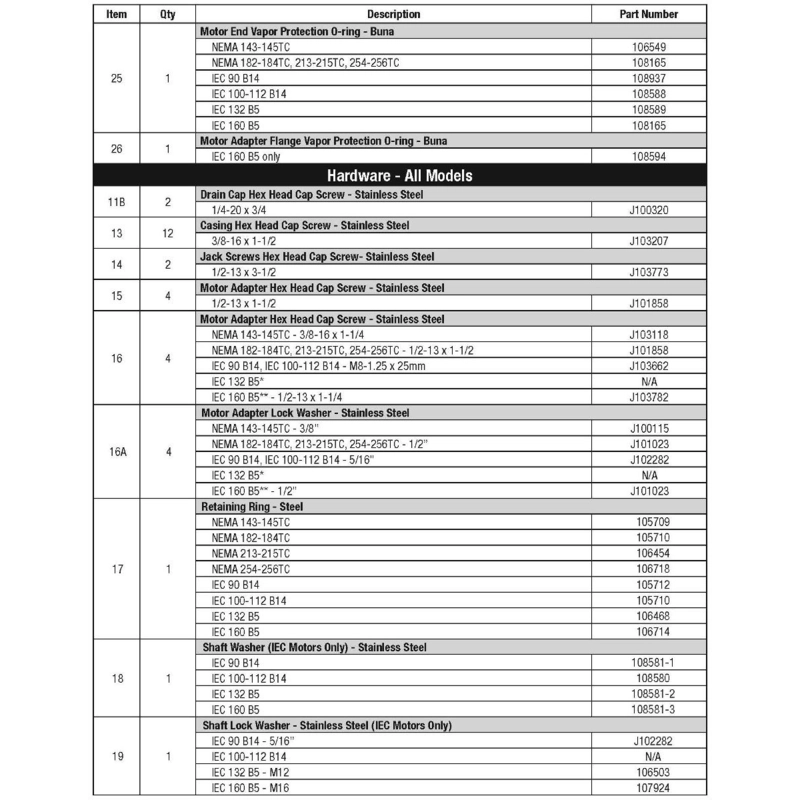

Repair Parts for UC1518AECSSVF637
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | A103146 | Ships in | Call for pricing | ||
| M102206 | Ships in | Call for pricing | ||
| J103659 | Ships in | Call for pricing | ||
 | 106950-NEP | Ships in | $11.00 | ||
| 108476-1 | Ships in 3-5 Days | Call for pricing | ||
| A103155-2 | Ships in | Call for pricing | ||
| J103653-1 | Ships in | Call for pricing | ||
| M102207-1 | Ships in | Call for pricing | ||
| J103643 | Ships in | Call for pricing | ||
| 108483-2 | Ships in | Call for pricing | ||
| A103152-2 | Ships in | Call for pricing | ||
| 108433-2 | Ships in | Call for pricing | ||
 | 108350 | Ships in | $627.95 | ||
| 108547-2 | Ships in | Call for pricing | ||
| J103670 | Ships in | Call for pricing | ||
| 108585 | Ships in | $12.90 | ||
| 108165 | Ships in | $3.80 | ||
| J100320 | Ships in | $0.29 | ||
| J103207 | Ships in | $1.30 | ||
| J103773 | Ships in | Call for pricing | ||
| J101858 | Ships in | $2.83 | ||
| J101858 | Ships in | $2.83 | ||
| J101023 | Ships in | $0.33 | ||
| 105710 | Ships in | $8.19 | ||
| J103930 | Ships in | Call for pricing | ||
| J102282 | Ships in | $0.12 | ||
| J103662 | Ships in | $0.59 | ||
| 110112 | Ships in | Call for pricing | ||
| 108952 | Ships in | Call for pricing | ||
