• Finish Thompson Wet End Assembly UC1516AECSSVF637 Mag Drive Pumps

Image shown may not be actual product

Finish Thompson FTI

UC1516AECSSVF637

0 reviews

Finish Thompson FTI Wet End Assembly UC1516AECSSVF637 Centrifugal Mag Drive, UC Series Heavy Duty, UC1516 ULTRA Chem, 1 1/2" Suction, 1" Discharge, FKM O-Ring, 6.375" Impeller Size, 175 psi, 167 GPM

$2,860.00

Item: UC1516AECSSVF637
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

UC1516AECSSVF637

Finish Thompson FTI Wet End Assembly UC1516AECSSVF637 Centrifugal Mag Drive, UC Series Heavy Duty, UC1516 ULTRA Chem, 1 1/2" Suction, 1" Discharge, FKM O-Ring, 6.375" Impeller Size, 175 psi, 167 GPM

BushingSiC
Discharge NPT (Inches)1"
FlangeANSI 150#
Heads To (Feet)180
Impeller Size (Inches)6.375"
Magnetto 10hp
Maximum Flow (GPM)167
MaxImum Operating Temperature250°F (121°C)
Maximum Pressure (PSI)175 psi
Pressure Rating BAR12 bar
Shaft Seal MaterialSiC
Spec. Gravityup to 1.8
Suction NPT (Inches)1 1/2"
Thrust RingFluorosint
Valve/Seat/O-RingFKM

UC Heavy Duty Magnetic Drive Centrifugal Pumps Information

Features & Benefits
UC Pump Series Typical Pumping Applications:
• Chemical manufacturing, blending, distribution
• Water treatment
• Plating and metal finishing
• Paper mills
• Fume scrubbers
• Metals manufacturing
• Electronics
• Pharmaceuticals
• Biodiesel

Typical Chamicals:
• Sodium hydroxide, sulfuric acid, hydrochloric acid, sodium hypochlorite, plating solutions, corrosive blends, wastewater, solvents
General Description
UC Heavy Duty Magnetic Drive Centrifugal Pump Capabilities:
Casing: ANSI/ASME B73.1m
Max. Working
Pressure: to 300 psi (20 Bar)
Max. Temp.: 250oF (121oC)
Max. Viscocity: 200 cP
Specific Gravity: over 1.8
Flanges: ANSI or ISO
Casing: ANSI/ASME B73.1m
Motor Frames:
NEMA: 143 through 365
IEC: 90 through 225

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

UC Heavy Duty Magnetic Drive Centrifugal Pumps

UC Ultrachem Series Pump Curves

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachecm UC1516 UC1518 UC326 Pump Manual

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachecm UC Pump Manual

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachem Pump Brochure

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachem UC326 Pump Datasheet

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachem UC328 Pump Datasheet

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachem UC436 Pump Datasheet

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

FTI Ultrachem UC438 Pump Datasheet

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachem UC1516 Pump Datasheet

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachem UC1518 Pump Datasheet

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachem UC3158 Pump Datasheet

View

UC Heavy Duty Magnetic Drive Centrifugal Pumps

Ultrachem Series Bearing Frame Option Datasheet

View

Repair Parts for UC1516AECSSVF637

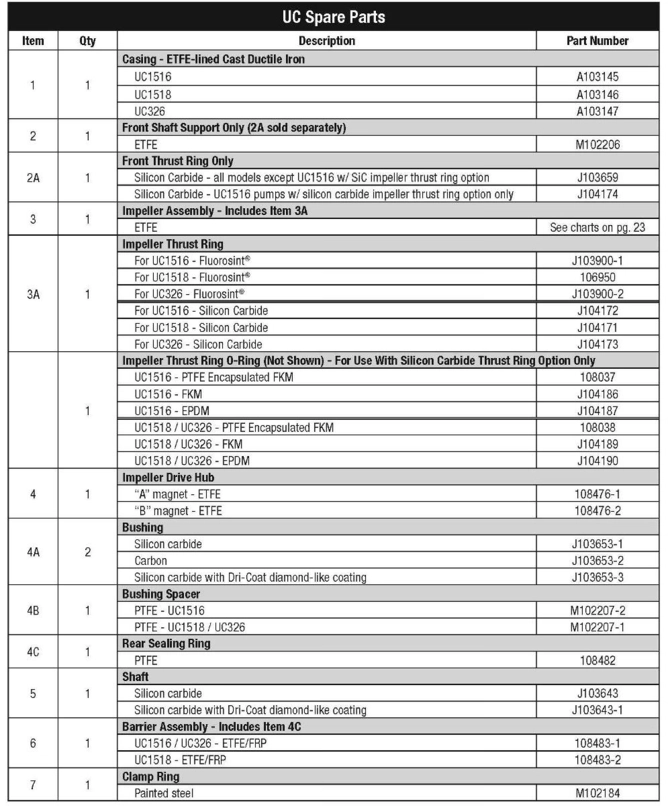

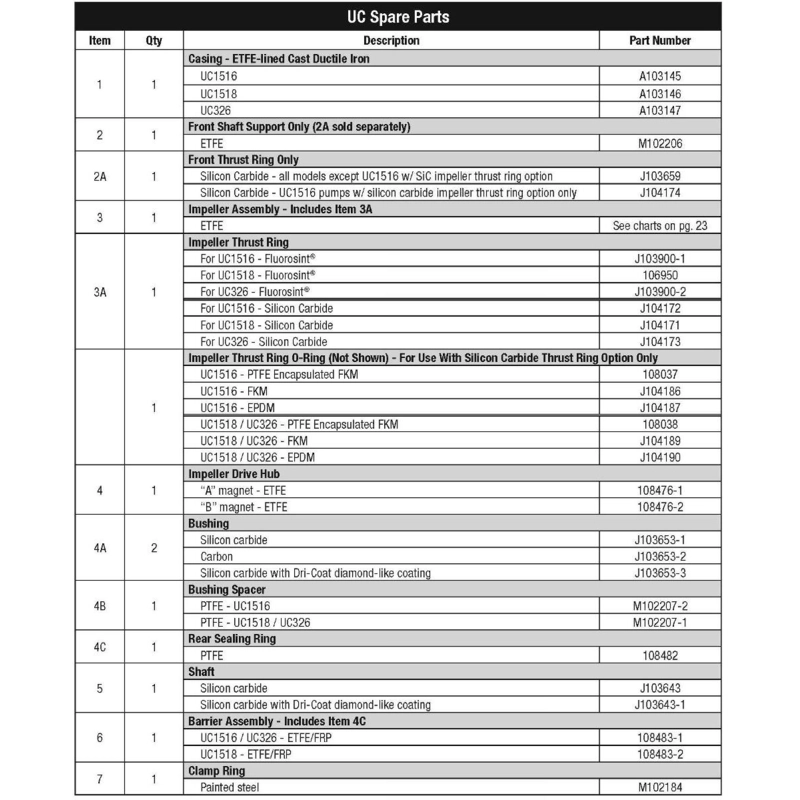

  • FTI-UC1516-UC1518-UC326-Pump-Parts-1.jpg

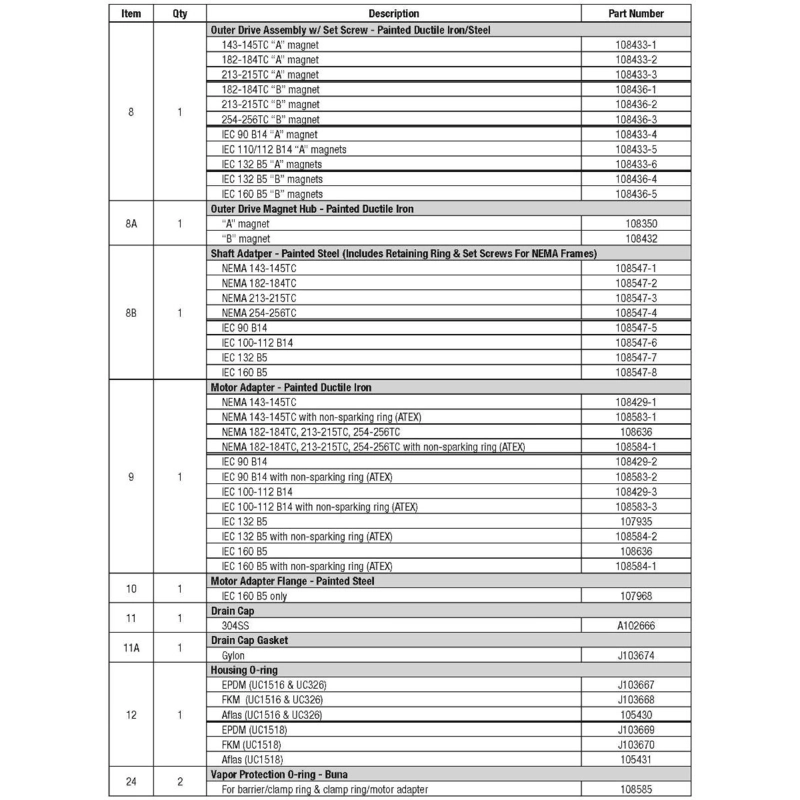

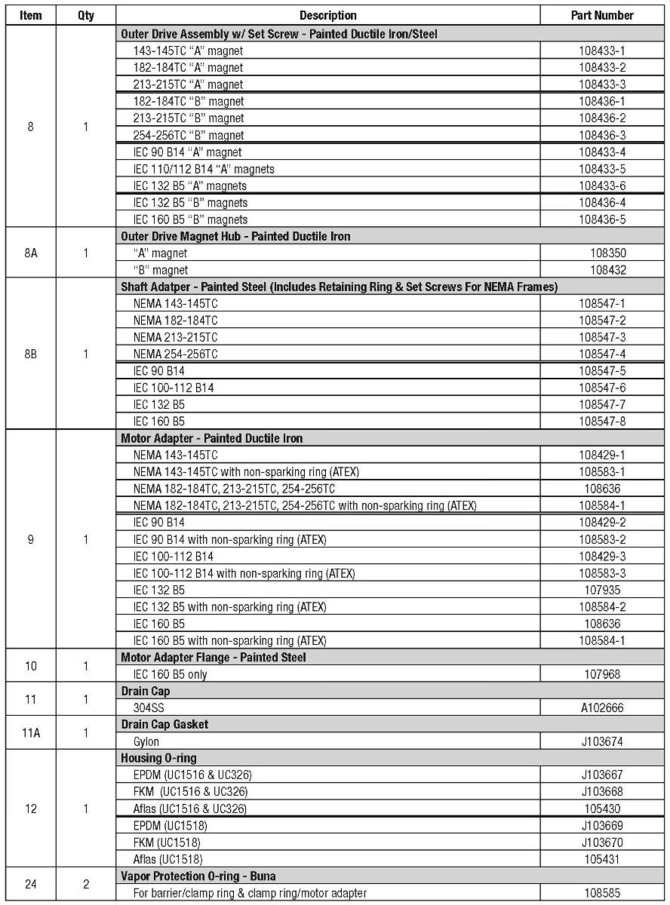

  • FTI-UC1516-UC1518-UC326-Pump-Parts-2.jpg
  • FTI-UC1516-UC1518-UC326-Pump-Parts-3.jpg

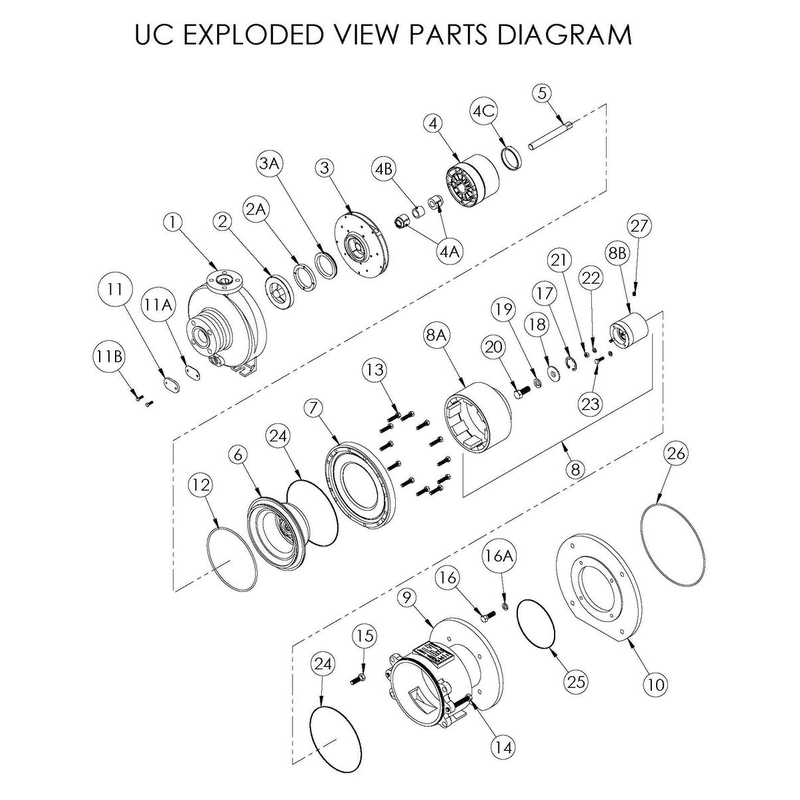

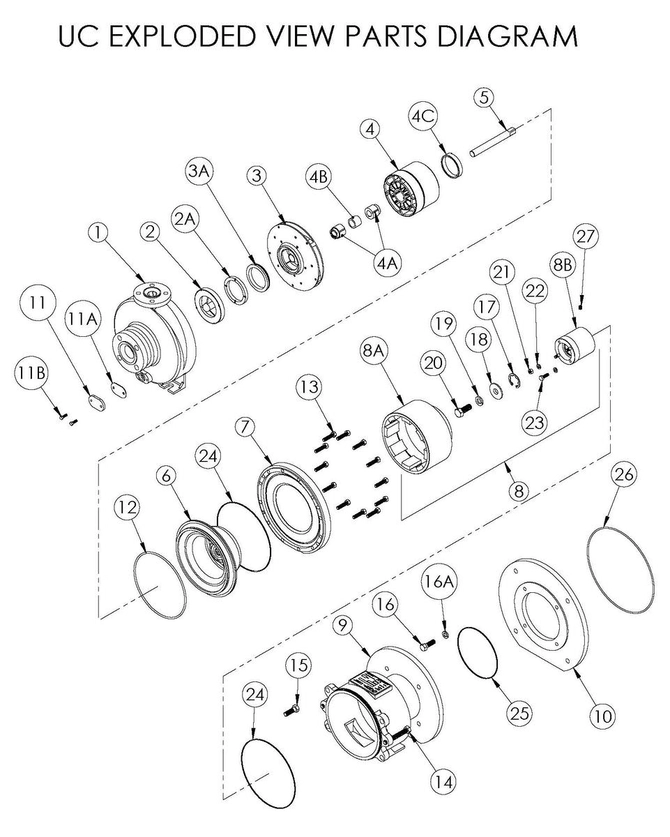

  • FTI-UC1516-UC1518-UC326-Pump-Parts-Exploded-View.jpg
Productqty.shippingprice
A103145

A103145

Ships in $1,027.80
M102206

M102206

Ships in $54.40
J103659

J103659

Ships in $217.80
J103900-1

J103900-1

Ships in $153.00
108476-1

108476-1

Ships in 3-5 DAYS $769.50
A103155-2

A103155-2

Ships in $769.50
J103653-1 Call for Shipping
M102207-2

M102207-2

Ships in $56.00
J103643

J103643

Ships in $466.20
108483-1

108483-1

Ships in $698.40
A103152-1

A103152-1

Ships in $648.90
108433-2

108433-2

Ships in $998.10
108350

108350

Ships in $460.80
108547-2

108547-2

Ships in $537.30
J103668

J103668

Ships in $9.08
108585

108585

Ships in $9.52
108165

108165

Ships in $2.68
J100320

J100320

Ships in $0.20
J103207

J103207

Ships in $0.90
J103773

J103773

Ships in $2.66
J101858

J101858

Ships in $1.87
J101858

J101858

Ships in $1.87
J101023

J101023

Ships in $0.23
105710

105710

Ships in $5.79
J103930

J103930

Ships in $0.43
J102282

J102282

Ships in $0.08
J103662

J103662

Ships in $0.41
110112

110112

Ships in $1.22
108952

108952

Ships in $6.98
