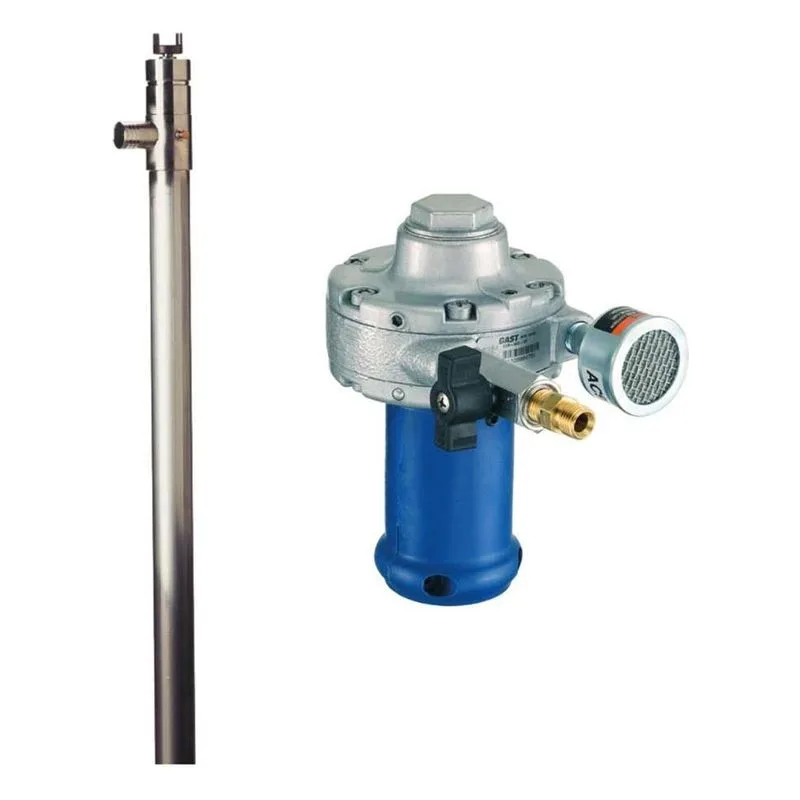

Image shown may not be actual product
TBS-40-M6X
TBS-40-M6X Finish Thompson TB Series Sealed, Lightweight Economy Drum Pump & Motor, FTI DTBS009 & A101125. 15 GPM (57 LPM) Maximum Flow, 16 Feet (4.9m) Max Head, 300-6000 RPM, Air Motor. 40" 316SS Tube, 1" Hose Barb Discharge.
$1,089.60
- Best Price Guarantee!
- 217PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
TBS-40-M6X
TBS-40-M6X Finish Thompson TB Series Sealed, Lightweight Economy Drum Pump & Motor, FTI DTBS009 & A101125. 15 GPM (57 LPM) Maximum Flow, 16 Feet (4.9m) Max Head, 300-6000 RPM, Air Motor. 40" 316SS Tube, 1" Hose Barb Discharge.
| Air Supply Pressure | 80-100 psi @ 15-32 cfm |
| Base Model Number | TBS-40 |
| Certification | CE |
| Discharge Type | 1" Hose Barb |
| Drive Shaft | 316SS |
| Heads To (Feet) | 16 Feet (4.9m) |
| Maximum Flow (GPM) | 15 GPM (57 LPM) |
| Maximum Viscosity (CPS) | 200 cP |
| Model Number | DTBS009 |
| Motor Enclosure Type | Air Motor |
| Output (W) | 600 |
| Part Number | A101125 |
| Product Notes | Lightweight motor. Operates from customer-supplied compressed air source. Variable speed. Muffler and control valve. |
| Spec. Gravity | 1.4 Maximum |
| Speed (RPM) | 300-6000 |
| Tube Diameter | 1.50" |
| Tube Length | 40" |
| Tube Material | 316SS |
TB Sealed Drum Pumps Information
| Features & Benefits |
|---|
| FTI Sealed Drum Pump TB Series Features: Up to 200 cP Interchangeable with motors Pump tube designed to fit smaller bung openings Variable orifice discharge offers greater flow control |
| General Description |
| TBS: Flammables, mild corrosives & chemicals, max temp 150˚F (66˚C) TBP: Corrosive fluids (bleach, nitric acid, HCl, etc.), max temp 150˚F (66˚C) FTI Sealed TB Series Applications: Light acids and bases Solvents bleach Swimming pool chemicals |
| Notes |
| CAUTION: When pumping flammables, use only air or ex-proof electric motors on stainless steel (NO PLASTIC) tubes w/ static protection kit. |
Categories
Acids
2913 productsChemical Delivery / Processing
23876 products
Flammable Liquids
867 products
| Type | Title | Link | |
|---|---|---|---|
FTI Drum Pump Accessories Flyer (2022) | View | ||
FTI Drum Pump Brochure (2022) | View | ||
Drum Pump Flow Meters FM1000 FM2000 FMBC2000 Flyer (2022) | View | ||
Drum Pump Flow Meters FM FMBC3000 Flyer (2022) | View | ||
Chemical Processing Applications Flyer (2022) | View | ||
TBP TBS Sealed Drum Pumps Datasheet | View | ||
TB Series Drum Pumps Motors Datasheet (2022) | View | ||
Drum Pump Nozzles Datasheet (2022) | View | ||
TB Series Drum Pumps Parts Manual | View | ||
TBP Series Drum Pumps Parts Manual | View | ||
M Series Drum Pump Air Motors Operation Parts Manual (2022) | View | ||
TBS Series Drum Pumps Operation Parts Manual (2022) | View | ||
M6 FTI PF Drum Pump Motor Exploded View | View | ||
DTBS009 FTI TB Drum Pump Repair Parts Exploded View | View | ||
