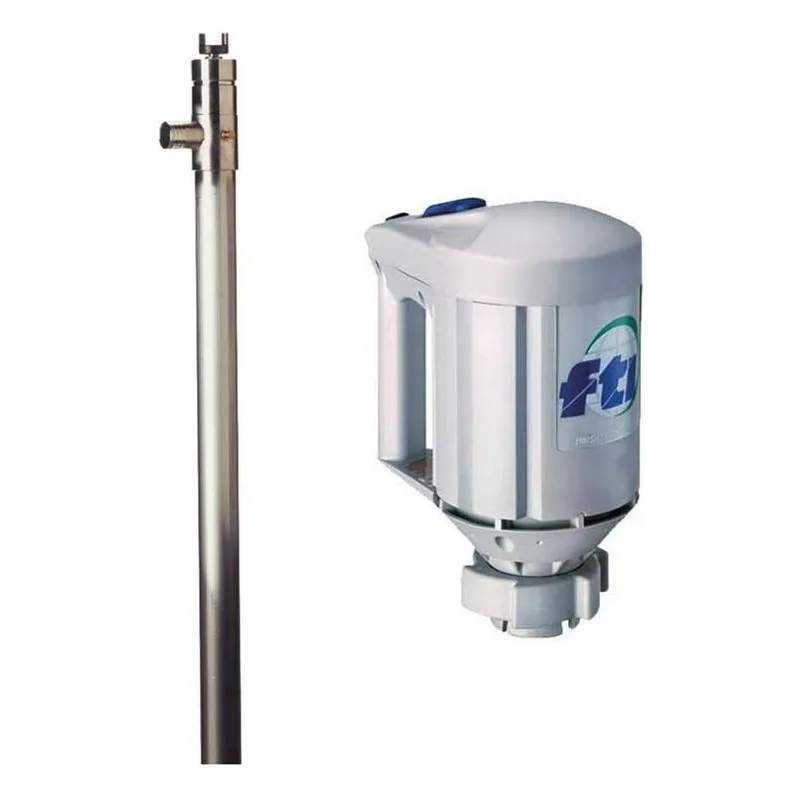

Image shown may not be actual product
TBS-40-M5V
TBS-40-M5V Finish Thompson TB Series Sealed, Lightweight Economy Drum Pump & Motor, FTI DTBS009 & 106658. 20 GPM (75.7 LPM) Maximum Flow, 28 Feet (8.53m) Max Head, 230 Volt, 50-60 Hz, 1 Ph (Single Phase), 3500-10000 RPM, ODP - Open Drip Proof Motor. 40" 316SS Tube, 1" Hose Barb Discharge.
$1,072.00
- Best Price Guarantee!
- 214PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
TBS-40-M5V
TBS-40-M5V Finish Thompson TB Series Sealed, Lightweight Economy Drum Pump & Motor, FTI DTBS009 & 106658. 20 GPM (75.7 LPM) Maximum Flow, 28 Feet (8.53m) Max Head, 230 Volt, 50-60 Hz, 1 Ph (Single Phase), 3500-10000 RPM, ODP - Open Drip Proof Motor. 40" 316SS Tube, 1" Hose Barb Discharge.
| Base Model Number | TBS-40 |
| Certification | CE |
| Discharge Type | 1" Hose Barb |
| Drive Shaft | 316SS |
| Full Load Amp (FLA) | 2.7 |
| Heads To (Feet) | 28 Feet (8.53m) |
| Hz | 50/60 |
| Input (W) | 650 |
| Maximum Flow (GPM) | 20 GPM (75.7 LPM) |
| Maximum Viscosity (CPS) | 200 cP |
| Model Number | DTBS009 |
| Motor Enclosure Type | ODP - Open Drip Proof |
| Output (W) | 400 |
| Part Number | 106658 |
| Phase | 1 Ph (Single Phase) |
| Product Notes | Motor quick connects to pump without tools. Downdraft cooling system and double wall housing. Continuous duty, variable speed. 12 ft. (3.5 m) cord with integral circuit breaker. |
| Spec. Gravity | 1.4 Maximum |
| Speed (RPM) | 3500-10000 |
| Tube Diameter | 1.50" |
| Tube Length | 40" |
| Tube Material | 316SS |
| Voltage | 230 |
TB Sealed Drum Pumps Information
| Features & Benefits |
|---|
| FTI Sealed Drum Pump TB Series Features: Up to 200 cP Interchangeable with motors Pump tube designed to fit smaller bung openings Variable orifice discharge offers greater flow control |
| General Description |
| TBS: Flammables, mild corrosives & chemicals, max temp 150˚F (66˚C) TBP: Corrosive fluids (bleach, nitric acid, HCl, etc.), max temp 150˚F (66˚C) FTI Sealed TB Series Applications: Light acids and bases Solvents bleach Swimming pool chemicals |
| Notes |
| CAUTION: When pumping flammables, use only air or ex-proof electric motors on stainless steel (NO PLASTIC) tubes w/ static protection kit. |
