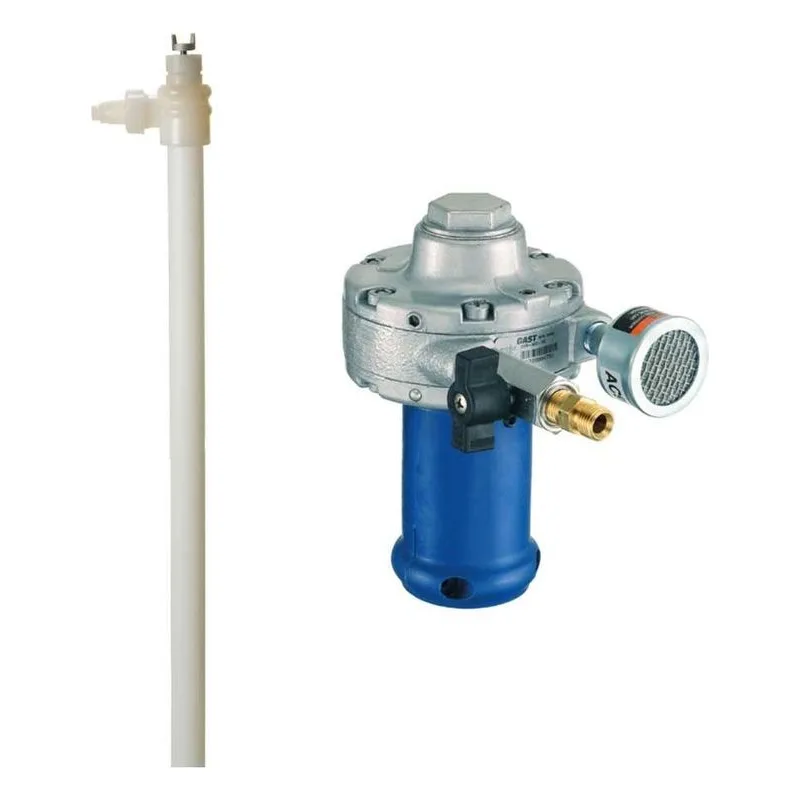

Image shown may not be actual product
TBP-27-M6X
TBP-27-M6X Finish Thompson TB Series Sealed, Lightweight Economy Drum Pump & Motor, FTI DTBP001 & A101125. 12.5 GPM (47.3 LPM) Maximum Flow, 19 Feet (5.8m) Max Head, 300-6000 RPM, Air Motor. 27" Pure PVDF/ Polypropylene Tube, 1" Hose Barb Discharge, FKM O-Ring.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
TBP-27-M6X
TBP-27-M6X Finish Thompson TB Series Sealed, Lightweight Economy Drum Pump & Motor, FTI DTBP001 & A101125. 12.5 GPM (47.3 LPM) Maximum Flow, 19 Feet (5.8m) Max Head, 300-6000 RPM, Air Motor. 27" Pure PVDF/ Polypropylene Tube, 1" Hose Barb Discharge, FKM O-Ring.
| Air Supply Pressure | 80-100 psi @ 15-32 cfm |
| Base Model Number | TBP-27 |
| Certification | CE |
| Discharge Type | 1" Hose Barb |
| Drive Shaft | Alloy 625 |
| Heads To (Feet) | 19 Feet (5.8m) |
| Maximum Flow (GPM) | 12.5 GPM (47.3 LPM) |
| Maximum Viscosity (CPS) | 200 cP |
| Model Number | DTBP001 |
| Motor Enclosure Type | Air Motor |
| Output (W) | 600 |
| Part Number | A101125 |
| Product Notes | Lightweight motor. Operates from customer-supplied compressed air source. Variable speed. Muffler and control valve. |
| Spec. Gravity | 1.4 Maximum |
| Speed (RPM) | 300-6000 |
| Tube Diameter | 1.66" |
| Tube Length | 27" |
| Tube Material | Pure PVDF/ Polypropylene |
| Valve / Seat / O-Ring | FKM O-Ring |
TB Sealed Drum Pumps Information
| Features & Benefits |
|---|
| FTI Sealed Drum Pump TB Series Features: Up to 200 cP Interchangeable with motors Pump tube designed to fit smaller bung openings Variable orifice discharge offers greater flow control |
| General Description |
| TBS: Flammables, mild corrosives & chemicals, max temp 150˚F (66˚C) TBP: Corrosive fluids (bleach, nitric acid, HCl, etc.), max temp 150˚F (66˚C) FTI Sealed TB Series Applications: Light acids and bases Solvents bleach Swimming pool chemicals |
| Notes |
| CAUTION: When pumping flammables, use only air or ex-proof electric motors on stainless steel (NO PLASTIC) tubes w/ static protection kit. |
Categories
Acids
2913 productsChemical Delivery / Processing
23876 products
Flammable Liquids
867 products
| Type | Title | Link | |
|---|---|---|---|
FTI Drum Pump Accessories Flyer (2022) | View | ||
FTI Drum Pump Brochure (2022) | View | ||
Drum Pump Flow Meters FM1000 FM2000 FMBC2000 Flyer (2022) | View | ||
Drum Pump Flow Meters FM FMBC3000 Flyer (2022) | View | ||
Chemical Processing Applications Flyer (2022) | View | ||
TBP TBS Sealed Drum Pumps Datasheet | View | ||
TB Series Drum Pumps Motors Datasheet (2022) | View | ||
Drum Pump Nozzles Datasheet (2022) | View | ||
TB Series Drum Pumps Parts Manual | View | ||
TBP Series Drum Pumps Parts Manual | View | ||
M Series Drum Pump Air Motors Operation Parts Manual (2022) | View | ||
TBP Series Drum Pumps Operation Parts Manual (2022) | View | ||
M6 FTI PF Drum Pump Motor Exploded View | View | ||
DTBP001 FTI TB Drum Pump Repair Parts Exploded View | View | ||
