SP22V-M406 Pump Finish Thompson Magnetic Drive SP22

Features & Benefits
SP Sealless Self Priming Centrifufal Pumps Features & Capabilities: + Self-priming, magnetic drive + Five-year warranty + Provides up to 25 ft. (7.6 m) lift or equivalent + Primes 15 ft. (4.6 m) in < 2 minutes with maximum diameter impeller + Retains fluid for re-priming when shut off without a check valve + Extended run dry ability (with carbon bushing) + High operating efficiency + Polypropylene or PVDF construction + Powerful neodymium magnets + Close-coupled design + Threaded (NPT or BSP), union or flange connections + Back pullout design + Mounts to NEMA and (B5 & B14) IEC motor frames + Easy set measurement free drive + ISO 1940 G2.5 balancing + CE certified + High working pressure up to 80 psi (5.5 bar) + Specific gravity over 1.8 + Polypropylene—180o F (82o C) + PVDF—220o F (104o C)
General Description
FTI SP Series Applications: + Rail cars + Tanker trucks + Tanks with an opening on top + Bulk storage to day or process tank transfer + Sumps and reservoirs + Below grade storage tanks + Over-the-wall applications + When run-dry protection is needed + and many more!

Bushing	Carbon
Connection Type	NPT
Discharge NPT (Inches)	2"
Heads To (Feet)	175
HP	5
Hz	60
Impeller Size (Inches)	7"
Magnet	8-pole
Material	PVDF
Maximum Flow (GPM)	253
Maximum Operating Temperature	220°F (104°C)

Type	Title		Link
	DB, SP, MSDB Series Pumps Brochure (2022)		View
	Chemical Processing Applications Flyer (2022)		View
	SP22 Series Pumps Datasheet (2022)		View
	DB & SP Series Baseplates Datasheet (2022)		View
	DB, SP, UC, Series M20 Power Monitor Datasheet (2022)		View
	SP Series Sealless Self Prime Pumps Performance Curves (2022)		View
	SP22 Series Pumps Installation & Operation Manual (2022)		View

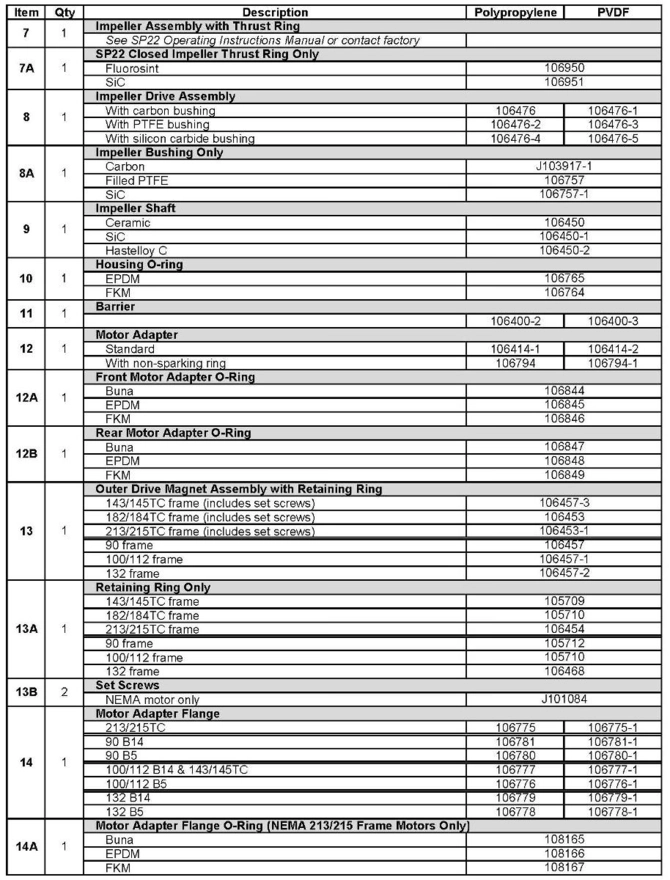

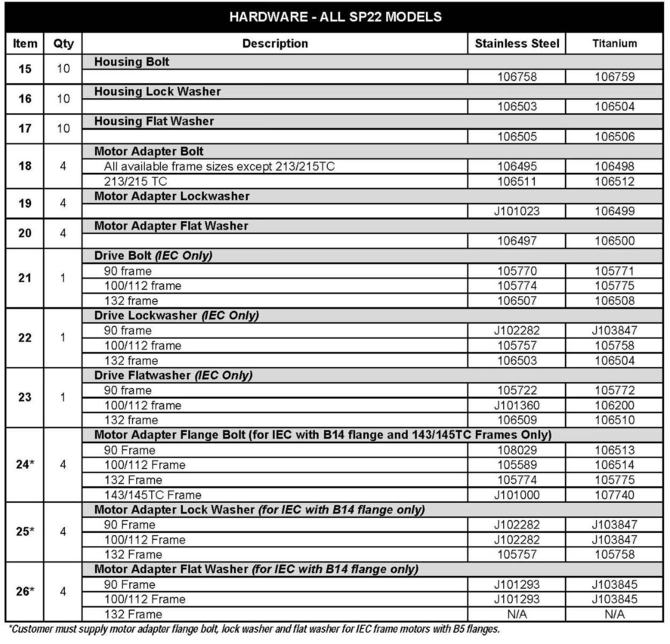

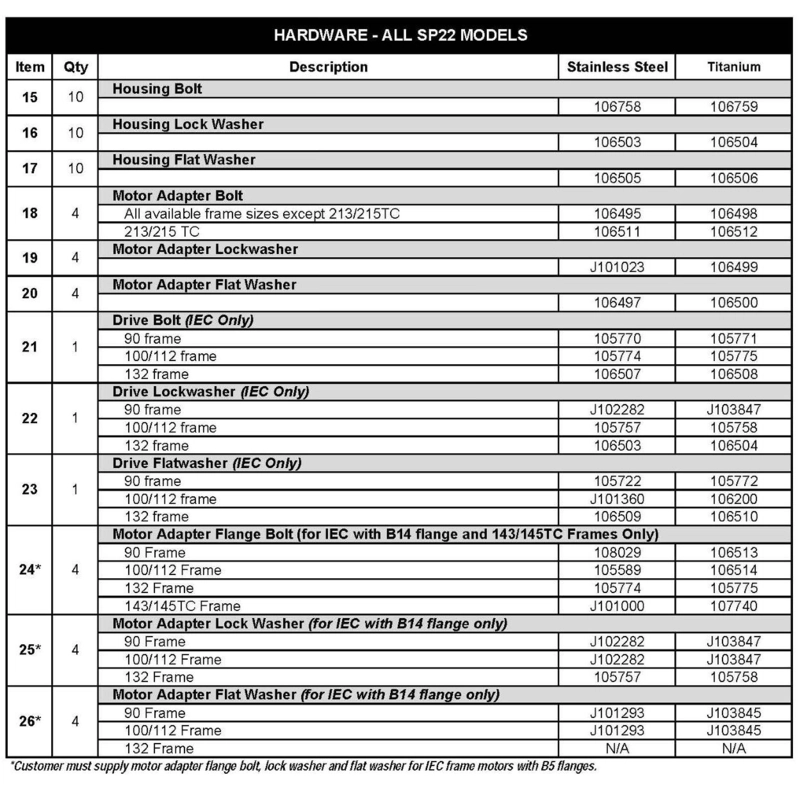

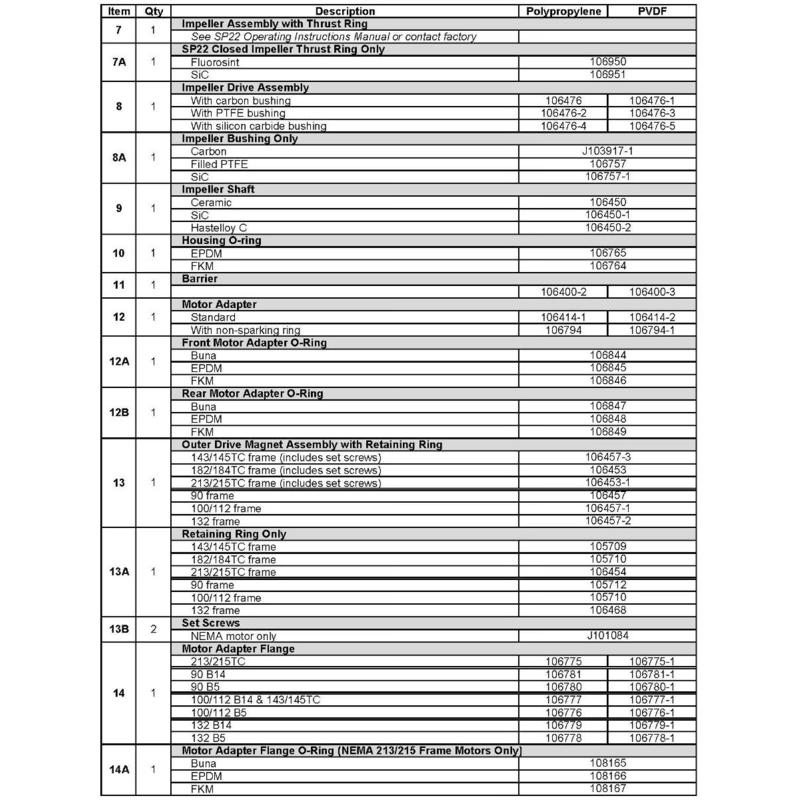

	shipping	price
106437-1	Ships in	$2,812.95	Select item
106143-1	Ships in	$76.00	Select item
106155	Ships in	$0.37	Select item
105083	Ships in	$5.10	Select item
106770	Ships in	$7.94	Select item
106438-1	Ships in	$200.45	Select item
107458	Ships in	$23.75	Select item
107457	Ships in	$10.86	Select item
106476-1	Ships in	$1,943.70	Select item
J103917-1	Ships in	$302.10	Select item
106764	Ships in	$23.75	Select item
106400-3	Ships in	$745.75	Select item
106414-2	Ships in	$581.40	Select item
106846-NEP	Ships in	$50.00	Select item
106849-NEP	Ships in	$14.00	Select item
106453-NEP	Ships in	$24.00	Select item
105710	Ships in	$7.60	Select item
J101084	Ships in	$1.21	Select item
108167	Ships in	$10.35	Select item
106759	Ships in	$289.75	Select item
106504-FTI	Ships in	$58.90	Select item
106506-FTI	Ships in	$21.85	Select item
106498-FTI	Ships in	$115.90	Select item
106499-FTI	Ships in	$26.60	Select item
106500-FTI	Ships in	$100.70	Select item

SP22V-M406
