• Finish Thompson SP22P-W Self Priming Pump

Image shown may not be actual product

Finish Thompson FTI

SP22P-W

0 reviews

Finish Thompson SP22P-W Wet End FTI SP22 Magnetic Drive Centrifugal, SP Series Self-Priming Sealless Pumps, 2" Suction, 2" Discharge, FKM O-Ring, Polypropylene, 253 GPM, 90 PSI Max Pressure, 175 Max Feet of Head

$2,112.00

Item: SP22P-W
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

SP22P-W

Finish Thompson SP22P-W Wet End FTI SP22 Magnetic Drive Centrifugal, SP Series Self-Priming Sealless Pumps, 2" Suction, 2" Discharge, FKM O-Ring, Polypropylene, 253 GPM, 90 PSI Max Pressure, 175 Max Feet of Head

BushingCarbon
Connection TypeNPT
Discharge NPT (Inches)2"
Heads To (Feet)175
Impeller Size (Inches)7.00"
Magnet8-pole
MaterialPolypropylene
Maximum Flow (GPM)253
MaxImum Operating Temperature180°F (82°C)
Maximum Pressure (PSI)90 PSI
Motor Frame Size 184TC
Pressure Rating BAR6.2 bar
Spec. Gravityup to 1.8
Suction NPT (Inches)2"
Valve/Seat/O-RingFKM

SP Sealless Self Priming Mag Drive Centrifugal Pumps Information

Features & Benefits
SP Sealless Self Priming Centrifufal Pumps Features & Capabilities:
+ Self-priming, magnetic drive
+ Five-year warranty
+ Provides up to 25 ft. (7.6 m) lift or equivalent
+ Primes 15 ft. (4.6 m) in < 2 minutes with maximum diameter impeller
+ Retains fluid for re-priming when shut off without a check valve
+ Extended run dry ability (with carbon bushing)
+ High operating efficiency
+ Polypropylene or PVDF construction
+ Powerful neodymium magnets
+ Close-coupled design
+ Threaded (NPT or BSP), union or flange connections
+ Back pullout design
+ Mounts to NEMA and (B5 & B14) IEC motor frames
+ Easy set measurement free drive
+ ISO 1940 G2.5 balancing
+ CE certified
+ High working pressure up to 80 psi (5.5 bar)
+ Specific gravity over 1.8
+ Polypropylene—180o F (82o C)
+ PVDF—220o F (104o C)
General Description
FTI SP Series Applications:
+ Rail cars
+ Tanker trucks
+ Tanks with an opening on top
+ Bulk storage to day or process tank transfer
+ Sumps and reservoirs
+ Below grade storage tanks
+ Over-the-wall applications
+ When run-dry protection is needed
+ and many more!

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

SP Sealless Self Priming Mag Drive Centrifugal Pumps

DB SP Magnetic Drive Pumps Brochure

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP Series Pump Curves

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

DB SP Series Pump Baseplates

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP Series Pump Dimensions

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP10 Series Pumps Manual

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP11 SP15 Series Pumps Manual

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP22 Series Pumps Manual

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP Series SP10 Pump Datasheet

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP Series SP11 Self Priming Centrifugal Pump Datasheet

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP Series SP15 Pump Datasheet

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP Series SP22 Pump Datasheet

View

Repair Parts for SP22P-W

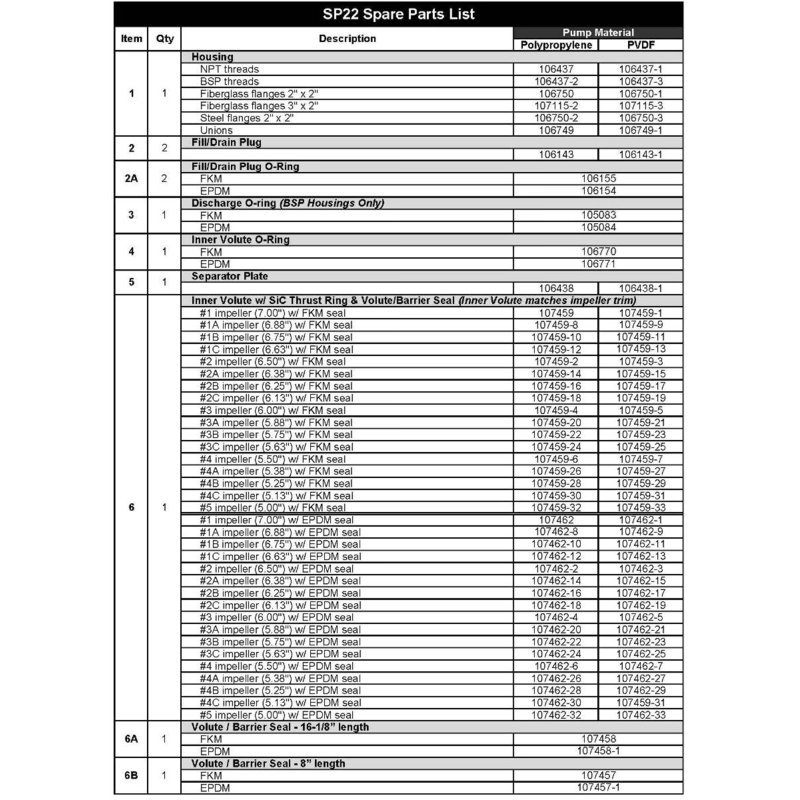

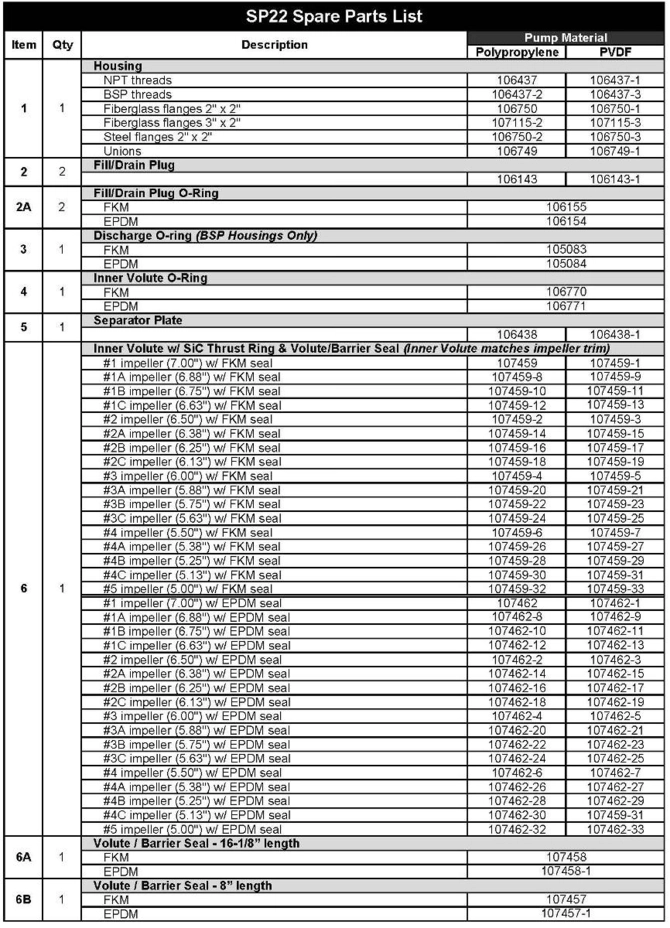

  • Finish-Thompson-FTI-SP22-Pump-Parts-1.jpg
  • Finish-Thompson-FTI-SP22-Pump-Parts-2.jpg
  • Finish-Thompson-FTI-SP22-Pump-Parts-3.jpg

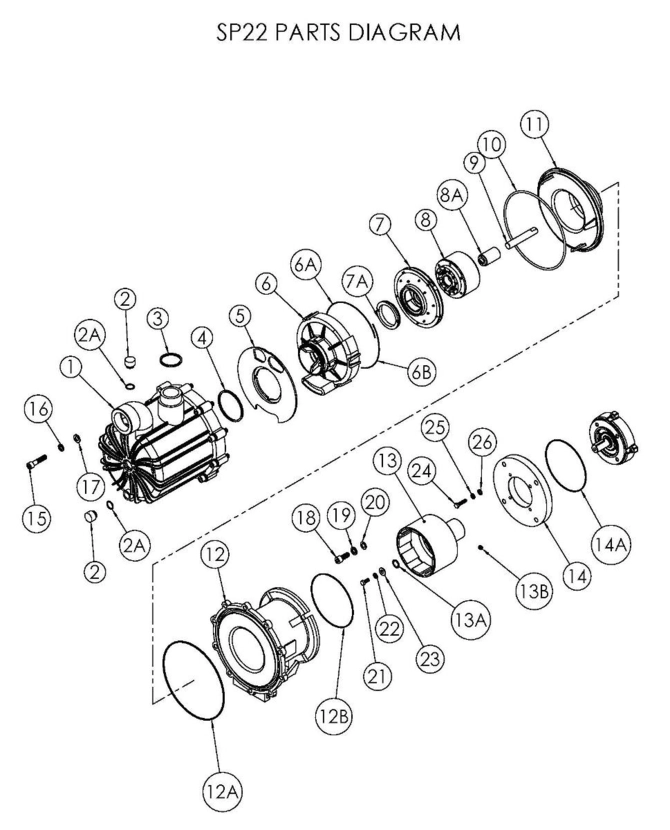

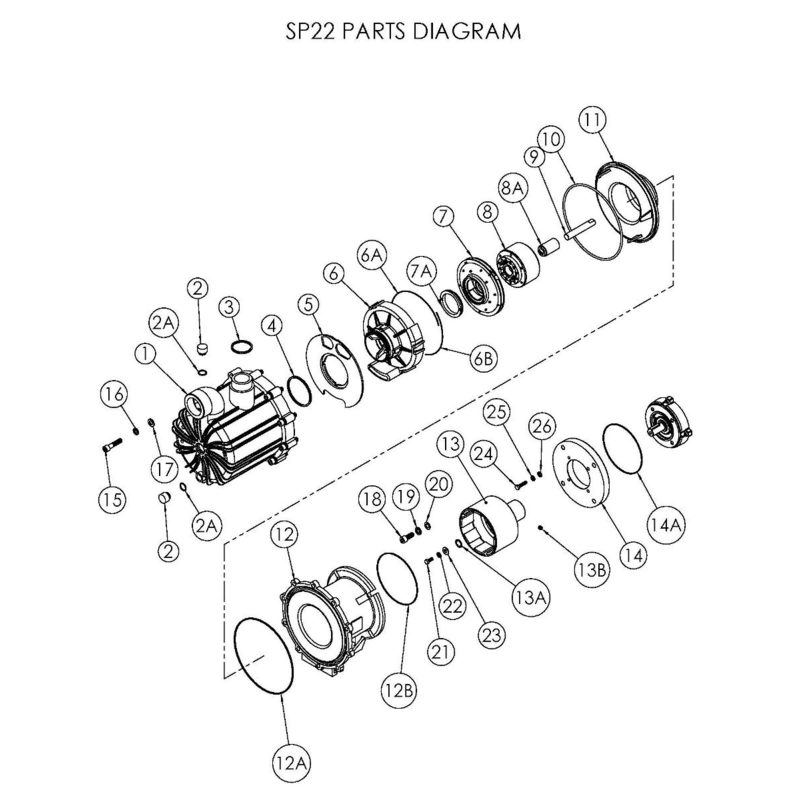

  • Finish-Thompson-FTI-SP22-Pump-Parts-Exploded-View.jpg
Productqty.shippingprice
106437

106437

Ships in $793.80
106143

106143

Ships in $22.50
106155

106155

Ships in $0.28
105083

105083

Ships in $3.88
106770

106770

Ships in $6.04
106438

106438

Ships in $70.20
107458

107458

Ships in $16.61
107457

107457

Ships in $8.25
106476

106476

Ships in $1,247.40
J103917-1

J103917-1

Ships in $227.70
106764

106764

Ships in $11.74
106400-2

106400-2

Ships in $257.40
106414-1

106414-1

Ships in $440.10
106846

106846

Ships in $8.52
106849

106849

Ships in $5.54
106453

106453

Ships in $864.00
105710

105710

Ships in $5.79
J101084

J101084

Ships in $0.86
108167

108167

Ships in $7.53
106759

106759

Ships in $218.70
106504

106504

Ships in $43.20
106506

106506

Ships in $15.44
106498

106498

Ships in $86.40
106499

106499

Ships in $18.00
106500

106500

Ships in $74.70
