Finish Thompson SP22P-M514 Pump, FTI SP22 Magnetic Drive Centrifugal SP Series Self-Priming Sealless Pumps, 7 1/2 HP, 208-230/460 Volt, 60 HZ, 3 Phase, 2" Suction, 2" Discharge, FKM O-Ring, Polypropylene, 253 GPM, 90 PSI, 175 Feet of Head. To Order, See Complete Model Number SP22P-NS-M514 Below in Related Items.
Finish Thompson SP22P-M514 Pump, FTI SP22 Magnetic Drive Centrifugal SP Series Self-Priming Sealless Pumps, 7 1/2 HP, 208-230/460 Volt, 60 HZ, 3 Phase, 2" Suction, 2" Discharge, FKM O-Ring, Polypropylene, 253 GPM, 90 PSI, 175 Feet of Head. To Order, See Complete Model Number SP22P-NS-M514 Below in Related Items.
Bushing | Carbon |
Connection Type | NPT |
Discharge NPT (Inches) | 2" |
Heads To (Feet) | 175 |
HP | 7 1/2 |
Hz | 60 |
Impeller Size (Inches) | 7" |
Magnet | 8-pole |
Material | Polypropylene (PPG) |
Maximum Flow (GPM) | 253 |
Maximum Operating Temperature | 180°F (82°C) |
Maximum Pressure (PSI) | 90 PSI |
Motor Frame Size | 184TC |
Phase | 3 |
Pressure Rating BAR | 6.2 bar |
Product Notes | See Correct Model SP22P-NS-M514 Below to Order This Pump. |
Spec. Gravity | up to 1.8 |
Speed (RPM) | 3450 |
Suction NPT (Inches) | 2" |
Valve/Seat/O-Ring | FKM |
Voltage | 208/230/460 |
Features & Benefits |
---|
SP Sealless Self Priming Centrifufal Pumps Features & Capabilities: + Self-priming, magnetic drive + Five-year warranty + Provides up to 25 ft. (7.6 m) lift or equivalent + Primes 15 ft. (4.6 m) in < 2 minutes with maximum diameter impeller + Retains fluid for re-priming when shut off without a check valve + Extended run dry ability (with carbon bushing) + High operating efficiency + Polypropylene or PVDF construction + Powerful neodymium magnets + Close-coupled design + Threaded (NPT or BSP), union or flange connections + Back pullout design + Mounts to NEMA and (B5 & B14) IEC motor frames + Easy set measurement free drive + ISO 1940 G2.5 balancing + CE certified + High working pressure up to 80 psi (5.5 bar) + Specific gravity over 1.8 + Polypropylene—180o F (82o C) + PVDF—220o F (104o C) |
General Description |
FTI SP Series Applications: + Rail cars + Tanker trucks + Tanks with an opening on top + Bulk storage to day or process tank transfer + Sumps and reservoirs + Below grade storage tanks + Over-the-wall applications + When run-dry protection is needed + and many more! |
Septic / Sump Tank
2100 productsTank Car
2100 productsType | Title | Link | |
---|---|---|---|
DB, SP, MSDB Series Pumps Brochure (2022) | View | ||
Chemical Processing Applications Flyer (2022) | View | ||
SP22 Series Pumps Datasheet (2022) | View | ||
DB & SP Series Baseplates Datasheet (2022) | View | ||
DB, SP, UC, Series M20 Power Monitor Datasheet (2022) | View | ||
SP Series Sealless Self Prime Pumps Performance Curves (2022) | View | ||
SP22 Series Pumps Installation & Operation Manual (2022) | View |

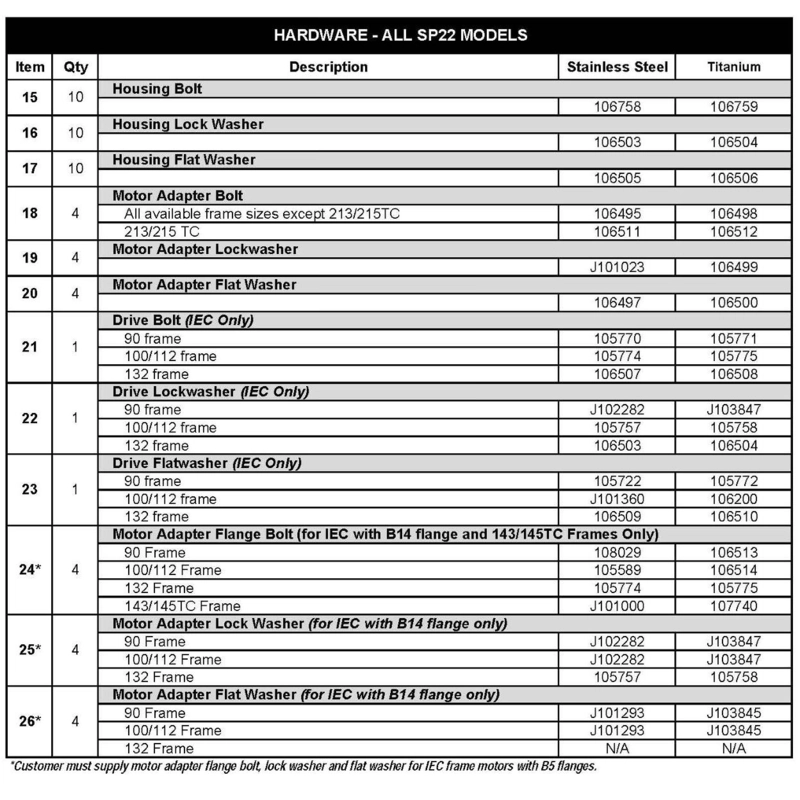

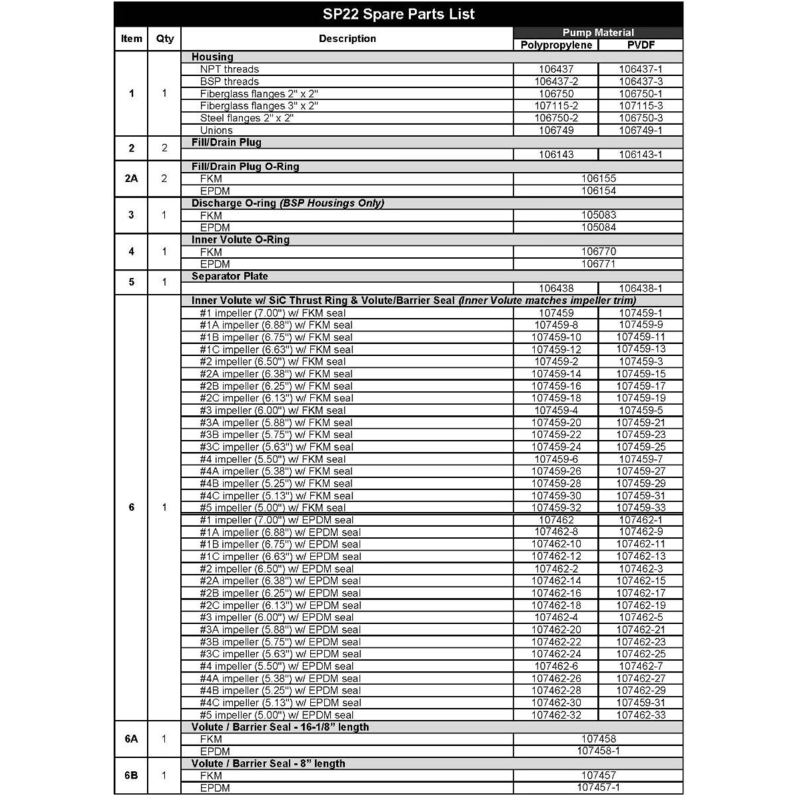

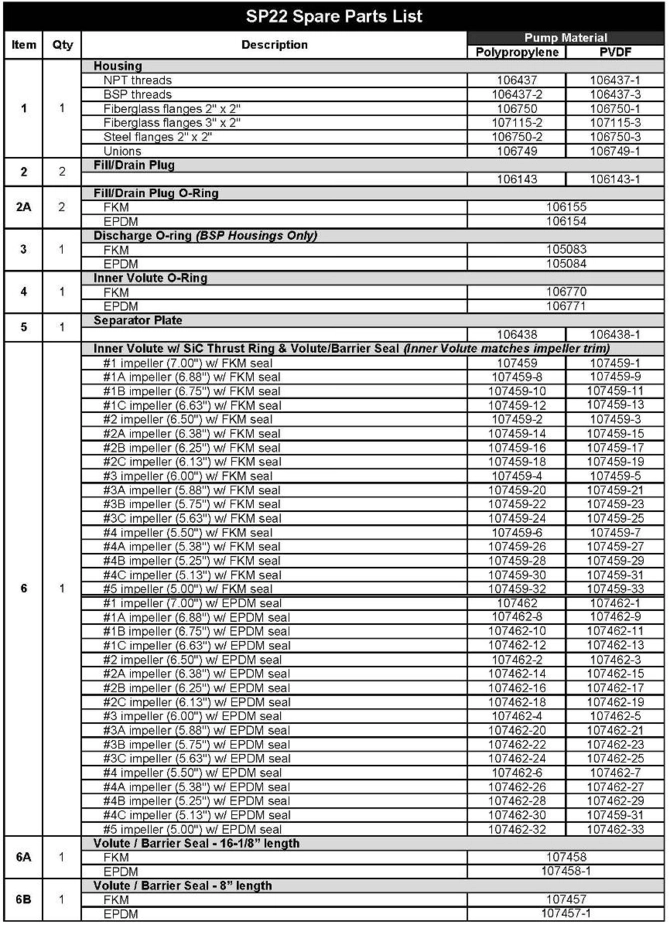

Product | qty. | shipping | price | ||
---|---|---|---|---|---|
106437 | Ships in | $1,046.90 | |||
106143 | Ships in | $31.35 | |||
106155 | Ships in | $0.37 | |||
105083 | Ships in | $5.10 | |||
106770 | Ships in | $7.94 | |||
106438 | Ships in | $95.00 | |||
107458 | Ships in | $23.75 | |||
107457 | Ships in | $10.86 | |||
106476 | Ships in | $1,641.60 | |||
J103917-1 | Ships in | $302.10 | |||
106764 | Ships in | $23.75 | |||
106400-2 | Ships in | $342.00 | |||
106414-1 | Ships in | $581.40 | |||
106846-NEP | Ships in | $50.00 | |||
106849-NEP | Ships in | $14.00 | |||
106453-NEP | Ships in | $24.00 | |||
105710 | Ships in | $7.60 | |||
J101084 | Ships in | $1.21 | |||
108167 | Ships in | $10.35 | |||
106759 | Ships in | $289.75 | |||
106504-FTI | Ships in | $58.90 | |||
106506-FTI | Ships in | $21.85 | |||
106498-FTI | Ships in | $115.90 | |||
106499-FTI | Ships in | $26.60 | |||
106500-FTI | Ships in | $100.70 |
