SP11V-M511

Image shown may not be actual product

SP11V-M511

0 reviews

Finish Thompson SP11V-M511 Pump, FTI SP11 Magnetic Drive Centrifugal SP Series Self-Priming Sealless Pumps, 3/4 HP, 208-230-460 Volt, 60 HZ, 3 Phase, 1 1/2" Suction, 1 1/2" Discharge, FKM O-Ring, PVDF, 104 GPM, 90 PSI, 68 Feet of Head. To Order, See Complete Model Number SP11V-NS-M511 Below in Related Items.

Call for Pricing

Best Price Guarantee!

Item: SP11V-M511

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

SP11V-M511

Bushing	Carbon
Connection Type	NPT
Discharge NPT (Inches)	1-1/2"
Heads To (Feet)	68
HP	0.75
Hz	60
Impeller Size (Inches)	4.625" (4 5/8")
Magnet	6-pole
Material	PVDF
Maximum Flow (GPM)	104
Maximum Operating Temperature	220°F (104°C)

Maximum Pressure (PSI)	90 PSI
Motor Frame Size	56C
Phase	3
Pressure Rating BAR	6.2 bar
Product Notes	See Correct Model SP11V-NS-M511 Below to Order This Pump.
Spec. Gravity	up to 1.8
Speed (RPM)	3450
Suction NPT (Inches)	1-1/2"
Valve/Seat/O-Ring	FKM
Voltage	208/230/460

SP Sealless Self Priming Mag Drive Centrifugal Pumps Information

Features & Benefits
SP Sealless Self Priming Centrifufal Pumps Features & Capabilities: + Self-priming, magnetic drive + Five-year warranty + Provides up to 25 ft. (7.6 m) lift or equivalent + Primes 15 ft. (4.6 m) in < 2 minutes with maximum diameter impeller. Does not apply to 1725 RPM and 200-3000 RPM models. + Retains fluid for re-priming when shut off without a check valve + Extended run dry ability (with carbon bushing) + High operating efficiency + Polypropylene or PVDF construction + Powerful neodymium magnets + Close-coupled design + Threaded (NPT or BSP), union or flange connections + Back pullout design + Mounts to NEMA and (B5 & B14) IEC motor frames + Easy set measurement free drive + ISO 1940 G2.5 balancing + CE certified + High working pressure up to 80 psi (5.5 bar) + Specific gravity over 1.8 + Polypropylene—180o F (82o C) + PVDF—220o F (104o C) Contact a PumpCatalog representative to confirm performance on 1725 rpm and 300-3000 rpm models prior to ordering.
General Description
FTI SP Series Applications: + Rail cars + Tanker trucks + Tanks with an opening on top + Bulk storage to day or process tank transfer + Sumps and reservoirs + Below grade storage tanks + Over-the-wall applications + When run-dry protection is needed + and many more!

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	DB, SP, MSDB Series Pumps Brochure (2022)		View
	Chemical Processing Applications Flyer (2022)		View
	SP11 Series Pumps Datasheet (2022)		View
	DB & SP Series Baseplates Datasheet (2022)		View
	DB, SP, UC, Series M20 Power Monitor Datasheet (2022)		View
	SP Series Sealless Self Prime Pumps Performance Curves (2022)		View
	SP11 SP15 Series Pumps Installation & Operation Manual (2022)		View

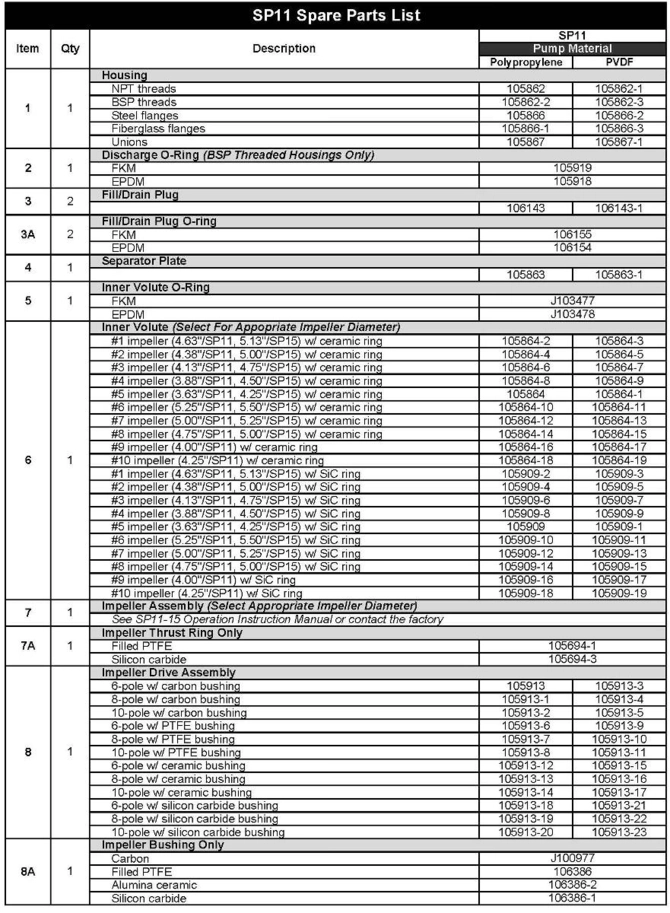

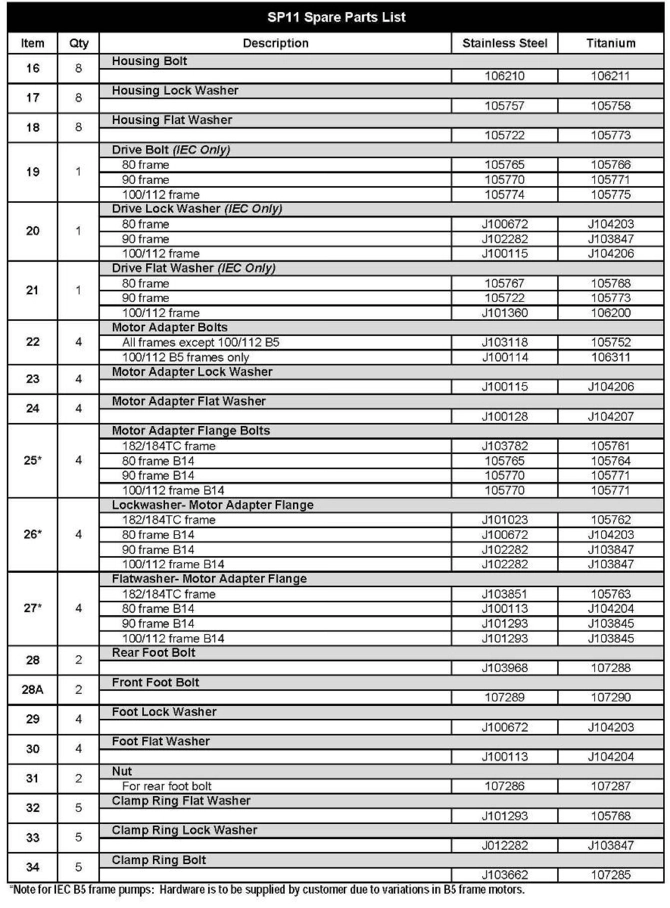

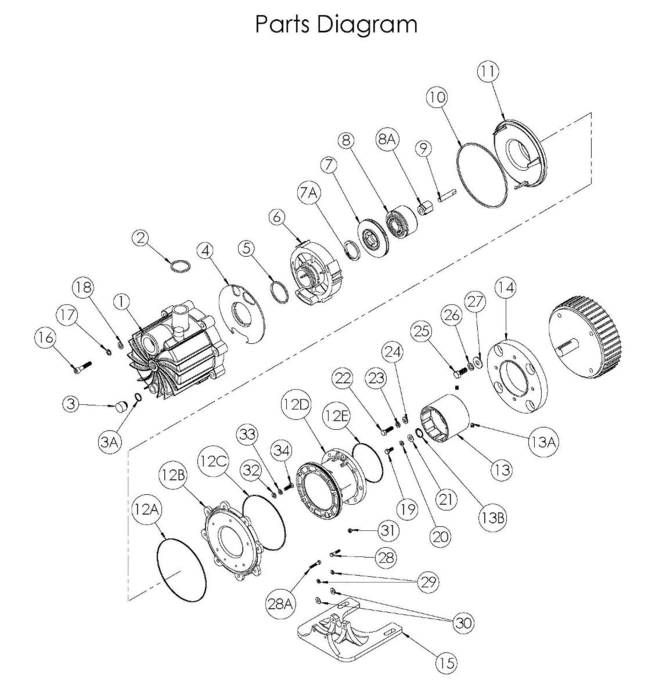

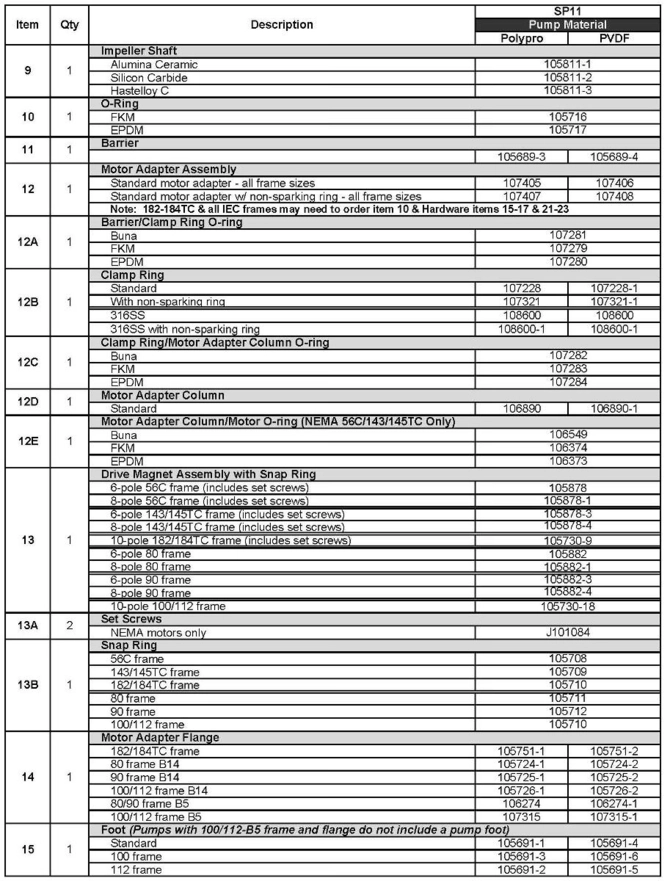

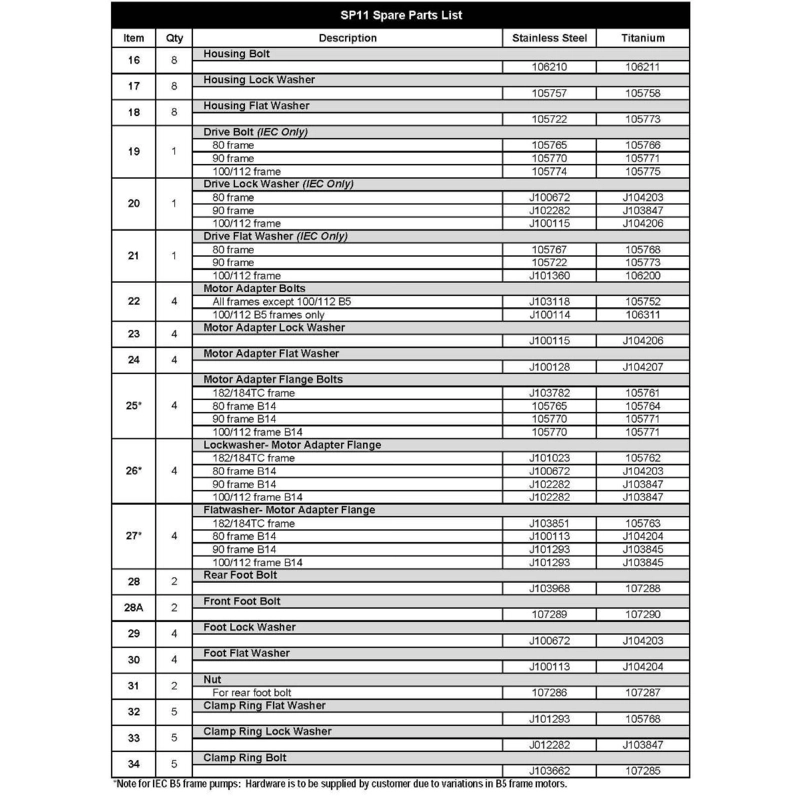

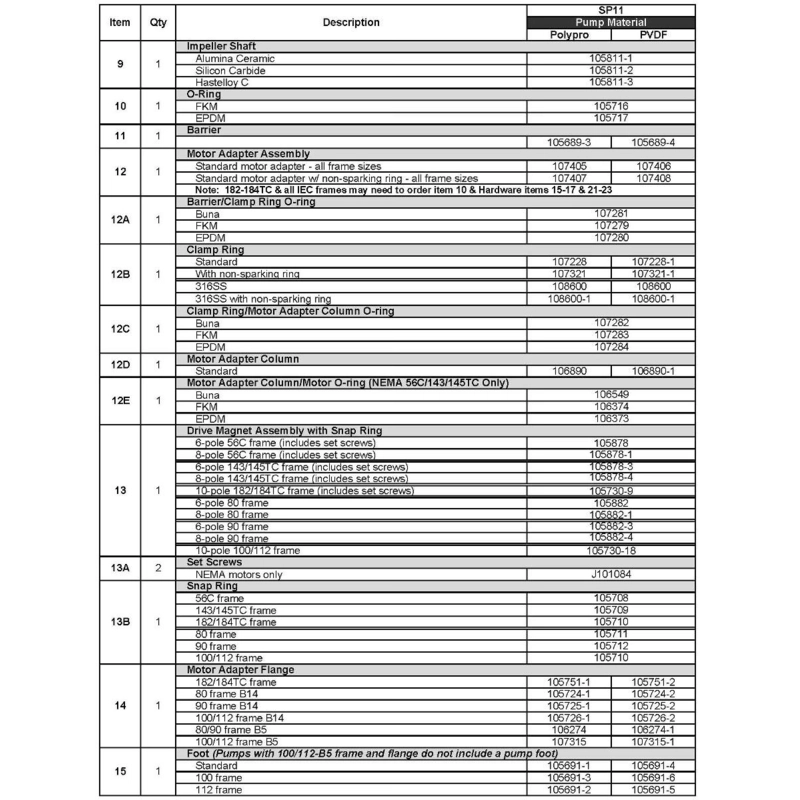

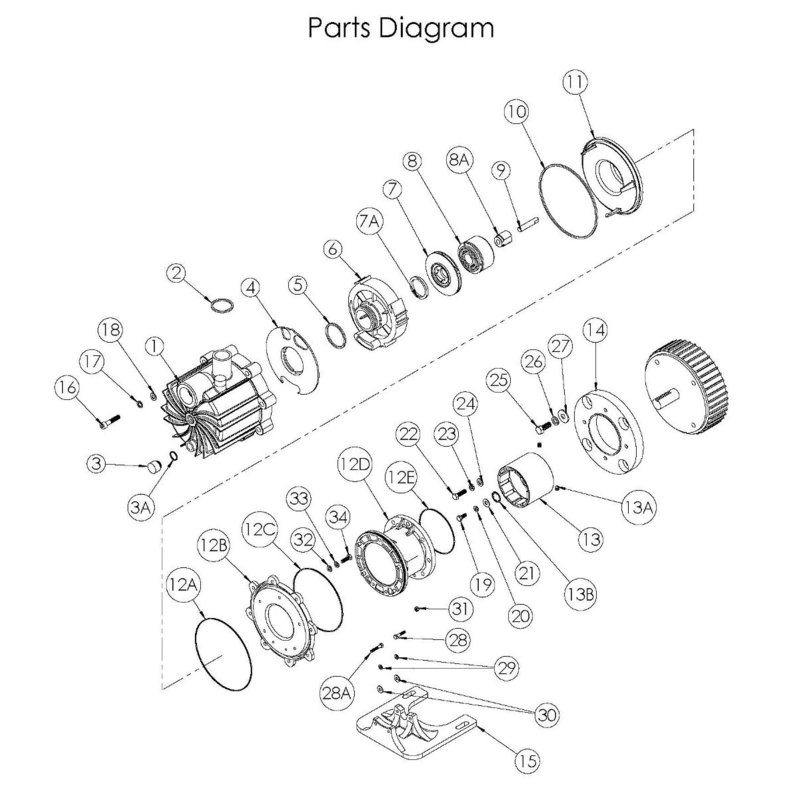

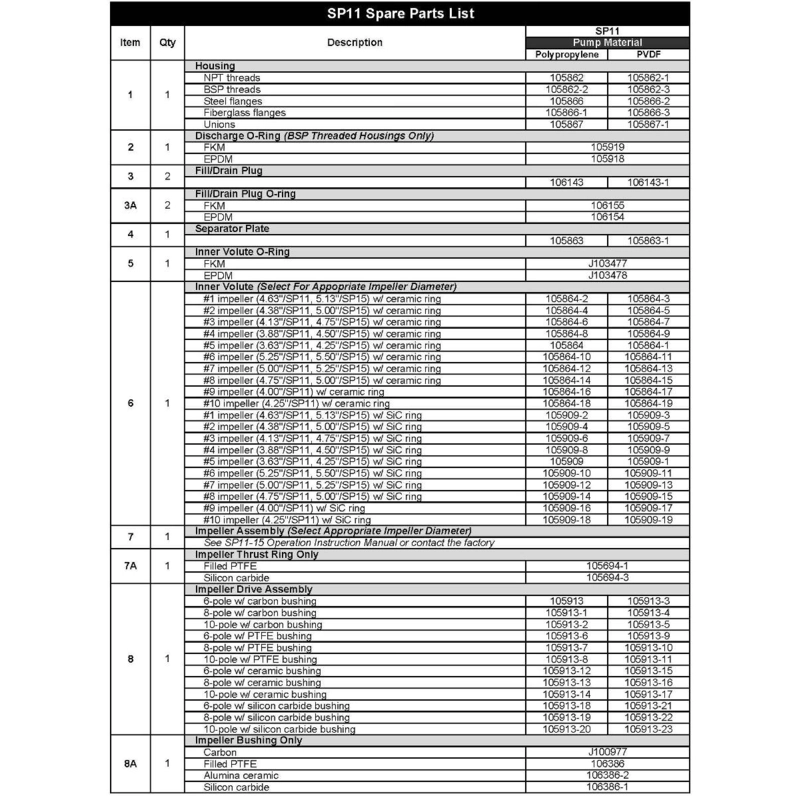

Repair Parts for SP11V-M511

	shipping	price
105862-1	Ships in	$2,077.65	Select item
105919	Ships in	$3.92	Select item
106143-1	Ships in	$82.65	Select item
106155	Ships in	$0.40	Select item
105863-1	Ships in	$152.00	Select item
J103477	Ships in	$33.25	Select item
105913-3	Ships in	$1,086.80	Select item
J100977	Ships in	$285.00	Select item
105716	Ships in	$15.54	Select item
105689-4	Ships in	$443.65	Select item
107406	Ships in	$269.80	Select item
107279-NEP	Ships in	$247.00	Select item
107228-1	Ships in	$197.60	Select item
107283	Ships in	$9.05	Select item
106890-1	Ships in	$84.55	Select item
106374	Ships in	$6.37	Select item
105878	Ships in	$820.80	Select item
J101084	Ships in	$1.30	Select item
105708	Ships in	$6.49	Select item
106211-FTI	Ships in	$212.80	Select item
105758	Ships in	$15.79	Select item
105773	Ships in	$13.36	Select item
105752	Ships in	$42.75	Select item
J104206	Ships in	$6.70	Select item
J104207	Ships in	$6.70	Select item
107288	Ships in	$15.99	Select item
107290-NEP	Ships in	$37.00	Select item
J104203	Ships in	$4.02	Select item
J104204	Ships in	$4.02	Select item
107287-NEP	Ships in	$37.00	Select item
105768	Ships in	$12.95	Select item
J103847	Ships in	$5.09	Select item
107285	Ships in	$15.48	Select item
