SP11P-M203

0 reviews

Finish Thompson SP11P-M203 Pump, FTI SP11 Magnetic Drive Centrifugal SP Series Self-Priming Sealless Pumps, 3/4 HP, 208-230-460 Volt, 60 HZ, 3 Phase, 1 1/2" Suction, 1 1/2" Discharge, FKM O-Ring, Polypropylene, 104 GPM, 90 PSI, 68 Feet of Head

$2,232.80

Best Price Guarantee!
446PumpPoints

Item: SP11P-M203

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

SP11P-M203

Bushing	Carbon
Connection Type	NPT
Discharge NPT (Inches)	1 1/2"
Heads To (Feet)	68
HP	3/4
Hz	60
Impeller Size (Inches)	4.63"
Magnet	6-pole
Material	Polypropylene
Maximum Flow (GPM)	104
MaxImum Operating Temperature	180°F (82°C)

Maximum Pressure (PSI)	90 PSI
Motor Frame Size	56C
Phase	3
Pressure Rating BAR	6.2 bar
Spec. Gravity	up to 1.8
Speed (RPM)	1725
Suction NPT (Inches)	1 1/2"
Valve/Seat/O-Ring	FKM
Voltage	208-230/460

SP Sealless Self Priming Mag Drive Centrifugal Pumps Information

Features & Benefits
SP Sealless Self Priming Centrifufal Pumps Features & Capabilities: + Self-priming, magnetic drive + Five-year warranty + Provides up to 25 ft. (7.6 m) lift or equivalent + Primes 15 ft. (4.6 m) in < 2 minutes with maximum diameter impeller + Retains fluid for re-priming when shut off without a check valve + Extended run dry ability (with carbon bushing) + High operating efficiency + Polypropylene or PVDF construction + Powerful neodymium magnets + Close-coupled design + Threaded (NPT or BSP), union or flange connections + Back pullout design + Mounts to NEMA and (B5 & B14) IEC motor frames + Easy set measurement free drive + ISO 1940 G2.5 balancing + CE certified + High working pressure up to 80 psi (5.5 bar) + Specific gravity over 1.8 + Polypropylene—180o F (82o C) + PVDF—220o F (104o C)
General Description
FTI SP Series Applications: + Rail cars + Tanker trucks + Tanks with an opening on top + Bulk storage to day or process tank transfer + Sumps and reservoirs + Below grade storage tanks + Over-the-wall applications + When run-dry protection is needed + and many more!

0 Reviews

Add a Review

You need to sign in to add a review.

Series		Link
SP Sealless Self Priming Mag Drive Centrifugal Pumps	DB SP Magnetic Drive Pumps Brochure	View
SP Sealless Self Priming Mag Drive Centrifugal Pumps	SP Series Pump Curves	View
SP Sealless Self Priming Mag Drive Centrifugal Pumps	DB SP Series Pump Baseplates	View
SP Sealless Self Priming Mag Drive Centrifugal Pumps	SP Series Pump Dimensions	View
SP Sealless Self Priming Mag Drive Centrifugal Pumps	SP10 Series Pumps Manual	View
SP Sealless Self Priming Mag Drive Centrifugal Pumps	SP11 SP15 Series Pumps Manual	View
SP Sealless Self Priming Mag Drive Centrifugal Pumps	SP22 Series Pumps Manual	View
SP Sealless Self Priming Mag Drive Centrifugal Pumps	SP Series SP10 Pump Datasheet	View
SP Sealless Self Priming Mag Drive Centrifugal Pumps	SP Series SP11 Self Priming Centrifugal Pump Datasheet	View
SP Sealless Self Priming Mag Drive Centrifugal Pumps	SP Series SP15 Pump Datasheet	View
SP Sealless Self Priming Mag Drive Centrifugal Pumps	SP Series SP22 Pump Datasheet	View

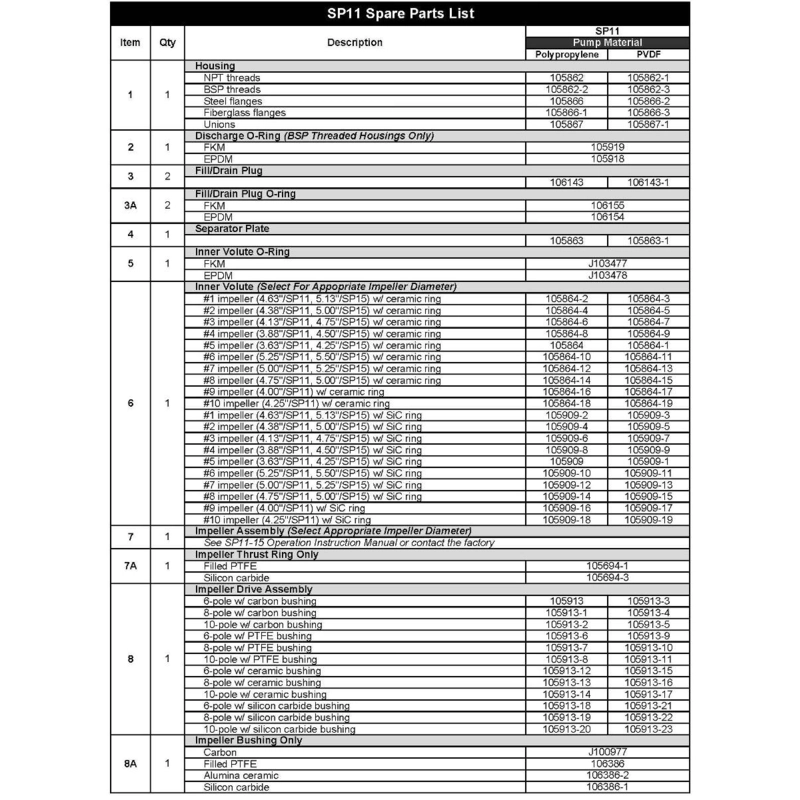

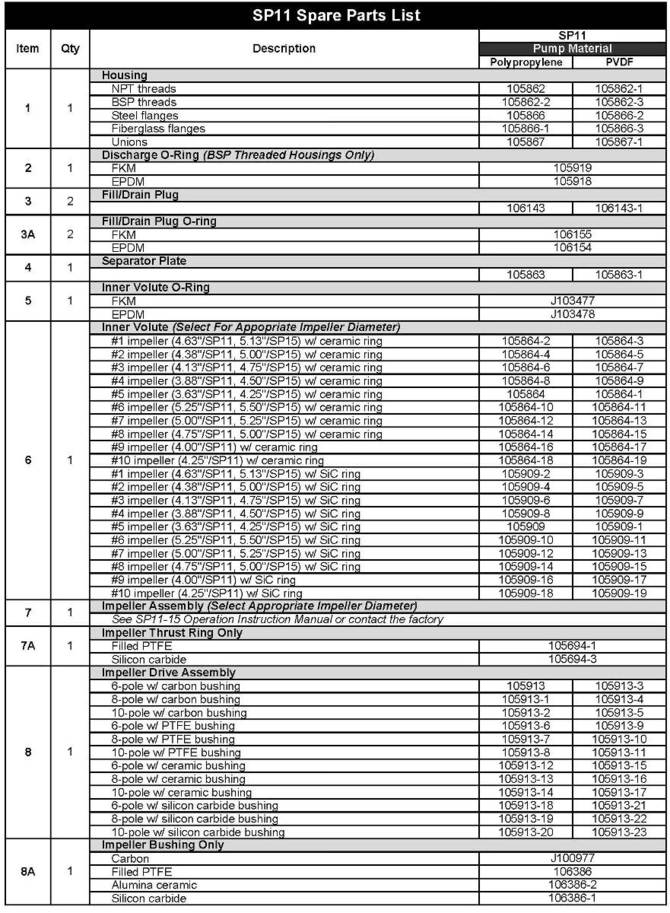

Repair Parts for SP11P-M203

	shipping	price
105862	Ships in	$455.40	Select item
105919	Ships in	$2.77	Select item
106143	Ships in	$22.50	Select item
106155	Ships in	$0.28	Select item
105863	Ships in	$34.20	Select item
J103477	Ships in	$21.60	Select item
105913	Ships in	$568.80	Select item
J100977	Ships in	$184.50	Select item
105716	Ships in	$9.77	Select item
105689-3	Ships in	$148.50	Select item
107405	Ships in	$188.10	Select item
107279	Ships in	$8.28	Select item
107228	Ships in	$137.70	Select item
107283	Ships in	$6.40	Select item
106890	Ships in	$57.60	Select item
106374	Ships in	$4.37	Select item
105878	Ships in	$576.00	Select item
J101084	Ships in	$0.86	Select item
105708	Ships in	$4.58	Select item
106211	Ships in	$148.50	Select item
105758	Ships in	$11.15	Select item
105773	Ships in	$9.44	Select item
105752	Ships in	$27.90	Select item
J104206	Ships in	$4.73	Select item
J104207	Ships in	$4.73	Select item
107288	Ships in	$11.30	Select item
107290	Ships in	$11.56	Select item
J104203	Ships in	$2.84	Select item
J104204	Ships in	$2.84	Select item
107287	Ships in	$6.60	Select item
105768	Ships in	$9.15	Select item
J103847	Ships in	$3.60	Select item
107285	Ships in	$10.94	Select item
