• Finish Thompson SP10V-M231 Self Priming Pump

Image shown may not be actual product

Finish Thompson FTI

SP10V-M231

0 reviews

Finish Thompson SP10V-M231 Pump, FTI SP10 Magnetic Drive Centrifugal SP Series Self-Priming Sealless Pumps, 1/2 HP, 575 (TENV) Volt, 60 HZ, 3 Phase, 1" Suction, 1" Discharge, FKM O-Ring, PVDF, 55 GPM, 80 PSI, 63 Feet of Head

$2,476.00

Item: SP10V-M231
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

SP10V-M231

Finish Thompson SP10V-M231 Pump, FTI SP10 Magnetic Drive Centrifugal SP Series Self-Priming Sealless Pumps, 1/2 HP, 575 (TENV) Volt, 60 HZ, 3 Phase, 1" Suction, 1" Discharge, FKM O-Ring, PVDF, 55 GPM, 80 PSI, 63 Feet of Head

BushingCarbon
Connection TypeNPT
Discharge NPT (Inches)1"
Heads To (Feet)63
HP1/2
Hz60
Impeller Size (Inches)4.18"
Magnet10-pole
MaterialPVDF
Maximum Flow (GPM)55
MaxImum Operating Temperature220°F (104°C)
Maximum Pressure (PSI)80 PSI
Motor Frame Size 56C
Phase3
Pressure Rating BAR5.5 bar
Spec. Gravityup to 1.8
Speed (RPM)3450
Suction NPT (Inches)1"
Valve/Seat/O-RingFKM
Voltage575 (TENV)

SP Sealless Self Priming Mag Drive Centrifugal Pumps Information

Features & Benefits
SP Sealless Self Priming Centrifufal Pumps Features & Capabilities:
+ Self-priming, magnetic drive
+ Five-year warranty
+ Provides up to 25 ft. (7.6 m) lift or equivalent
+ Primes 15 ft. (4.6 m) in < 2 minutes with maximum diameter impeller
+ Retains fluid for re-priming when shut off without a check valve
+ Extended run dry ability (with carbon bushing)
+ High operating efficiency
+ Polypropylene or PVDF construction
+ Powerful neodymium magnets
+ Close-coupled design
+ Threaded (NPT or BSP), union or flange connections
+ Back pullout design
+ Mounts to NEMA and (B5 & B14) IEC motor frames
+ Easy set measurement free drive
+ ISO 1940 G2.5 balancing
+ CE certified
+ High working pressure up to 80 psi (5.5 bar)
+ Specific gravity over 1.8
+ Polypropylene—180o F (82o C)
+ PVDF—220o F (104o C)
General Description
FTI SP Series Applications:
+ Rail cars
+ Tanker trucks
+ Tanks with an opening on top
+ Bulk storage to day or process tank transfer
+ Sumps and reservoirs
+ Below grade storage tanks
+ Over-the-wall applications
+ When run-dry protection is needed
+ and many more!

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

SP Sealless Self Priming Mag Drive Centrifugal Pumps

DB SP Magnetic Drive Pumps Brochure

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP Series Pump Curves

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

DB SP Series Pump Baseplates

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP Series Pump Dimensions

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP10 Series Pumps Manual

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP11 SP15 Series Pumps Manual

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP22 Series Pumps Manual

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP Series SP10 Pump Datasheet

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP Series SP11 Self Priming Centrifugal Pump Datasheet

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP Series SP15 Pump Datasheet

View

SP Sealless Self Priming Mag Drive Centrifugal Pumps

SP Series SP22 Pump Datasheet

View

Repair Parts for SP10V-M231

  • Finish-Thompson-FTI-SP10-Pump-Parts-1.jpg
  • Finish-Thompson-FTI-SP10-Pump-Parts-2.jpg
  • Finish-Thompson-FTI-SP10-Pump-Parts-3.jpg
  • Finish-Thompson-FTI-SP10-Pump-Parts-4.jpg

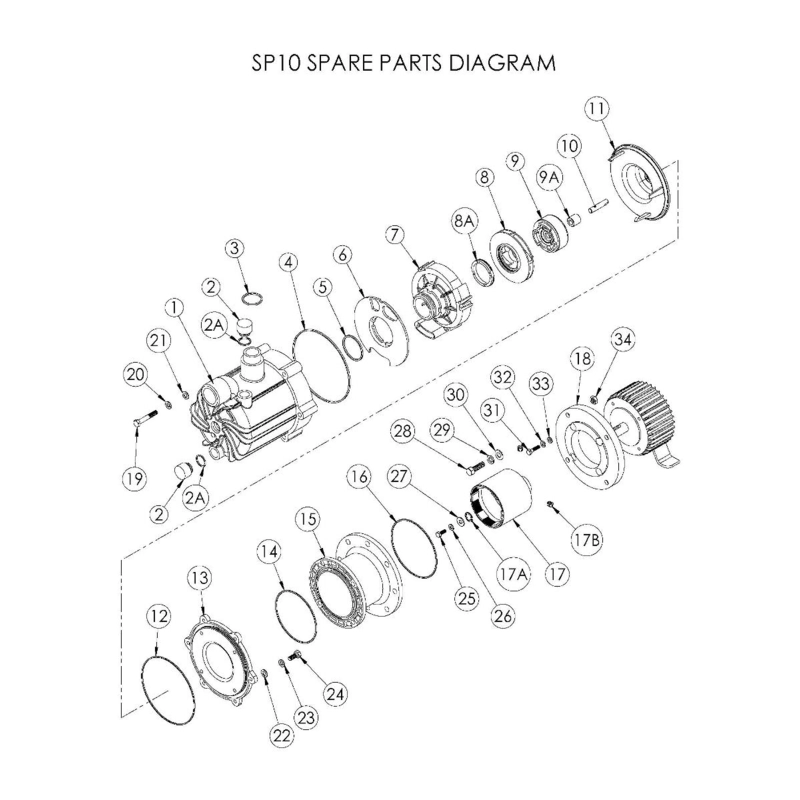

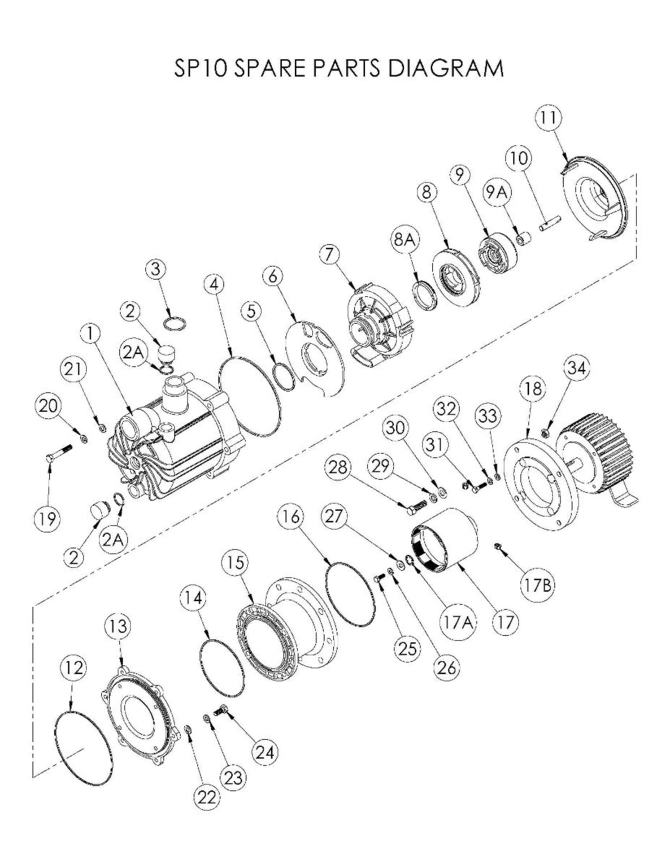

  • Finish-Thompson-FTI-SP10-Pump-Parts-Exploded-View.jpg
Productqty.shippingprice
106564-1

106564-1

Ships in $792.00
106143-1

106143-1

Ships in $55.80
106155

106155

Ships in $0.28
106298

106298

Ships in $4.01
106975

106975

Ships in $11.66
106563-1

106563-1

Ships in $89.10
106361-5

106361-5

Ships in $383.40
J102387

J102387

Ships in $105.30
106235-7

106235-7

Ships in Call for pricing
106551

106551

Ships in $3.44
106246-1

106246-1

Ships in $91.80
J103954

J103954

Ships in $1.94
106248-1

106248-1

Ships in $36.00
106374

106374

Ships in $2.44
106283-2

106283-2

Ships in $293.40
105708

105708

Ships in $4.58
J102789

J102789

Ships in $0.69
J102282

J102282

Ships in $0.08
105767

105767

Ships in $0.11
105767

105767

Ships in $0.11
J102282

J102282

Ships in $0.08
105770

105770

Ships in $0.45
J100114

J100114

Ships in $0.44
J100115

J100115

Ships in $0.11
J100128

J100128

Ships in $0.09
0 items selected.Add items to cart
