SP10P-M404

Image shown may not be actual product

SP10P-M404

0 reviews

Finish Thompson SP10P-M404 Pump, FTI SP10 Magnetic Drive Centrifugal SP Series Self-Priming Sealless Pumps, 2 HP, 208-230-460 Volt, 60 HZ, 3 Phase, 1" Suction, 1" Discharge, FKM O-Ring, Polypropylene, 55 GPM, 80 PSI, 63 Feet of Head

$2,478.84

Best Price Guarantee!
495PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: SP10P-M404

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

SP10P-M404

Bushing	Carbon
Connection Type	NPT
Discharge NPT (Inches)	1"
Heads To (Feet)	63
HP	2
Hz	60
Impeller Size (Inches)	4.1875" (4 3/16")
Magnet	10-pole
Material	Polypropylene (PPG)
Maximum Flow (GPM)	55
Maximum Operating Temperature	180°F (82°C)

Maximum Pressure (PSI)	80 PSI (5.5 Bar)
Motor Frame Size	56C
Phase	3
Pressure Rating BAR	5.5 bar
Spec. Gravity	up to 1.8
Speed (RPM)	3450
Suction NPT (Inches)	1"
Valve/Seat/O-Ring	FKM
Voltage	208/230/460

SP Sealless Self Priming Mag Drive Centrifugal Pumps Information

Features & Benefits
SP Sealless Self Priming Centrifufal Pumps Features & Capabilities: + Self-priming, magnetic drive + Five-year warranty + Provides up to 25 ft. (7.6 m) lift or equivalent + Primes 15 ft. (4.6 m) in < 2 minutes with maximum diameter impeller. Does not apply to 1725 RPM and 200-3000 RPM models. + Retains fluid for re-priming when shut off without a check valve + Extended run dry ability (with carbon bushing) + High operating efficiency + Polypropylene or PVDF construction + Powerful neodymium magnets + Close-coupled design + Threaded (NPT or BSP), union or flange connections + Back pullout design + Mounts to NEMA and (B5 & B14) IEC motor frames + Easy set measurement free drive + ISO 1940 G2.5 balancing + CE certified + High working pressure up to 80 psi (5.5 bar) + Specific gravity over 1.8 + Polypropylene—180o F (82o C) + PVDF—220o F (104o C) Contact a PumpCatalog representative to confirm performance on 1725 rpm and 300-3000 rpm models prior to ordering.
General Description
FTI SP Series Applications: + Rail cars + Tanker trucks + Tanks with an opening on top + Bulk storage to day or process tank transfer + Sumps and reservoirs + Below grade storage tanks + Over-the-wall applications + When run-dry protection is needed + and many more!

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	DB, SP, MSDB Series Pumps Brochure (2022)		View
	Chemical Processing Applications Flyer (2022)		View
	SP10 Series Pumps Datasheet (2022)		View
	DB & SP Series Baseplates Datasheet (2022)		View
	DB, SP, UC, Series M20 Power Monitor Datasheet (2022)		View
	SP Series Sealless Self Prime Pumps Performance Curves (2022)		View
	SP10 Series Pumps Installation & Operation Manual (2022)		View

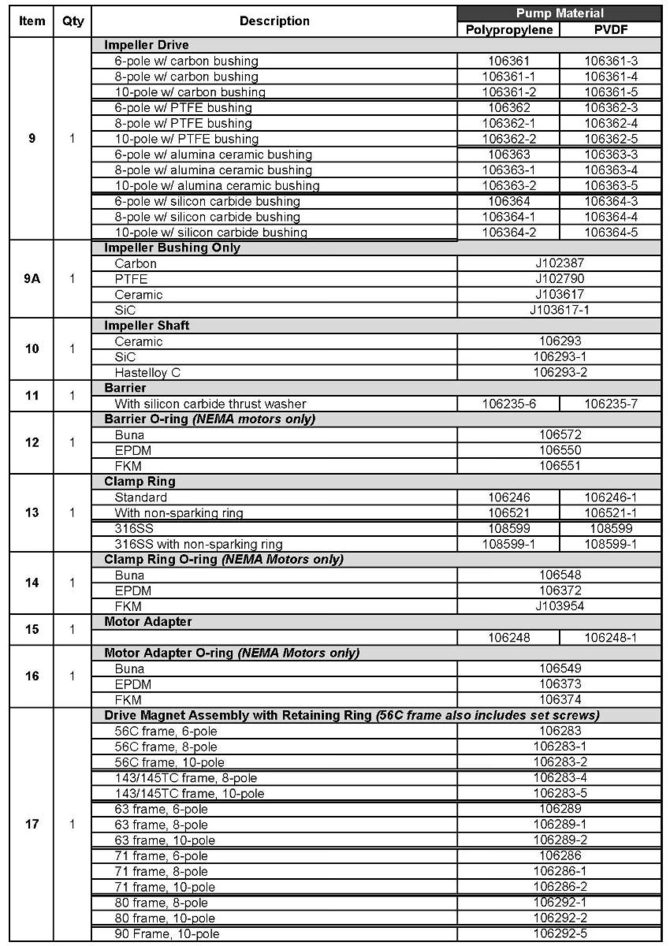

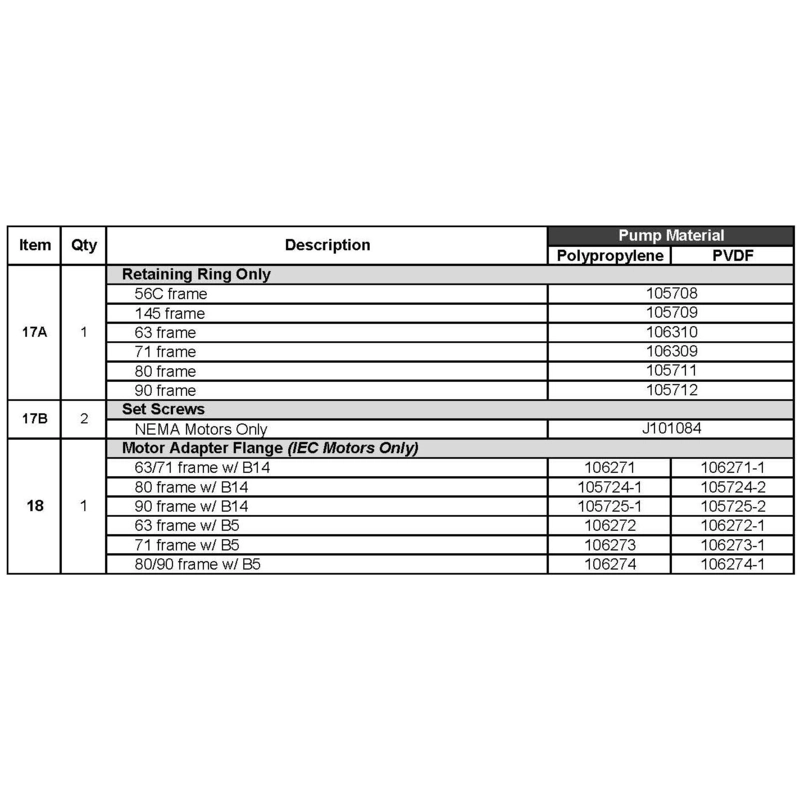

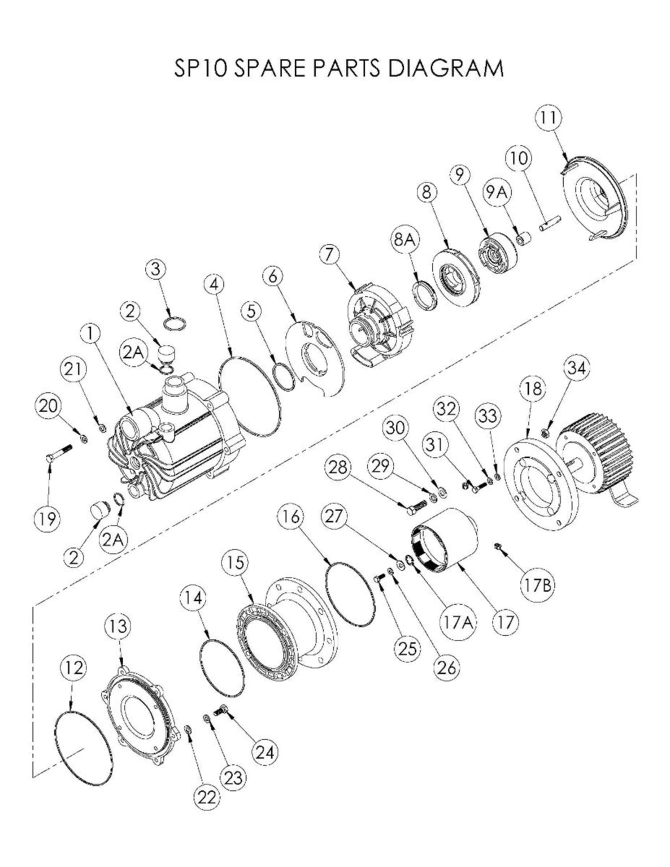

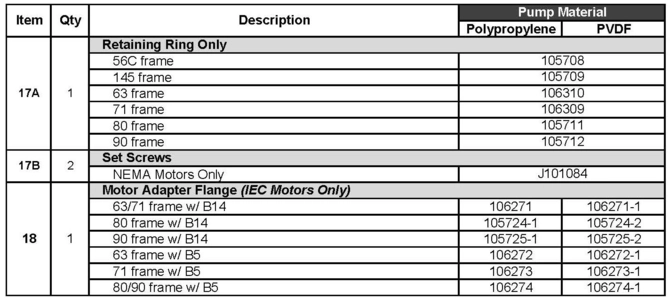

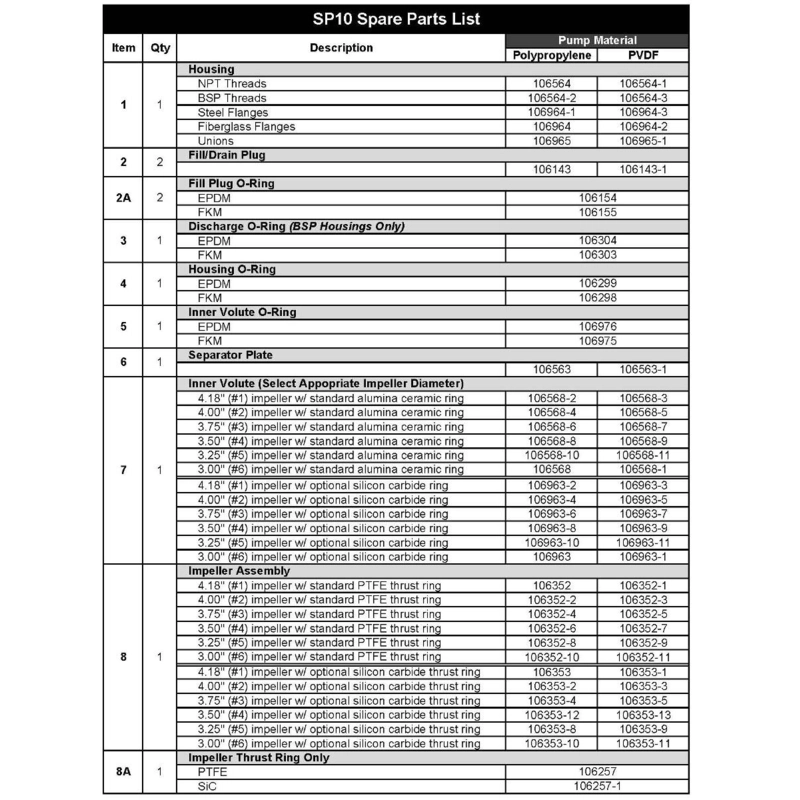

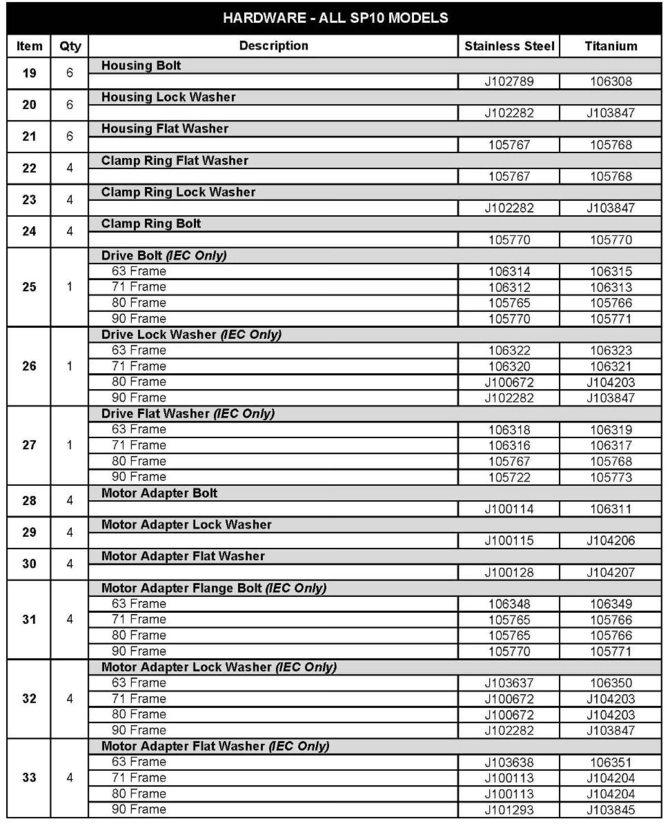

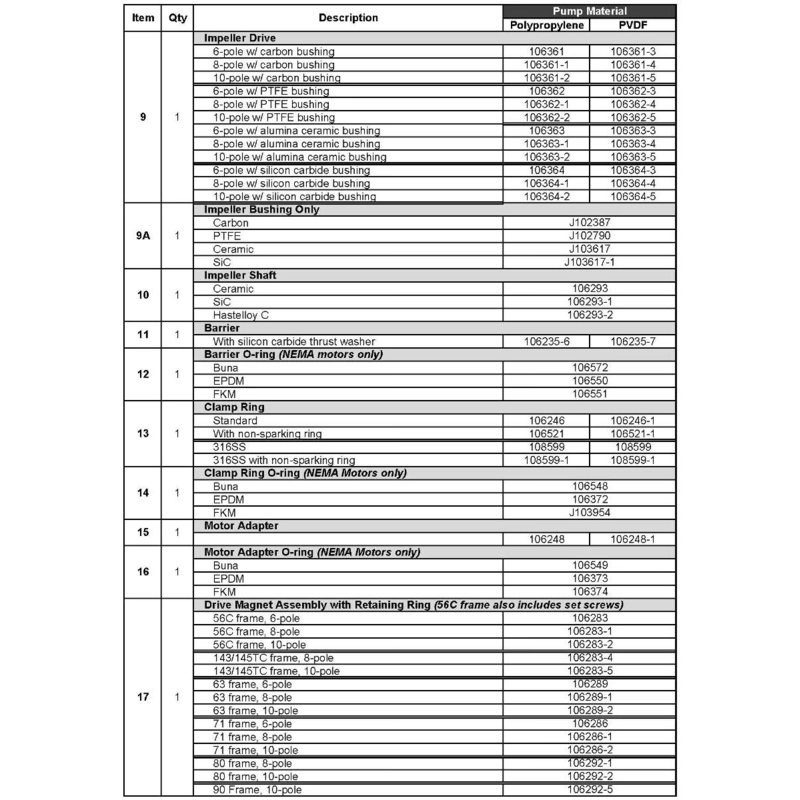

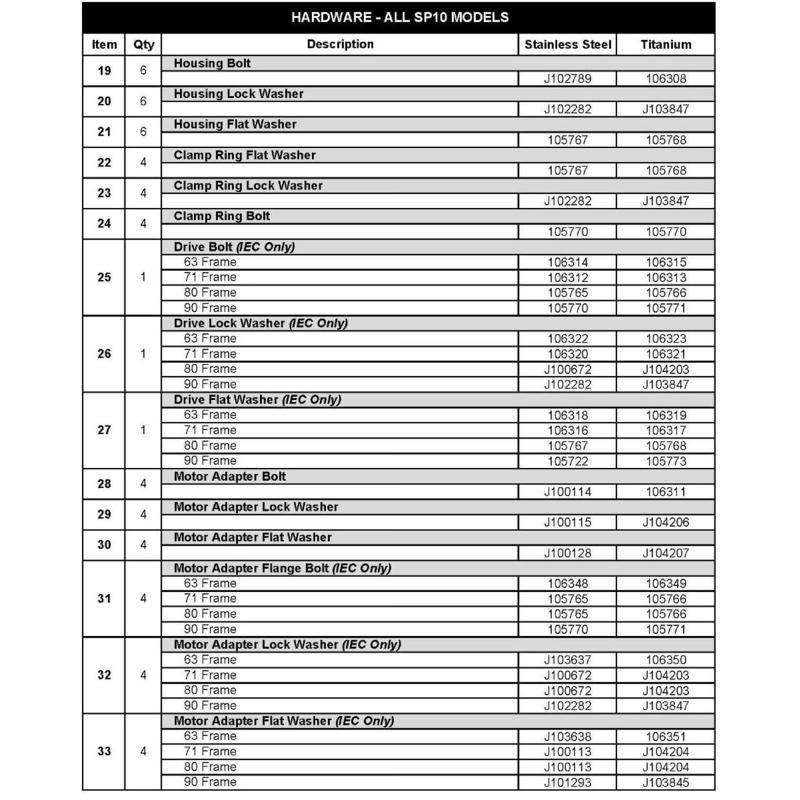

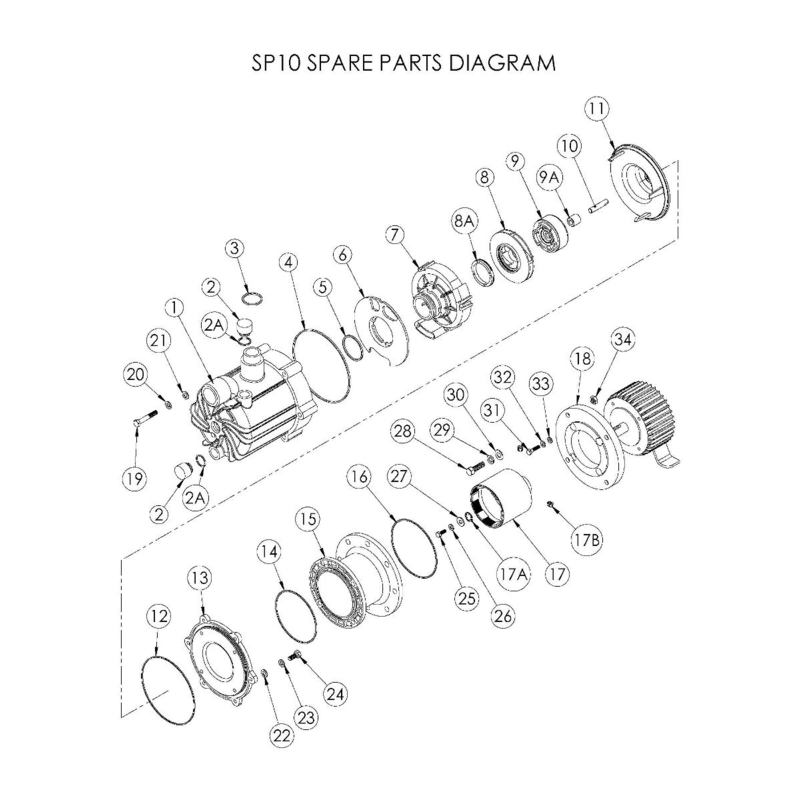

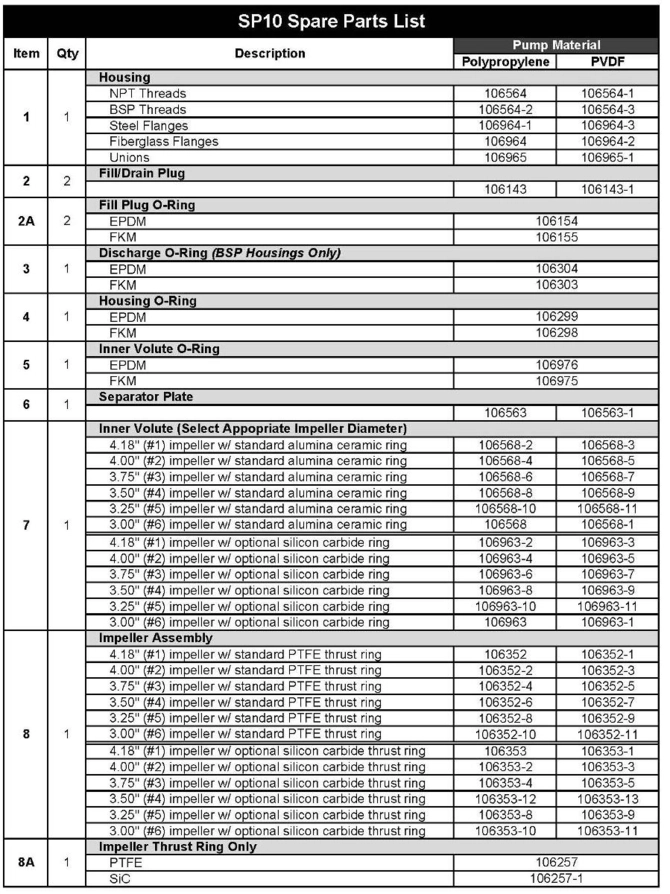

Repair Parts for SP10P-M404

	shipping	price
106564-NEP	Ships in	$224.00	Select item
106143	Ships in	$34.20	Select item
106155	Ships in	$0.40	Select item
106298	Ships in	$5.68	Select item
106975-NEP	Ships in	Call for pricing
106563	Ships in	$43.70	Select item
106361-2	Ships in	$517.75	Select item
J102387	Ships in	$162.45	Select item
106235-6	Ships in	$177.65	Select item
106551	Ships in	$4.86	Select item
106246	Ships in	$133.95	Select item
J103954	Ships in	$4.56	Select item
106248	Ships in	$55.10	Select item
106374	Ships in	$6.37	Select item
106283-2	Ships in	$418.95	Select item
105708	Ships in	$6.49	Select item
J102789	Ships in	$0.98	Select item
J102282	Ships in	$0.12	Select item
105767	Ships in	$0.16	Select item
105767	Ships in	$0.16	Select item
J102282	Ships in	$0.12	Select item
105770	Ships in	$0.64	Select item
J100114	Ships in	$0.65	Select item
J100115	Ships in	$0.18	Select item
J100128	Ships in	$0.13	Select item
