SFV27-M5XV

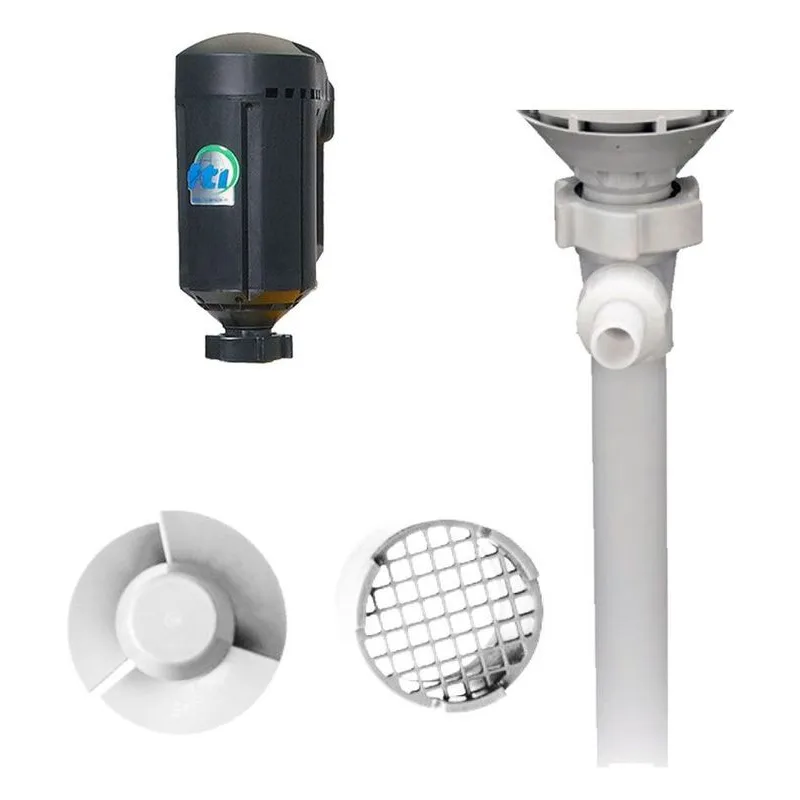

SFV27-M5XV Finish Thompson SF Series Plastic Sealless Drum Pump & Motor with High Flow Impeller, FTI DSFV001 & 110025. 37 GPM (140 LPM) Maximum Flow, 50 Feet (15m) Max Head, 230 Volt, 50-60 Hz, 1 Ph (Single Phase), 0-12000 RPM, XP - (Explosion Proof) Motor. 27" (69 cm) Tube Length, 1" Hose Barb Discharge, FKM O-Ring & ETFE/PTFE Impeller.
$1,552.80
- Best Price Guarantee!
- 310PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Reviews
- Literature/Manuals
- Repair Parts
SFV27-M5XV
SFV27-M5XV Finish Thompson SF Series Plastic Sealless Drum Pump & Motor with High Flow Impeller, FTI DSFV001 & 110025. 37 GPM (140 LPM) Maximum Flow, 50 Feet (15m) Max Head, 230 Volt, 50-60 Hz, 1 Ph (Single Phase), 0-12000 RPM, XP - (Explosion Proof) Motor. 27" (69 cm) Tube Length, 1" Hose Barb Discharge, FKM O-Ring & ETFE/PTFE Impeller.
| Base Model Number | SFV27 |
| Certification | CE |
| Discharge Type | 1" Hose Barb |
| Drive Shaft | Alloy 625 |
| Explosion Proof | Yes |
| Full Load Amp (FLA) | 4.4 |
| Heads To (Feet) | 50 Feet (15m) |
| Hz | 50/60 |
| Impeller Material | ETFE/PTFE |
| Input (W) | 1000 |
| Maximum Flow (GPM) | 37 GPM (140 LPM) |
| Maximum Viscosity (CPS) | 1000 cP |
| Model Number | DSFV001 |
| Motor Enclosure Type | XP - Explosion Proof |
| Output (W) | 680 |
| Part Number | 110025 |
| Phase | 1 Ph (Single Phase) |
| Product Notes | ATEX Certified. Continuous duty, IP55. 12 ft. (3.5 m) cord without plug, downdraft cooling and motor quick connection to pump without tools. Variable speed, solid state overload protection, zero voltage release. CAUTION: When pumping flammables, use only air or ex-proof electric motors on stainless steel (NO PLASTIC) tubes w/ static protection kit. |
| Quick Specs | High Flow Impeller |
| Speed (RPM) | 0-12000 |
| Tube Diameter | 1.60" |
| Tube Length | 27" (69 cm) |
| Tube Material | Pure Polypropylene |
| Valve / Seat / O-Ring | FKM O-Ring |
| Voltage | 230 |
| Type | Title | Link | |
|---|---|---|---|
TEFC Explosion Proof Drum Pump Motors Flyer (2022) | View | ||
FTI Drum Pump Accessories Flyer (2022) | View | ||
FTI Drum Pump Brochure (2022) | View | ||
Drum Pump Flow Meters FM1000 FM2000 FMBC2000 Flyer (2022) | View | ||
Drum Pump Flow Meters FM FMBC3000 Flyer (2022) | View | ||
Chemical Processing Applications Flyer (2022) | View | ||
SF Series Drum Pumps Motors Datasheet (2022) | View | ||
Drum Pump Nozzles Datasheet (2022) | View | ||
SF Series Drum Pumps Operation Parts Manual (2022) | View | ||
MT MTV MXV Series Drum Pump Motors Operation Parts Manual (2022) | View | ||
SFM27-M3V FTI SF Drum Pump Repair Parts Exploded View | View | ||
M3T FTI SF Drum Pump Motor Manual Exploded View | View | ||
