Finish Thompson FTI Pump End MSVKCV60CVVN15C Vertical Multistage Centrifugal, VKC Series Plastic Mag Drive, MSVKC, 1 1/2" Suction, 1" Discharge, FKM O-Ring, 3.88" Impeller, 80 psi, 61 GPM
Finish Thompson FTI Pump End MSVKCV60CVVN15C Vertical Multistage Centrifugal, VKC Series Plastic Mag Drive, MSVKC, 1 1/2" Suction, 1" Discharge, FKM O-Ring, 3.88" Impeller, 80 psi, 61 GPM
Bushing | Carbon |
Column Length | 60" |
Connection Type | NPT |
Discharge NPT (Inches) | 1" |
Heads To (Feet) | 99 |
Impeller Size (Inches) | 3.875" (3 7/8") |
Material | PVDF |
Maximum Flow (GPM) | 61 |
Maximum Operating Temperature | 140° F (60° C) |
Maximum Pressure (PSI) | 80 PSI (5.5 Bar) |
Motor Frame Size | 56C |
Pressure Rating BAR | 5.5 bar |
Spec. Gravity | up to 1.8 |
Suction NPT (Inches) | 1-1/2" |
Valve/Seat/O-Ring | FKM |
Features & Benefits |
---|
MSVKC Vertical Multi Stage Mag Drive Pumps Feature: • Sealless mag drive technology - eliminates microbubbles • Multi-Stage design: Generates increased head at low flow rates, low power consumption, wide hydraulic envelope allows for mix and match impeller sizes • Unique interconnecting drive shaft - transmits torque from magnetic coupling to first stage impeller • Independent thrust bearings at each stage for maximum reliability • Polypropylene or PVDF construction • Titanium, Hastelloy C or PVDF housing bolts • Custom mounting plates available • Accepts standard NEMA 56C or IEC 63, 71 and 80 with B14 frame motors • Maximum working pressure 80 psi (5.4 bar) • Maximum temperature: 140oF (60oC) • Maximum flow 60 gpm (13.6 m3/hr.), maximum head 100 ft. (20 m) |
General Description |
MSVKC Typical Applications: • High pressure/low flow chemical processing, spraying, bulk unload, and tank transfer applications • Plating recirculation/filtration, PCB etching and rinse • Water/waste water treatment, wet scrubber • Laboratory, pharmaceutical, photo processing |
Chemical Delivery / Processing
22853 productsFiltration Systems
1862 productsLabratories / Research
308 productsManufacturing
20389 productsPharmaceutical / Chemical
15972 productsPlating
23448 productsSewage / Wastewater
20311 productsSpray Systems
1862 productsTank Filling
436 productsWater Treatment

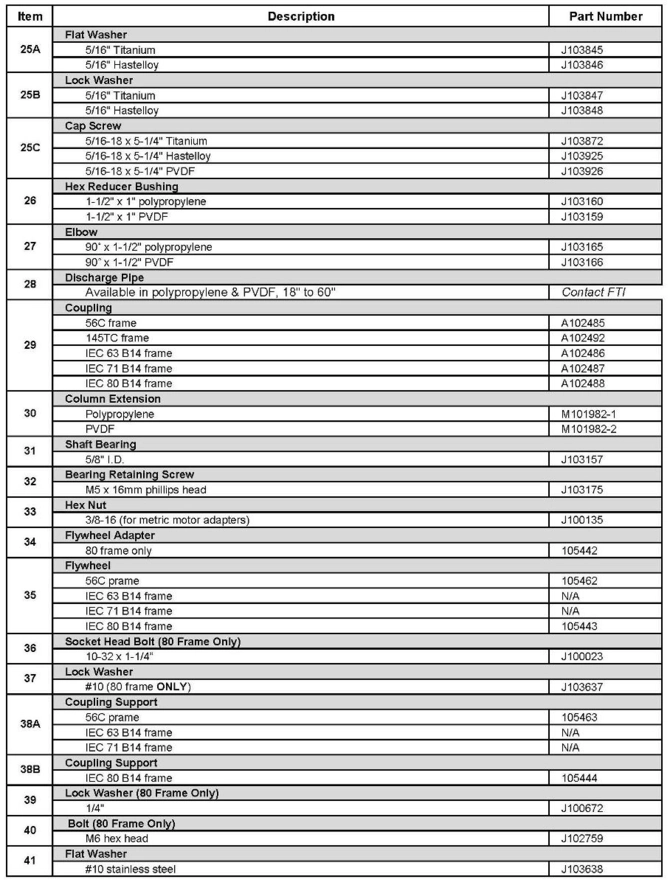

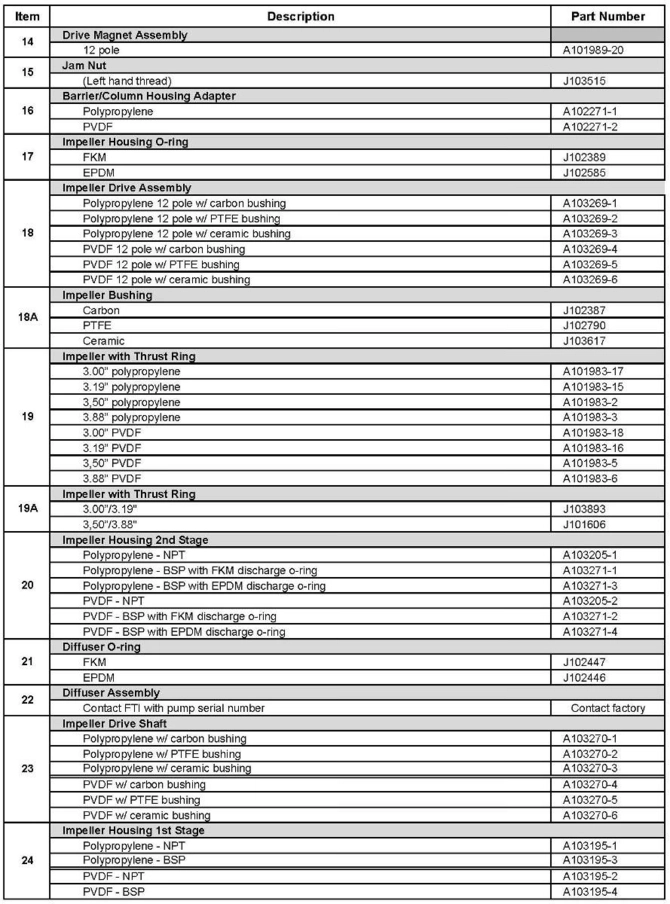

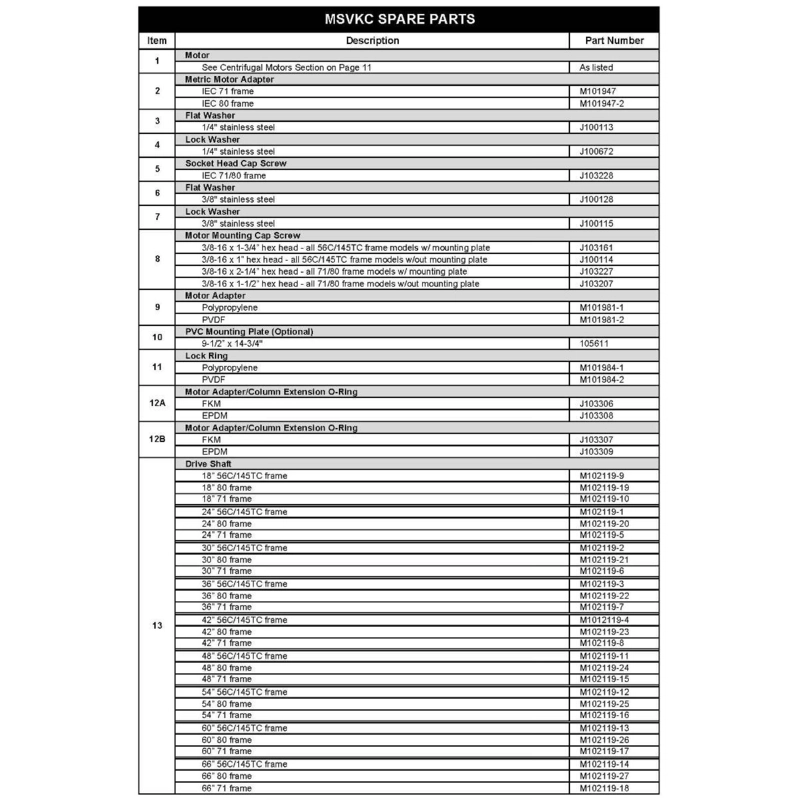

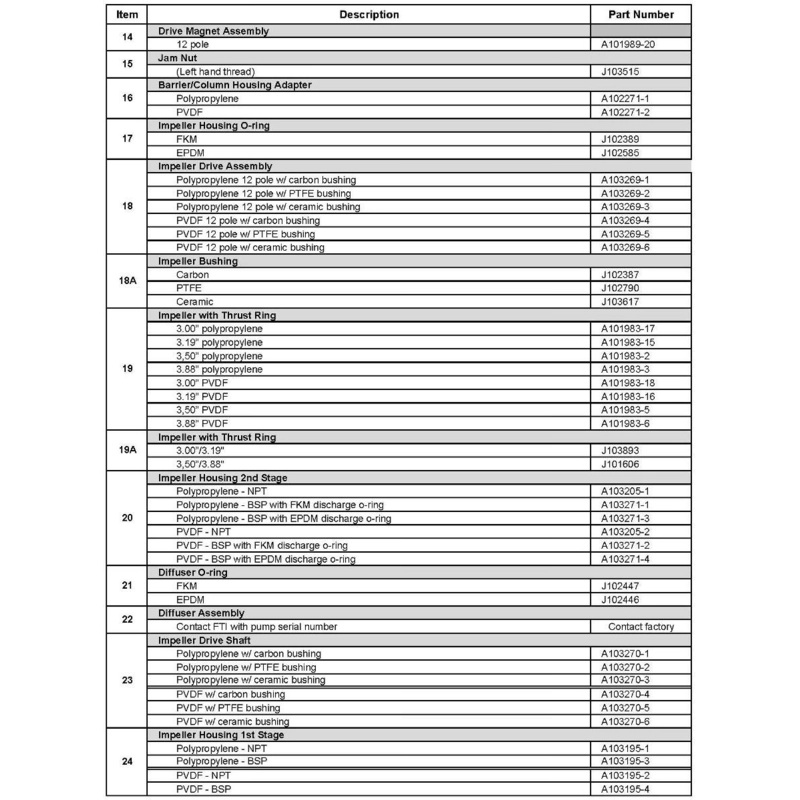

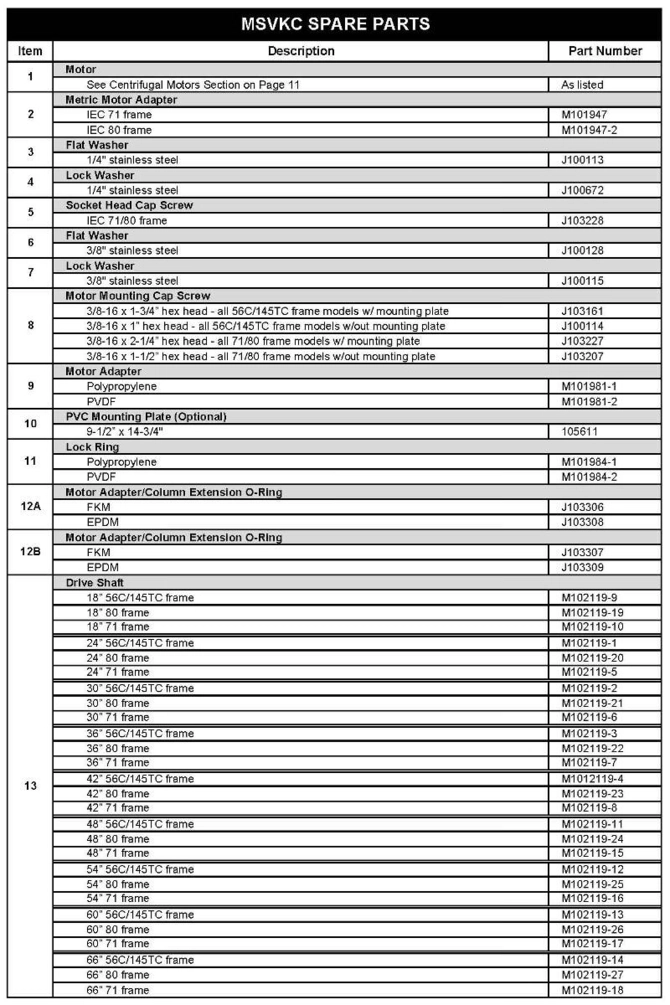

7855 productsProduct | qty. | shipping | price | ||
---|---|---|---|---|---|
J100113 | Ships in | $0.09 | |||
J100672 | Ships in | $0.06 | |||
J100128 | Ships in | $0.11 | |||
J100115 | Ships in | $0.16 | |||
J103161 | Ships in | $1.87 | |||
J100114 | Ships in | $0.60 | |||
105611 | Ships in | $184.30 | |||
J103306 | Ships in | $45.60 | |||
J103307 | Ships in | $53.20 | |||
M102119-13 | Ships in | $355.30 | |||
A101989-20 | Ships in | $627.95 | |||
J103515 | Ships in | $4.83 | |||
A102271-2 | Ships in | $345.80 | |||
J102389 | Ships in | $5.42 | |||
A103269-4 | Ships in | $860.70 | |||
J102387 | Ships in | $150.10 | |||
A101983-6 | Ships in | $209.95 | |||
J101606 | Ships in | $99.75 | |||
A103205-2 | Ships in | Call for pricing | |||
J102447 | Ships in | $11.07 | |||
A103270-4 | Ships in | $374.30 | |||
A103195-2 | Ships in | $414.20 | |||
J103926 | Ships in | $72.20 | |||
J103159 | Ships in | $151.05 | |||
J103166 | Ships in | $344.85 | |||
A102485 | Ships in | $95.95 | |||
M101982-2 | Ships in | $310.65 | |||
J103157 | Ships in | $111.15 | |||
J103175 | Ships in | $3.62 | |||
J100135 | Ships in | $0.33 | |||
105462 | Ships in | $137.75 | |||
105463-NEP | Ships in | $65.00 | |||
J103638 | Ships in | $0.07 |
