• Finish Thompson Pump w/ motor MSVKCV18CVVN15C10 Vertical Multistage

Image shown may not be actual product

Finish Thompson FTI

MSVKCV18CVVN15C10

0 reviews

Finish Thompson FTI Pump with motor MSVKCV18CVVN15C10 Vertical Multistage Centrifugal, VKC Series Plastic Mag Drive, MSVKC, 1 1/2" Suction, 1" Discharge, FKM O-Ring, 3.88" Impeller, 80 psi, 61 GPM

$3,035.20

Item: MSVKCV18CVVN15C10
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

MSVKCV18CVVN15C10

Finish Thompson FTI Pump with motor MSVKCV18CVVN15C10 Vertical Multistage Centrifugal, VKC Series Plastic Mag Drive, MSVKC, 1 1/2" Suction, 1" Discharge, FKM O-Ring, 3.88" Impeller, 80 psi, 61 GPM

BushingCarbon
Column Length18"
Connection TypeNPT
Discharge NPT (Inches)1"
Heads To (Feet)99
HP1 1/2
Hz60
Impeller Size (Inches)3.88"
MaterialPVDF
Maximum Flow (GPM)61
MaxImum Operating Temperature140°F (60°C)
Maximum Pressure (PSI)80 psi
Motor1-1/2hp/3450/1ph/60Hz/T/56C/115-230V
Motor Frame Size56C
Phase1
Pressure Rating BAR5.5 bar
Spec. Gravityup to 1.8
Speed (RPM)3450
Suction NPT (Inches)1 1/2"
Valve/Seat/O-RingFKM
Voltage115-230

MSVKC Vertical Multistage Mag Drive Pumps Information

Features & Benefits
MSVKC Vertical Multi Stage Mag Drive Pumps Feature:
• Sealless mag drive technology - eliminates microbubbles
• Multi-Stage design: Generates increased head at low flow rates, low power consumption, wide hydraulic envelope allows for mix and match impeller sizes
• Unique interconnecting drive shaft - transmits torque from magnetic coupling to first stage impeller
• Independent thrust bearings at each stage for maximum reliability
• Polypropylene or PVDF construction
• Titanium, Hastelloy C or PVDF housing bolts
• Custom mounting plates available
• Accepts standard NEMA 56C or IEC 63, 71 and 80 with B14 frame motors
• Maximum working pressure 80 psi (5.4 bar)
• Maximum temperature: 140oF (60oC)
• Maximum flow 60 gpm (13.6 m3/hr.), maximum head 100 ft. (20 m)
General Description
MSVKC Typical Applications:
• High pressure/low flow chemical processing, spraying, bulk unload, and tank transfer applications
• Plating recirculation/filtration, PCB etching and rinse
• Water/waste water treatment, wet scrubber
• Laboratory, pharmaceutical, photo processing

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

MSVKC Vertical Multistage Mag Drive Pumps

VKC MSVKC Vertical Mag Drive Pump Datasheet

View

MSVKC Vertical Multistage Mag Drive Pumps

MSVKC Pump Datasheet

View

MSVKC Vertical Multistage Mag Drive Pumps

VKC MSVKC Series Pump Curves

View

Repair Parts for MSVKCV18CVVN15C10

  • Finish-Thompson-FTI-MSVKC-Pump-Parts-1.jpg
  • Finish-Thompson-FTI-MSVKC-Pump-Parts-2.jpg
  • Finish-Thompson-FTI-MSVKC-Pump-Parts-3.jpg

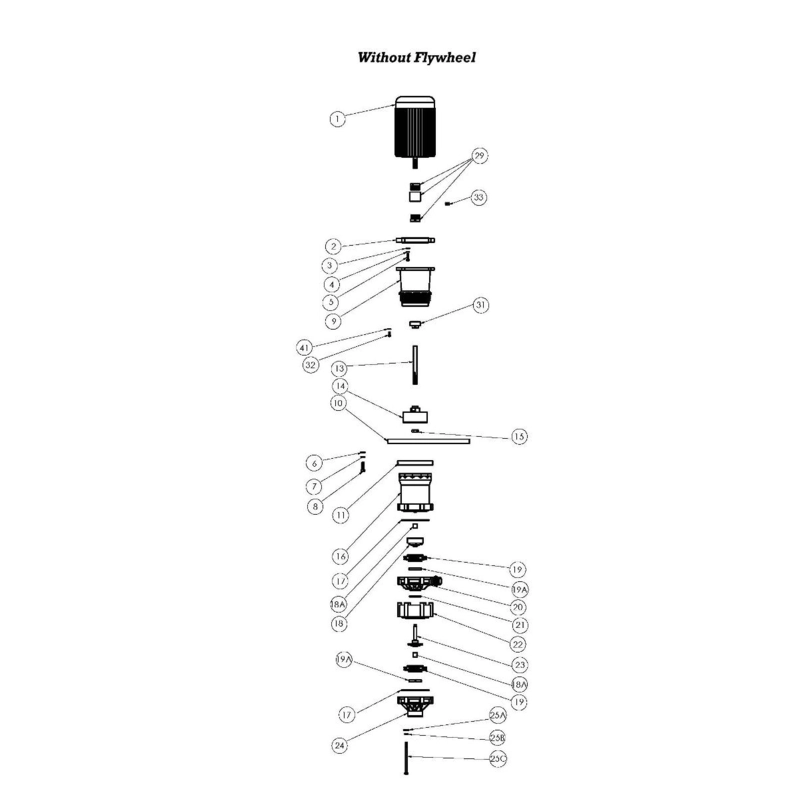

  • Finish-Thompson-FTI-MSVKC-Pump-Parts-Exploded-View-1.jpg

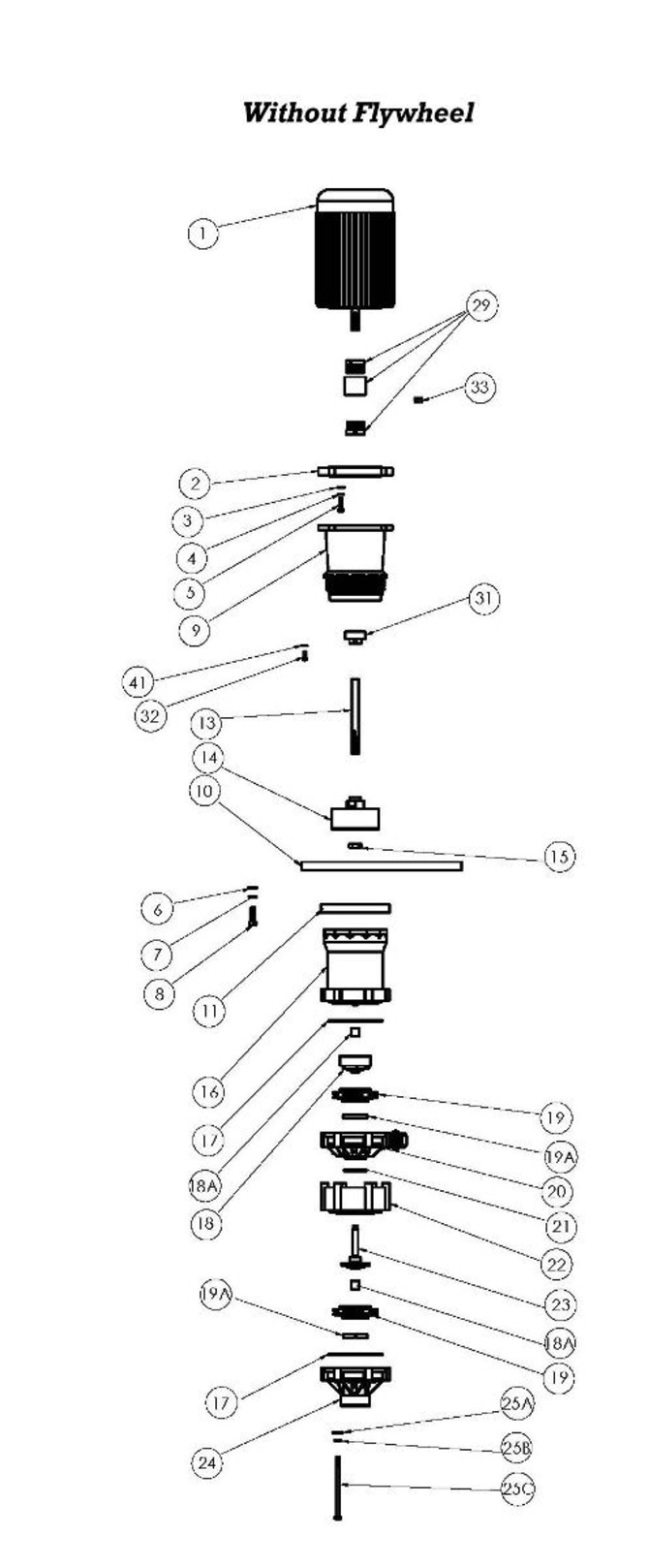

  • Finish-Thompson-FTI-MSVKC-Pump-Parts-Exploded-View-2.jpg
