• Finish Thompson Pump w/ motor MSVKCP18CVVN15C13 Vertical Multistage

Image shown may not be actual product

Finish Thompson FTI

MSVKCP18CVVN15C13

0 reviews

Finish Thompson FTI Pump with motor MSVKCP18CVVN15C13 Vertical Multistage Centrifugal, VKC Series Plastic Mag Drive, MSVKC, 1 1/2" Suction, 1" Discharge, FKM O-Ring, 3.88" Impeller, 80 psi, 61 GPM

$2,510.40

Item: MSVKCP18CVVN15C13
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

MSVKCP18CVVN15C13

Finish Thompson FTI Pump with motor MSVKCP18CVVN15C13 Vertical Multistage Centrifugal, VKC Series Plastic Mag Drive, MSVKC, 1 1/2" Suction, 1" Discharge, FKM O-Ring, 3.88" Impeller, 80 psi, 61 GPM

BushingCarbon
Column Length18"
Connection TypeNPT
Discharge NPT (Inches)1"
Heads To (Feet)99
HP1 1/2
Hz50
Impeller Size (Inches)3.88"
MaterialPolypropylene
Maximum Flow (GPM)61
MaxImum Operating Temperature140°F (60°C)
Maximum Pressure (PSI)80 psi
Motor1-1/2hp/2850/1ph/50Hz/T/56C/115-230V
Motor Frame Size56C
Phase1
Pressure Rating BAR5.5 bar
Spec. Gravityup to 1.8
Speed (RPM)2850
Suction NPT (Inches)1 1/2"
Valve/Seat/O-RingFKM
Voltage115-230

MSVKC Vertical Multistage Mag Drive Pumps Information

Features & Benefits
MSVKC Vertical Multi Stage Mag Drive Pumps Feature:
• Sealless mag drive technology - eliminates microbubbles
• Multi-Stage design: Generates increased head at low flow rates, low power consumption, wide hydraulic envelope allows for mix and match impeller sizes
• Unique interconnecting drive shaft - transmits torque from magnetic coupling to first stage impeller
• Independent thrust bearings at each stage for maximum reliability
• Polypropylene or PVDF construction
• Titanium, Hastelloy C or PVDF housing bolts
• Custom mounting plates available
• Accepts standard NEMA 56C or IEC 63, 71 and 80 with B14 frame motors
• Maximum working pressure 80 psi (5.4 bar)
• Maximum temperature: 140oF (60oC)
• Maximum flow 60 gpm (13.6 m3/hr.), maximum head 100 ft. (20 m)
General Description
MSVKC Typical Applications:
• High pressure/low flow chemical processing, spraying, bulk unload, and tank transfer applications
• Plating recirculation/filtration, PCB etching and rinse
• Water/waste water treatment, wet scrubber
• Laboratory, pharmaceutical, photo processing

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

MSVKC Vertical Multistage Mag Drive Pumps

VKC MSVKC Vertical Mag Drive Pump Datasheet

View

MSVKC Vertical Multistage Mag Drive Pumps

MSVKC Pump Datasheet

View

MSVKC Vertical Multistage Mag Drive Pumps

VKC MSVKC Series Pump Curves

View

Repair Parts for MSVKCP18CVVN15C13

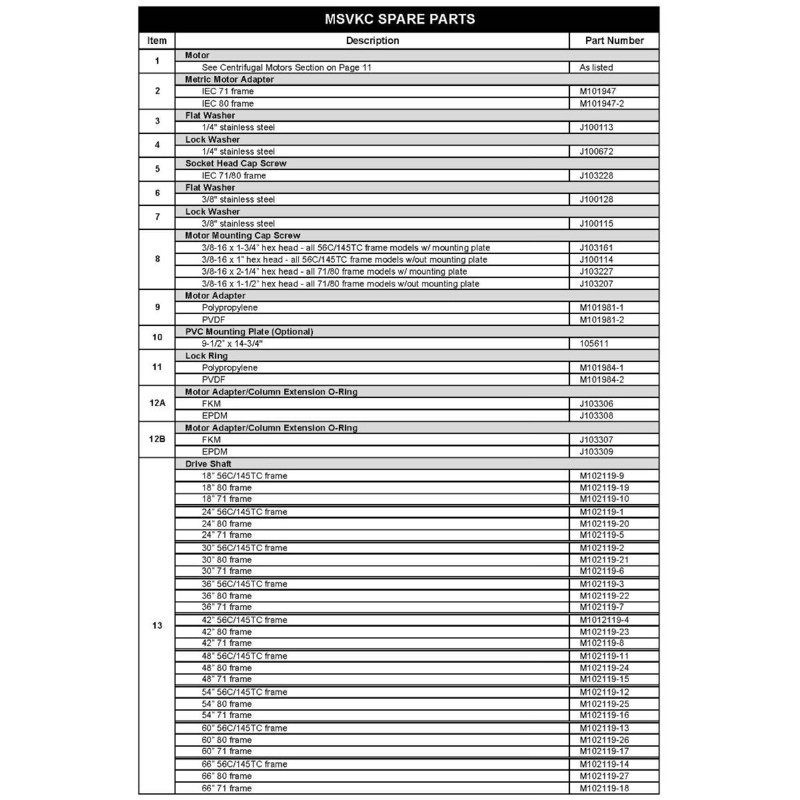

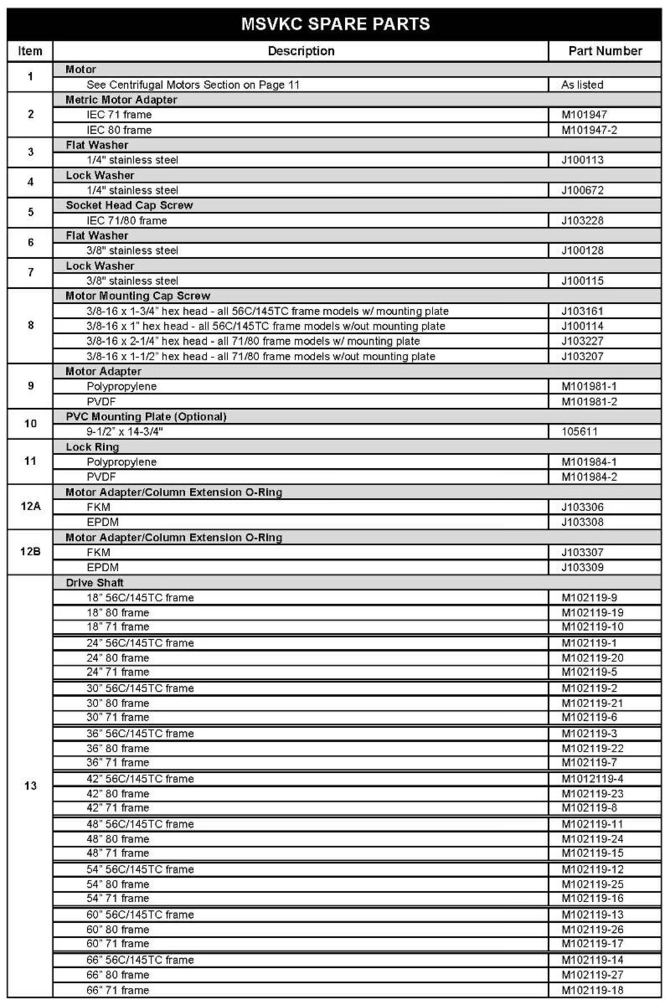

  • Finish-Thompson-FTI-MSVKC-Pump-Parts-1.jpg

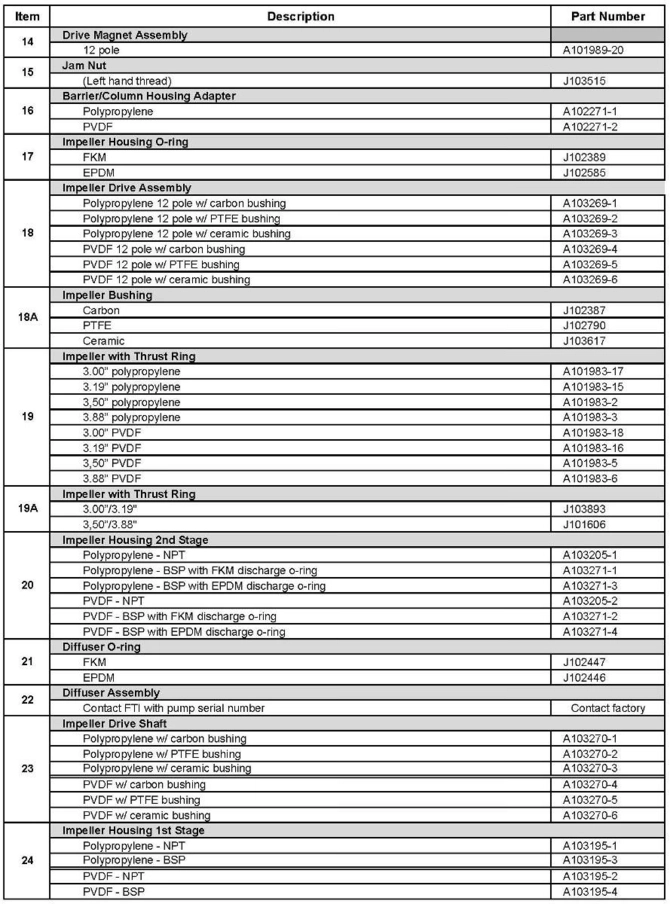

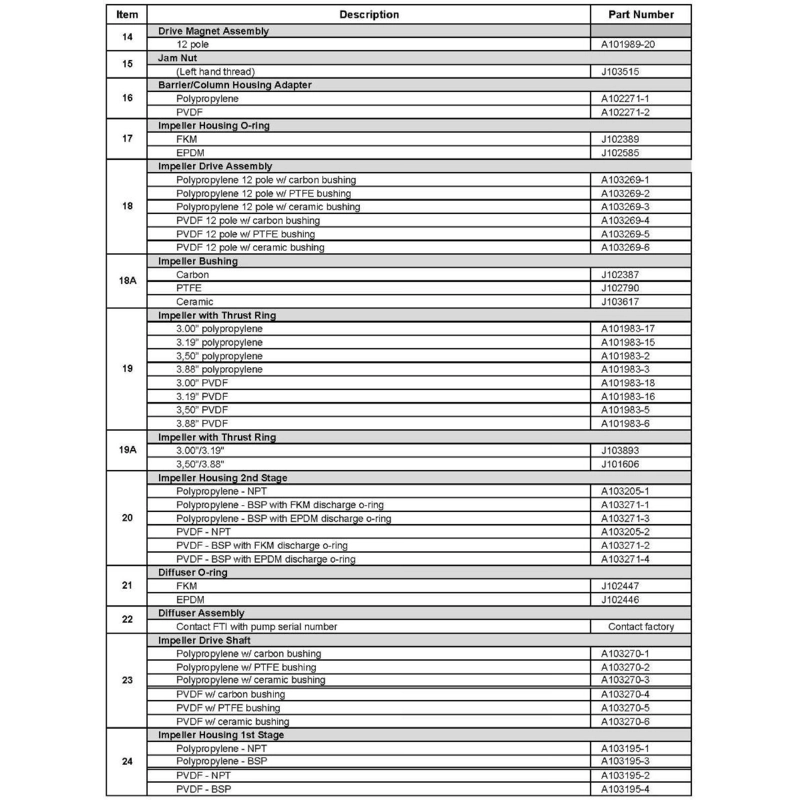

  • Finish-Thompson-FTI-MSVKC-Pump-Parts-2.jpg
  • Finish-Thompson-FTI-MSVKC-Pump-Parts-3.jpg

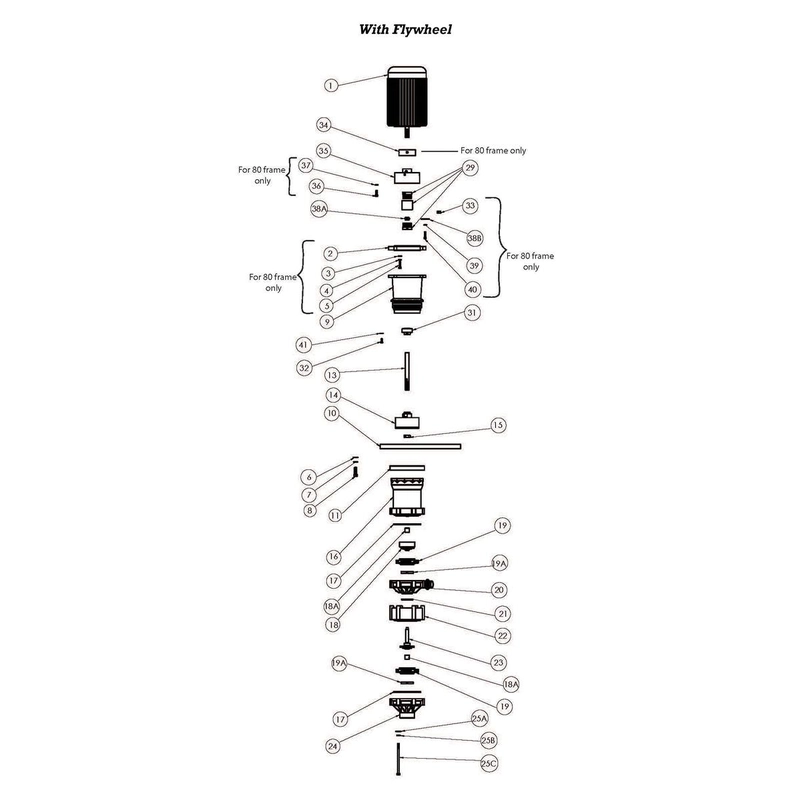

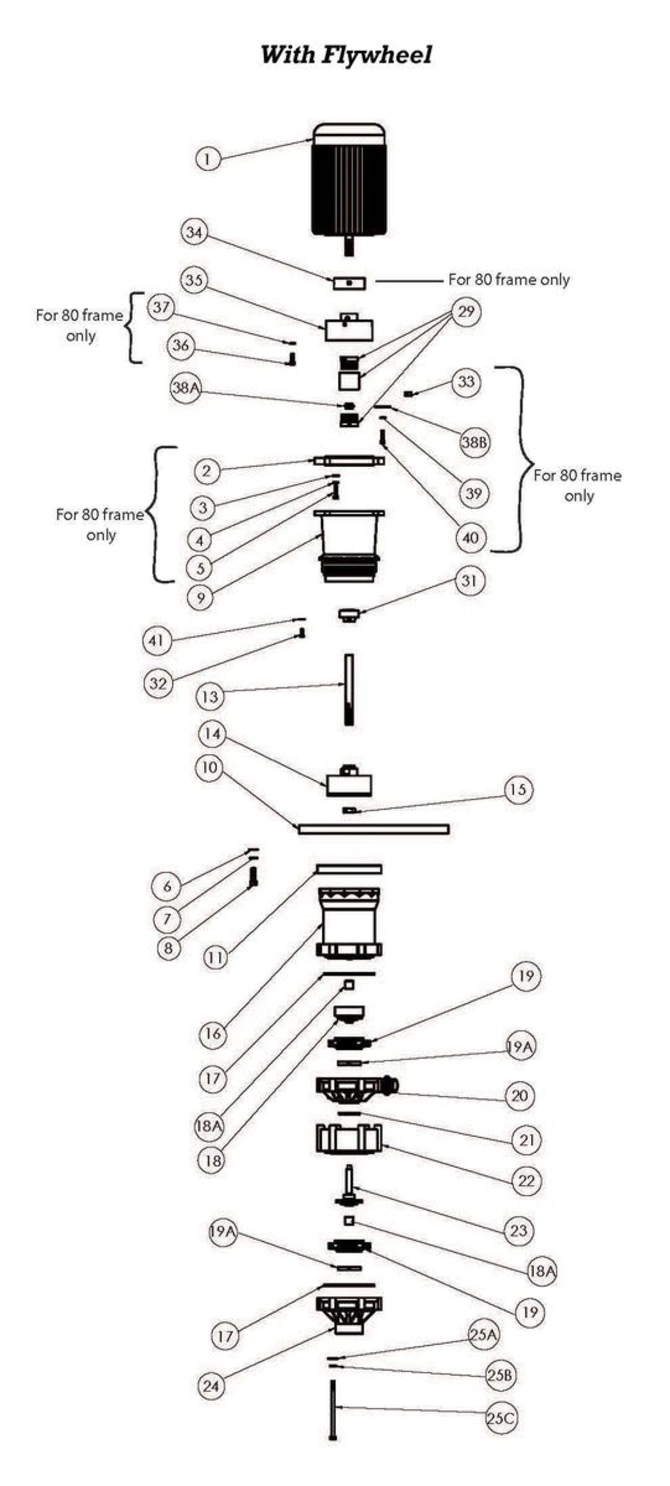

  • Finish-Thompson-FTI-MSVKC-Pump-Parts-Exploded-View-1.jpg
  • Finish-Thompson-FTI-MSVKC-Pump-Parts-Exploded-View-2.jpg
Productqty.shippingprice
J100113

J100113

Ships in $0.06
J100672

J100672

Ships in $0.04
J100128

J100128

Ships in $0.09
J100115

J100115

Ships in $0.11
J103161

J103161

Ships in $1.40
J100114

J100114

Ships in $0.44
M101981-1

M101981-1

Ships in $43.20
105611

105611

Ships in $126.00
M101984-1

M101984-1

Ships in $5.36
J103306

J103306

Ships in $28.80
J103307

J103307

Ships in $34.20
M102119-9

M102119-9

Ships in $52.80
A101989-20

A101989-20

Ships in $412.20
J103515

J103515

Ships in $3.13
A102271-1

A102271-1

Ships in $63.00
J102389

J102389

Ships in $27.00
A103269-1

A103269-1

Ships in $404.10
J102387

J102387

Ships in $105.30
A101983-3

A101983-3

Ships in $65.70
J101606

J101606

Ships in $63.00
A103205-1

A103205-1

Ships in $63.00
J102447

J102447

Ships in $7.85
A103270-1

A103270-1

Ships in $162.00
A103195-1

A103195-1

Ships in $118.80
J103926

J103926

Ships in $47.70
J103160

J103160

Ships in $63.00
J103165

J103165

Ships in $56.70
A102485

A102485

Ships in $63.90
M101982-1

M101982-1

Ships in $40.80
J103157

J103157

Ships in $76.50
J103175

J103175

Ships in $1.94
J100135

J100135

Ships in $0.24
105462

105462

Ships in $92.70
105463

105463

Ships in $11.80
J103638

J103638

Ships in $0.05
