MSKCVCVN15C13 Finish Thompson Pump / Motor FTI

MSKC Sealless Plastic Multistage Mag Drive Pump Information

Features & Benefits
MSKC Sealless Plastic Multistage Pump Features: • Sealless mag drive technology - eliminates costly seal problems • Multi-Stage design: Generates increased head at low flow rates, low power consumption, wide hydraulic envelope allows for mix and match impeller sizes • Small footprint - avoids large impeller diameters • Unique interconnecting drive shaft - transmits torque from magnetic coupling to first stage impeller • Independent thrust bearings at each stage for maximum reliability • Polypropylene or PVDF construction • Accepts standard NEMA 56C or IEC 71/B14, 80/B14 frame motors • Maximum working pressure 80 psi • Maximum temperature: 180°F (82°C) - Polypropylene 220°F (104°C) - PVDF • Maximum flow 60 gpm (12.8 m3/hr.), maximum head 100 ft. (21.3 m)

Features & Benefits

MSKC Sealless Plastic Multistage Pump Features:

• Sealless mag drive technology - eliminates costly seal problems
• Multi-Stage design: Generates increased head at low flow rates, low power consumption, wide hydraulic envelope allows for mix and match impeller sizes
• Small footprint - avoids large impeller diameters
• Unique interconnecting drive shaft - transmits torque from magnetic coupling to first stage impeller
• Independent thrust bearings at each stage for maximum reliability
• Polypropylene or PVDF construction
• Accepts standard NEMA 56C or IEC 71/B14, 80/B14 frame motors
• Maximum working pressure 80 psi
• Maximum temperature: 180°F (82°C) - Polypropylene 220°F (104°C) - PVDF
• Maximum flow 60 gpm (12.8 m3/hr.), maximum head 100 ft. (21.3 m)

Bushing	Carbon
Connection Type	NPT
Discharge NPT (Inches)	1"
Heads To (Feet)	99
HP	1
Hz	50
Impeller Size (Inches)	3.875" (3 7/8")
Material	PVDF
Maximum Operating Temperature	220°F (104°C)
Maximum Pressure (PSI)	80 PSI (5.5 Bar)

Motor	1hp/2850/1ph/50Hz/T/56C/110-220V
Motor Frame Size	56C
Phase	1
Pressure Rating BAR	5.5 bar
Speed (RPM)	2850
Suction NPT (Inches)	1-1/2"
Valve/Seat/O-Ring	FKM
Voltage	110/220

Type	Title		Link
	MSKC Centrifugal Multistage Pumps Datasheet (2022)		View
	KC, VKC, MSKC Series Pumps Performance Curves (2022)		View
	MSKC Multistage Pumps Installation & Operation Manual (2022)		View

	shipping	price
A103195-2	Ships in	$414.20	Select item
A103270-4	Ships in	$374.30	Select item
A103270-6	Ships in	$511.10	Select item
J102389	Ships in	$5.42	Select item
J102447	Ships in	$11.07	Select item
A103205-2	Ships in	Call for pricing
A103269-4	Ships in	$860.70	Select item
J102387	Ships in	$150.10	Select item
107788-2	Ships in	$364.80	Select item
A101990-15	Ships in	$580.45	Select item
J104219	Ships in	$4.00	Select item
J104220	Ships in	$4.10	Select item
A101991-3	Ships in	$79.80	Select item
M102351	Ships in	$239.40	Select item
J103873	Ships in	$6.42	Select item
J100672	Ships in	$0.06	Select item
J100113	Ships in	$0.09	Select item
J102878	Ships in	$1.26	Select item
J100114	Ships in	$0.60	Select item
J100115	Ships in	$0.16	Select item
J100128	Ships in	$0.11	Select item

back to site

MSKCVCVN15C13

MSKCVCVN15C13

MSKCVCVN15C13

MSKC Sealless Plastic Multistage Mag Drive Pump Information

Categories

0 Reviews

Add a Review

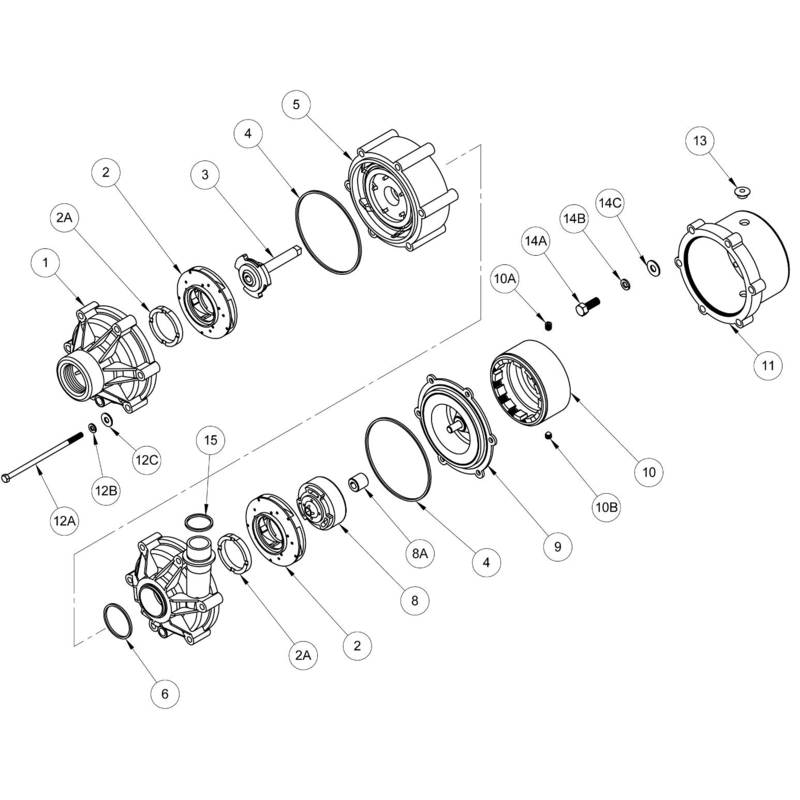

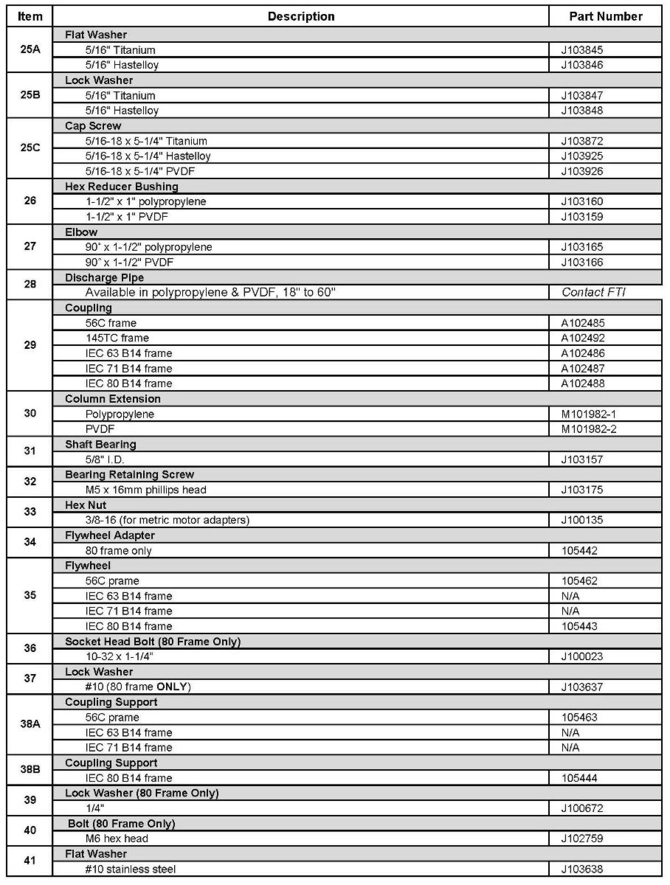

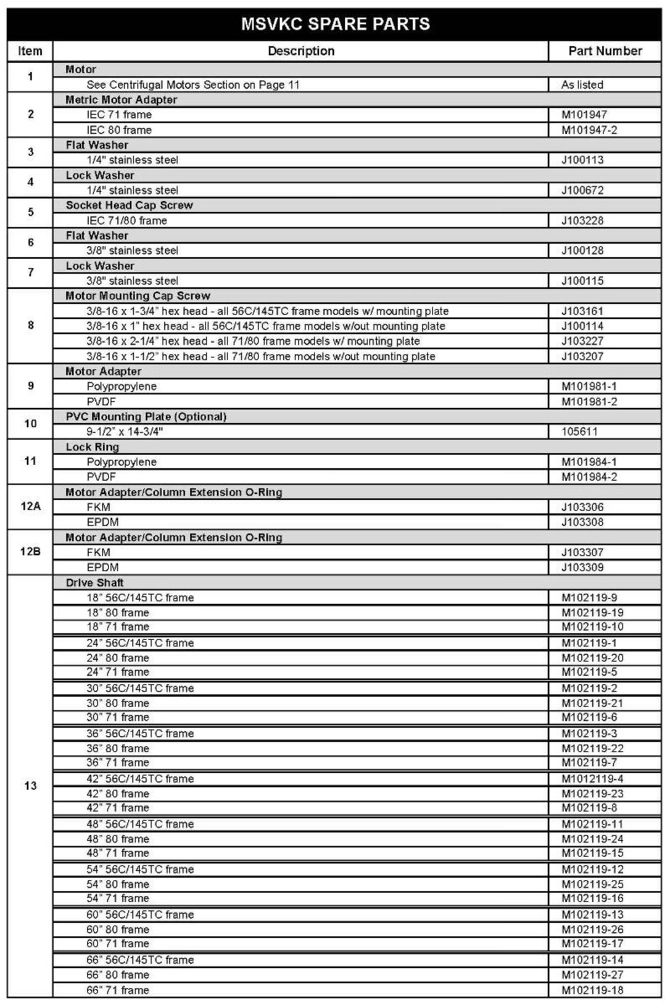

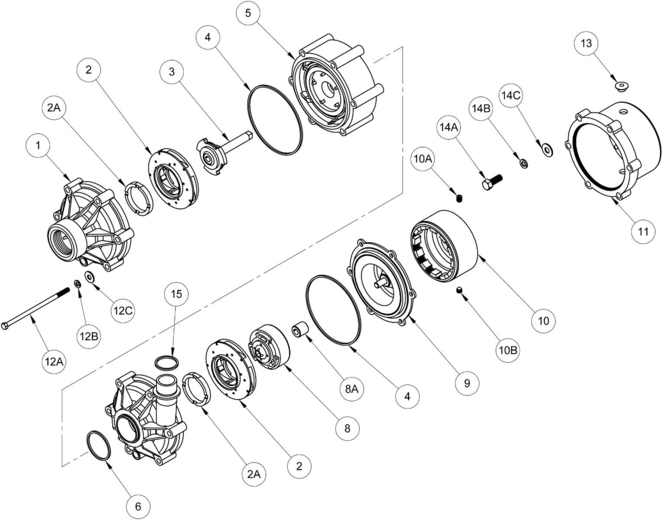

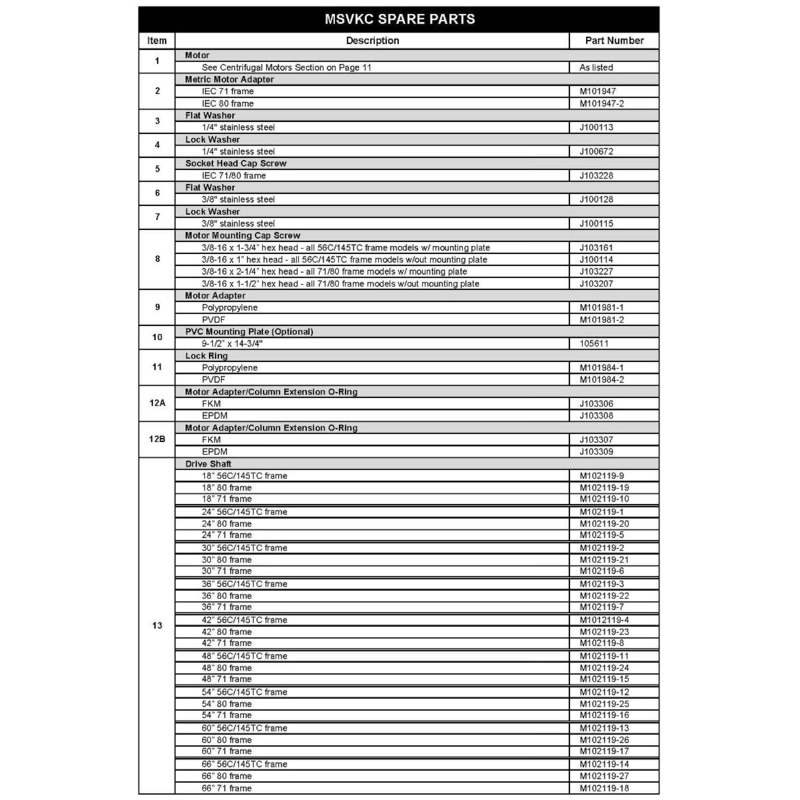

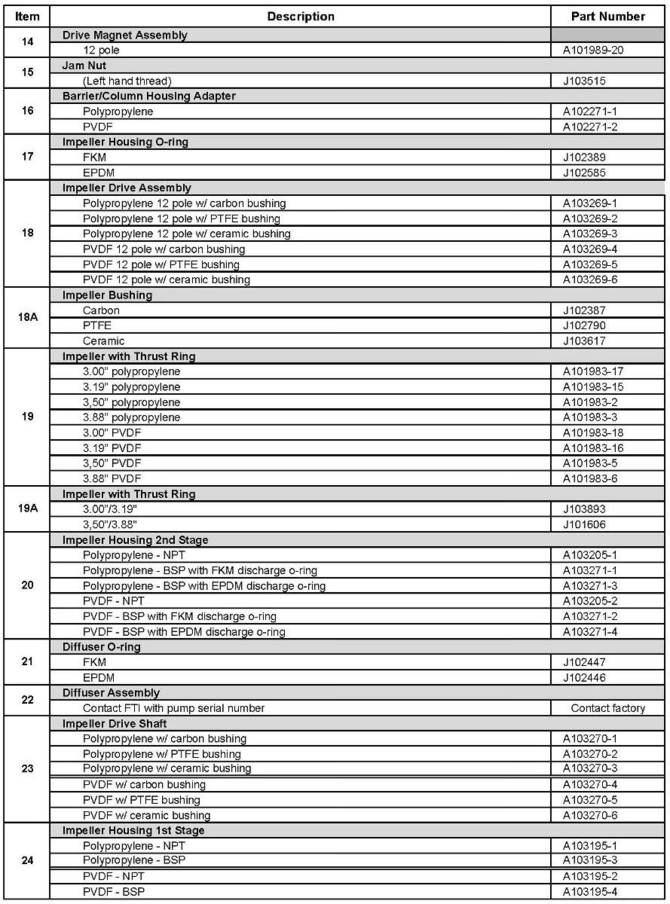

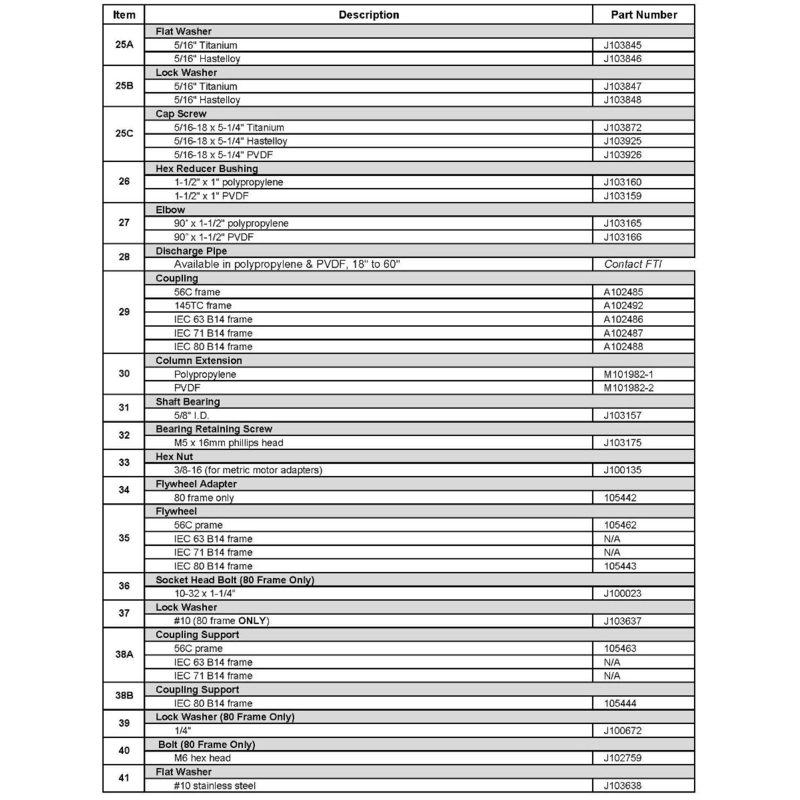

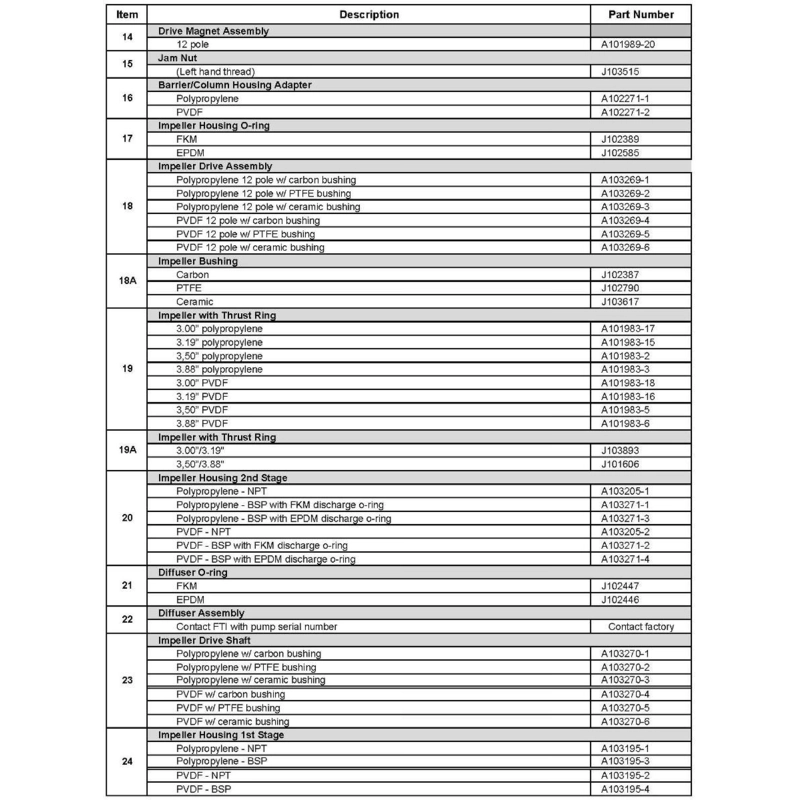

Repair Parts for MSKCVCVN15C13
