• Finish Thompson Pump with motor MSKCVCVN15C12

Image shown may not be actual product

Finish Thompson FTI

MSKCVCVN15C12

0 reviews

Finish Thompson FTI Pump with motor MSKCVCVN15C12 Sealless Non-Metallic Mag Drive Centrifugal, MSKC Series Multistage Pumps, 1 1/2" Suction, 1" Discharge, FKM O-Ring, PVDF

$2,250.40

Item: MSKCVCVN15C12
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

MSKCVCVN15C12

Finish Thompson FTI Pump with motor MSKCVCVN15C12 Sealless Non-Metallic Mag Drive Centrifugal, MSKC Series Multistage Pumps, 1 1/2" Suction, 1" Discharge, FKM O-Ring, PVDF

BushingCarbon
Connection TypeNPT
Discharge NPT (Inches)1"
Heads To (Feet)99
HP1
Hz50
Impeller Size (Inches)3.88"
MaterialPVDF
MaxImum Operating Temperature220°F (104°C)
Maximum Pressure (PSI)80 PSI
Motor1hp/2850/3ph/50Hz/T/56C/380-440V
Motor Frame Size56C
Phase3
Pressure Rating BAR5.5 bar
Speed (RPM)2850
Suction NPT (Inches)1 1/2"
Valve/Seat/O-RingFKM
Voltage380-440

MSKC Sealless Plastic Multistage Mag Drive Pump Information

Features & Benefits
MSKC Sealless Plastic Multistage Pump Features:

• Sealless mag drive technology - eliminates costly seal problems
• Multi-Stage design: Generates increased head at low flow rates, low power consumption, wide hydraulic envelope allows for mix and match impeller sizes
• Small footprint - avoids large impeller diameters
• Unique interconnecting drive shaft - transmits torque from magnetic coupling to first stage impeller
• Independent thrust bearings at each stage for maximum reliability
• Polypropylene or PVDF construction
• Accepts standard NEMA 56C or IEC 71/B14, 80/B14 frame motors
• Maximum working pressure 80 psi
• Maximum temperature: 180°F (82°C) - Polypropylene 220°F (104°C) - PVDF
• Maximum flow 60 gpm (12.8 m3/hr.), maximum head 100 ft. (21.3 m)

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

MSKC Sealless Plastic Multistage Mag Drive Pump

MSKC Series Pump Manual

View

MSKC Sealless Plastic Multistage Mag Drive Pump

MSKC Series Pump Datasheet

View

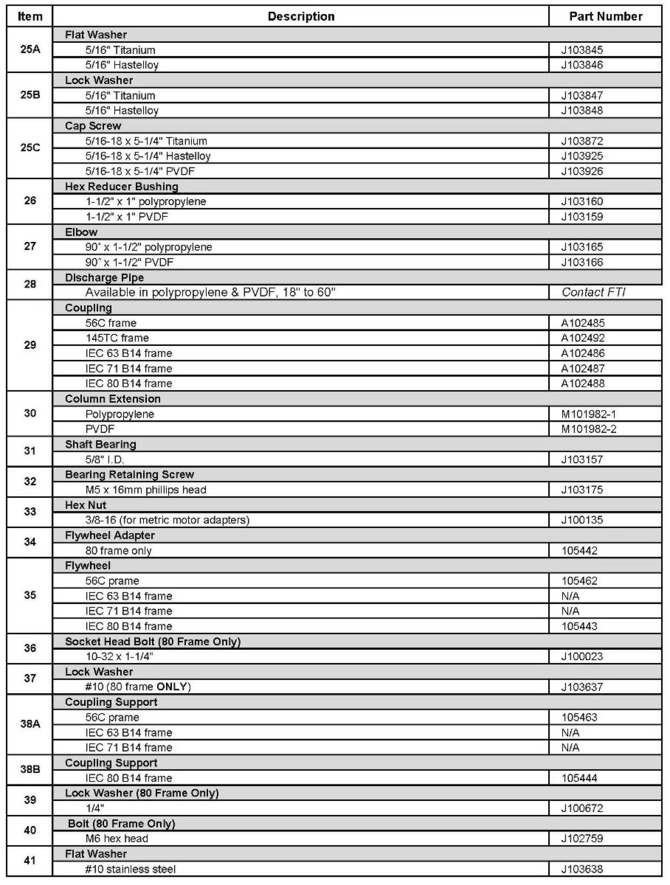

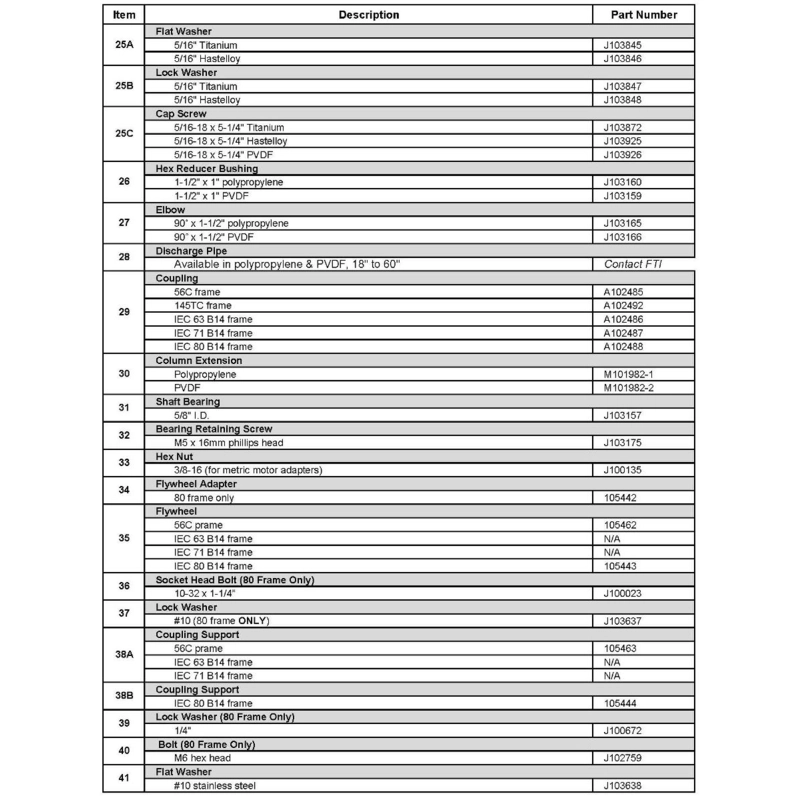

Repair Parts for MSKCVCVN15C12

  • Finish-Thompson-MSKC-Exploded-FTI-Pump-Parts.jpg
  • Finish-Thompson-MSKC-parts-1.jpg
  • Finish-Thompson-MSKC-parts-2.jpg
  • Finish-Thompson-MSKC-parts-3.jpg
Productqty.shippingprice
A103195-2

A103195-2

Ships in $271.80
A103270-4

A103270-4

Ships in $245.70
A103270-6

A103270-6

Ships in $335.70
J102389

J102389

Ships in $27.00
J102447

J102447

Ships in $7.85
A103205-2

A103205-2

Ships in $220.50
A103269-4

A103269-4

Ships in $566.10
J102387

J102387

Ships in $105.30
107788-2

107788-2

Ships in $238.50
A101990-15

A101990-15

Ships in $380.70
J104219

J104219

Ships in $3.04
J104220

J104220

Ships in $2.91
A101991-3

A101991-3

Ships in $49.50
M102351

M102351

Ships in $148.80
J103873

J103873

Ships in $4.56
J100672

J100672

Ships in $0.04
J100113

J100113

Ships in $0.06
J102878

J102878

Ships in $0.64
J100114

J100114

Ships in $0.44
J100115

J100115

Ships in $0.11
J100128

J100128

Ships in $0.09
