MSKCPCVN15C23 Finish Thompson Pump / Motor FTI

MSKC Sealless Plastic Multistage Mag Drive Pump Information

Features & Benefits
MSKC Sealless Plastic Multistage Pump Features: • Sealless mag drive technology - eliminates costly seal problems • Multi-Stage design: Generates increased head at low flow rates, low power consumption, wide hydraulic envelope allows for mix and match impeller sizes • Small footprint - avoids large impeller diameters • Unique interconnecting drive shaft - transmits torque from magnetic coupling to first stage impeller • Independent thrust bearings at each stage for maximum reliability • Polypropylene or PVDF construction • Accepts standard NEMA 56C or IEC 71/B14, 80/B14 frame motors • Maximum working pressure 80 psi • Maximum temperature: 180°F (82°C) - Polypropylene 220°F (104°C) - PVDF • Maximum flow 60 gpm (12.8 m3/hr.), maximum head 100 ft. (21.3 m)

Features & Benefits

MSKC Sealless Plastic Multistage Pump Features:

• Sealless mag drive technology - eliminates costly seal problems
• Multi-Stage design: Generates increased head at low flow rates, low power consumption, wide hydraulic envelope allows for mix and match impeller sizes
• Small footprint - avoids large impeller diameters
• Unique interconnecting drive shaft - transmits torque from magnetic coupling to first stage impeller
• Independent thrust bearings at each stage for maximum reliability
• Polypropylene or PVDF construction
• Accepts standard NEMA 56C or IEC 71/B14, 80/B14 frame motors
• Maximum working pressure 80 psi
• Maximum temperature: 180°F (82°C) - Polypropylene 220°F (104°C) - PVDF
• Maximum flow 60 gpm (12.8 m3/hr.), maximum head 100 ft. (21.3 m)

Bushing	Carbon
Connection Type	NPT
Discharge NPT (Inches)	1"
Heads To (Feet)	99
HP	2
Hz	60
Impeller Size (Inches)	3.88"
Material	Polypropylene
Maximum Operating Temperature	180°F (82°C)
Maximum Pressure (PSI)	80 PSI

Motor	2hp/3450/3ph/60Hz/T/56C/230-460V
Motor Frame Size	56C
Phase	3
Pressure Rating BAR	5.5 bar
Speed (RPM)	3450
Suction NPT (Inches)	1 1/2"
Valve/Seat/O-Ring	FKM
Voltage	230-460

Type	Title		Link
	MSKC Series Pump Datasheet		View
	MSKC Series Pump Manual		View

	shipping	price

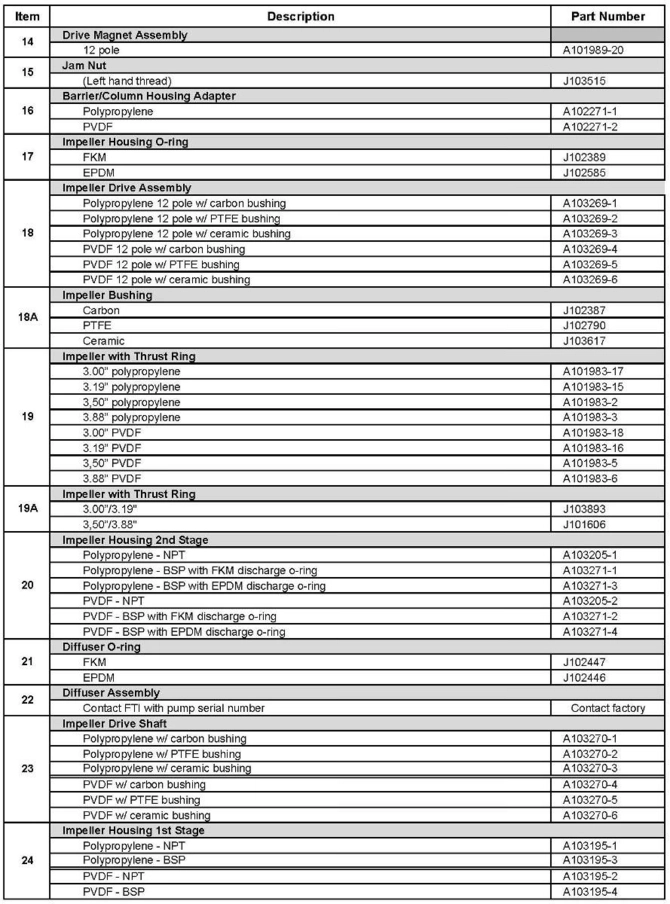

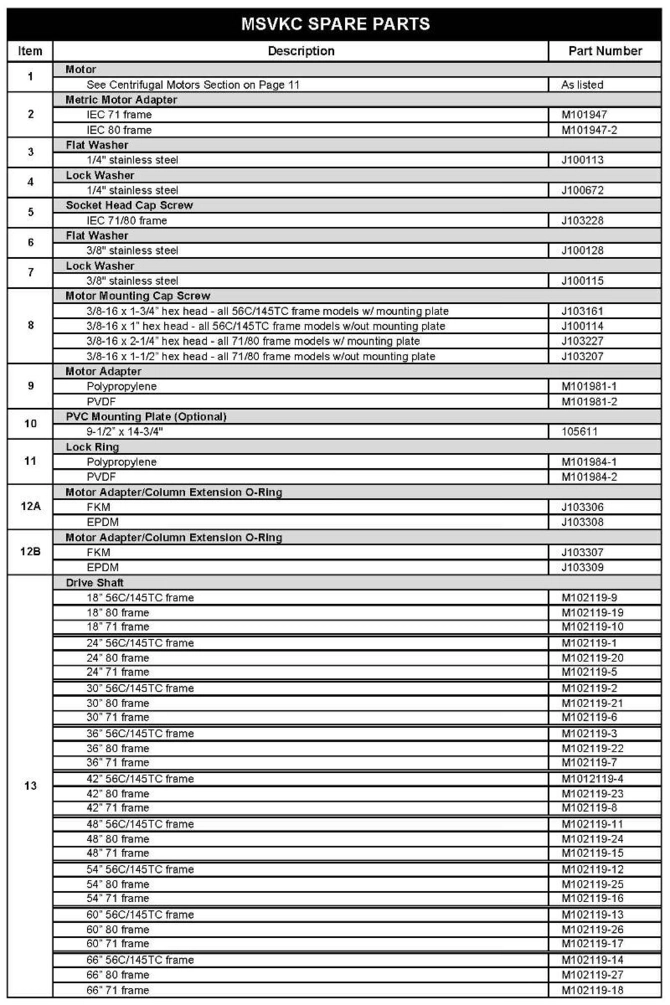

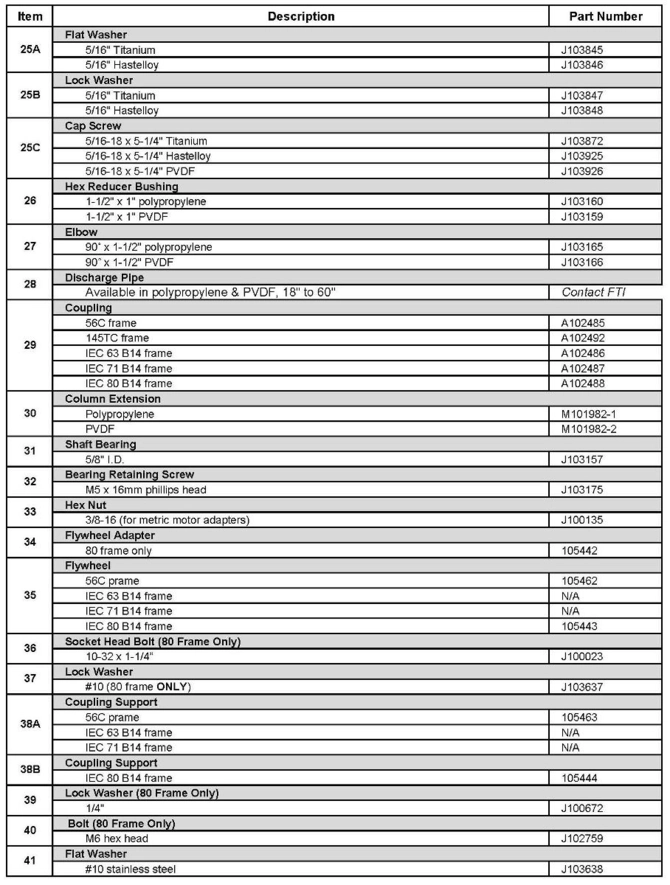

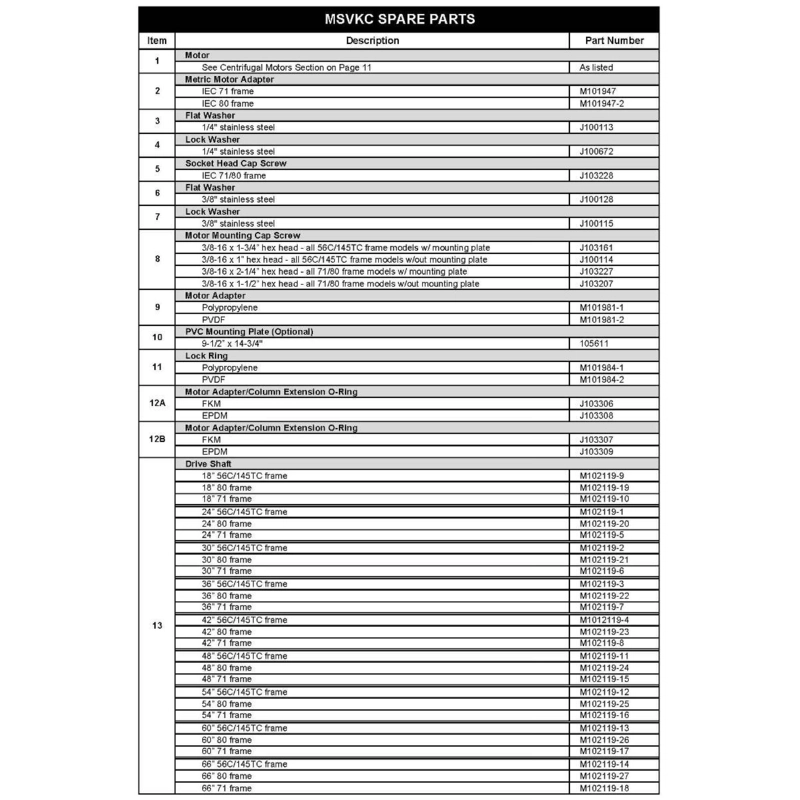

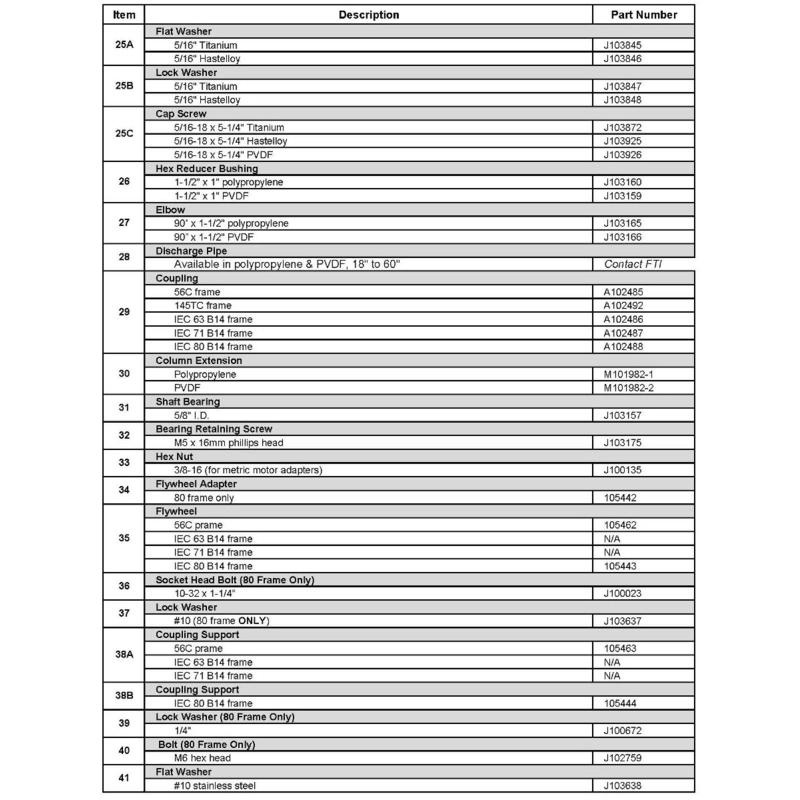

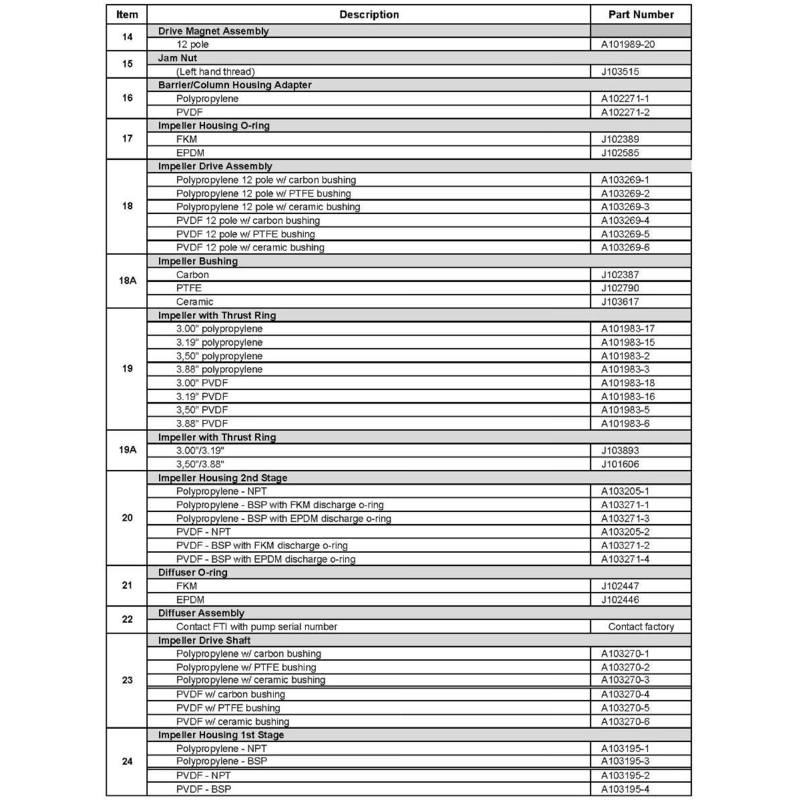

A103195-1	Ships in	$135.00	Select item
A103270-1	Ships in	$183.60	Select item
A103270-3	Ships in	$282.60	Select item
J102389	Ships in	$4.26	Select item
J102447	Ships in	$8.25	Select item
A103205-1	Ships in	Call for pricing
A103269-1	Ships in	$457.20	Select item
J102387	Ships in	$109.80	Select item
107788-1	Ships in	$80.10	Select item
A101990-15	Ships in	$431.10	Select item
J104219	Ships in	$3.13	Select item
J104220	Ships in	$3.06	Select item
A101991-3	Ships in	$57.60	Select item
M102351	Ships in	$176.40	Select item
J103873	Ships in	$4.79	Select item
J100672	Ships in	$0.05	Select item
J100113	Ships in	$0.06	Select item
J102878	Ships in	$0.94	Select item
J100114	Ships in	$0.47	Select item
J100115	Ships in	$0.11	Select item
J100128	Ships in	$0.09	Select item
