GP22PVB01601814 Finish Thompson Pump / Motor FTI

Features & Benefits
GP Sealed Plastic Centrifugal Pump Features: • Mechanical seal horizontal centrifugal pump • GF Polypropylene or CF PVDF corrosion resistant construction • Accepts standards NEMA 56C, 145TC, 143-184JM, or IEC 80, 90, 100, and 112 motor frames • Up to 7 1/2 Hp (3.0 kW) motors • Back pull-out feature enables fast access for pump maintenance • Close coupled or pedestal mounted • Bellows, multi-spring or double seals • Carbon, FKM or ceramic standard seal materials • FKM or EPDM o-rings standard • Up to 1.8 specific gravity with no impeller trimming • Port sizes: 1.5” x 1.5”, 2” x 2”, 3” x 2” • Maximum temperature: Polypropylene - 180oF (82oC), PVDF - 220oF (104oC) • Maximum working pressure: 35 psi / 2.4 Bar (GP11), 55 psi / 3.8 Bar (GP22/32)
General Description
FTI GP Series Typical Applications: • Chemical processing, spraying, transfer • Plating recirculation/filtration, PCB etching/rinse • Mild corrosive or low budget applications where periodic seal replacement is not an issue

Discharge NPT (Inches)	2"
Heads To (Feet)	123
HP	5
Hz	60
Impeller Size (Inches)	6.13"
Material	Polypropylene
Maximum Flow (GPM)	201
MaxImum Operating Temperature	180°F (82°C)
Maximum Pressure (PSI)	55 psi
Motor	5hp/3450/1ph/60Hz/T/184JM/230-460V

Series		Link
GP Sealed Plastic Centrifugal Pump	GP Series Pump Brochure	View
GP Sealed Plastic Centrifugal Pump	GP Series Pump Curves	View
GP Sealed Plastic Centrifugal Pump	GP Series Pump Datasheet	View
GP Sealed Plastic Centrifugal Pump	GP11 Series Pump Manual	View
GP Sealed Plastic Centrifugal Pump	GP22 GP 32 Series Pump Manual	View

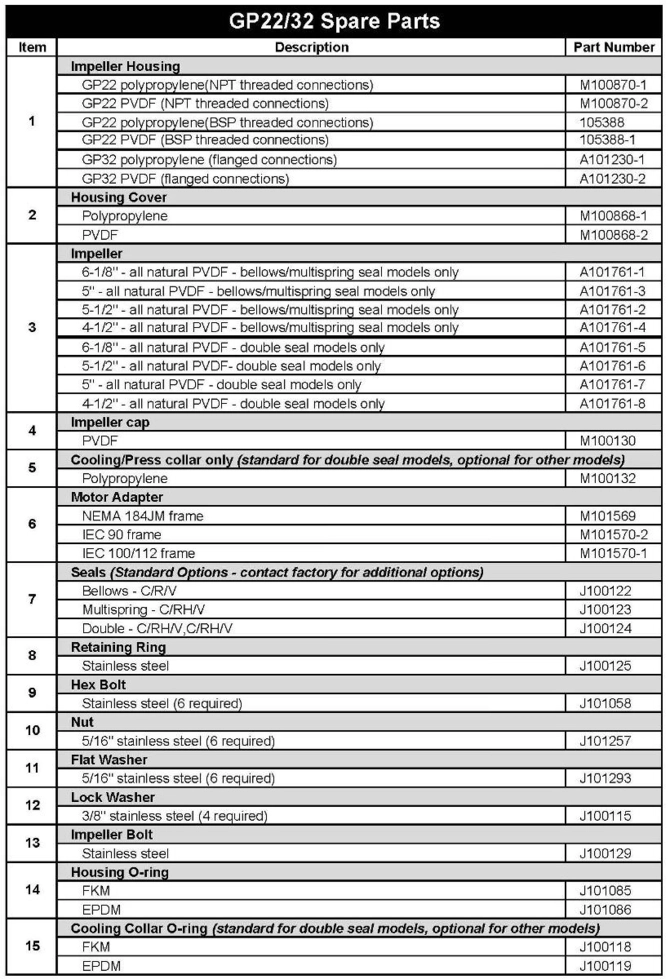

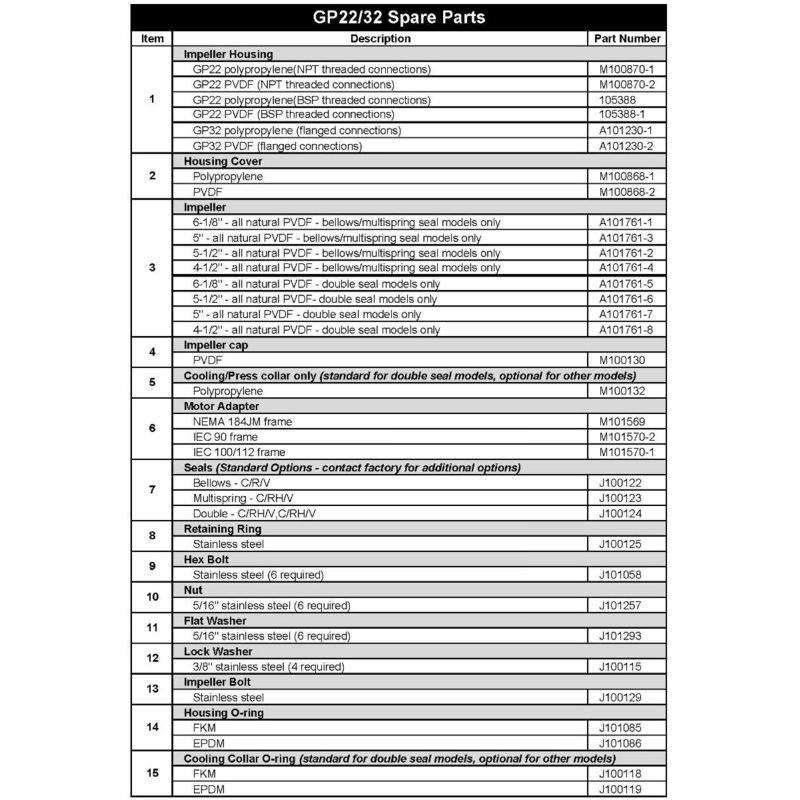

	shipping	price
M100870-1	Ships in	$284.40	Select item
105388	Ships in	$284.40	Select item
M100868-1	Ships in	$144.00	Select item
M100132	Ships in	$144.00	Select item
M101569	Ships in	$298.80	Select item
J100122	Ships in	$332.10	Select item
J100125	Ships in	$7.23	Select item
J101058	Ships in	$5.31	Select item
J101257	Ships in	$2.02	Select item
J101293	Ships in	$0.05	Select item
J100115	Ships in	$0.11	Select item
J100129	Ships in	$7.23	Select item
J101085	Ships in	$37.80	Select item
J100118	Ships in	$15.67	Select item
J100132	Ships in	$0.25	Select item
J100134	Ships in	$60.30	Select item
M100135	Ships in	$7.09	Select item
J100114	Ships in	$3.25	Select item
A100188	Ships in	$215.10	Select item
M100851	Ships in	$45.00	Select item
J102112	Ships in	$4.10	Select item
M100654	Ships in	$199.80	Select item

GP22PVB01601814
