Pump End GP11VVB01455C Finish Thompson FTI

Features & Benefits
GP Sealed Plastic Centrifugal Pump Features: • Mechanical seal horizontal centrifugal pump • GF Polypropylene or CF PVDF corrosion resistant construction • Accepts standards NEMA 56C, 145TC, 143-184JM, or IEC 80, 90, 100, and 112 motor frames • Up to 7 1/2 Hp (3.0 kW) motors • Back pull-out feature enables fast access for pump maintenance • Close coupled or pedestal mounted • Bellows, multi-spring or double seals • Carbon, FKM or ceramic standard seal materials • FKM or EPDM o-rings standard • Up to 1.8 specific gravity with no impeller trimming • Port sizes: 1.5” x 1.5”, 2” x 2”, 3” x 2” • Maximum temperature: Polypropylene - 180oF (82oC), PVDF - 220oF (104oC) • Maximum working pressure: 35 psi / 2.4 Bar (GP11), 55 psi / 3.8 Bar (GP22/32)
General Description
FTI GP Series Typical Applications: • Chemical processing, spraying, transfer • Plating recirculation/filtration, PCB etching/rinse • Mild corrosive or low budget applications where periodic seal replacement is not an issue

Discharge NPT (Inches)	1-1/2"
Heads To (Feet)	82
Impeller Size (Inches)	4.5" (4 1/2")
Material	PVDF
Maximum Flow (GPM)	126
Maximum Operating Temperature	220°F (104°C)
Maximum Pressure (PSI)	35 psi

Type	Title		Link
	GP Series Pumps Brochure (2022)		View
	GP11, GP22, GP32 Series Pumps Datasheet (2022)		View
	GP Series Pumps Performance Curves (2022)		View
	GP11 Series Pumps Installation & Operation Manual (2022)		View

	shipping	price

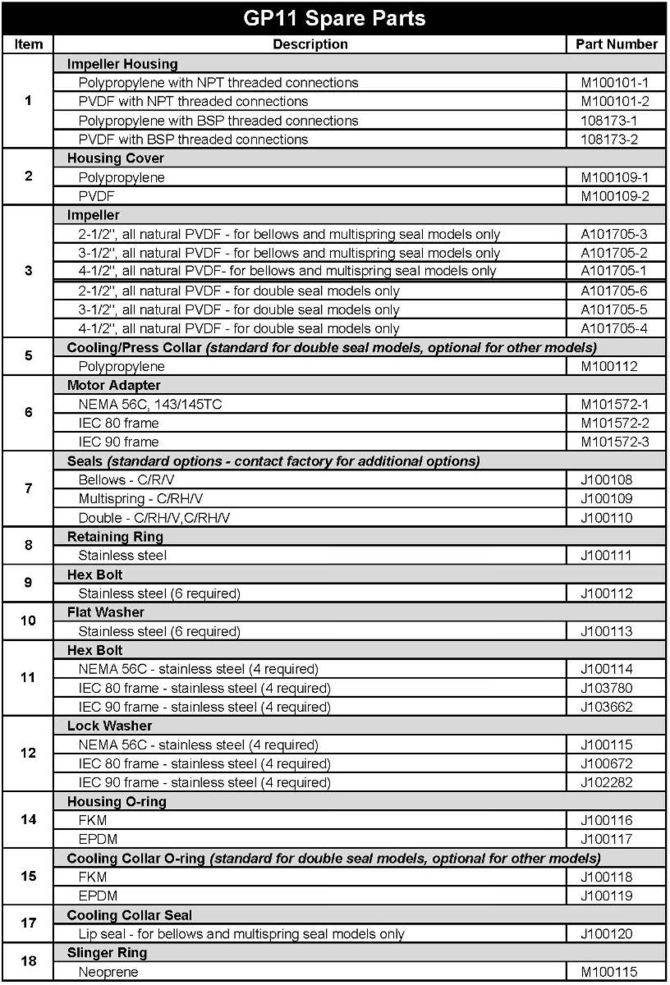

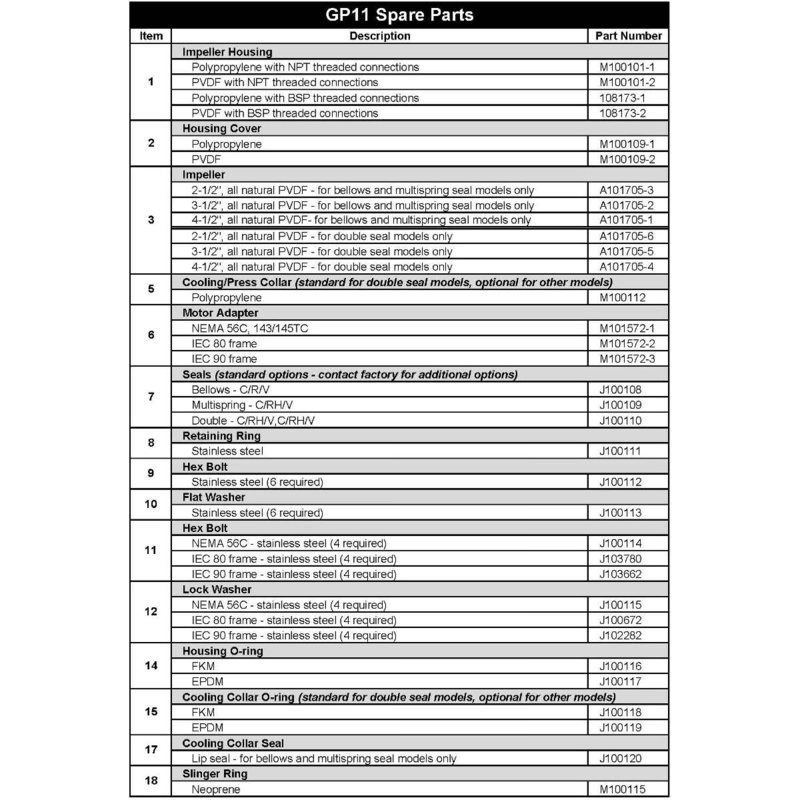

M100101-2	Ships in	$723.90	Select item
108173-2	Ships in	$723.90	Select item
M100109-2	Ships in	$278.35	Select item
A101705-1	Ships in	$443.65	Select item
M101572-1	Ships in	$244.15	Select item
J100108	Ships in	$226.10	Select item
J100111	Ships in	$9.51	Select item
J100112	Ships in	$4.75	Select item
J100113	Ships in	$0.09	Select item
J100114	Ships in	$0.60	Select item
J100115	Ships in	$0.16	Select item
J100116	Ships in	$37.05	Select item
J100118	Ships in	$21.85	Select item
J100120	Ships in	$71.25	Select item
M100115	Ships in	$9.51	Select item
A100856	Ships in	$190.95	Select item
J100220	Ships in	$0.43	Select item
A100185	Ships in	$237.50	Select item
M101637-1	Ships in	$60.80	Select item
M101637-2	Ships in	$60.80	Select item
J100932	Ships in	$0.14	Select item
M100346	Ships in	$173.85	Select item
J103312	Ships in	$3.76	Select item

GP11VVB01455C
