• Finish Thompson Pump with motor GP11PVB01455C12

Image shown may not be actual product

Finish Thompson FTI

GP11PVB01455C12

0 reviews

Finish Thompson FTI Pump with motor GP11PVB01455C12 Sealed Non-Metallic Centrifugal, GP Series Plastic, 1 1/2" Suction, 1 1/2" Discharge, FKM O-Ring, Polypropylene, 35 psi, 126 GPM, GP11 Economical Chemical Handling

$1,155.20

Item: GP11PVB01455C12
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

GP11PVB01455C12

Finish Thompson FTI Pump with motor GP11PVB01455C12 Sealed Non-Metallic Centrifugal, GP Series Plastic, 1 1/2" Suction, 1 1/2" Discharge, FKM O-Ring, Polypropylene, 35 psi, 126 GPM, GP11 Economical Chemical Handling

Discharge NPT (Inches)1 1/2"
Heads To (Feet)82
HP2
Hz60
Impeller Size (Inches)4.50"
MaterialPolypropylene
Maximum Flow (GPM)126
MaxImum Operating Temperature180°F (82°C)
Maximum Pressure (PSI)35 psi
Motor2hp/3450/3ph/60Hz/T/56C/230-460V
Motor Frame Size56C
Phase3
Pressure Rating BAR2.4 bar
Shaft Seal TypeBellows
Spec. Gravity1.8
Speed (RPM)3450
Suction NPT (Inches)1 1/2"
Valve/Seat/O-RingFKM
Voltage230-460

GP Sealed Plastic Centrifugal Pump Information

Features & Benefits
GP Sealed Plastic Centrifugal Pump Features:

• Mechanical seal horizontal centrifugal pump
• GF Polypropylene or CF PVDF corrosion resistant construction
• Accepts standards NEMA 56C, 145TC, 143-184JM, or IEC 80, 90, 100, and 112 motor frames
• Up to 7 1/2 Hp (3.0 kW) motors
• Back pull-out feature enables fast access for pump maintenance
• Close coupled or pedestal mounted
• Bellows, multi-spring or double seals
• Carbon, FKM or ceramic standard seal materials
• FKM or EPDM o-rings standard
• Up to 1.8 specific gravity with no impeller trimming
• Port sizes: 1.5” x 1.5”, 2” x 2”, 3” x 2”
• Maximum temperature: Polypropylene - 180oF (82oC), PVDF - 220oF (104oC)
• Maximum working pressure: 35 psi / 2.4 Bar (GP11), 55 psi / 3.8 Bar (GP22/32)
General Description
FTI GP Series Typical Applications:
• Chemical processing, spraying, transfer
• Plating recirculation/filtration, PCB etching/rinse
• Mild corrosive or low budget applications where periodic seal replacement is not an issue

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

GP Sealed Plastic Centrifugal Pump

GP Series Pump Brochure

View

GP Sealed Plastic Centrifugal Pump

GP Series Pump Curves

View

GP Sealed Plastic Centrifugal Pump

GP Series Pump Datasheet

View

GP Sealed Plastic Centrifugal Pump

GP11 Series Pump Manual

View

GP Sealed Plastic Centrifugal Pump

GP22 GP 32 Series Pump Manual

View

Repair Parts for GP11PVB01455C12

  • Finish-Thompson-GP11-Exploded-FTI-Pump-Parts.jpg

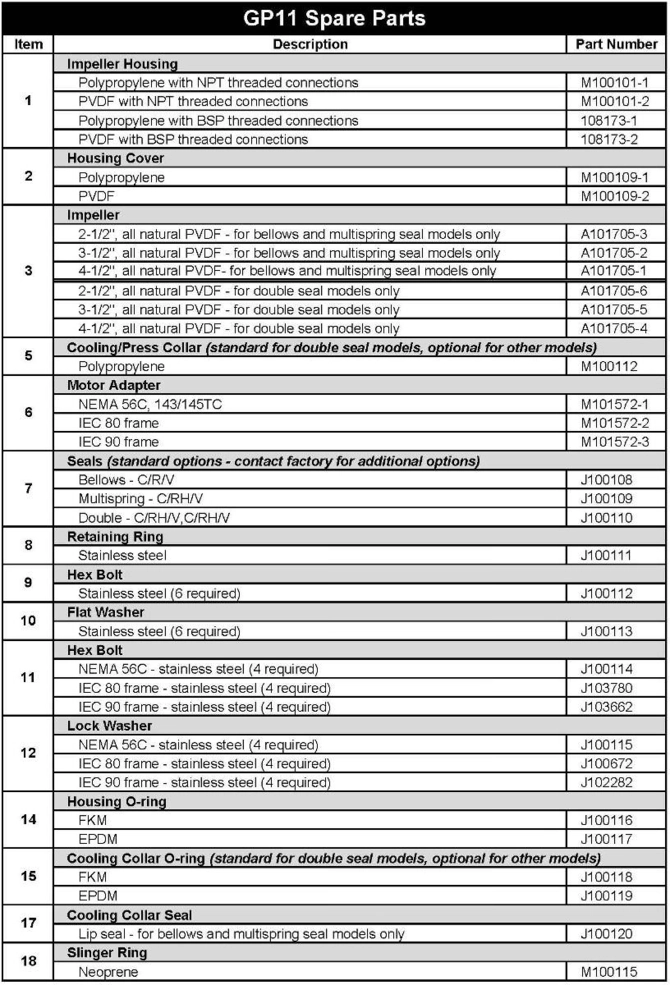

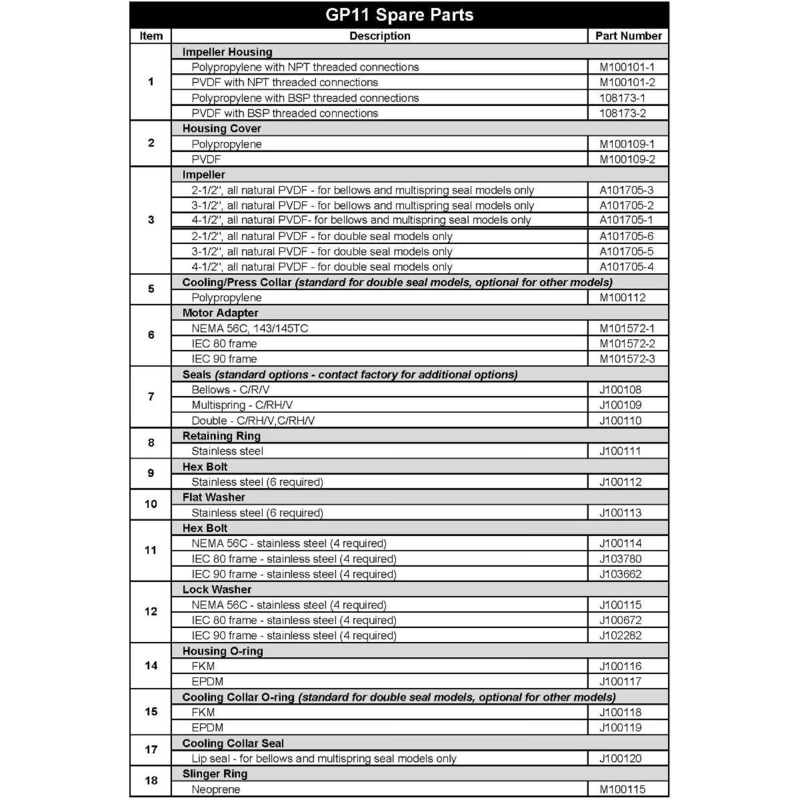

  • Finish-Thompson-GP11-parts-1.jpg

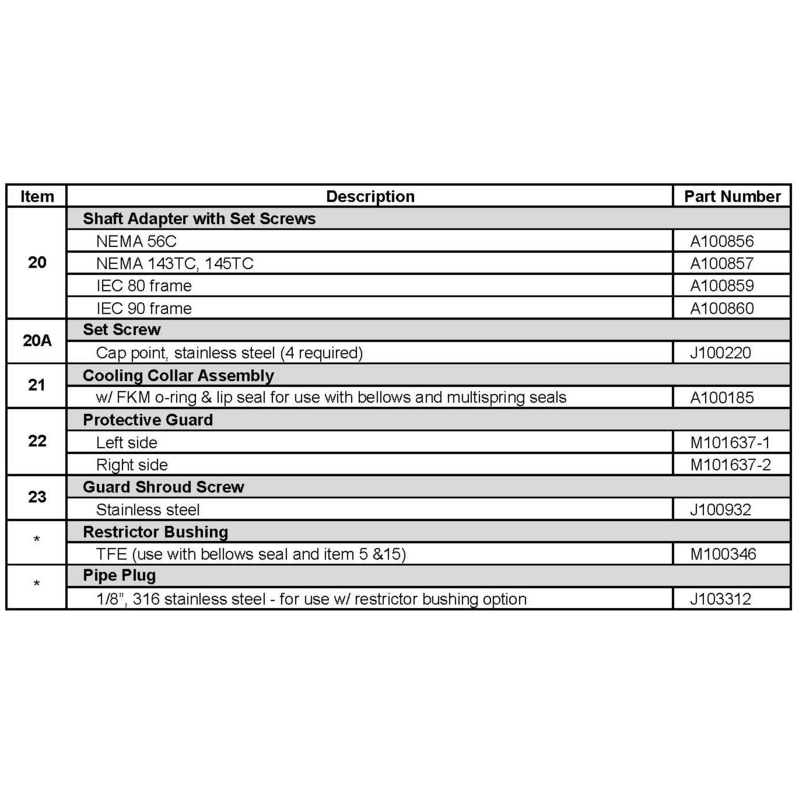

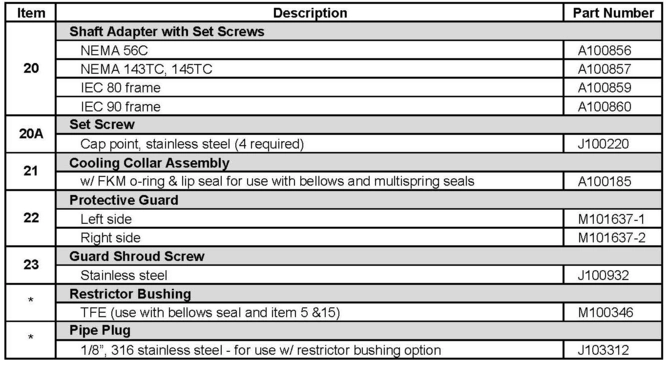

  • Finish-Thompson-GP11-parts-2.jpg
Productqty.shippingprice
M100101-1

M100101-1

Ships in $190.40
108173-1

108173-1

Ships in $214.20
M100109-1

M100109-1

Ships in $111.20
M100112

M100112

Ships in $107.20
M101572-1

M101572-1

Ships in $163.20
J100108

J100108

Ships in $170.10
J100111

J100111

Ships in $7.23
J100112

J100112

Ships in $3.62
J100113

J100113

Ships in $0.06
J100114

J100114

Ships in $0.44
J100115

J100115

Ships in $0.11
J100116

J100116

Ships in $26.10
J100118

J100118

Ships in $15.67
J100120

J100120

Ships in $51.30
M100115

M100115

Ships in $6.43
A100856

A100856

Ships in $144.00
J100220

J100220

Ships in $0.32
A100185

A100185

Ships in $178.20
M101637-1

M101637-1

Ships in $40.00
M101637-2

M101637-2

Ships in $40.00
J100932

J100932

Ships in $0.11
M100346

M100346

Ships in $115.20
J103312

J103312

Ships in $2.86
