PFM-40DEF-M6

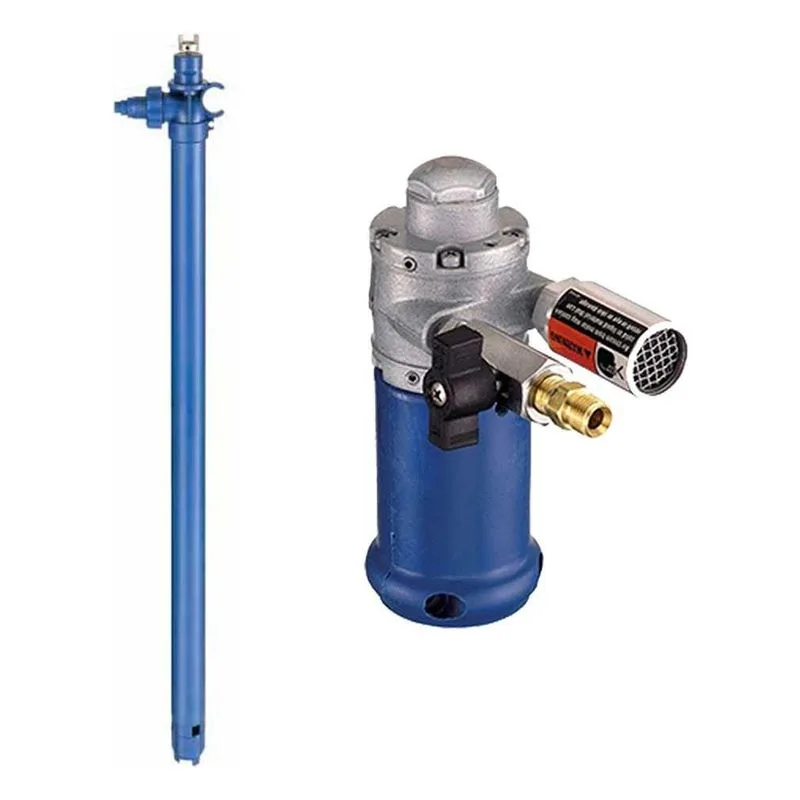

PFM-40DEF-M6 Finish Thompson PF Series DEF Drum Pump & Motor, FTI DPFM015 & A100007. 22 GPM (83 LPM) Maximum Flow, 38 Feet (11.6m) Max Head, 300-9000 RPM, Air Motor. 40" Polypropylene Tube, 3/4" Hose Barb Discharge, EPDM O-Ring & PVDF Impeller.
$786.40
- Best Price Guarantee!
- 157PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
PFM-40DEF-M6
PFM-40DEF-M6 Finish Thompson PF Series DEF Drum Pump & Motor, FTI DPFM015 & A100007. 22 GPM (83 LPM) Maximum Flow, 38 Feet (11.6m) Max Head, 300-9000 RPM, Air Motor. 40" Polypropylene Tube, 3/4" Hose Barb Discharge, EPDM O-Ring & PVDF Impeller.
| Air Supply Pressure | 80-100 psi @ 15-32 cfm |
| Base Model Number | PFM-40DEF |
| Certification | CE |
| Discharge Type | 3/4" Hose Barb |
| Drive Shaft | 316SS |
| Heads To (Feet) | 38 Feet (11.6m) |
| Impeller Material | PVDF |
| Maximum Flow (GPM) | 22 GPM (83 LPM) |
| Maximum Viscosity (CPS) | 330 cP |
| Model Number | DPFM015 |
| Motor Enclosure Type | Air Motor |
| Output (W) | 400 |
| Part Number | A100007 |
| Product Notes | Lightweight Motor. Operates from customer-supplied compressed air source. Variable speed. Muffler and control valve. CAUTION: When pumping flammables, use only air or ex-proof electric motors on stainless steel (NO PLASTIC) tubes w/ static protection kit. |
| Spec. Gravity | 1.8 Maximum |
| Speed (RPM) | 300-9000 |
| Tube Diameter | 2" |
| Tube Length | 40" |
| Tube Material | Polypropylene |
| Valve / Seat / O-Ring | EPDM O-Ring |
EF / PF DEF Pumps Information
| Features & Benefits |
|---|
| Finish Thompson DEF Pump Systems easily, economically, and safely provide DEF transfer from a variety of containers into the vehicle’s on-board storage tank. FTI DEF Pumps are designed for years of reliable service while maintaining the strict purity requirements for DEF. |
Categories
Diesel Exhaust Fluid
2636 products
| Type | Title | Link | |
|---|---|---|---|
DEF Diesel Exhaust Fluid Transfer Pump Brochure | View | ||
FTI Drum Pump Accessories Flyer (2022) | View | ||
Diesel Exhaust Fluid Pumps Flyer (2022) | View | ||
FTI Drum Pump Brochure (2022) | View | ||
Drum Pump Flow Meters FM1000 FM2000 FMBC2000 Flyer (2022) | View | ||
Drum Pump Flow Meters FM FMBC3000 Flyer (2022) | View | ||
EF Sealless Drum Pumps Datasheet | View | ||
PF Series Drum Pumps Motors Datasheet (2022) | View | ||
PF PFM PFP PFV Drum Pumps Parts Manual | View | ||
EF Sealless Drum Pumps Manual | View | ||
M Series Drum Pump Air Motors Operation Parts Manual (2022) | View | ||
PF Series Below Serial# 178923 Pumps Operation Installation Parts Manual (2022) | View | ||
PF Series Drum Pumps Operation Installation Parts Manual (2022) | View | ||
