Image shown may not be actual product

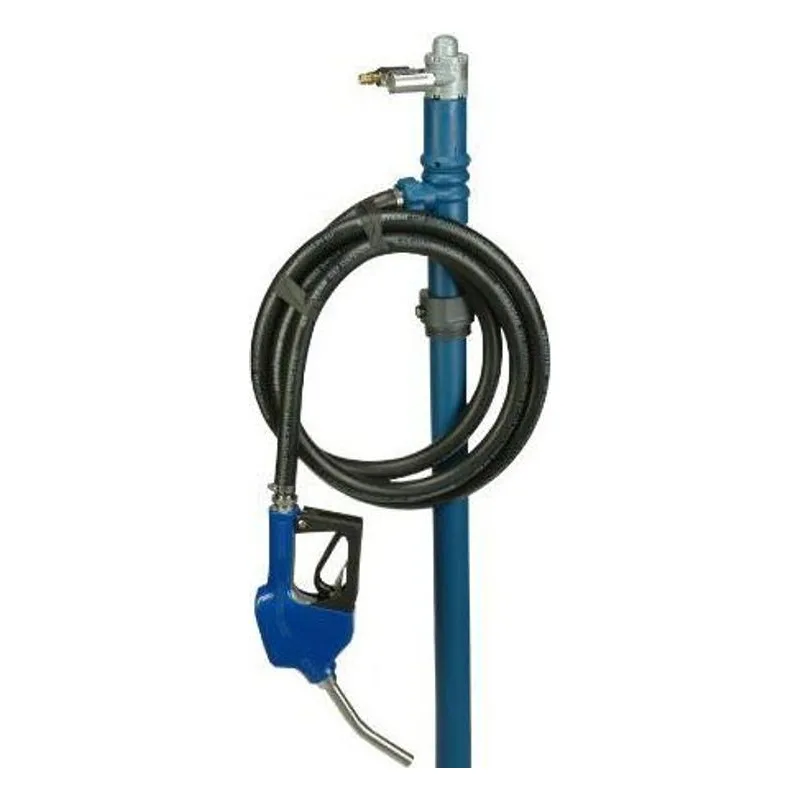

Finish Thompson DPFM014 Drum Pump Kit, 48" Polypropylene Tube, 316 stainless steel shaft, PF Series DEF Kits
Finish Thompson DPFM014 Drum Pump Kit, 48" Polypropylene Tube, 316 stainless steel shaft, PF Series DEF Kits
Air Requirements | 80-100 psi @ 15-32 cfm |
Base Model Number | PFM |
Certification | CE |
Discharge Type | Hose Barb |
Impeller Material | PVDF |
Maximum Viscosity (CPS) | 200 cP |
Motor ID | M6 |
Motor Shaft Material | 316 Stainless Steel |
Output (W) | 400 |
Speed (RPM) | 300-9000 |
Tube Diameter | 2.00" |
Tube Length | 48" |
Tube Material | Polypropylene |
Valve/Seat/O-Ring | FKM |
Features & Benefits |
---|
Finish Thompson DEF Kits include pump tube, motor, & the following DEF accessories: 3/4" x 8 ft. EPDM discharge hose, clamps, sealed bung adapter, stainless steel nozzle and 3/4" stainless steel swivel. Finish Thompson DEF Pump Systems easily, economically, and safely provide DEF transfer from a variety of containers into the vehicle’s on-board storage tank. FTI DEF Pumps are designed for years of reliable service while maintaining the strict purity requirements for DEF. |
General Description |
EF Series DEF Kits EFP Kits with Electric Motor EFP Kits with Air Motor PF Series DEF Kits PFM Kits with Electric Motor PFM Kits with Air Motor |
Chemical Delivery / Processing
22853 productsDialysis Solutions
683 productsDiesel Exhaust Fluid
1671 productsFlammable Liquids
855 productsWater Treatment
7855 productsType | Title | Link | |
---|---|---|---|
DEF Diesel Exhaust Fluid Transfer Pump Brochure | View | ||
FTI Drum Pump Accessories Flyer (2022) | View | ||
Diesel Exhaust Fluid Pumps Flyer (2022) | View | ||
FTI Drum Pump Brochure (2022) | View | ||
Drum Pump Flow Meters FM1000 FM2000 FMBC2000 Flyer (2022) | View | ||
Drum Pump Flow Meters FM FMBC3000 Flyer (2022) | View | ||
EF Sealless Drum Pumps Datasheet | View | ||
PF Sealless Drum Pumps Datasheet | View | ||
PF Series Drum Pumps Motors Datasheet (2022) | View | ||
EF Sealless Drum Pumps Manual | View | ||
EF Drum Pumps Motor Parts Manual | View | ||
PF PFM PFP PFV Drum Pumps Parts Manual | View | ||
PFS ATEX Drum Pumps Parts Manual | View | ||
PFS Sealless Drum Pumps Parts Manual | View | ||
M Series Drum Pump Air Motors Operation Parts Manual (2022) | View | ||
PF Series Below Serial# 178923 Pumps Operation Installation Parts Manual (2022) | View | ||
PF Series Drum Pumps Operation Installation Parts Manual (2022) | View | ||
DPFM001 FTI PF Drum Pump Repair Parts Exploded View | View | ||
DPFM001 FTI PF Drum Pump Repair Parts Serial Number 178923 & Below | View | ||
M6 FTI PF Drum Pump Motor Exploded View | View |
