DPFS169

Image shown may not be actual product

DPFS169

0 reviews

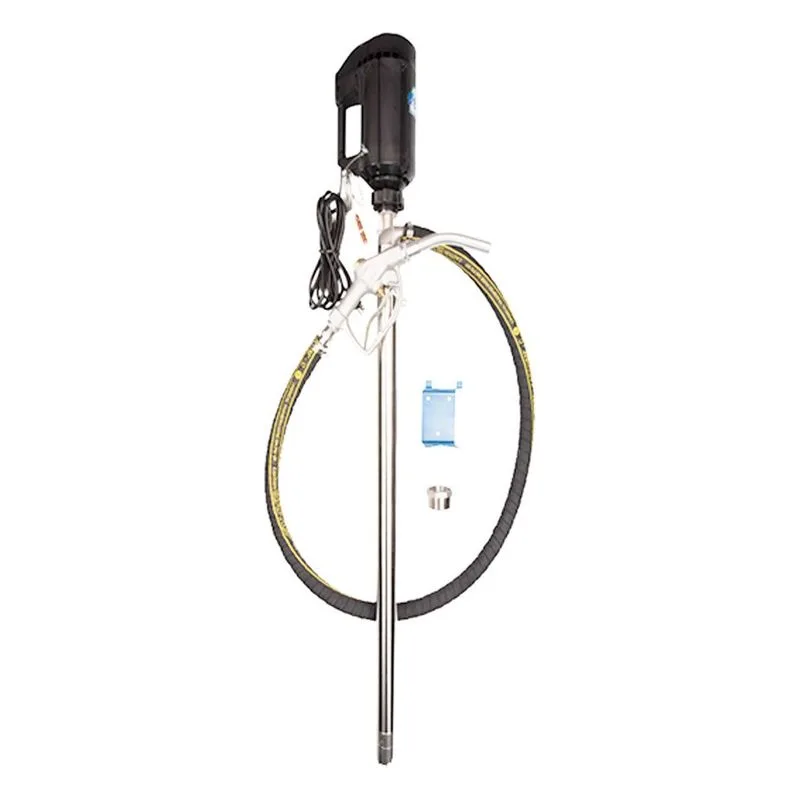

Finish Thompson DPFS169 High Volume Drum Pump Kit for Flammable Applications, FTI PFS-48-P Pump & M3XV Motor. 40 GPM (151 LPM) Maximum Flow, 80 Feet (24m) Max Head. 115 Volts, 60 Hz, 1Ph (Single Phase), 0-12000 RPM, XP - Explosion Proof Enclosure. 48" (122cm) Tube Length, 2" Diameter, 1" Hose Barb Discharge Connection, FDA Buna O-Ring. Includes 6 ft Conductive UHMWPE hose, clamps, Aluminum nozzle, SS adapter, ground cable, & wall mount

$2,717.60

Best Price Guarantee!
543PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: DPFS169 | Model #: DPFS010

Overview
Series Info
Reviews
Literature/Manuals

DPFS169

Accessories	6 ft Conductive UHMWPE hose, clamps, Aluminum nozzle, SS adapter, ground cable & wall mount
Base Model Number	PFS-48-P
Certification	QPS
Connections / Discharge (Inches)	1" Hose Barb
Drive Shaft	316SS
Example of liquids	Flammable
Full Load Amp (FLA)	9.1
Heads To (Feet)	80 Feet (24m)
Hz	60
Input (W)	1000
Maximum Flow (GPM)	40 GPM (151 LPM)
Model Number	DPFS010
Model Series	PFS-P: Flammables, solvents, corrosives & acids
Motor	M3XV
Motor Enclosure Type	XP - Explosion Proof

Options	Features zero voltage release
Output (W)	400
Phase	1Ph (Single Phase)
Product Notes	CAUTION: When pumping flammables, use only air or ex-proof electric motors on stainless steel (NO PLASTIC) tubes w/ static protection kit
Pump Length CM	122cm
Quick Specs	PFS-48-P (48") pump, M3XV (115V) Explosion motor,& accessories
Spec. Gravity	1.8
Speed (RPM)	0-12000
Tube Diameter	2"
Tube Length	48"
Tube Material	316 Stainless Steel
Type	High Volume
Valve / Seat / O-Ring	FDA Buna O-Ring
Voltage	115
