DEFS112

Image shown may not be actual product

DEFS112

0 reviews

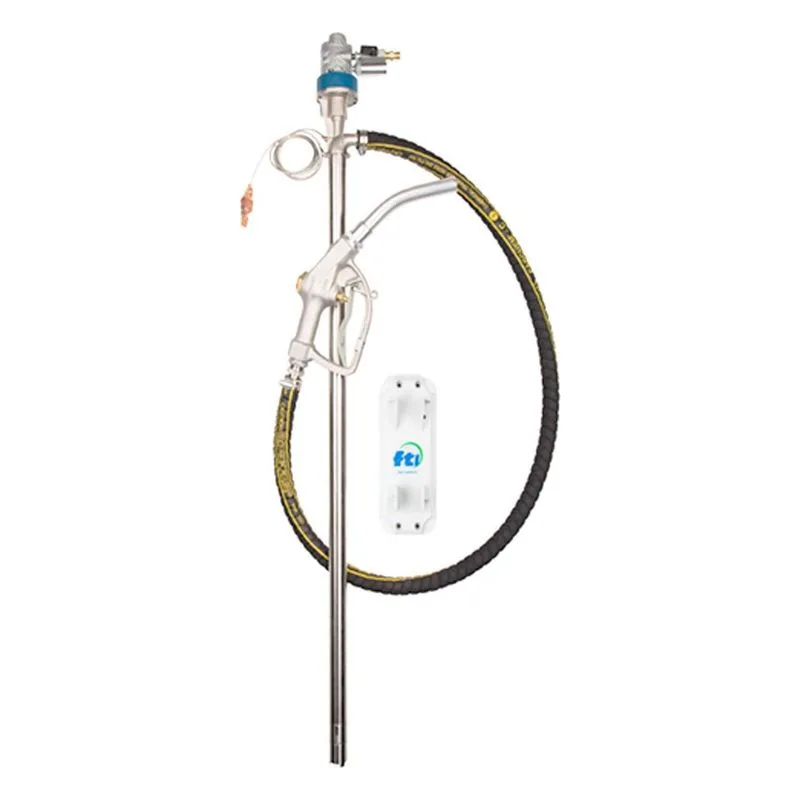

Finish Thompson DEFS112 Medium Volume Drum Pump Kit for Flammable Applications, FTI EFS-40-EP Pump & S4 Motor. 15 GPM (57 LPM) Maximum Flow, 17 Feet (5.2m) Max Head. 300-11000 RPM, 40 psi @ 27 cfm Air Motor. 40" (102cm) Tube Length, 1.25" Diameter, 3/4" Hose Barb Discharge Connection, FFKM O-Ring. Includes 5 ft Conductive UHMW Polyethylene hose, clamps, Aluminum nozzle, grounding cable, & wall mount.

$1,823.20

Best Price Guarantee!
364PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: DEFS112 | Model #: DEFS042

Overview
Series Info
Reviews
Literature/Manuals

DEFS112

Accessories	5 ft Conductive UHMW Polyethylene hose, clamps, Aluminum nozzle, grounding cable & wall mount
Air Requirements	40 psi @ 27 cfm
Base Model Number	EFS-40-EP
Certification	CE
Connections / Discharge (Inches)	3/4" Hose Barb
Drive Shaft	316SS
Example of liquids	Flammable
Heads To (Feet)	17 Feet (5.2m)
Maximum Flow (GPM)	15 GPM (57 LPM)
Model Number	DEFS042
Model Series	EFS: Chemicals, light oils, solvents & flammables
Motor	S4
Motor Enclosure Type	Air Motor

Options	Non-electrical air operation means the possibility of explosion from igniting flammable gases is reduced.
Output (W)	400
Product Notes	CAUTION: When pumping flammables, use only air or ex-proof electric motors on stainless steel (NO PLASTIC) tubes w/ static protection kit
Pump Length CM	102cm
Quick Specs	EFS-40-EP (40") pump, S4 (Air) motor,& accessories
Spec. Gravity	1.6
Speed (RPM)	300-11000
Tube Diameter	1.25"
Tube Length	40"
Tube Material	316 Stainless Steel
Type	Medium Volume
Valve / Seat / O-Ring	FFKM O-Ring
