DB8V-M501

Home
Finish Thompson FTI
DB Sealless Magnetic Drive Centrifugal Pumps
DB8V-M501

Image shown may not be actual product

DB8V-M501

0 reviews

Finish Thompson DB8V-M501 Pump, FTI DB8 Magnetic Drive Centrifugal DB Series Sealless Pumps, 3/4 HP, 208-230-460 Volt, 60 HZ, 3 Phase, 1 1/2" Suction, 1" Discharge, FKM O-Ring, PVDF, 61 GPM, 80 PSI, 56 Feet of Head. To Order, See Complete Model Number DB8V-NS-M501 Below in Related Items.

Call for Pricing

Best Price Guarantee!

Item: DB8V-M501

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

DB8V-M501

Bushing	Carbon
Connection Type	NPT
Discharge NPT (Inches)	1"
Heads To (Feet)	56
HP	0.75
Hz	60
Impeller Size (Inches)	3.625" (3 5/8")
Magnet	8-pole
Material	PVDF
Maximum Flow (GPM)	61
Maximum Operating Temperature	220°F (104°C)

Maximum Pressure (PSI)	80 PSI (5.5 Bar)
Motor Frame Size	56C
Phase	3
Pressure Rating BAR	5.5 bar
Product Notes	See Correct Model DB8V-NS-M501 Below to Order This Pump.
Spec. Gravity	up to 1.8
Speed (RPM)	1725
Suction NPT (Inches)	1-1/2"
Valve/Seat/O-Ring	FKM
Voltage	208/230/460

DB Sealless Magnetic Drive Centrifugal Pumps Information

Features & Benefits
DB Sealless Magnetic Drive Centrifugal Pumps Capabilities: + Five-year warranty + Extended run dry ability (with carbon bushing) + High operating efficiency + Polypropylene or PVDF construction + Powerful neodymium magnets + Close-coupled design + Threaded NPT or BSP connections + Horizontal or vertical installation + Back pullout design + Mounts to IEC 56, 63, 71 B14 motor frames + Easy set, measurement free drive + CE certified + Working pressure to 60 psi (4.1 bar) + Specific gravity up to 1.8 + Viscosity up to 50 cP + Polypropylene—180o F (82o C) + PVDF—220o F (104o C)
General Description
DB Series Pumping Applications: + Chemical processing + Plating + Water and wastewater + Electronics + Pharmaceuticals + Wet scrubber + Pulp and paper + Heat exchanger + and many more!

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	DB, SP, MSDB Series Pumps Brochure (2022)		View
	Chemical Processing Applications Flyer (2022)		View
	DB8 Series Pumps Datasheet (2022)		View
	DB & SP Series Baseplates Datasheet (2022)		View
	DB, SP, UC, Series M20 Power Monitor Datasheet (2022)		View
	DB Series Pumps Performance Curves (2022)		View
	DB6 thru DB10 Series Pumps Installation & Operation Manual (2022)		View

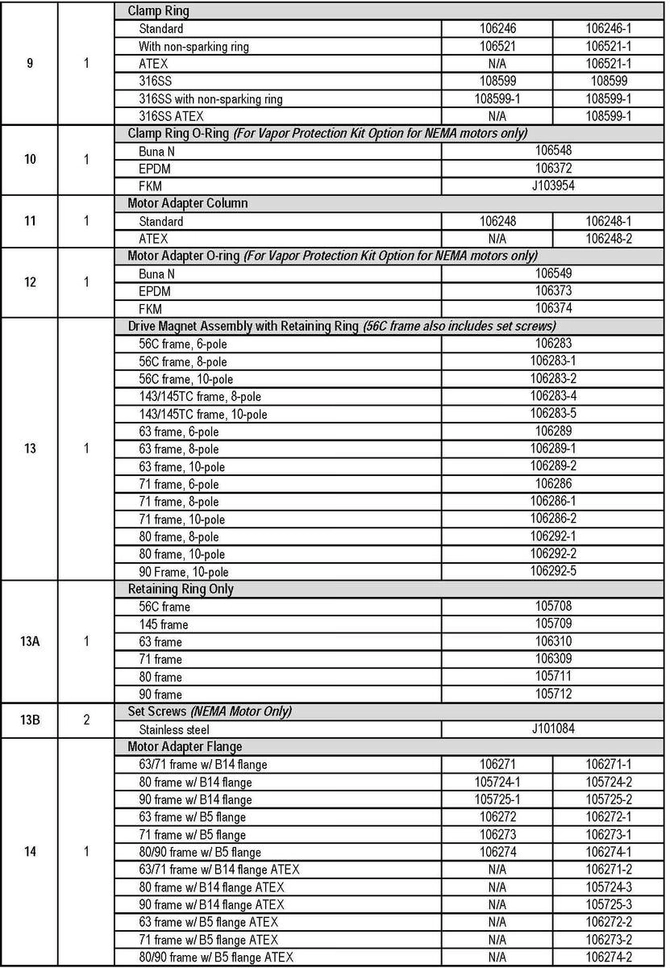

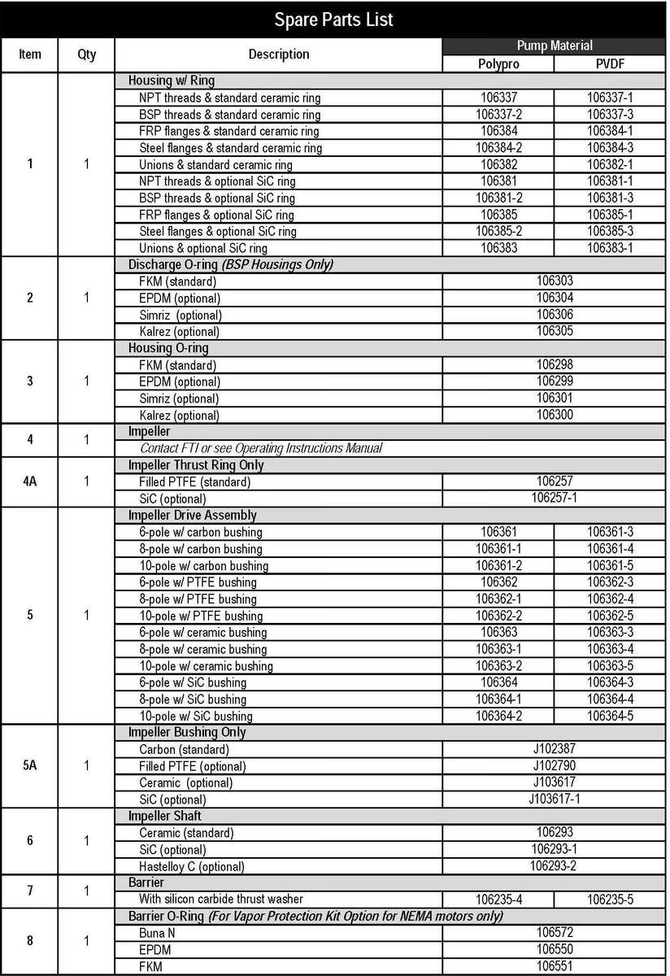

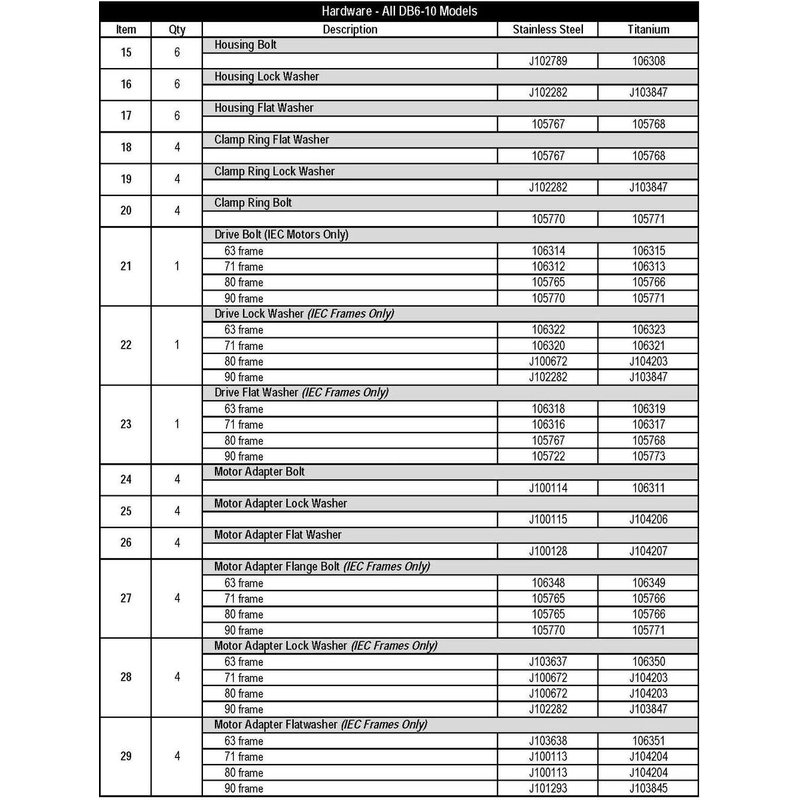

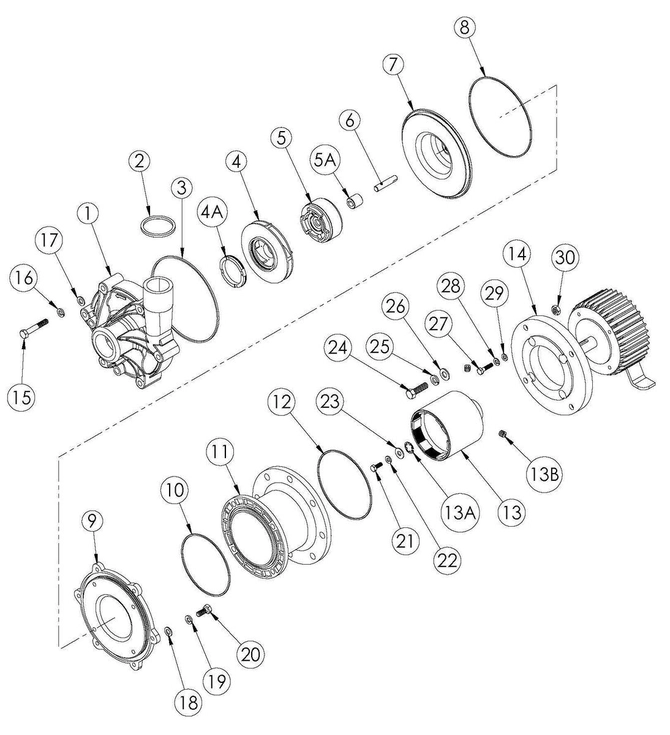

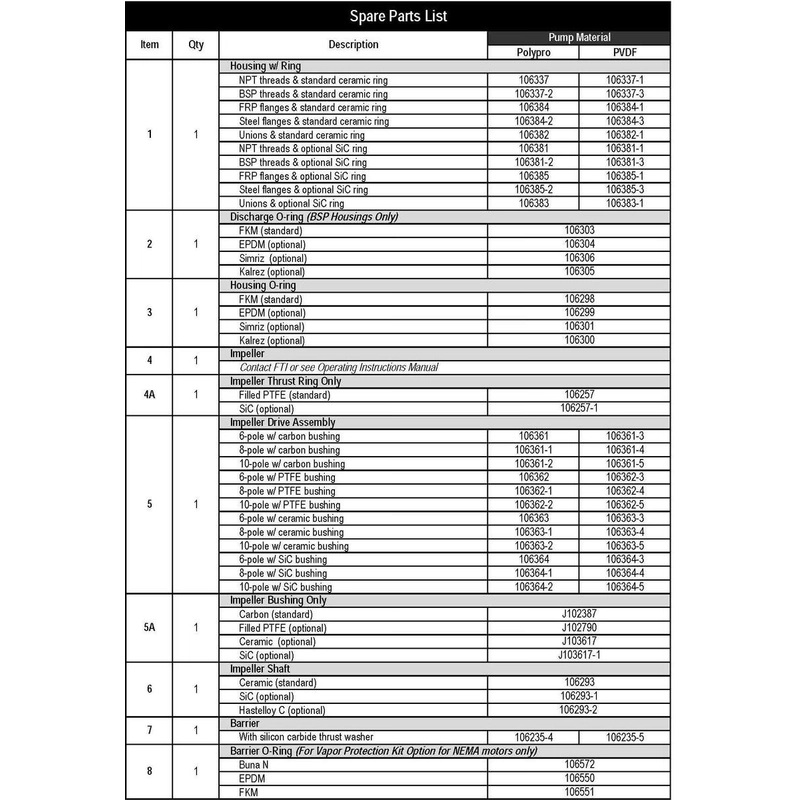

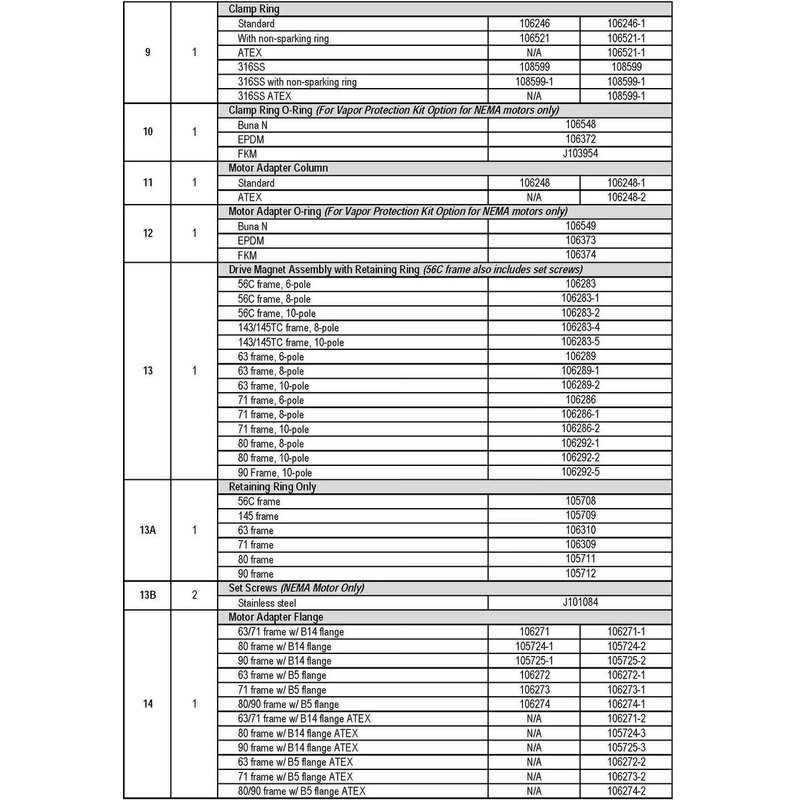

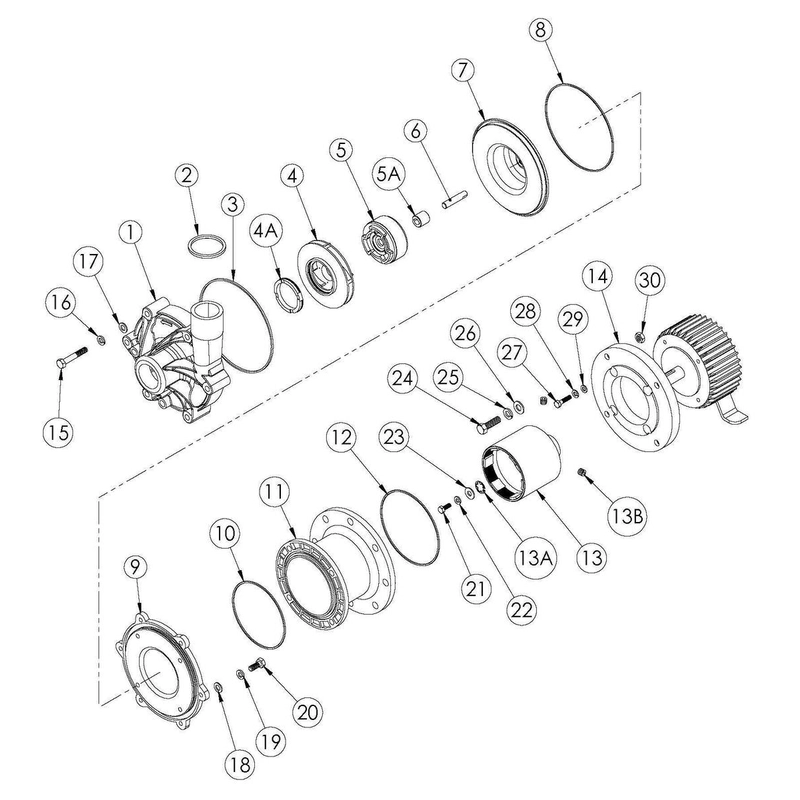

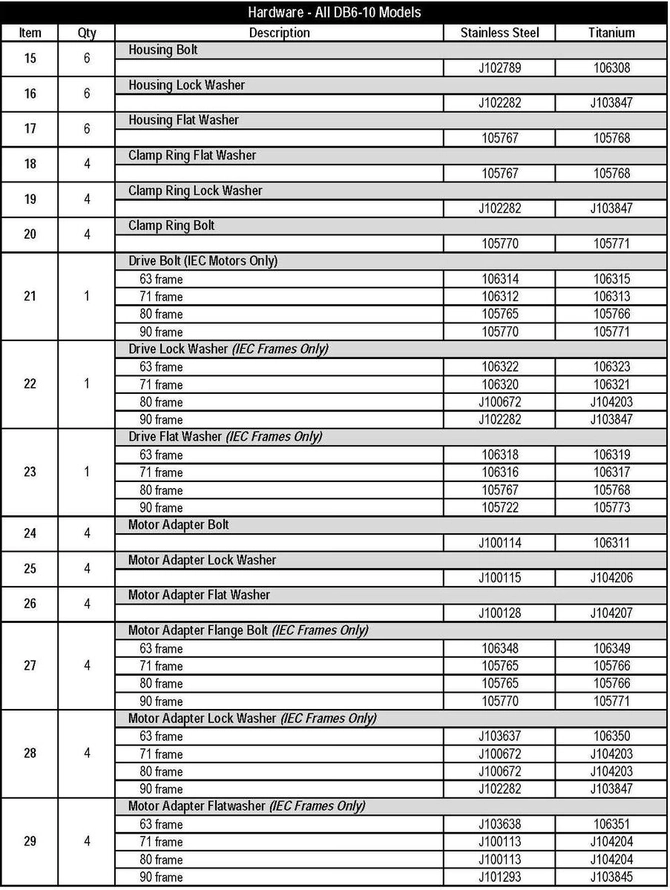

Repair Parts for DB8V-M501

	shipping	price
106303	Ships in	$1.17	Select item
106298	Ships in	$5.68	Select item
106361-1	Ships in	$488.30	Select item
J102387	Ships in	$162.45	Select item
106235-4	Ships in	$84.55	Select item
106551	Ships in	$4.86	Select item
106246	Ships in	$133.95	Select item
J103954	Ships in	$4.56	Select item
106248	Ships in	$55.10	Select item
106374	Ships in	$6.37	Select item
106283-1	Ships in	$404.70	Select item
105708	Ships in	$6.49	Select item
J101084	Ships in	$1.30	Select item
J102789	Ships in	$0.98	Select item
J102282	Ships in	$0.12	Select item
105767	Ships in	$0.16	Select item
105767	Ships in	$0.16	Select item
J102282	Ships in	$0.12	Select item
105770	Ships in	$0.64	Select item
J100114	Ships in	$0.65	Select item
J100115	Ships in	$0.18	Select item
J100128	Ships in	$0.13	Select item
