• Finish Thompson DB4V-M617 Pump FTI DB4 Series

Image shown may not be actual product

Finish Thompson FTI

DB4V-M617

0 reviews

Finish Thompson DB4V-M617 Pump, FTI DB4 Magnetic Drive Centrifugal DB Series Sealless Pumps, 1/2 HP, 230 Volt, 50-60 HZ, 1 Phase, 1" Suction, 1/2" Discharge, FKM O-Ring, PVDF, 18 GPM, 60 PSI, 29 Feet of Head

$477.60

Item: DB4V-M617
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

DB4V-M617

Finish Thompson DB4V-M617 Pump, FTI DB4 Magnetic Drive Centrifugal DB Series Sealless Pumps, 1/2 HP, 230 Volt, 50-60 HZ, 1 Phase, 1" Suction, 1/2" Discharge, FKM O-Ring, PVDF, 18 GPM, 60 PSI, 29 Feet of Head

BushingCarbon
Connection TypeNPT
Discharge NPT (Inches)1/2"
Heads To (Feet)29
HP1/2
Hz50-60
Impeller Size (Inches)2.7"
Magnet4-pole
MaterialPVDF
Maximum Flow (GPM)18
MaxImum Operating Temperature220°F (104°C)
Maximum Pressure (PSI)60 PSI
Phase1
Pressure Rating BAR4.1 bar
Spec. Gravityup to 1.8
Speed (RPM)2850/3450
Suction NPT (Inches)1"
Valve/Seat/O-RingFKM
Voltage230

DB Sealless Magnetic Drive Centrifugal Pumps Information

Features & Benefits
DB Sealless Magnetic Drive Centrifugal Pumps Capabilities:
+ Five-year warranty
+ Extended run dry ability (with carbon bushing)
+ High operating efficiency
+ Polypropylene or PVDF construction
+ Powerful neodymium magnets
+ Close-coupled design
+ Threaded NPT or BSP connections
+ Horizontal or vertical installation
+ Back pullout design
+ Mounts to IEC 56, 63, 71 B14 motor frames
+ Easy set, measurement free drive
+ CE certified
+ Working pressure to 60 psi (4.1 bar)
+ Specific gravity up to 1.8
+ Viscosity up to 50 cP
+ Polypropylene—180o F (82o C)
+ PVDF—220o F (104o C)
General Description
DB Series Pumping Applications:
+ Chemical processing
+ Plating
+ Water and wastewater
+ Electronics
+ Pharmaceuticals
+ Wet scrubber
+ Pulp and paper
+ Heat exchanger
+ and many more!

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

DB Sealless Magnetic Drive Centrifugal Pumps

DB SP Magnetic Drive Pumps Brochure

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series Pump Curves

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB SP Series Pump Baseplates

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB3 DB4 DB5 Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB5.5 Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB6 Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB7 Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB8 Centrifugal Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB9 Centrifugal Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

FTI DB Series DB10 Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB11 Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB15 Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB22 Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB3 DB4 DB5.5 Pumps Manual

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB6 DB6H DB7 DB8 DB9 DB10 Pump Manual

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB11 DB15 Pumps Manual

View

Repair Parts for DB4V-M617

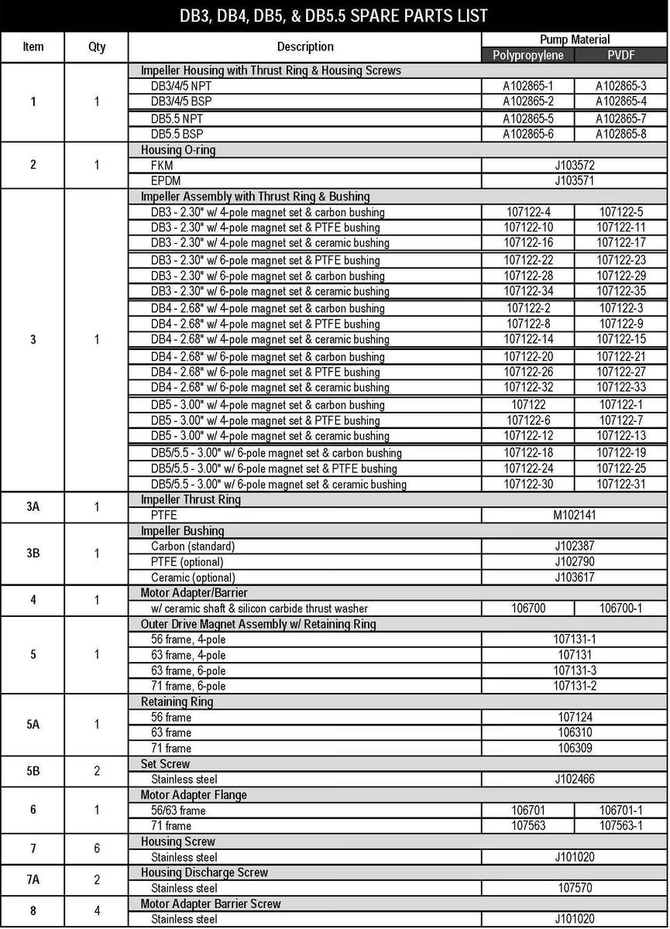

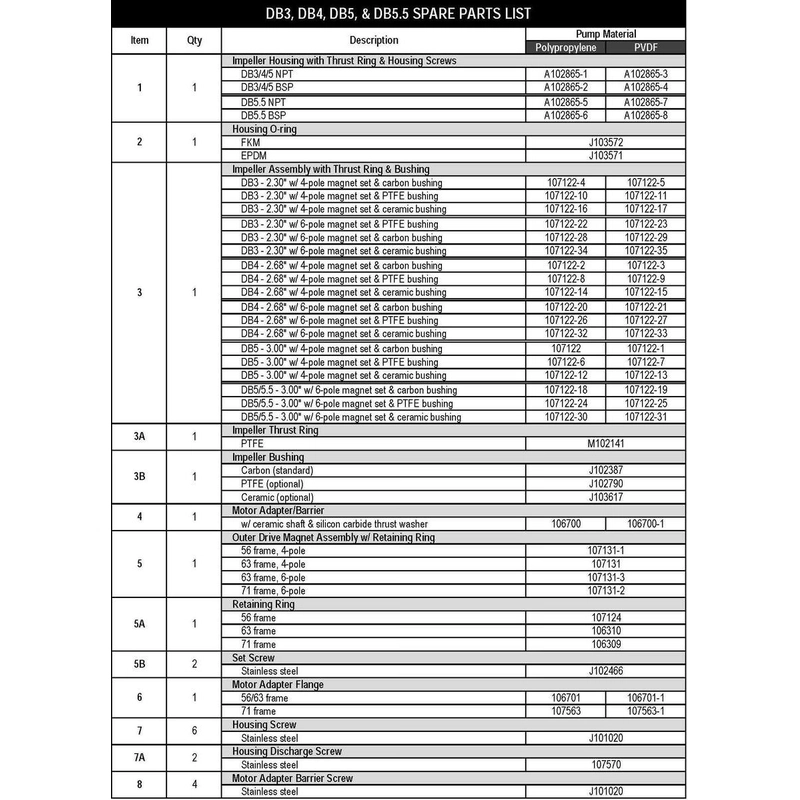

  • Finish-Thompson-FTI-DB3-Pump-Parts-1.jpg
  • Finish-Thompson-FTI-DB3-Pump-Parts-2.jpg
  • Finish-Thompson-FTI-DB3-Pump-Parts-Exploded-View.jpg
Productqty.shippingprice
A102865-3

A102865-3

Ships in 1 Day $74.70
J103572

J103572

Ships in 1-2 weeks $2.05
107122-3

107122-3

Ships in $261.90
M102141

M102141

Ships in $28.80
J102387

J102387

Ships in $105.30
106700-1

106700-1

Ships in $96.30
107131-1

107131-1

Ships in $126.00
107131

107131

Ships in $140.40
107124

107124

Ships in $3.64
J102466

J102466

Ships in $0.47
106701-1

106701-1

Ships in $16.87
J101020

J101020

Ships in $0.14
107570

107570

Ships in $0.36
J101020

J101020

Ships in $0.14
107142

107142

Ships in $0.22
107141

107141

Ships in $0.14
107125

107125

Ships in $0.44
107140

107140

Ships in $0.22
0 items selected.Add items to cart
