Finish Thompson FTI DB Sealless Magnetic Drive Centrifugal Pumps DB3P-M616

Image shown may not be actual product

Finish Thompson FTI

DB3P-M616

0 reviews

Finish Thompson DB3P-M616 Pump, FTI DB3 Magnetic Drive Centrifugal DB Series Sealless Pumps, 1/2 HP, 115 Volt, 60 HZ, 1 Phase, 1" Suction, 1/2" Discharge, FKM O-Ring, Polypropylene, 15 GPM, 60 PSI, 20.4 Feet of Head. To Order, See Complete Model Number DB3P-8P-74-M616 Below in Related Items.

Call for Pricing

Best Price Guarantee!

Item: DB3P-M616

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

DB3P-M616

Finish Thompson DB3P-M616 Pump, FTI DB3 Magnetic Drive Centrifugal DB Series Sealless Pumps, 1/2 HP, 115 Volt, 60 HZ, 1 Phase, 1" Suction, 1/2" Discharge, FKM O-Ring, Polypropylene, 15 GPM, 60 PSI, 20.4 Feet of Head. To Order, See Complete Model Number DB3P-8P-74-M616 Below in Related Items.

Bushing	Carbon
Connection Type	NPT
Discharge NPT (Inches)	1/2"
Heads To (Feet)	20.4
HP	0.5
Hz	60
Impeller Size (Inches)	2.3"
Magnet	4-pole
Material	Polypropylene (PPG)
Maximum Flow (GPM)	15
Maximum Operating Temperature	180°F (82°C)

Maximum Pressure (PSI)	60 psi (413 kPa)
Phase	1
Pressure Rating BAR	4.1 bar
Product Notes	See Correct Model DB3P-8P-74-M616 Below to Order This Pump.
Spec. Gravity	up to 1.8 (with magnet upgrade)
Speed (RPM)	3450
Suction NPT (Inches)	1"
Valve/Seat/O-Ring	FKM
Voltage	115

DB Sealless Magnetic Drive Centrifugal Pumps Information

Features & Benefits
DB Sealless Magnetic Drive Centrifugal Pumps Capabilities: + Five-year warranty + Extended run dry ability (with carbon bushing) + High operating efficiency + Polypropylene or PVDF construction + Powerful neodymium magnets + Close-coupled design + Threaded NPT or BSP connections + Horizontal or vertical installation + Back pullout design + Mounts to IEC 56, 63, 71 B14 motor frames + Easy set, measurement free drive + CE certified + Working pressure to 60 psi (4.1 bar) + Specific gravity up to 1.8 + Viscosity up to 50 cP + Polypropylene—180o F (82o C) + PVDF—220o F (104o C)
General Description
DB Series Pumping Applications: + Chemical processing + Plating + Water and wastewater + Electronics + Pharmaceuticals + Wet scrubber + Pulp and paper + Heat exchanger + and many more!

Categories

Agriculture
5956 products
Aquariums / Zoos
5956 products
Chemical Delivery / Processing
22853 products
General Purpose
5956 products
Heat Exchangers
6346 products
Manufacturing
20389 products
Mining
6084 products
Plating
23448 products
Pulp & Paper
6474 products
Sewage / Wastewater
20311 products
Water Treatment
7855 products

0 Reviews

☆
☆
☆
☆
☆

Add a Review

You need to sign in to add a review.

Type	Title		Link
	DB, SP, MSDB Series Pumps Brochure (2022)		View
	Chemical Processing Applications Flyer (2022)		View
	DB3 DB4 DB5 Series Pumps Datasheet (2022)		View
	DB & SP Series Baseplates Datasheet (2022)		View
	DB, SP, UC, Series M20 Power Monitor Datasheet (2022)		View
	DB Series Pumps Performance Curves (2022)		View
	DB3 thru DB5.5 Series Pumps Installation & Operation Manual (2022)		View

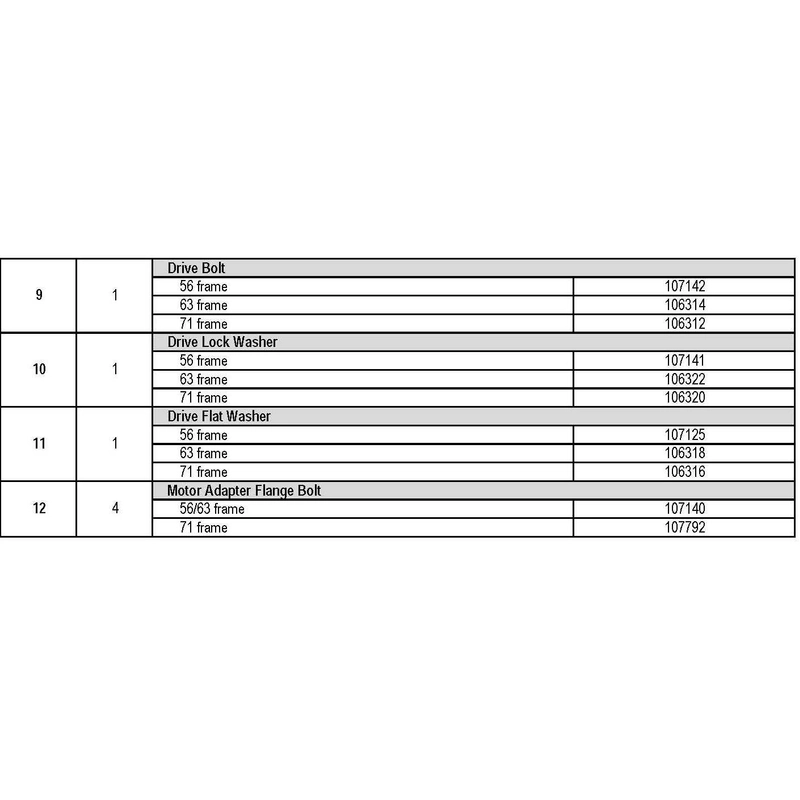

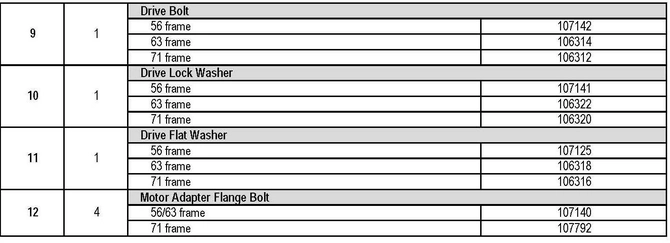

Repair Parts for DB3P-M616

Product		qty.	shipping	price
	A102865-1		Ships in 3-5 DAYS	$65.55	Select item
	J103572		Ships in	$2.70	Select item
	107122-4		Ships in	Call for pricing
	M102141		Ships in	$45.60	Select item
	J102387		Ships in	$150.10	Select item
	106700-NEP		Ships in	$487.00	Select item
	107131-1		Ships in	Call for pricing
	107131-NEP		Ships in	$396.00	Select item
	107124		Ships in	$4.79	Select item
	J102466		Ships in	$0.62	Select item
	106701-NEP		Ships in	$14.00	Select item
	J101020		Ships in	$0.18	Select item
	107570		Ships in	$0.48	Select item
	J101020		Ships in	$0.18	Select item
	107142		Ships in	$0.29	Select item
	107141		Ships in	$0.18	Select item
	107125		Ships in	$0.58	Select item
	107140		Ships in	$0.28	Select item
