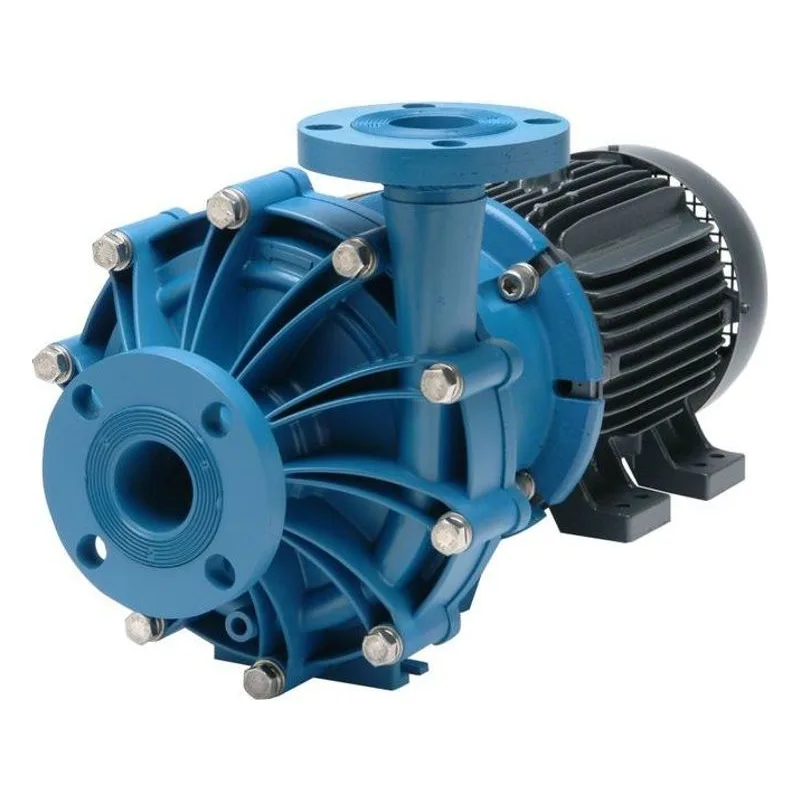

Image shown may not be actual product
Finish Thompson DB22V-W Wet End FTI DB22 Magnetic Drive Centrifugal DB Series Sealless Pumps, 2" Suction, 2" Discharge, FKM O-Ring, PVDF, 221 GPM, 90 PSI Max Pressure, 201 Max Feet of Head
Finish Thompson DB22V-W Wet End FTI DB22 Magnetic Drive Centrifugal DB Series Sealless Pumps, 2" Suction, 2" Discharge, FKM O-Ring, PVDF, 221 GPM, 90 PSI Max Pressure, 201 Max Feet of Head
Bushing | Carbon |
Connection Type | NPT |
Discharge NPT (Inches) | 2" |
Heads To (Feet) | 201 |
Impeller Size (Inches) | 7.25" (7 1/4") |
Magnet | 8-pole |
Material | PVDF |
Maximum Flow (GPM) | 221 |
Maximum Operating Temperature | 220°F (104°C) |
Maximum Pressure (PSI) | 90 PSI |
Motor Frame Size | 184TC |
Pressure Rating BAR | 6.2 bar |
Spec. Gravity | up to 1.8 |
Suction NPT (Inches) | 2" |
Valve/Seat/O-Ring | FKM |
Features & Benefits |
---|
DB Sealless Magnetic Drive Centrifugal Pumps Capabilities: + Five-year warranty + Extended run dry ability (with carbon bushing) + High operating efficiency + Polypropylene or PVDF construction + Powerful neodymium magnets + Close-coupled design + Threaded NPT or BSP connections + Horizontal or vertical installation + Back pullout design + Mounts to IEC 56, 63, 71 B14 motor frames + Easy set, measurement free drive + CE certified + Working pressure to 60 psi (4.1 bar) + Specific gravity up to 1.8 + Viscosity up to 50 cP + Polypropylene—180o F (82o C) + PVDF—220o F (104o C) |
General Description |
DB Series Pumping Applications: + Chemical processing + Plating + Water and wastewater + Electronics + Pharmaceuticals + Wet scrubber + Pulp and paper + Heat exchanger + and many more! |
Agriculture
5956 productsAquariums / Zoos
5956 productsChemical Delivery / Processing
22853 productsGeneral Purpose
5956 productsHeat Exchangers
6346 productsManufacturing
20389 productsMining
6084 productsPlating
23448 productsPulp & Paper
6474 productsSewage / Wastewater
20311 productsWater Treatment
7855 productsType | Title | Link | |
---|---|---|---|
DB, SP, MSDB Series Pumps Brochure (2022) | View | ||
Chemical Processing Applications Flyer (2022) | View | ||
DB22 Series Pumps Datasheet (2022) | View | ||
DB & SP Series Baseplates Datasheet (2022) | View | ||
DB, SP, UC, Series M20 Power Monitor Datasheet (2022) | View | ||
DB Series Pumps Performance Curves (2022) | View | ||
DB22 Series Pumps Installation & Operation Manual (2022) | View |

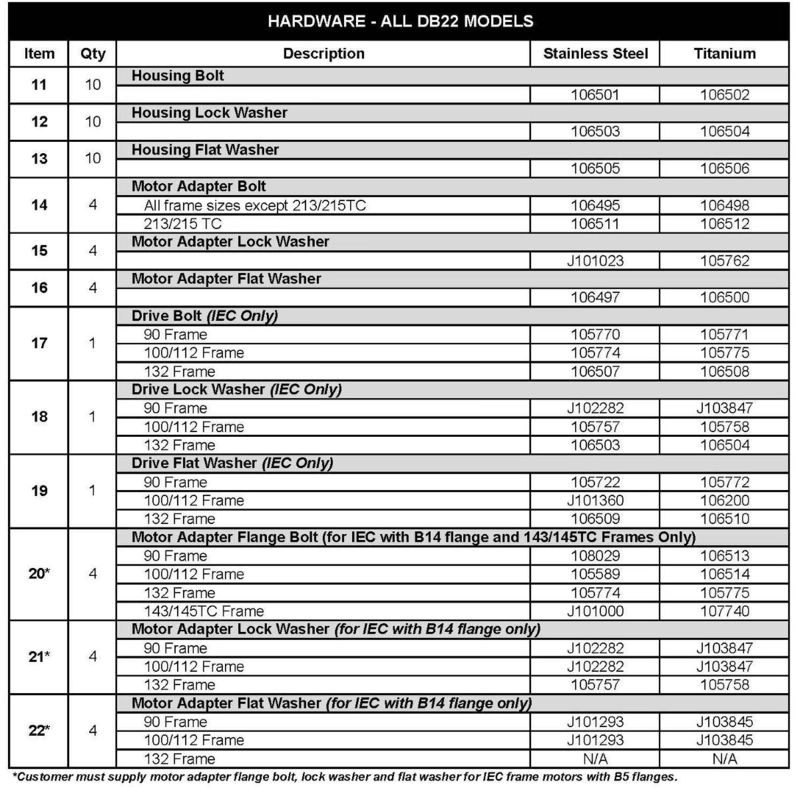

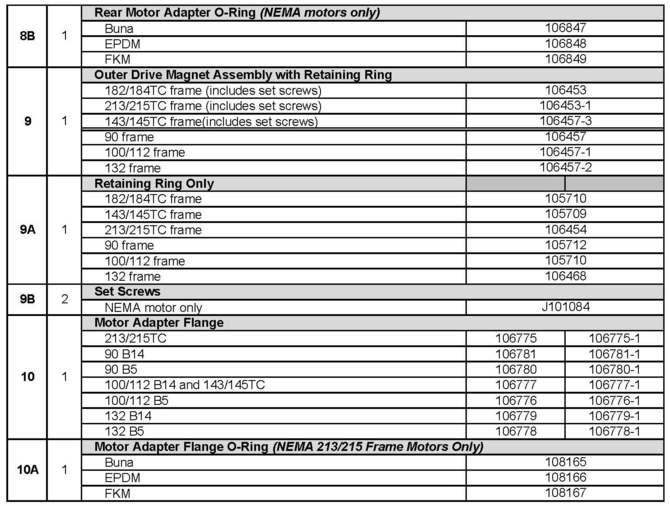

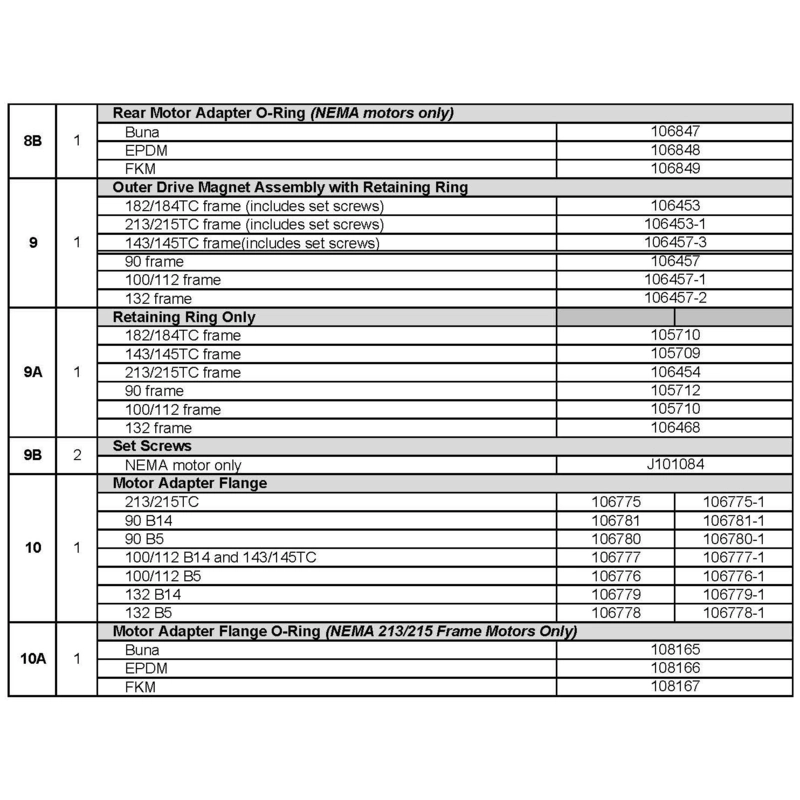

Product | qty. | shipping | price | ||
---|---|---|---|---|---|
106403-1 | Ships in | $1,436.40 | |||
106471-1 | Ships in | $1,758.45 | |||
105083 | Ships in | $5.10 | |||
106476-1 | Ships in | $1,943.70 | |||
J103917-1 | Ships in | $302.10 | |||
106764 | Ships in | $23.75 | |||
106400-1 | Ships in | $747.65 | |||
106414-2 | Ships in | $581.40 | |||
106846-NEP | Ships in | $50.00 | |||
106849-NEP | Ships in | $14.00 | |||
108167 | Ships in | $10.35 | |||
106501-FTI | Ships in | $9.71 | |||
106503-FTI | Ships in | $0.29 | |||
106505-NEP | Ships in | $190.00 | |||
106495-NEP | Ships in | $131.00 | |||
J101023 | Ships in | $0.30 | |||
106497-NEP | Ships in | $11.00 |
