Finish Thompson FTI DB Sealless Magnetic Drive Centrifugal Pumps DB22V-M514

Image shown may not be actual product

Finish Thompson FTI

DB22V-M514

0 reviews

Finish Thompson DB22V-M514 Pump, FTI DB22 Magnetic Drive Centrifugal DB Series Sealless Pumps, 7 1/2 HP, 208-230/460 Volt, 60 HZ, 3 Phase, 2" Suction, 2" Discharge, FKM O-Ring, PVDF, 221 GPM, 90 PSI, 201 Feet of Head. To Order, See Complete Model Number DB22V-NS-M514 Below in Related Items.

Call for Pricing

Best Price Guarantee!

Item: DB22V-M514

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

DB22V-M514

Finish Thompson DB22V-M514 Pump, FTI DB22 Magnetic Drive Centrifugal DB Series Sealless Pumps, 7 1/2 HP, 208-230/460 Volt, 60 HZ, 3 Phase, 2" Suction, 2" Discharge, FKM O-Ring, PVDF, 221 GPM, 90 PSI, 201 Feet of Head. To Order, See Complete Model Number DB22V-NS-M514 Below in Related Items.

Bushing	Carbon
Connection Type	NPT
Discharge NPT (Inches)	2"
Heads To (Feet)	201
HP	7 1/2
Hz	60
Impeller Size (Inches)	7.25" (7 1/4")
Magnet	8-pole
Material	PVDF
Maximum Flow (GPM)	221
Maximum Operating Temperature	220°F (104°C)

Maximum Pressure (PSI)	90 PSI
Motor Frame Size	184TC
Phase	3
Pressure Rating BAR	6.2 bar
Product Notes	See Correct Model DB22V-NS-M514 Below to Order This Pump.
Spec. Gravity	up to 1.8
Speed (RPM)	3450
Suction NPT (Inches)	2"
Valve/Seat/O-Ring	FKM
Voltage	208/230/460

DB Sealless Magnetic Drive Centrifugal Pumps Information

Features & Benefits
DB Sealless Magnetic Drive Centrifugal Pumps Capabilities: + Five-year warranty + Extended run dry ability (with carbon bushing) + High operating efficiency + Polypropylene or PVDF construction + Powerful neodymium magnets + Close-coupled design + Threaded NPT or BSP connections + Horizontal or vertical installation + Back pullout design + Mounts to IEC 56, 63, 71 B14 motor frames + Easy set, measurement free drive + CE certified + Working pressure to 60 psi (4.1 bar) + Specific gravity up to 1.8 + Viscosity up to 50 cP + Polypropylene—180o F (82o C) + PVDF—220o F (104o C)
General Description
DB Series Pumping Applications: + Chemical processing + Plating + Water and wastewater + Electronics + Pharmaceuticals + Wet scrubber + Pulp and paper + Heat exchanger + and many more!

Categories

Agriculture
5956 products
Aquariums / Zoos
5956 products
Chemical Delivery / Processing
22853 products
General Purpose
5956 products
Heat Exchangers
6346 products
Manufacturing
20389 products
Mining
6084 products
Plating
23448 products
Pulp & Paper
6474 products
Sewage / Wastewater
20311 products
Water Treatment
7855 products

0 Reviews

☆
☆
☆
☆
☆

Add a Review

You need to sign in to add a review.

Type	Title		Link
	DB, SP, MSDB Series Pumps Brochure (2022)		View
	Chemical Processing Applications Flyer (2022)		View
	DB22 Series Pumps Datasheet (2022)		View
	DB & SP Series Baseplates Datasheet (2022)		View
	DB, SP, UC, Series M20 Power Monitor Datasheet (2022)		View
	DB Series Pumps Performance Curves (2022)		View
	DB22 Series Pumps Installation & Operation Manual (2022)		View

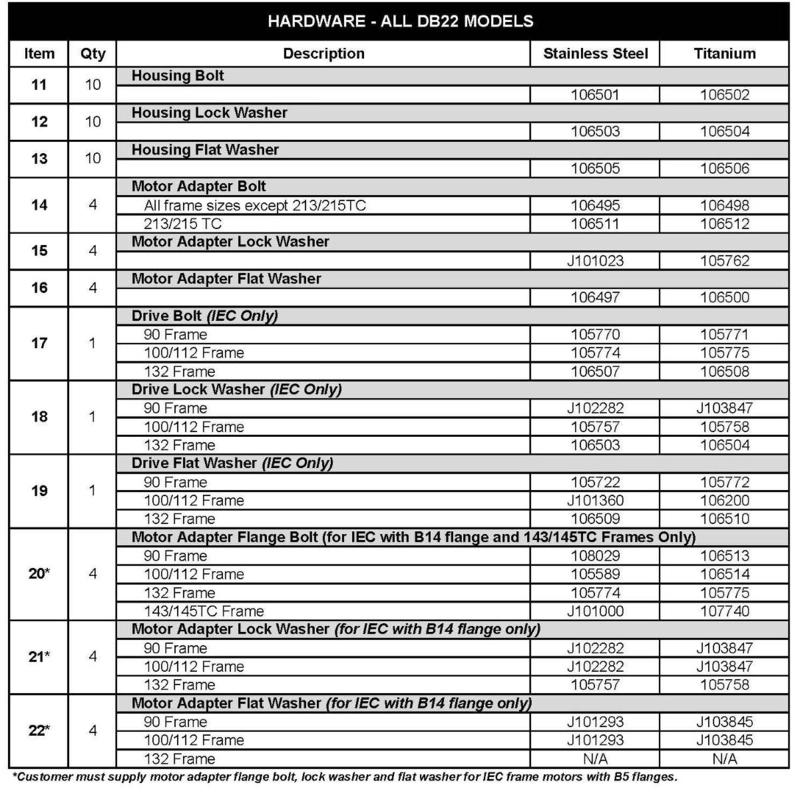

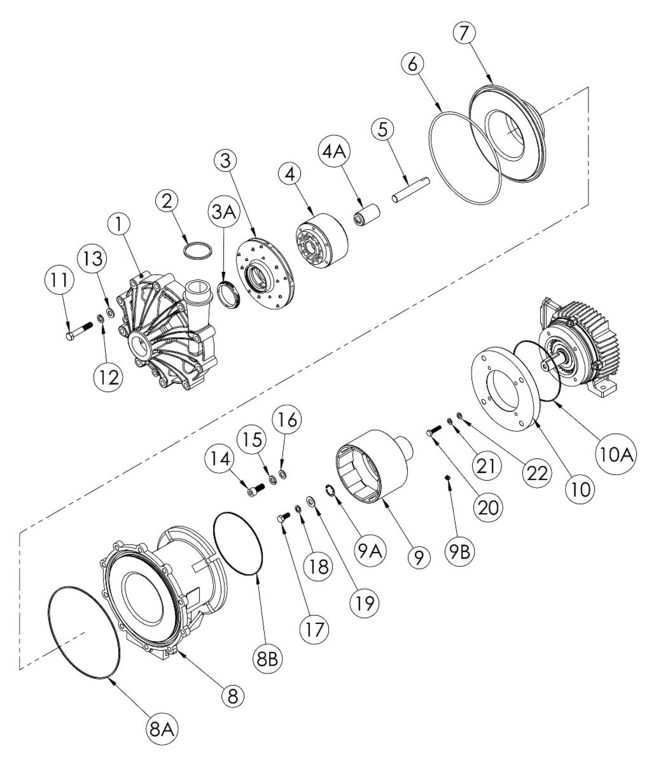

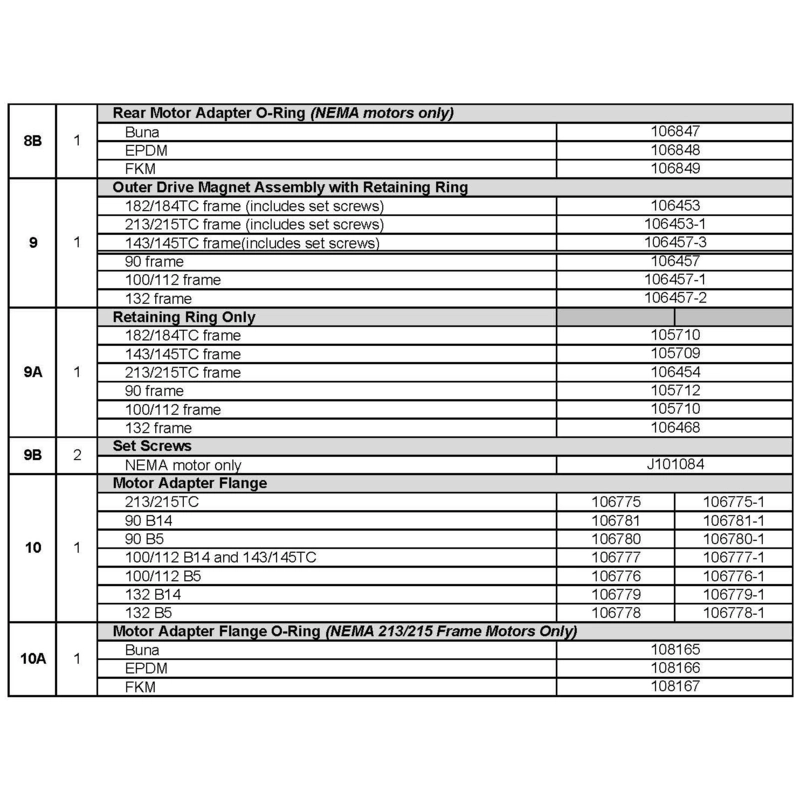

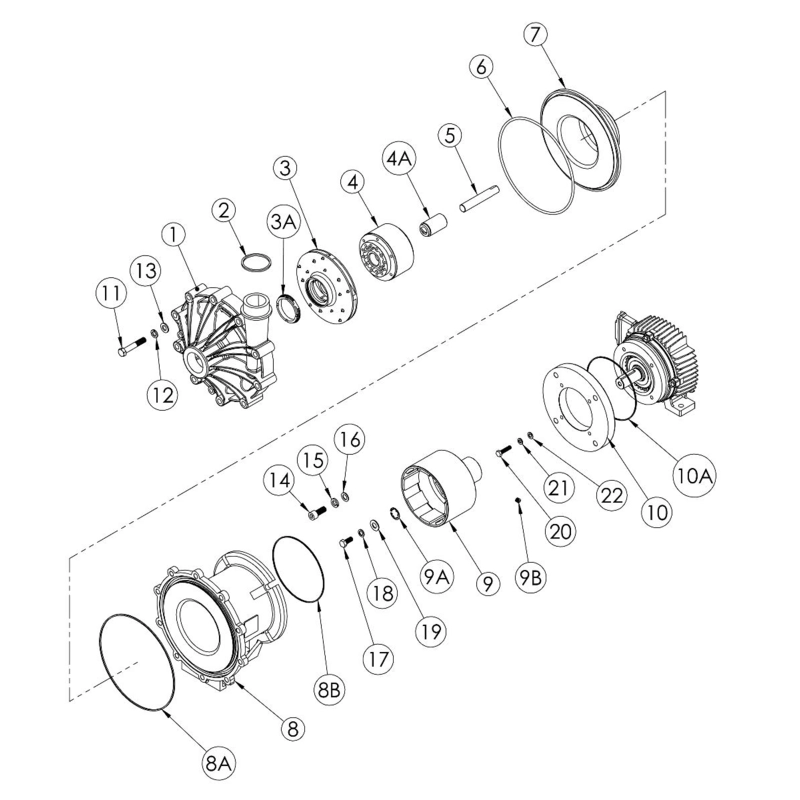

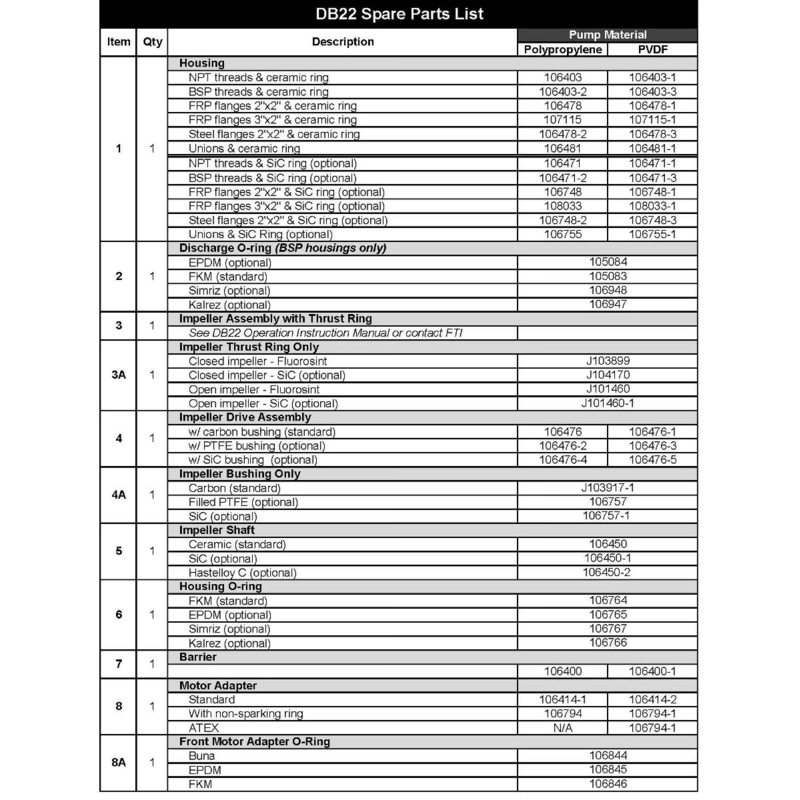

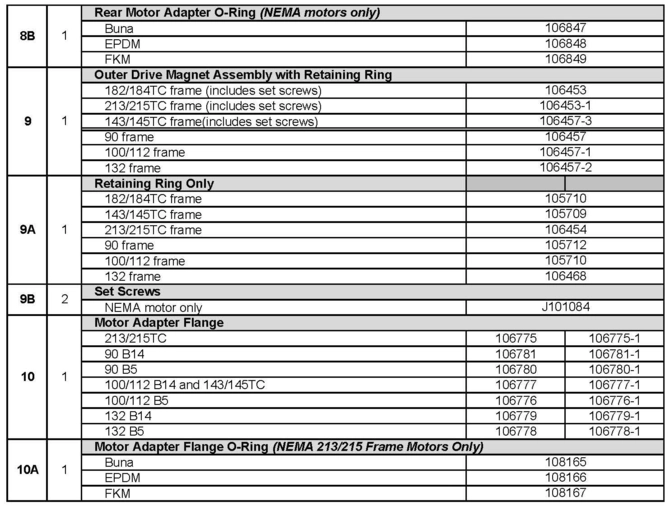

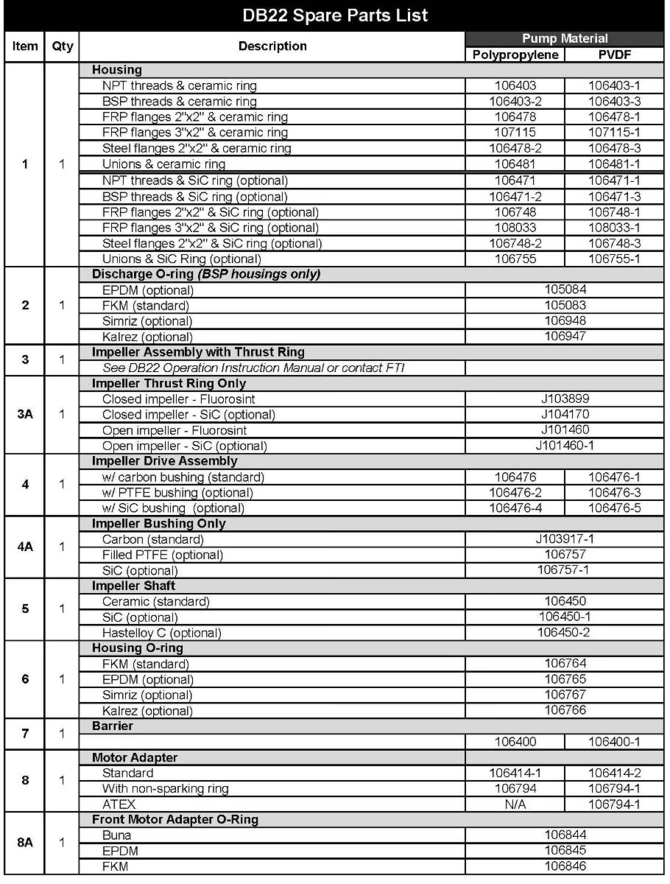

Repair Parts for DB22V-M514

Product		qty.	shipping	price
	106403-1		Ships in	$1,436.40	Select item
	106471-1		Ships in	$1,758.45	Select item
	105083		Ships in	$5.10	Select item
	106476-1		Ships in	$1,943.70	Select item
	J103917-1		Ships in	$302.10	Select item
	106764		Ships in	$23.75	Select item
	106400-1		Ships in	$747.65	Select item
	106414-2		Ships in	$581.40	Select item
	106846-NEP		Ships in	$50.00	Select item
	106849-NEP		Ships in	$14.00	Select item
	108167		Ships in	$10.35	Select item
	106501-FTI		Ships in	$9.71	Select item
	106503-FTI		Ships in	$0.29	Select item
	106505-NEP		Ships in	$190.00	Select item
	106495-NEP		Ships in	$131.00	Select item
	J101023		Ships in	$0.30	Select item
	106497-NEP		Ships in	$11.00	Select item

0 items selected.Add items to cart
