Finish Thompson FTI DB Sealless Magnetic Drive Centrifugal Pumps DB22P-W

Image shown may not be actual product

Finish Thompson FTI

DB22P-W

0 reviews

Finish Thompson DB22P-W Wet End FTI DB22 Magnetic Drive Centrifugal DB Series Sealless Pumps, 2" Suction, 2" Discharge, FKM O-Ring, Polypropylene, 221 GPM, 90 PSI Max Pressure, 201 Max Feet of Head

$2,376.66

Best Price Guarantee!
475PumpPoints

Item: DB22P-W

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

DB22P-W

Finish Thompson DB22P-W Wet End FTI DB22 Magnetic Drive Centrifugal DB Series Sealless Pumps, 2" Suction, 2" Discharge, FKM O-Ring, Polypropylene, 221 GPM, 90 PSI Max Pressure, 201 Max Feet of Head

Bushing	Carbon
Connection Type	NPT
Discharge NPT (Inches)	2"
Heads To (Feet)	201
Impeller Size (Inches)	7.25" (7 1/4")
Magnet	8-pole
Material	Polypropylene (PPG)
Maximum Flow (GPM)	221

Maximum Operating Temperature	180°F (82°C)
Maximum Pressure (PSI)	90 PSI
Motor Frame Size	184TC
Pressure Rating BAR	6.2 bar
Spec. Gravity	up to 1.8
Suction NPT (Inches)	2"
Valve/Seat/O-Ring	FKM

DB Sealless Magnetic Drive Centrifugal Pumps Information

Features & Benefits
DB Sealless Magnetic Drive Centrifugal Pumps Capabilities: + Five-year warranty + Extended run dry ability (with carbon bushing) + High operating efficiency + Polypropylene or PVDF construction + Powerful neodymium magnets + Close-coupled design + Threaded NPT or BSP connections + Horizontal or vertical installation + Back pullout design + Mounts to IEC 56, 63, 71 B14 motor frames + Easy set, measurement free drive + CE certified + Working pressure to 60 psi (4.1 bar) + Specific gravity up to 1.8 + Viscosity up to 50 cP + Polypropylene—180o F (82o C) + PVDF—220o F (104o C)
General Description
DB Series Pumping Applications: + Chemical processing + Plating + Water and wastewater + Electronics + Pharmaceuticals + Wet scrubber + Pulp and paper + Heat exchanger + and many more!

Categories

Agriculture
5956 products
Aquariums / Zoos
5956 products
Chemical Delivery / Processing
22853 products
General Purpose
5956 products
Heat Exchangers
6346 products
Manufacturing
20389 products
Mining
6084 products
Plating
23448 products
Pulp & Paper
6474 products
Sewage / Wastewater
20311 products
Water Treatment
7855 products

0 Reviews

☆
☆
☆
☆
☆

Add a Review

You need to sign in to add a review.

Type	Title		Link
	DB, SP, MSDB Series Pumps Brochure (2022)		View
	Chemical Processing Applications Flyer (2022)		View
	DB22 Series Pumps Datasheet (2022)		View
	DB & SP Series Baseplates Datasheet (2022)		View
	DB, SP, UC, Series M20 Power Monitor Datasheet (2022)		View
	DB Series Pumps Performance Curves (2022)		View
	DB22 Series Pumps Installation & Operation Manual (2022)		View

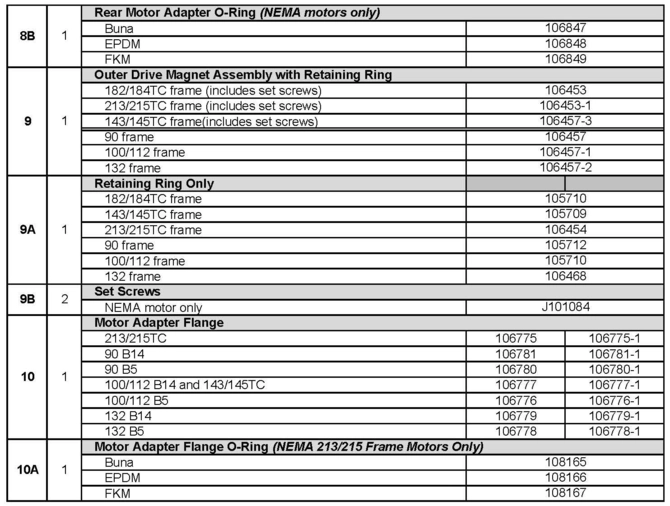

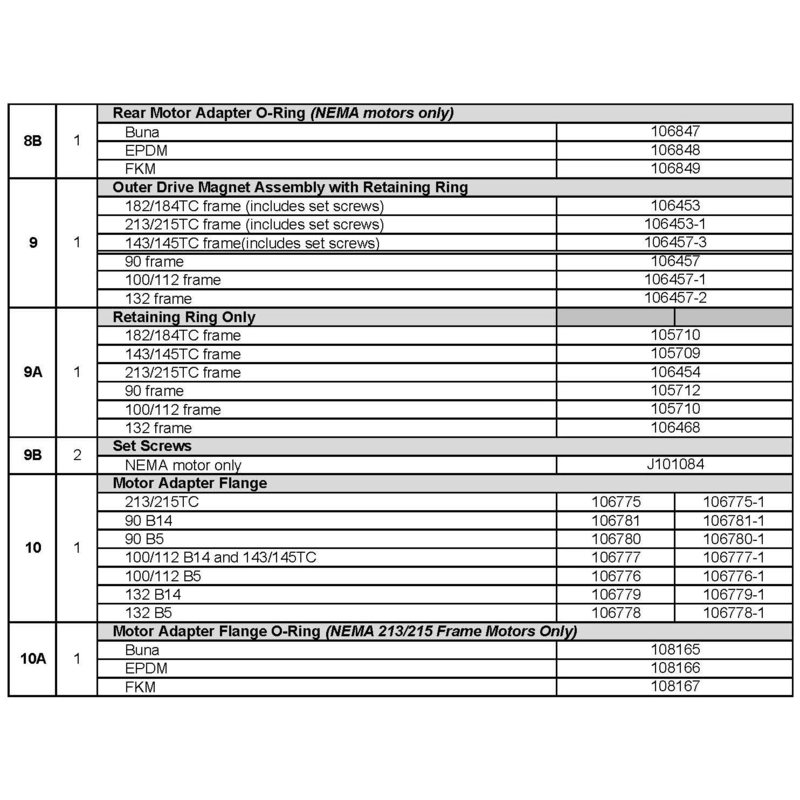

Repair Parts for DB22P-W

Product		qty.	shipping	price
	106403-NEP		Ships in	$11.00	Select item
	106471-NEP		Ships in	Call for pricing
	105083		Ships in	$5.10	Select item
	106476		Ships in	$1,641.60	Select item
	J103917-1		Ships in	$302.10	Select item
	106764		Ships in	$23.75	Select item
	106400-NEP		Ships in	$1,323.00	Select item
	106414-1		Ships in	$581.40	Select item
	106846-NEP		Ships in	$50.00	Select item
	106849-NEP		Ships in	$14.00	Select item
	108167		Ships in	$10.35	Select item
	106501-FTI		Ships in	$9.71	Select item
	106503-FTI		Ships in	$0.29	Select item
	106505-NEP		Ships in	$190.00	Select item
	106495-NEP		Ships in	$131.00	Select item
	J101023		Ships in	$0.30	Select item
	106497-NEP		Ships in	$11.00	Select item
