• Finish Thompson DB22P-M508 Pump FTI DB22 Series

Image shown may not be actual product

Finish Thompson FTI

DB22P-M508

0 reviews

Finish Thompson DB22P-M508 Pump, FTI DB22 Magnetic Drive Centrifugal DB Series Sealless Pumps, 5 HP, 208-230-460 Volt, 60 HZ, 3 Phase, 2" Suction, 2" Discharge, FKM O-Ring, Polypropylene, 221 GPM, 90 PSI, 201 Feet of Head

$4,258.40

Item: DB22P-M508
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

DB22P-M508

Finish Thompson DB22P-M508 Pump, FTI DB22 Magnetic Drive Centrifugal DB Series Sealless Pumps, 5 HP, 208-230-460 Volt, 60 HZ, 3 Phase, 2" Suction, 2" Discharge, FKM O-Ring, Polypropylene, 221 GPM, 90 PSI, 201 Feet of Head

BushingCarbon
Connection TypeNPT
Discharge NPT (Inches)2"
Heads To (Feet)201
HP5
Hz60
Impeller Size (Inches)7.25"
Magnet8-pole
MaterialPolypropylene
Maximum Flow (GPM)221
MaxImum Operating Temperature180°F (82°C)
Maximum Pressure (PSI)90 PSI
Motor Frame Size 184TC
Phase3
Pressure Rating BAR6.2 bar
Spec. Gravityup to 1.8
Speed (RPM)3450
Suction NPT (Inches)2"
Valve/Seat/O-RingFKM
Voltage208-230/460

DB Sealless Magnetic Drive Centrifugal Pumps Information

Features & Benefits
DB Sealless Magnetic Drive Centrifugal Pumps Capabilities:
+ Five-year warranty
+ Extended run dry ability (with carbon bushing)
+ High operating efficiency
+ Polypropylene or PVDF construction
+ Powerful neodymium magnets
+ Close-coupled design
+ Threaded NPT or BSP connections
+ Horizontal or vertical installation
+ Back pullout design
+ Mounts to IEC 56, 63, 71 B14 motor frames
+ Easy set, measurement free drive
+ CE certified
+ Working pressure to 60 psi (4.1 bar)
+ Specific gravity up to 1.8
+ Viscosity up to 50 cP
+ Polypropylene—180o F (82o C)
+ PVDF—220o F (104o C)
General Description
DB Series Pumping Applications:
+ Chemical processing
+ Plating
+ Water and wastewater
+ Electronics
+ Pharmaceuticals
+ Wet scrubber
+ Pulp and paper
+ Heat exchanger
+ and many more!

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

DB Sealless Magnetic Drive Centrifugal Pumps

DB SP Magnetic Drive Pumps Brochure

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series Pump Curves

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB SP Series Pump Baseplates

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB3 DB4 DB5 Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB5.5 Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB6 Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB7 Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB8 Centrifugal Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB9 Centrifugal Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

FTI DB Series DB10 Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB11 Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB15 Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB Series DB22 Pump Datasheet

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB3 DB4 DB5.5 Pumps Manual

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB6 DB6H DB7 DB8 DB9 DB10 Pump Manual

View

DB Sealless Magnetic Drive Centrifugal Pumps

DB11 DB15 Pumps Manual

View

Repair Parts for DB22P-M508

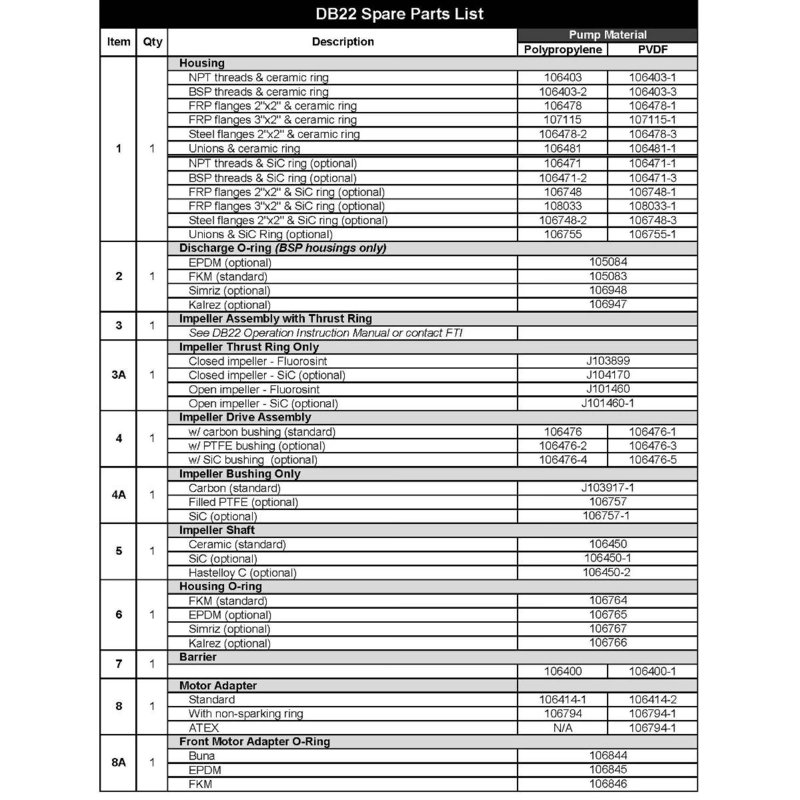

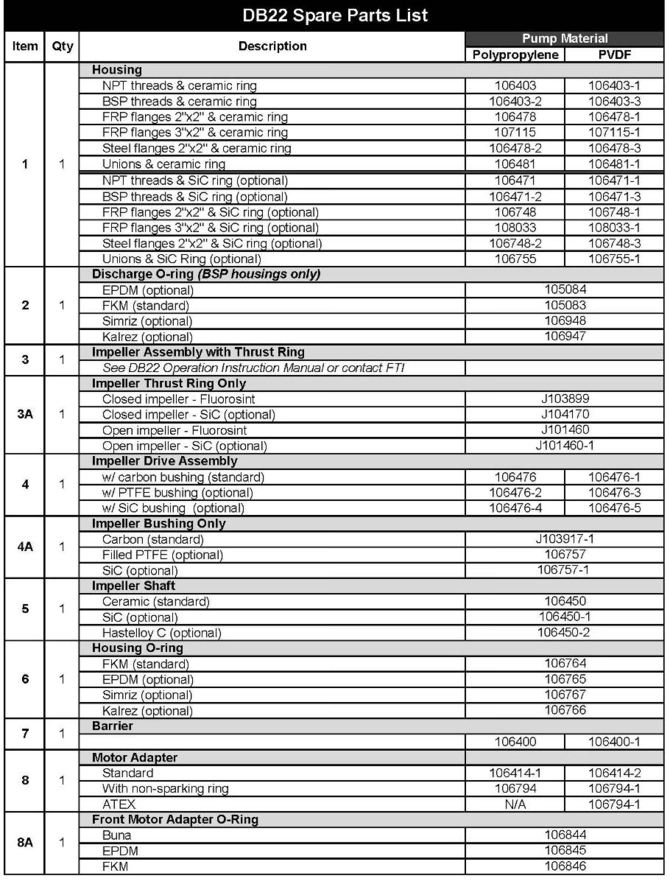

  • Finish-Thompson-FTI-DB22-Pump-Parts-1.jpg
  • Finish-Thompson-FTI-DB22-Pump-Parts-2.jpg

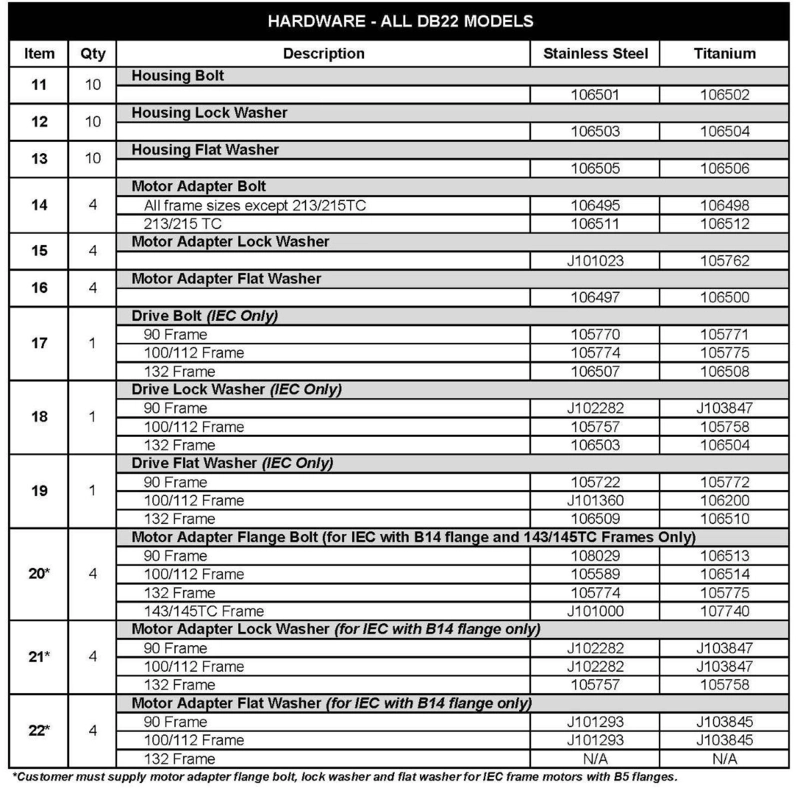

  • Finish-Thompson-FTI-DB22-Pump-Parts-3.jpg

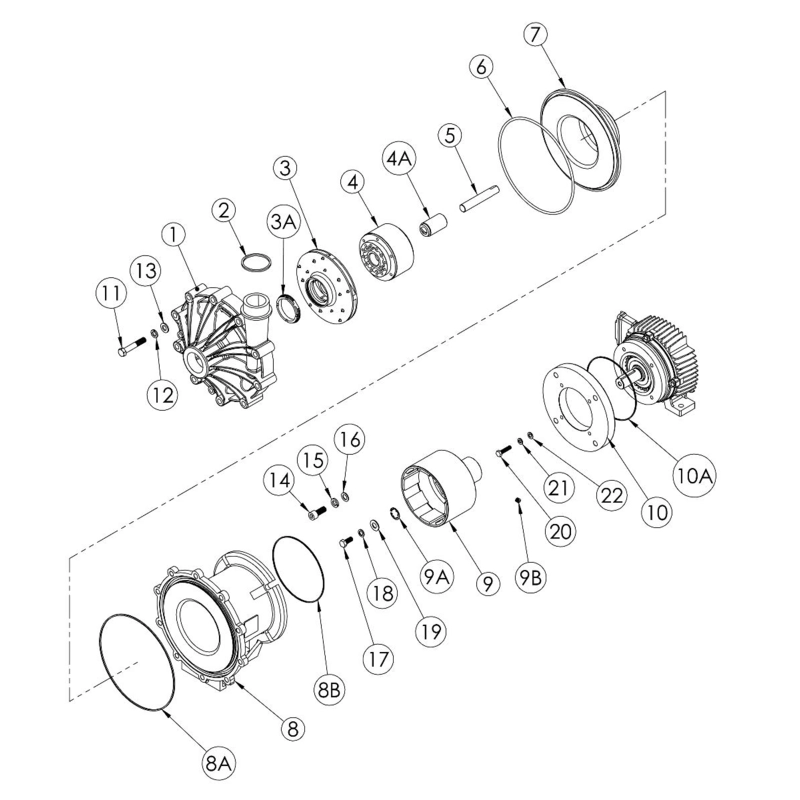

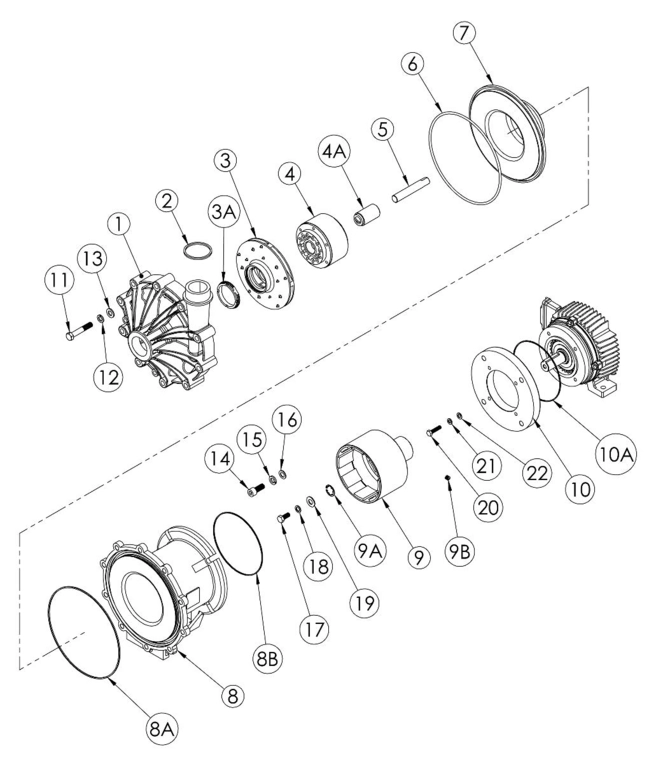

  • Finish-Thompson-FTI-DB22-Pump-Parts-Exploded-View.jpg
Productqty.shippingprice
106403

106403

Ships in $372.60
106471

106471

Ships in $617.40
105083

105083

Ships in $3.88
106476

106476

Ships in $1,247.40
J103917-1

J103917-1

Ships in $227.70
106764

106764

Ships in $11.74
106400

106400

Ships in $236.70
106414-1

106414-1

Ships in $440.10
106846

106846

Ships in $8.52
106849

106849

Ships in $5.54
108167

108167

Ships in $7.53
106501

106501

Ships in $7.38
106503

106503

Ships in $0.22
106505

106505

Ships in $0.33
106495

106495

Ships in $1.72
J101023

J101023

Ships in $0.23
106497

106497

Ships in $0.12
0 items selected.Add items to cart
