• Finish Thompson AV6SJS1V1C5201805 AV6 Pump Series

Image shown may not be actual product

Finish Thompson FTI

AV6SJS1V1C5201805

0 reviews

Finish Thompson AV6SJS1V1C5201805, FTI AV Series Stainless Steel Vertical Pump, AV6 2 x 1-1/2 NPT, Volt, 3450 RPM, FKM O-Ring, 3 Phase, 5 HP, 5.25" Closed design impeller, 50-60 Hz, 100 psi, 216 GPM

$5,078.40

Item: AV6SJS1V1C5201805
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

AV6SJS1V1C5201805

Finish Thompson AV6SJS1V1C5201805, FTI AV Series Stainless Steel Vertical Pump, AV6 2 x 1-1/2 NPT, Volt, 3450 RPM, FKM O-Ring, 3 Phase, 5 HP, 5.25" Closed design impeller, 50-60 Hz, 100 psi, 216 GPM

Base Model NumberAV6
BushingCarbon
Column Length22"
Connections / Discharge (Inches)2 x 1-1/2 NPT
Discharge NPT (Inches)1 1/2"
Heads To (Feet)129
HP5
Hz50-60
Impeller CodeStandard
Impeller Size (Inches)5.25"
Material316 SS
Maximum Flow (GPM)216
MaxImum Operating Temperature300°F (149°C)
Maximum Pressure (PSI)100 PSI
Motor5hp/3450/3ph/50-60Hz/T/184TC/230-460V
Motor Frame SizeNEMA 184TC
Phase3
Pressure Rating BAR6.9 bar
Spec. Gravityup to 1.8
Speed (RPM)3450
Suction NPT (Inches)2"
Valve/Seat/O-RingFKM

AV Vertical Metallic Centrifugal Pumps Information

Features & Benefits
AV Series Typical Applications
• Chemical processing
• Plating, photo processing
• Printed circuit boards
• Pharmaceutical
• Waste water treatment

AV Vertical Metallic Centrifugal Pump Features:
• Corrosion resistant 316 stainless steel
• Close coupled
• Back pull out design for easy service
• Compact design with secure V-clamp (304 stainless steel)
• Standard, recessed, or high head impellers
• SS mounting plate for in-tank installation (AV models only)
• FKM, EPDM, or carbon lower bushings (AV models only)
• 1.8 specific gravity with no impeller trim
• Maximum temperature: 300°F (149°C)
• Maximum working pressure: 100 psi (6.9 bar)
General Description
AV Vertical Metallic Centrifugal Pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors
and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

AV Vertical Metallic Centrifugal Pumps

AK4 AK5 AC4 AC5 Metallic Pumps Manual

View

AV Vertical Metallic Centrifugal Pumps

AV6 AV8 Pumps Manual

View

AV Vertical Metallic Centrifugal Pumps

AC4 AC5 AV4 Pump Datasheet

View

AV Vertical Metallic Centrifugal Pumps

AC6 AC8 AV8 Pump Datasheet

View

AV Vertical Metallic Centrifugal Pumps

AP Series Pump Curves

View

Repair Parts for AV6SJS1V1C5201805

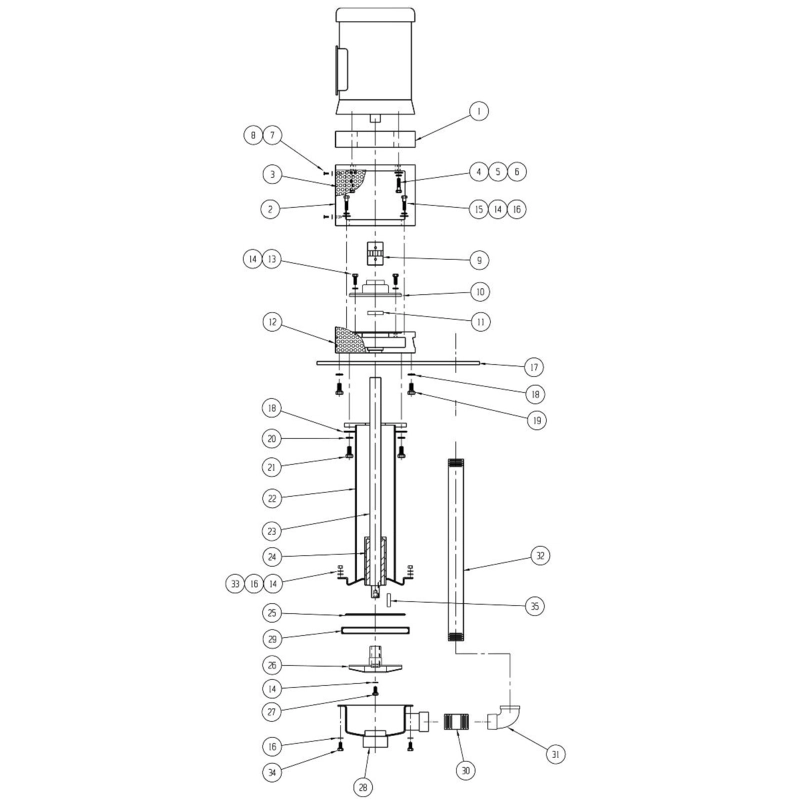

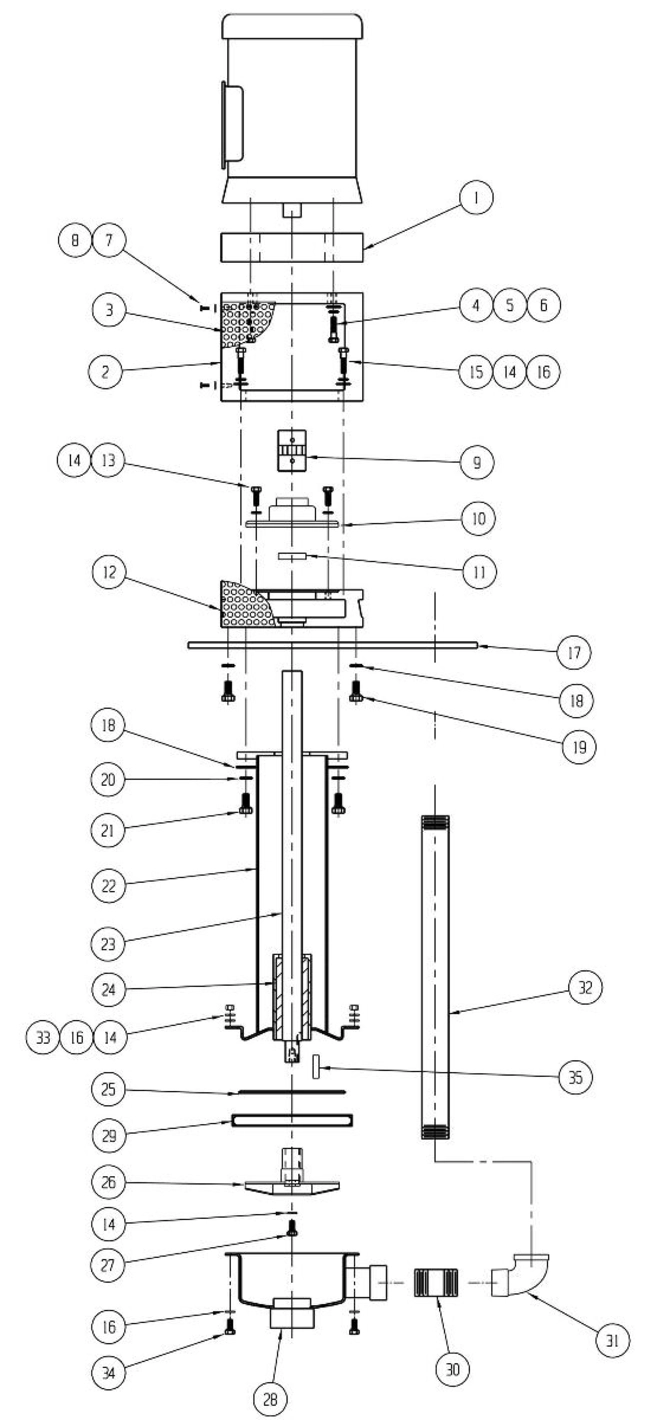

  • Finish-Thompson-AV6-Exploded-Pump-Parts.jpg

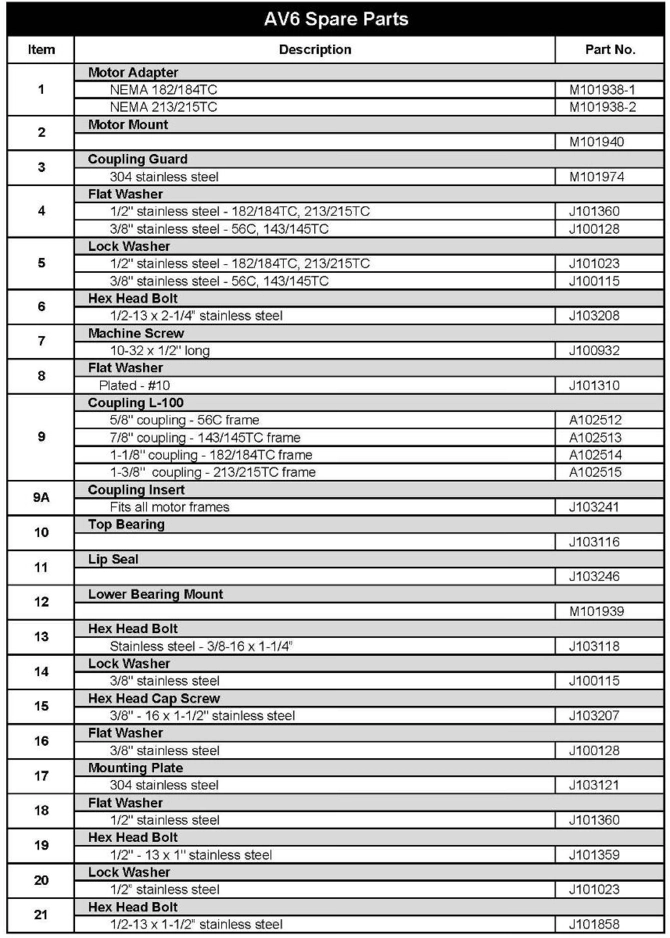

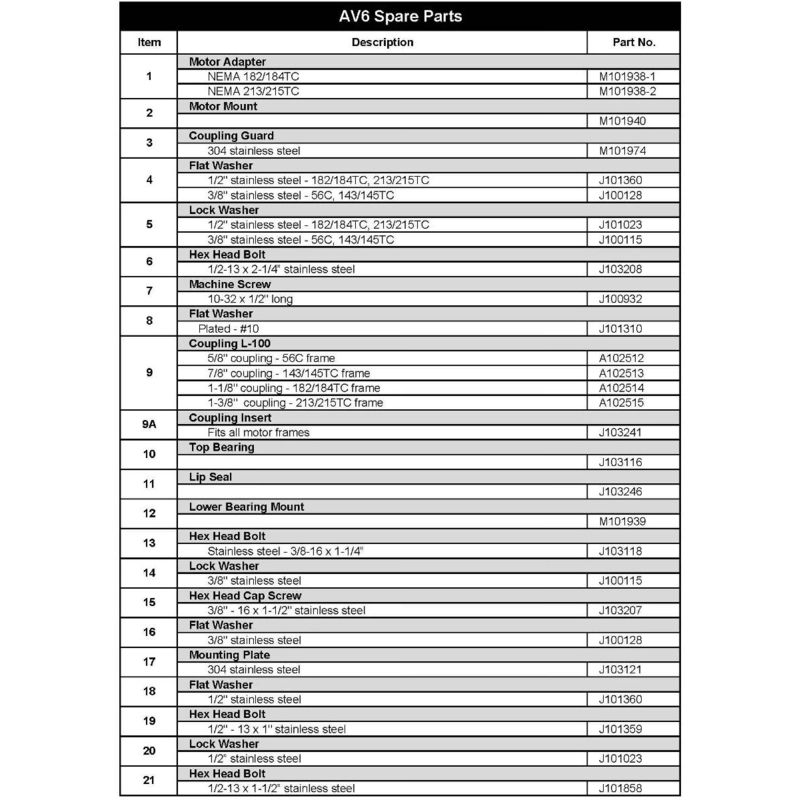

  • Finish-Thompson-AV6-Pump-Parts-1.jpg
  • Finish-Thompson-AV6-Pump-Parts-2.jpg
Productqty.shippingprice
M101938-1

M101938-1

Ships in $262.40
M101940

M101940

Ships in $269.60
M101974

M101974

Ships in $40.00
J101360

J101360

Ships in $0.22
J101023

J101023

Ships in $0.23
J103208

J103208

Ships in $2.59
J100932

J100932

Ships in $0.11
J101310

J101310

Ships in $0.72
A102514

A102514

Ships in $139.50
J103241

J103241

Ships in $45.00
J103116

J103116

Ships in $135.00
J103246

J103246

Ships in $36.00
M101939

M101939

Ships in $226.40
J103118

J103118

Ships in $0.44
J100115

J100115

Ships in $0.11
J103207

J103207

Ships in $0.90
J100128

J100128

Ships in $0.09
J103121

J103121

Ships in $568.80
J101360

J101360

Ships in $0.22
J101359

J101359

Ships in $5.06
J101023

J101023

Ships in $0.23
J101858

J101858

Ships in $1.87
A102215-1

A102215-1

Ships in $961.20
M102147-1

M102147-1

Ships in $410.40
J103077

J103077

Ships in $214.20
J103084

J103084

Ships in $7.70
A102734-8

A102734-8

Ships in $494.10
J103207

J103207

Ships in $0.90
A102184-2

A102184-2

Ships in $694.80
J103090

J103090

Ships in $94.50
J103193

J103193

Ships in $45.90
J103194

J103194

Ships in $63.00
M101931-1

M101931-1

Ships in $86.40
M102328

M102328

Ships in $20.80
0 items selected.Add items to cart
