AV6HJS1V1C6201803 Finish Thompson FTI AV6H Pump

Features & Benefits
AV Series Typical Applications • Chemical processing • Plating, photo processing • Printed circuit boards • Pharmaceutical • Waste water treatment AV Vertical Metallic Centrifugal Pump Features: • Corrosion resistant 316 stainless steel • Close coupled • Back pull out design for easy service • Compact design with secure V-clamp (304 stainless steel) • Standard, recessed, or high head impellers • SS mounting plate for in-tank installation (AV models only) • FKM, EPDM, or carbon lower bushings (AV models only) • 1.8 specific gravity with no impeller trim • Maximum temperature: 300°F (149°C) • Maximum working pressure: 100 psi (6.9 bar)
General Description
AV Vertical Metallic Centrifugal Pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.

Base Model Number	AV6H
Bushing	Carbon
Column Length	22"
Connections / Discharge (Inches)	1-1/4 x 3/4 NPT
Discharge NPT (Inches)	3/4"
Heads To (Feet)	144
HP	3
Hz	60
Impeller Code	High Head
Impeller Size (Inches)	6.25" (6 1/4")
Material	316 Stainless Steel
Maximum Flow (GPM)	100

Maximum Operating Temperature	300°F (149°C)
Maximum Pressure (PSI)	100 psi (6.9 Bar)
Motor	3hp/3450/3ph/60Hz/T/56C/230-460V
Motor Frame Size	NEMA 184TC
Phase	3
Pressure Rating BAR	6.9 bar
Spec. Gravity	up to 1.8
Speed (RPM)	3450
Suction NPT (Inches)	1-1/4"
Valve/Seat/O-Ring	FKM

Type	Title		Link
	AC, AV, AK Series Pumps Brochure (2022)		View
	Chemical Processing Applications Flyer (2022)		View
	AC, AV, AK 6 & 8 Series Pumps Datasheet (2022)		View
	AP Series Series Pumps Performance Curves (2022)		View
	AV6 AV8 Series Pumps Installation & Operation Manual (2022)		View

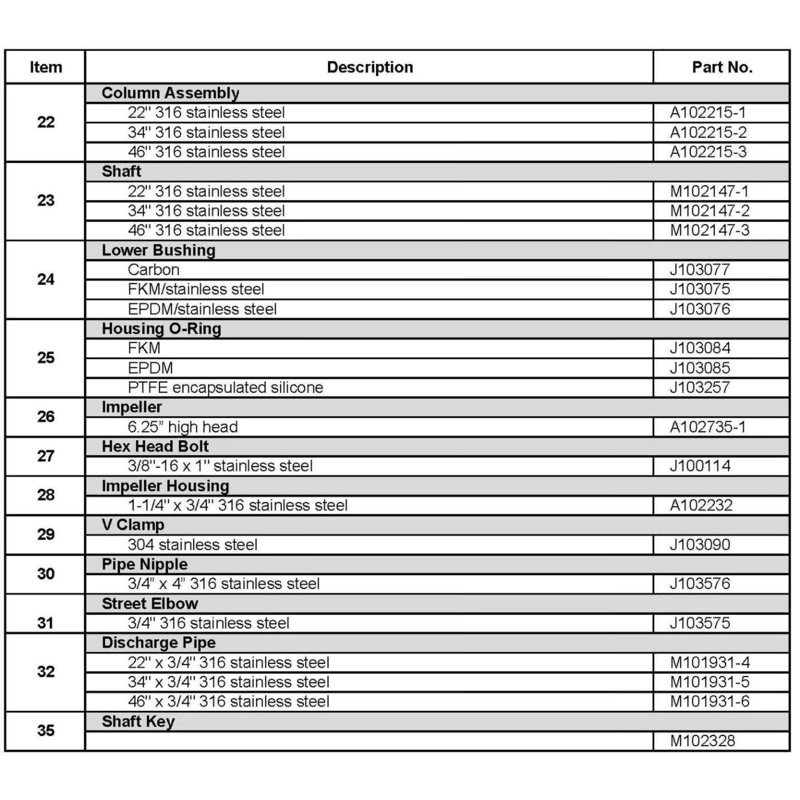

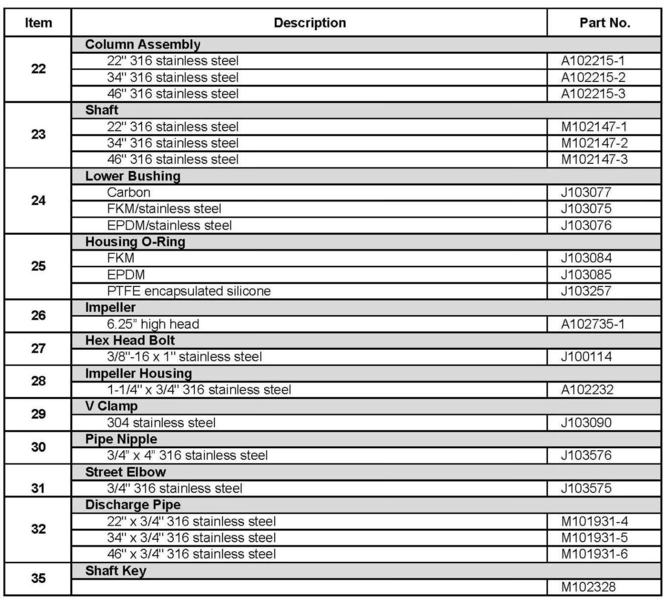

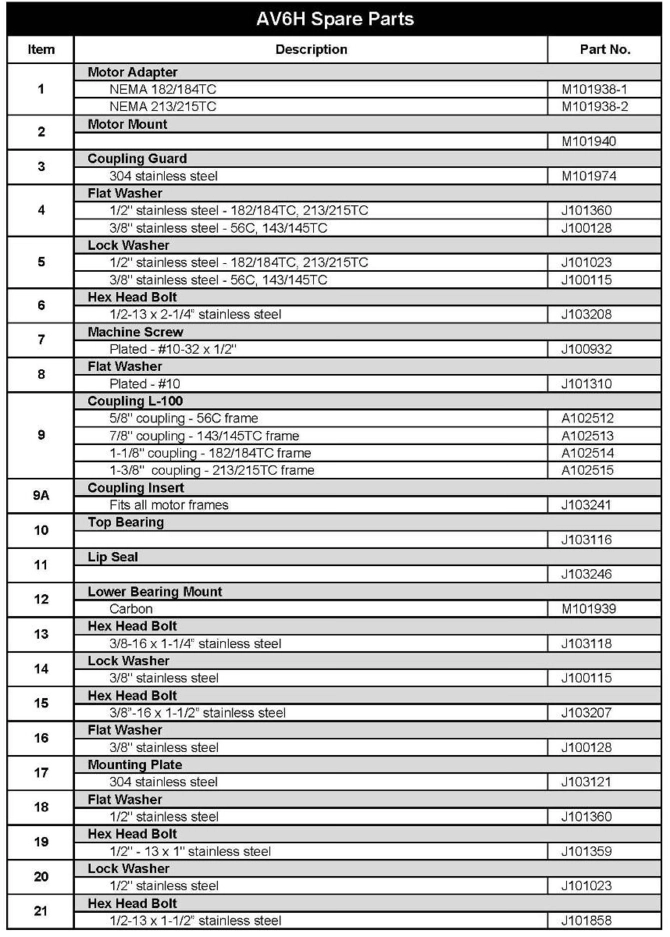

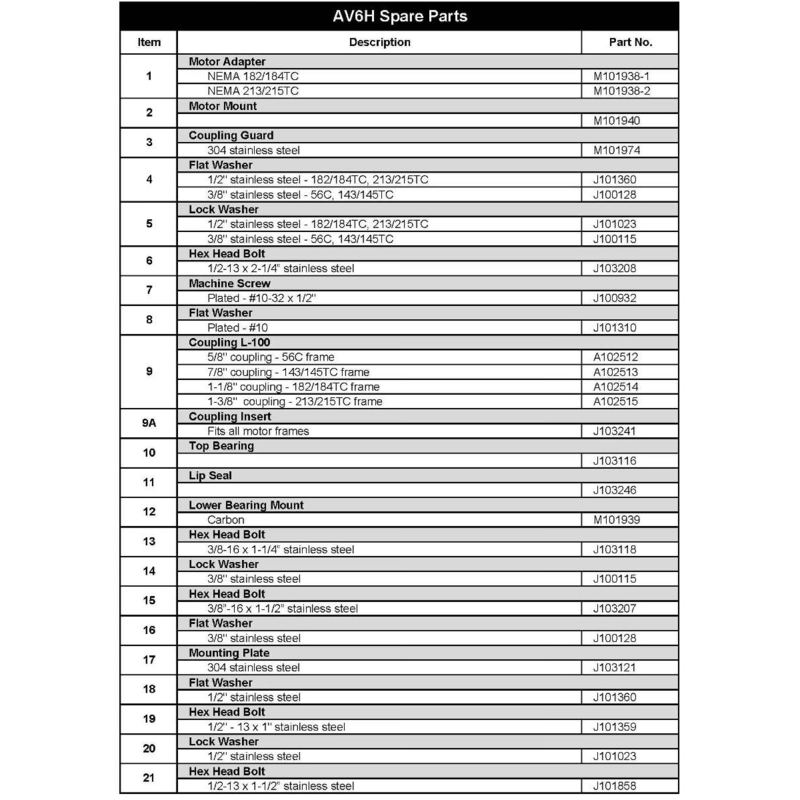

	shipping	price
M101938-1	Ships in	$390.45	Select item
M101940	Ships in	$401.85	Select item
M101974	Ships in	$60.80	Select item
J101360	Ships in	$0.32	Select item
J101023	Ships in	$0.30	Select item
J103208	Ships in	$3.41	Select item
J100932	Ships in	$0.14	Select item
J101310	Ships in	Call for pricing
A102514	Ships in	$186.20	Select item
J103241	Ships in	$60.80	Select item
J103116	Ships in	$180.50	Select item
J103246	Ships in	$50.35	Select item
M101939	Ships in	$338.20	Select item
J103118	Ships in	$0.58	Select item
J100115	Ships in	$0.16	Select item
J103207	Ships in	$1.21	Select item
J100128	Ships in	$0.11	Select item
J103121	Ships in	$749.55	Select item
J101360	Ships in	$0.32	Select item
J101359	Ships in	$7.13	Select item
J101023	Ships in	$0.30	Select item
J101858	Ships in	$2.63	Select item
A102215-1	Ships in	$1,266.35	Select item
M102147-1	Ships in	$609.90	Select item
J103077	Ships in	$341.05	Select item
J103084	Ships in	$10.12	Select item
A102735-1	Ships in	$651.70	Select item
J100114	Ships in	$0.60	Select item
A102232	Ships in	$777.10	Select item
J103090	Ships in	$126.35	Select item
J103576	Ships in	$42.75	Select item
J103575	Ships in	$71.25	Select item
M101931-4	Ships in	$130.15	Select item
M102328	Ships in	$32.30	Select item
