  • Finish Thompson AV5RTS1V1C3005J09 AV5R Pump Series

Image shown may not be actual product

Finish Thompson FTI

AV5RTS1V1C3005J09

0 reviews

Finish Thompson AV5RTS1V1C3005J09, FTI AV Series Stainless Steel Vertical Pump, AV5R 1-1/2 x 1-1/4 NPT, 115-230 Volt, 3450 RPM, FKM O-Ring, 1 Phase, 1 HP, 3.00" Closed design impeller, 60 Hz, 100 psi, 124 GPM

$2,342.40

Item: AV5RTS1V1C3005J09
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

AV5RTS1V1C3005J09

Finish Thompson AV5RTS1V1C3005J09, FTI AV Series Stainless Steel Vertical Pump, AV5R 1-1/2 x 1-1/4 NPT, 115-230 Volt, 3450 RPM, FKM O-Ring, 1 Phase, 1 HP, 3.00" Closed design impeller, 60 Hz, 100 psi, 124 GPM

Base Model NumberAV5R
BushingCarbon
Column Length12"
Connections / Discharge (Inches)1-1/2 x 1-1/4 NPT
Discharge NPT (Inches)1-1/4"
Heads To (Feet)85
HP1
Hz60
Impeller CodeRecessed
Impeller Size (Inches)3"
Material316 Stainless Steel
Maximum Flow (GPM)124
Maximum Operating Temperature300°F (149°C)
Maximum Pressure (PSI)100 psi (6.9 Bar)
Motor1hp/3450/1ph/60Hz/T/56J/115-230V
Motor Frame SizeNEMA 56J
Phase1
Pressure Rating BAR6.9 bar
Spec. Gravityup to 1.8
Speed (RPM)3450
Suction NPT (Inches)1-1/2"
Valve/Seat/O-RingFKM
Voltage115/230

AV Vertical Metallic Centrifugal Pumps Information

Features & Benefits
AV Series Typical Applications
• Chemical processing
• Plating, photo processing
• Printed circuit boards
• Pharmaceutical
• Waste water treatment

AV Vertical Metallic Centrifugal Pump Features:
• Corrosion resistant 316 stainless steel
• Close coupled
• Back pull out design for easy service
• Compact design with secure V-clamp (304 stainless steel)
• Standard, recessed, or high head impellers
• SS mounting plate for in-tank installation (AV models only)
• FKM, EPDM, or carbon lower bushings (AV models only)
• 1.8 specific gravity with no impeller trim
• Maximum temperature: 300°F (149°C)
• Maximum working pressure: 100 psi (6.9 bar)
General Description
AV Vertical Metallic Centrifugal Pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors
and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.

Categories

0 Reviews

  • ☆
  • ☆
  • ☆
  • ☆
  • ☆

Add a Review

You need to sign in to add a review.

TypeTitleLink

AC, AV, AK Series Pumps Brochure (2022)

View

Chemical Processing Applications Flyer (2022)

View

AC, AV, AK 4 & 5 Series Pumps Datasheet (2022)

View

AP Series Series Pumps Performance Curves (2022)

View

AK4 AV4 AK5 AV5 Series Pumps Installation & Operation Manual (2022)

View

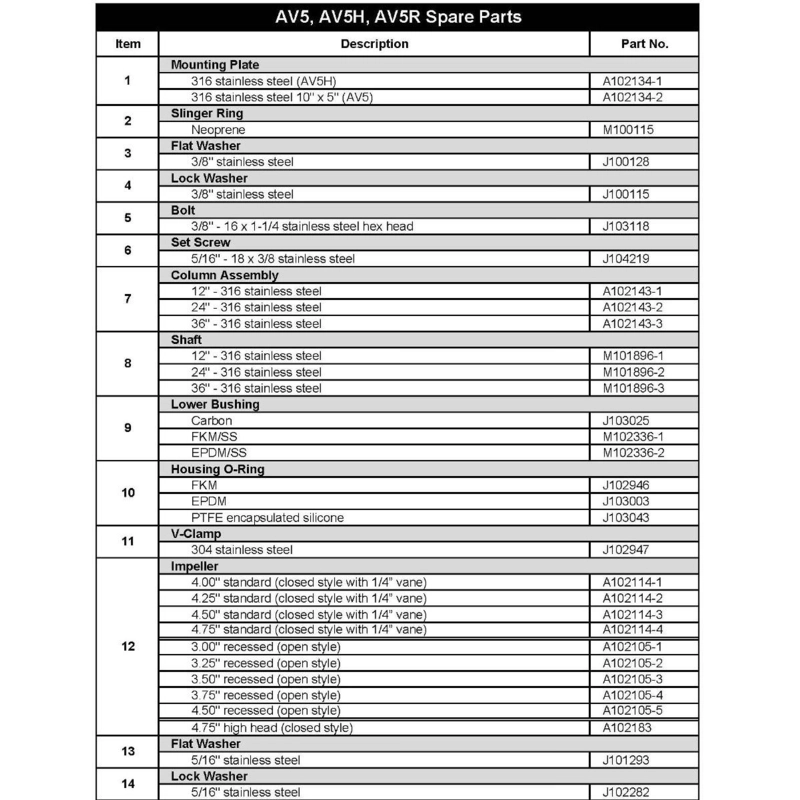

Repair Parts for AV5RTS1V1C3005J09

  • Finish-Thompson-AV5-Exploded-Pump-Parts.jpg

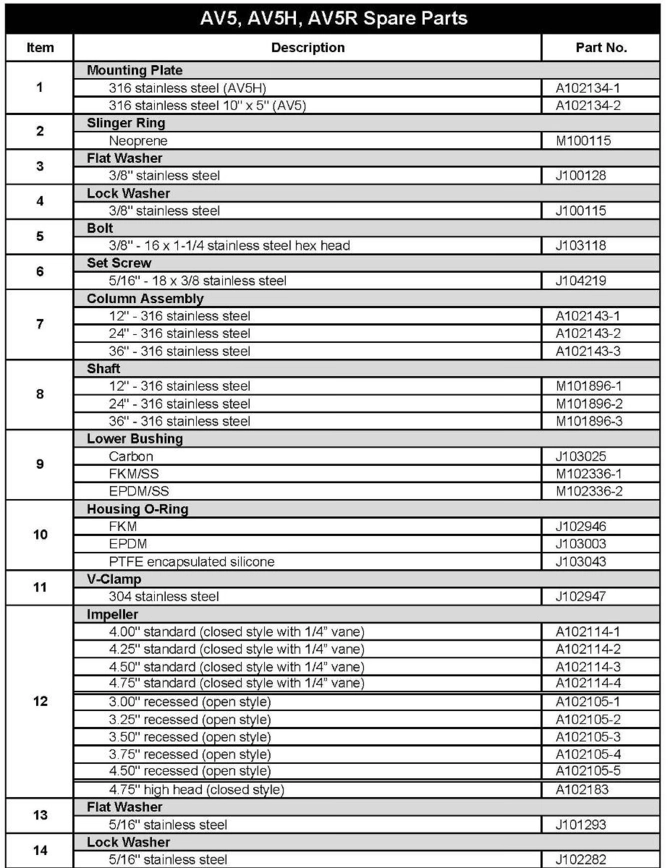

  • Finish-Thompson-AV5-Pump-Parts.jpg
Productqty.shippingprice
M100115

M100115

 Ships in $9.51
J100128

J100128

 Ships in $0.11
J100115

J100115

 Ships in $0.16
J103118

J103118

 Ships in $0.58
J104219

J104219

 Ships in $4.00
A102143-1

A102143-1

 Ships in $827.45
M101896-1

M101896-1

 Ships in $282.15
J103025

J103025

 Ships in $172.90
J102946

J102946

 Ships in $3.61
J102947

J102947

 Ships in 1 Week $81.70
M101897-1

M101897-1

 Ships in $98.80
M101897-4

M101897-4

 Ships in $45.60
