• Finish Thompson AV5HTS3V1C4705J AV5H Pump Series

Image shown may not be actual product

Finish Thompson FTI

AV5HTS3V1C4705J

0 reviews

Finish Thompson Centrifugal Pump End AV5HTS3V1C4705J, AV Series Stainless Steel Vertical Pump, FTI AV5H, 1-1/2 x 1-1/4 NPT, FKM O-Ring, 4.75" Closed design impeller, 100 psi, 17 GPM

$1,883.20

Item: AV5HTS3V1C4705J
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

AV5HTS3V1C4705J

Finish Thompson Centrifugal Pump End AV5HTS3V1C4705J, AV Series Stainless Steel Vertical Pump, FTI AV5H, 1-1/2 x 1-1/4 NPT, FKM O-Ring, 4.75" Closed design impeller, 100 psi, 17 GPM

Base Model NumberAV5H
BushingCarbon
Column Length36"
Connections / Discharge (Inches)1-1/2 x 1-1/4 NPT
Discharge NPT (Inches)1/4"
Heads To (Feet)96
Impeller CodeHigh Head
Impeller Size (Inches)4.75"
Material316 SS
Maximum Flow (GPM)17
MaxImum Operating Temperature300°F (149°C)
Maximum Pressure (PSI)100 PSI
Motor Frame SizeNEMA 56J
Pressure Rating BAR6.9 bar
Spec. Gravityup to 1.8
Suction NPT (Inches)1/2"
Valve/Seat/O-RingFKM

AV Vertical Metallic Centrifugal Pumps Information

Features & Benefits
AV Series Typical Applications
• Chemical processing
• Plating, photo processing
• Printed circuit boards
• Pharmaceutical
• Waste water treatment

AV Vertical Metallic Centrifugal Pump Features:
• Corrosion resistant 316 stainless steel
• Close coupled
• Back pull out design for easy service
• Compact design with secure V-clamp (304 stainless steel)
• Standard, recessed, or high head impellers
• SS mounting plate for in-tank installation (AV models only)
• FKM, EPDM, or carbon lower bushings (AV models only)
• 1.8 specific gravity with no impeller trim
• Maximum temperature: 300°F (149°C)
• Maximum working pressure: 100 psi (6.9 bar)
General Description
AV Vertical Metallic Centrifugal Pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors
and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

AV Vertical Metallic Centrifugal Pumps

AK4 AK5 AC4 AC5 Metallic Pumps Manual

View

AV Vertical Metallic Centrifugal Pumps

AV6 AV8 Pumps Manual

View

AV Vertical Metallic Centrifugal Pumps

AC4 AC5 AV4 Pump Datasheet

View

AV Vertical Metallic Centrifugal Pumps

AC6 AC8 AV8 Pump Datasheet

View

AV Vertical Metallic Centrifugal Pumps

AP Series Pump Curves

View

Repair Parts for AV5HTS3V1C4705J

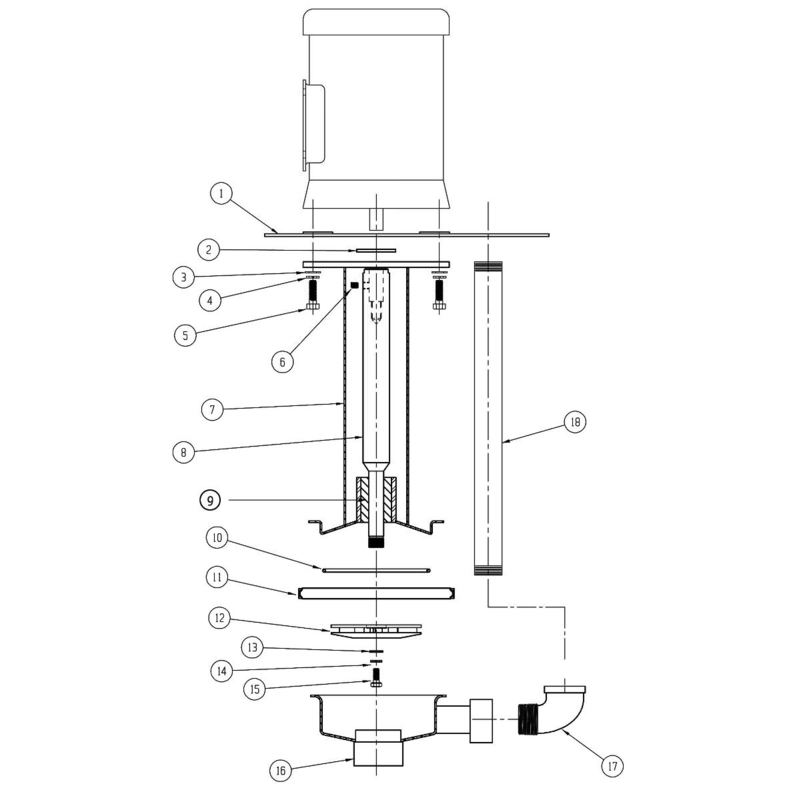

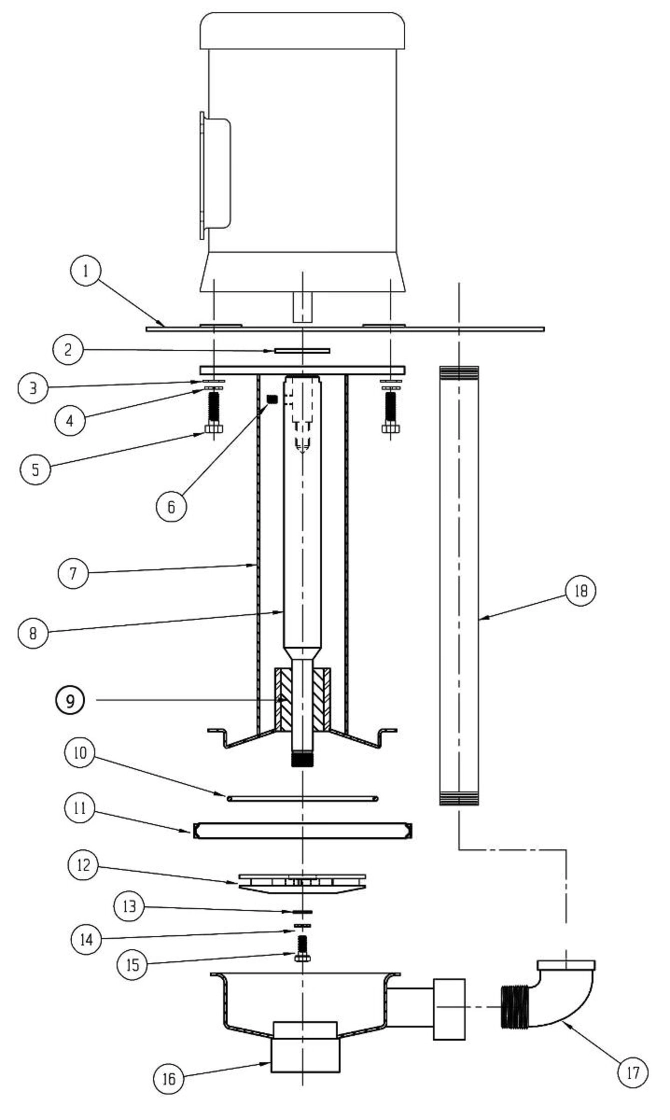

  • Finish-Thompson-AV5-Exploded-Pump-Parts.jpg
  • Finish-Thompson-AV5-Pump-Parts.jpg
Productqty.shippingprice
A102134-1

A102134-1

Ships in $195.30
M100115

M100115

Ships in $6.43
J100128

J100128

Ships in $0.09
J100115

J100115

Ships in $0.11
J103118

J103118

Ships in $0.44
J104219

J104219

Ships in $3.04
A102143-3

A102143-3

Ships in $751.50
M101896-3

M101896-3

Ships in $232.00
J103025

J103025

Ships in $128.70
J102946

J102946

Ships in $2.74
J102947

J102947

Ships in $60.30
A102183

A102183

Ships in $255.60
M101897-3

M101897-3

Ships in $94.40
M101897-6

M101897-6

Ships in $68.00
0 items selected.Add items to cart
