Finish Thompson Centrifugal Pump End AV5HTS1V1C4705J, AV Series Stainless Steel Vertical Pump, FTI AV5H, 1-1/2 x 1-1/4 NPT, FKM O-Ring, 4.75" Closed design impeller, 100 psi, 17 GPM
Finish Thompson Centrifugal Pump End AV5HTS1V1C4705J, AV Series Stainless Steel Vertical Pump, FTI AV5H, 1-1/2 x 1-1/4 NPT, FKM O-Ring, 4.75" Closed design impeller, 100 psi, 17 GPM
Base Model Number | AV5H |
Bushing | Carbon |
Column Length | 12" |
Connections / Discharge (Inches) | 1-1/2 x 1-1/4 NPT |
Discharge NPT (Inches) | 1/4" |
Heads To (Feet) | 96 |
Impeller Code | High Head |
Impeller Size (Inches) | 4.75" (4 3/4") |
Material | 316 Stainless Steel |
Maximum Flow (GPM) | 17 |
Maximum Operating Temperature | 300°F (149°C) |
Maximum Pressure (PSI) | 100 psi (6.9 Bar) |
Motor Frame Size | NEMA 56J |
Pressure Rating BAR | 6.9 bar |
Spec. Gravity | up to 1.8 |
Suction NPT (Inches) | 1/2" |
Valve/Seat/O-Ring | FKM |
Features & Benefits |
---|
AV Series Typical Applications • Chemical processing • Plating, photo processing • Printed circuit boards • Pharmaceutical • Waste water treatment AV Vertical Metallic Centrifugal Pump Features: • Corrosion resistant 316 stainless steel • Close coupled • Back pull out design for easy service • Compact design with secure V-clamp (304 stainless steel) • Standard, recessed, or high head impellers • SS mounting plate for in-tank installation (AV models only) • FKM, EPDM, or carbon lower bushings (AV models only) • 1.8 specific gravity with no impeller trim • Maximum temperature: 300°F (149°C) • Maximum working pressure: 100 psi (6.9 bar) |
General Description |
AV Vertical Metallic Centrifugal Pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional. |
Chemical Delivery / Processing
22853 productsFood & Beverage Services
13449 productsManufacturing
20389 productsPharmaceutical / Chemical
15972 productsPlating
23448 productsSewage / Wastewater

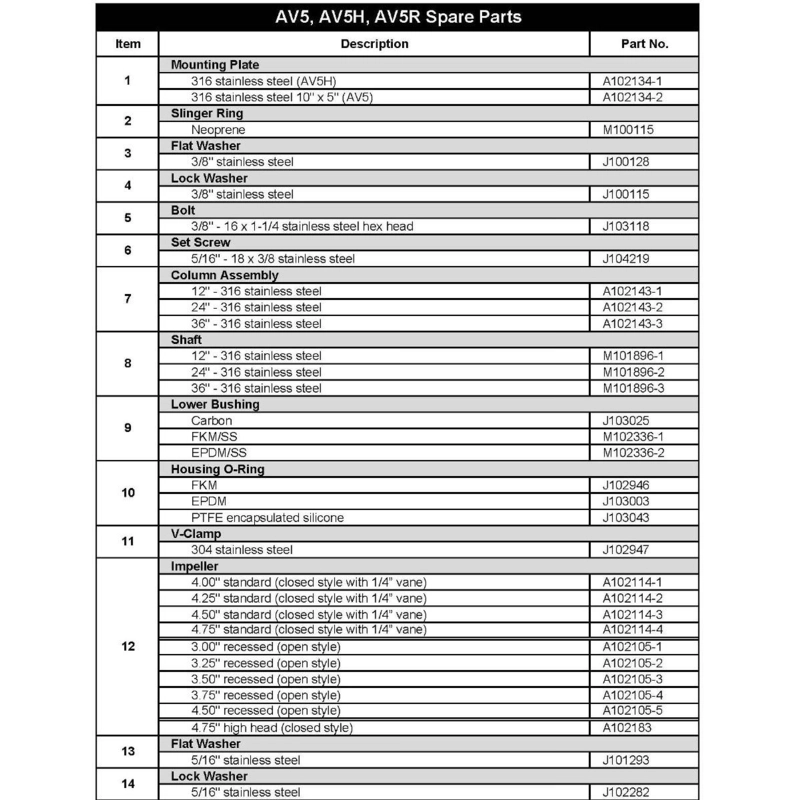

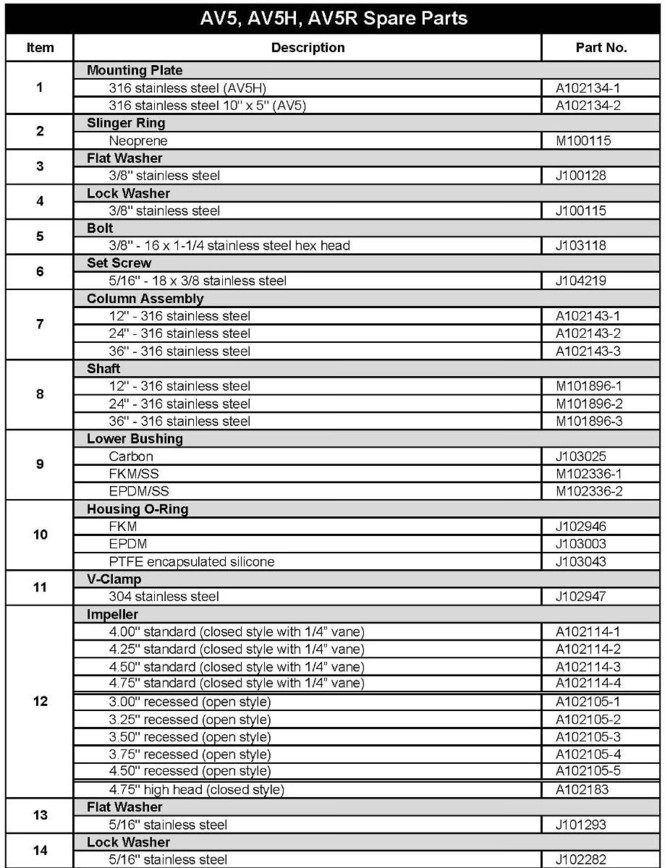

20311 productsProduct | qty. | shipping | price | ||
---|---|---|---|---|---|
A102134-1 | Ships in | $259.35 | |||
M100115 | Ships in | $9.51 | |||
J100128 | Ships in | $0.11 | |||
J100115 | Ships in | $0.16 | |||
J103118 | Ships in | $0.58 | |||
J104219 | Ships in | $4.00 | |||
A102143-1 | Ships in | $827.45 | |||
M101896-1 | Ships in | $282.15 | |||
J103025 | Ships in | $172.90 | |||
J102946 | Ships in | $3.61 | |||
J102947 | Ships in 1 Week | $81.70 | |||
A102183 | Ships in | $339.15 | |||
M101897-1 | Ships in | $98.80 | |||
M101897-4 | Ships in | $45.60 |
