AK5RTS1V13005J10

Home
Finish Thompson FTI
AK Vertical Cantilevered Metallic Centrifugal Pumps
AK5RTS1V13005J10

AK5RTS1V13005J10

0 reviews

Finish Thompson AK5RTS1V13005J10, FTI AK5R Vertical Sealed Stainless Steel Cantilevered Centrifugal Pump, 1-1/2" x 1-1/4" NPT, 115-230 Volt, 3450 RPM, FKM O-Ring, 1 Phase, 1 1/2 HP, 3.00" Closed design impeller, 60 Hz, 100 psi, 124 GPM

$2,399.20

Best Price Guarantee!
479PumpPoints

Item: AK5RTS1V13005J10

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

AK5RTS1V13005J10

Finish Thompson AK5RTS1V13005J10, FTI AK5R Vertical Sealed Stainless Steel Cantilevered Centrifugal Pump, 1-1/2" x 1-1/4" NPT, 115-230 Volt, 3450 RPM, FKM O-Ring, 1 Phase, 1 1/2 HP, 3.00" Closed design impeller, 60 Hz, 100 psi, 124 GPM

Base Model Number	AK5R
Column Length	12"
Connections / Discharge (Inches)	1-1/2" x 1-1/4" NPT
Discharge NPT (Inches)	1-1/4"
Heads To (Feet)	85
HP	1 1/2
Hz	60
Impeller Code	Recessed
Impeller Size (Inches)	3"
Material	316 Stainless Steel
Maximum Flow (GPM)	124
Maximum Operating Temperature	300°F (149°C)

Maximum Pressure (PSI)	100 psi (6.9 Bar)
Motor	1-1/2hp/3450/1ph/60Hz/T/56J/115-230V
Motor Frame Size	NEMA 56J
Phase	1
Pressure Rating BAR	6.9 bar
Spec. Gravity	up to 1.8
Speed (RPM)	3450
Suction NPT (Inches)	1-1/2"
Valve/Seat/O-Ring	FKM
Voltage	115/230

AK Vertical Cantilevered Metallic Centrifugal Pumps Information

Features & Benefits
AK Series Typical Applications include: Pharmaceutical, Waste water & water treatment, Chemical transfer
General Description
Finish Thompson FTI AV Series are rugged, metallic centrifugal pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.

0 Reviews

☆
☆
☆
☆
☆

Add a Review

You need to sign in to add a review.

Type	Title		Link
	AC, AV, AK Series Pumps Brochure (2022)		View
	Chemical Processing Applications Flyer (2022)		View
	AC, AV, AK 4 & 5 Series Pumps Datasheet (2022)		View
	AP Series Series Pumps Performance Curves (2022)		View
	AK4 AV4 AK5 AV5 Series Pumps Installation & Operation Manual (2022)		View

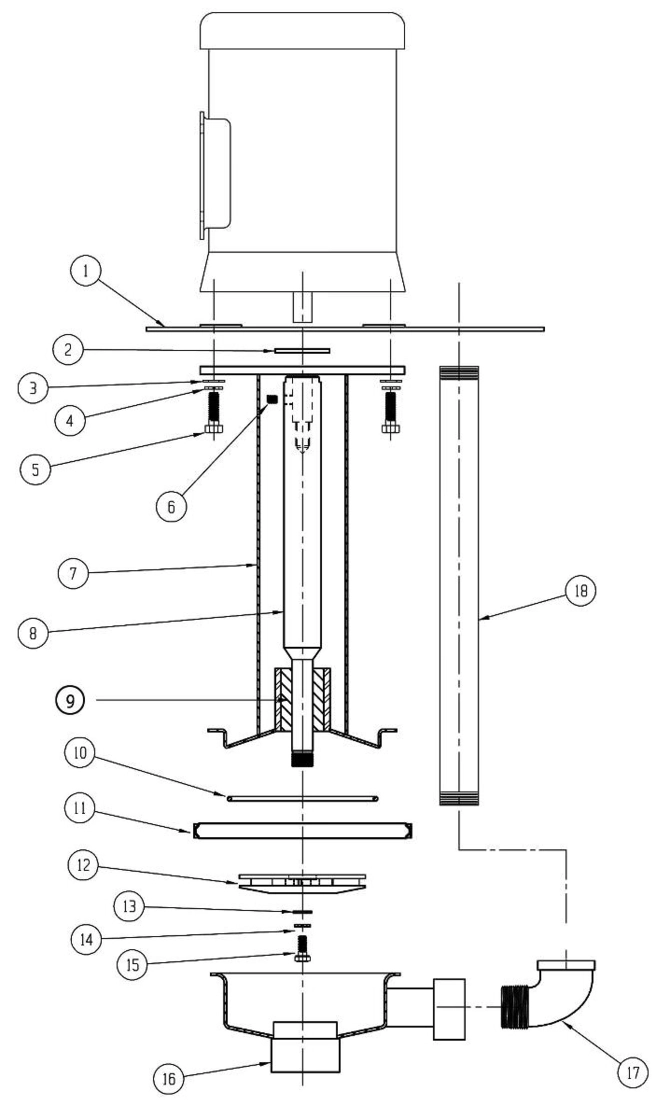

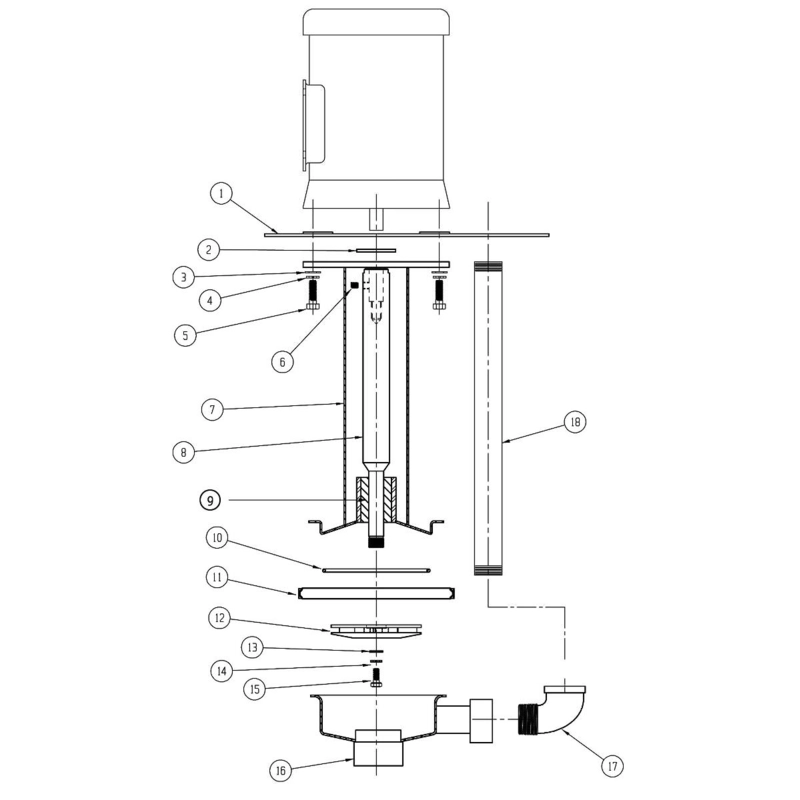

Repair Parts for AK5RTS1V13005J10

	shipping	price
A102134-2	Ships in	$259.35	Select item
M100115	Ships in	$9.51	Select item
J100128	Ships in	$0.11	Select item
J100115	Ships in	$0.16	Select item
J103118	Ships in	$0.58	Select item
J104219	Ships in	$4.00	Select item
A102177	Ships in	$827.45	Select item
M101896-1	Ships in	$282.15	Select item
J102960	Ships in 3-5 Days	$7.12	Select item
J102947	Ships in 1 Week	$81.70	Select item
A102114-4	Ships in	$339.15	Select item
J101293	Ships in	$0.08	Select item
J102282	Ships in	$0.10	Select item
J103196	Ships in	$5.52	Select item
A102112-1	Ships in	$411.35	Select item
A102112-2	Ships in	$367.65	Select item
J103049	Ships in	$102.60	Select item
M101897-1	Ships in	$98.80	Select item
