Finish Thompson AK4STS1V13505J06, FTI AK4 Vertical Sealed Stainless Steel Cantilevered Centrifugal Pump, 3/4" x 1/2" NPT/BSP, 115-230 Volt, 3450 RPM, FKM O-Ring, 1 Phase, 1 HP, 3.50" Open design impeller, 60 Hz, 100 psi, 39 GPM

$2,012.00

Best Price Guarantee!
402PumpPoints

Item: AK4STS1V13505J06

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

AK4STS1V13505J06

Finish Thompson AK4STS1V13505J06, FTI AK4 Vertical Sealed Stainless Steel Cantilevered Centrifugal Pump, 3/4" x 1/2" NPT/BSP, 115-230 Volt, 3450 RPM, FKM O-Ring, 1 Phase, 1 HP, 3.50" Open design impeller, 60 Hz, 100 psi, 39 GPM

Base Model Number	AK4
Column Length	12"
Connections / Discharge (Inches)	3/4" x 1/2" NPT/BSP
Discharge NPT (Inches)	1/2"
Heads To (Feet)	59
HP	1
Hz	60
Impeller Code	Standard
Impeller Size (Inches)	3.5" (3 1/2")
Material	316 Stainless Steel
Maximum Flow (GPM)	39
Maximum Operating Temperature	300°F (149°C)

Maximum Pressure (PSI)	100 psi (6.9 Bar)
Motor	1hp/3450/1ph/60Hz/T/56J/115-230V
Motor Frame Size	NEMA 56J
Phase	1
Pressure Rating BAR	6.9 bar
Spec. Gravity	up to 1.8
Speed (RPM)	3450
Suction NPT (Inches)	3/4"
Valve/Seat/O-Ring	FKM
Voltage	115/230

AK Vertical Cantilevered Metallic Centrifugal Pumps Information

Features & Benefits
AK Series Typical Applications include: Pharmaceutical, Waste water & water treatment, Chemical transfer
General Description
Finish Thompson FTI AV Series are rugged, metallic centrifugal pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.

0 Reviews

☆
☆
☆
☆
☆

Add a Review

You need to sign in to add a review.

Type	Title		Link
	AC, AV, AK Series Pumps Brochure (2022)		View
	Chemical Processing Applications Flyer (2022)		View
	AC, AV, AK 4 & 5 Series Pumps Datasheet (2022)		View
	AP Series Series Pumps Performance Curves (2022)		View
	AK4 AV4 AK5 AV5 Series Pumps Installation & Operation Manual (2022)		View

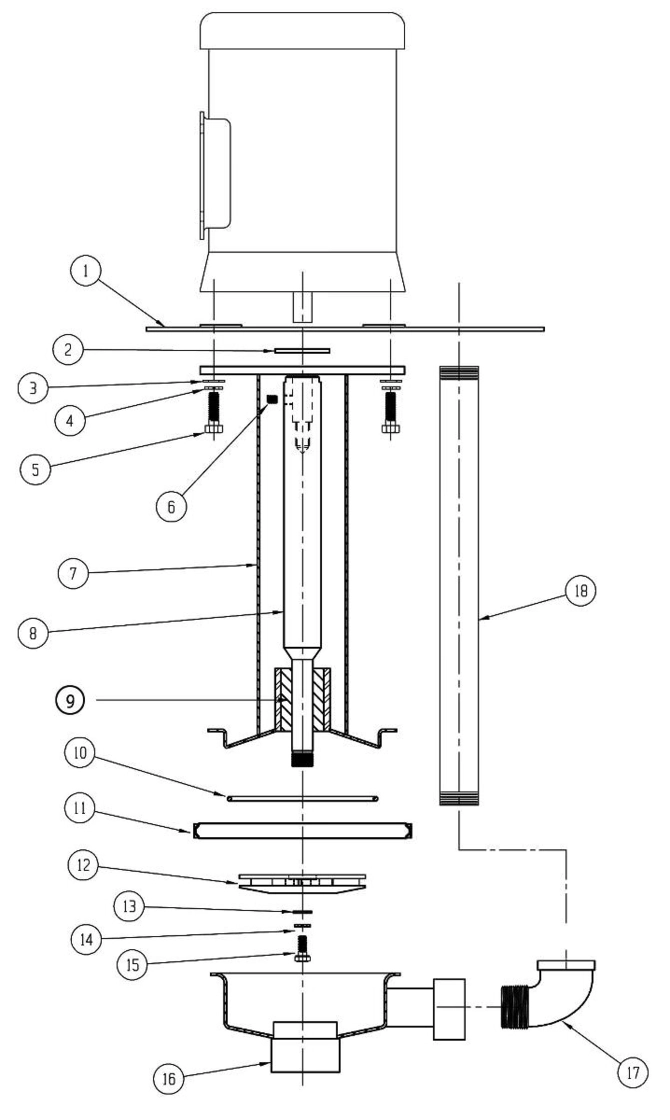

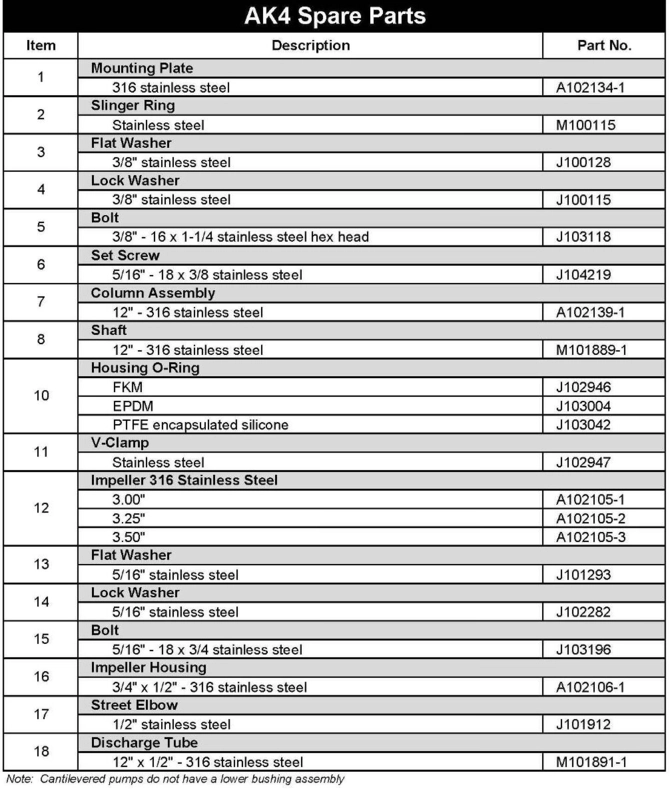

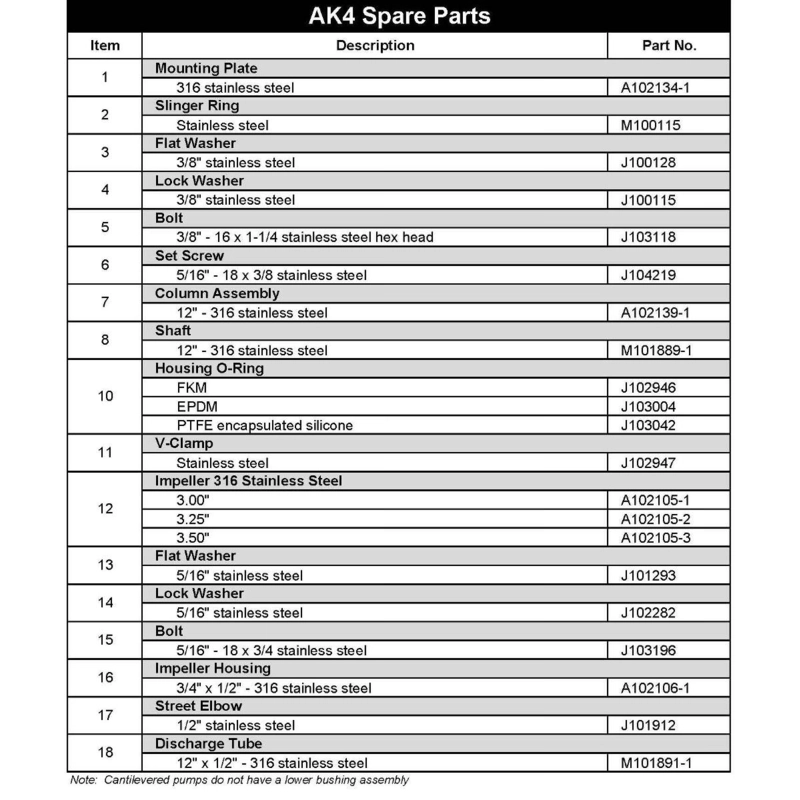

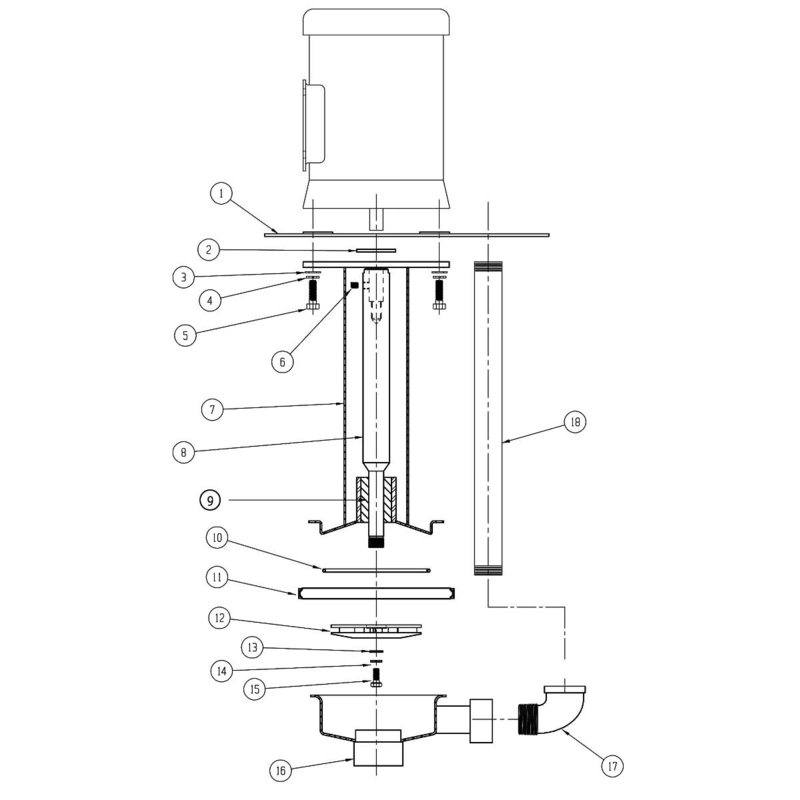

Repair Parts for AK4STS1V13505J06

	shipping	price
A102134-1	Ships in	$259.35	Select item
M100115	Ships in	$9.51	Select item
J100128	Ships in	$0.11	Select item
J100115	Ships in	$0.16	Select item
J103118	Ships in	$0.58	Select item
J104219	Ships in	$4.00	Select item
A102139-1	Ships in	$827.45	Select item
M101889-1	Ships in	$228.00	Select item
J102946	Ships in	$3.61	Select item
J102947	Ships in 1 Week	$81.70	Select item
A102105-3	Ships in	$152.95	Select item
J101293	Ships in	$0.08	Select item
J102282	Ships in	$0.10	Select item
J103196	Ships in	$5.52	Select item
A102106-1	Ships in	$304.00	Select item
J101912	Ships in	$45.60	Select item
M101891-1	Ships in	$50.35	Select item
