• Finish Thompson AK4STS1V13205J02 AK4 Pump Series

Image shown may not be actual product

Finish Thompson FTI

AK4STS1V13205J02

0 reviews

Finish Thompson AK4STS1V13205J02, FTI AK4 Vertical Sealed Stainless Steel Cantilevered Centrifugal Pump, 3/4" x 1/2" NPT/BSP, 115-230 Volt, 3450 RPM, FKM O-Ring, 1 Phase, 1/2 HP, 3.25" Open design impeller, 60 Hz, 100 psi, 39 GPM

$1,541.60

Item: AK4STS1V13205J02
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

AK4STS1V13205J02

Finish Thompson AK4STS1V13205J02, FTI AK4 Vertical Sealed Stainless Steel Cantilevered Centrifugal Pump, 3/4" x 1/2" NPT/BSP, 115-230 Volt, 3450 RPM, FKM O-Ring, 1 Phase, 1/2 HP, 3.25" Open design impeller, 60 Hz, 100 psi, 39 GPM

Base Model NumberAK4
Column Length12"
Connections / Discharge (Inches)3/4" x 1/2" NPT/BSP
Discharge NPT (Inches)1/2"
Heads To (Feet)59
HP1/2
Hz60
Impeller CodeStandard
Impeller Size (Inches)3.25"
Material316 SS
Maximum Flow (GPM)39
MaxImum Operating Temperature300°F (149°C)
Maximum Pressure (PSI)100 psi
Motor1/2hp/3450/1ph/60Hz/T/56J/115-230V
Motor Frame SizeNEMA 56J
Phase1
Pressure Rating BAR6.9 bar
Spec. Gravityup to 1.8
Speed (RPM)3450
Suction NPT (Inches)3/4"
Valve/Seat/O-RingFKM
Voltage115-230

AK Vertical Cantilevered Metallic Centrifugal Pumps Information

Features & Benefits
AK Series Typical Applications include: Pharmaceutical, Waste water & water treatment, Chemical transfer
General Description
Finish Thompson FTI AV Series are rugged, metallic centrifugal pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

AK Vertical Cantilevered Metallic Centrifugal Pumps

AK4 AK5 AC4 AC5 Metallic Pumps Manual

View

AK Vertical Cantilevered Metallic Centrifugal Pumps

AP Series Pump Curves

View

AK Vertical Cantilevered Metallic Centrifugal Pumps

AC4 AC5 AV4 Pump Datasheet

View

Repair Parts for AK4STS1V13205J02

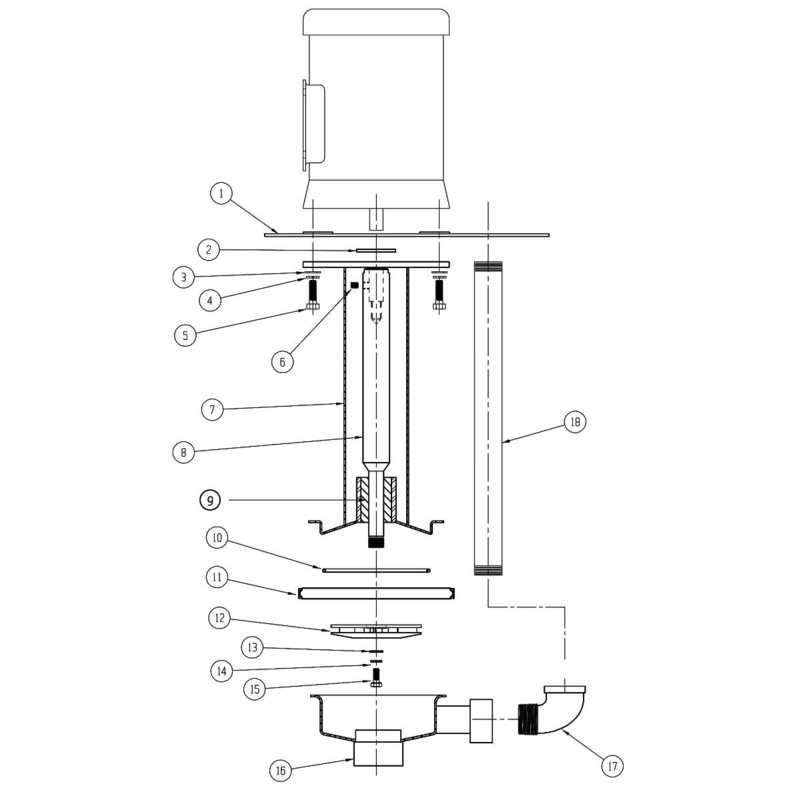

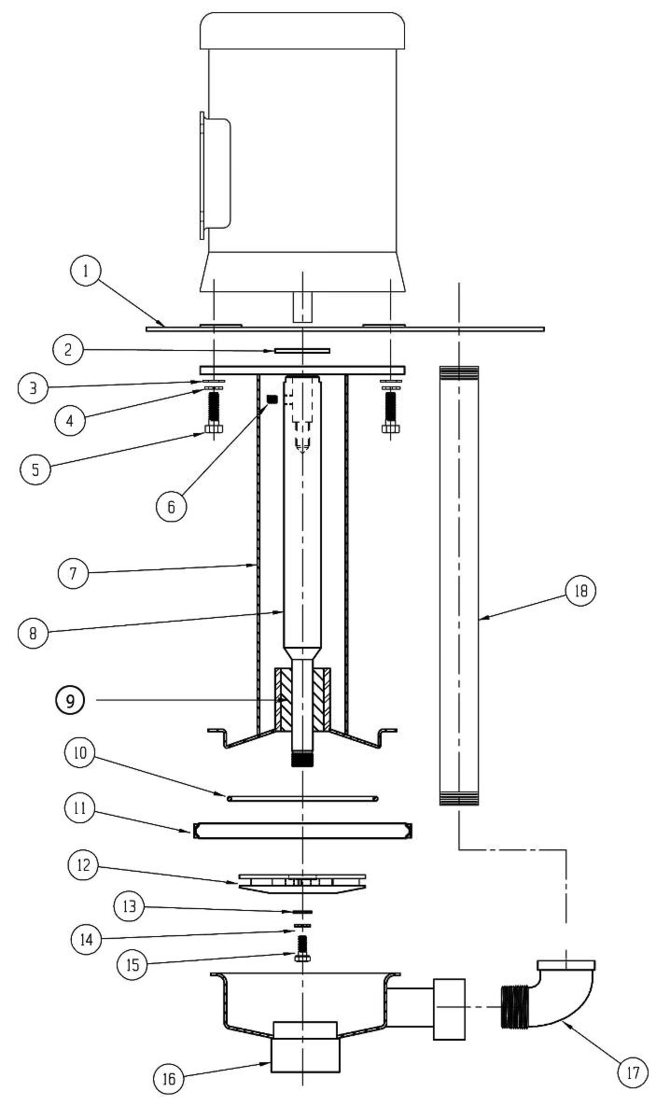

  • Finish-Thompson-AK4-Exploded-Pump-Parts.jpg

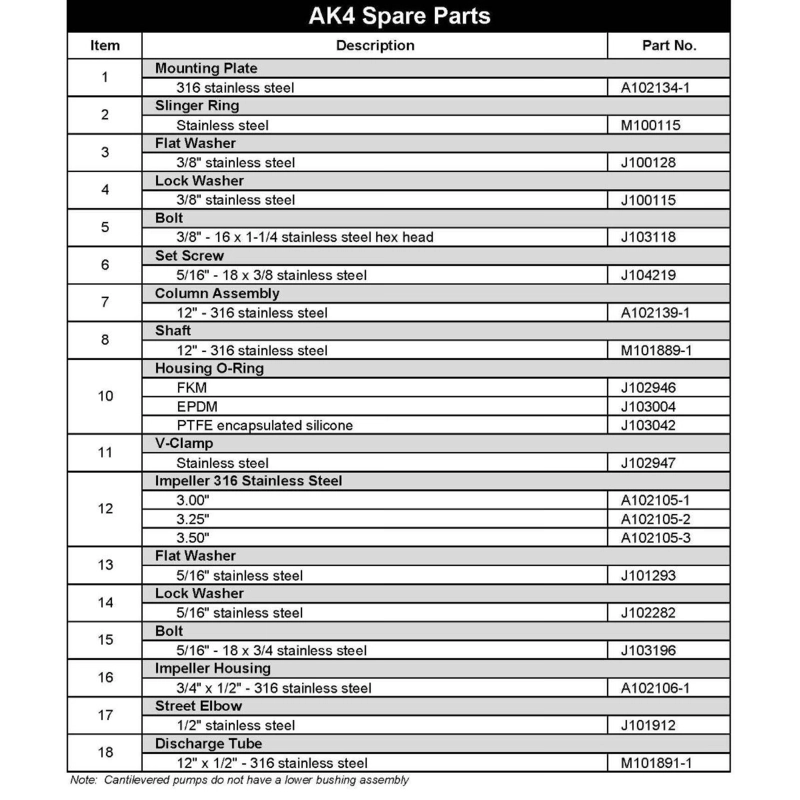

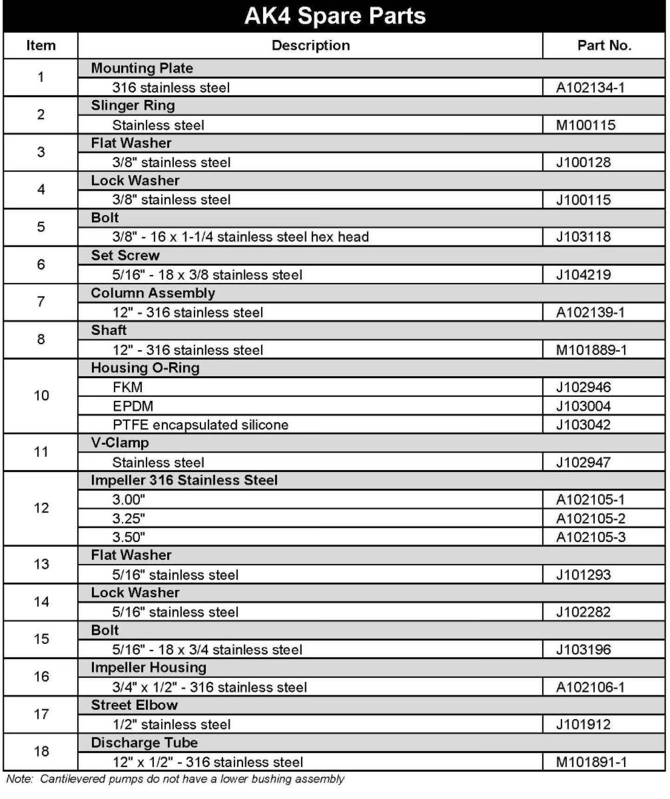

  • Finish-Thompson-AK4-Pump-Parts.jpg
Productqty.shippingprice
A102134-1

A102134-1

Ships in $195.30
M100115

M100115

Ships in $6.43
J100128

J100128

Ships in $0.09
J100115

J100115

Ships in $0.11
J103118

J103118

Ships in $0.44
J104219

J104219

Ships in $3.04
A102139-1

A102139-1

Ships in $626.40
M101889-1

M101889-1

Ships in $152.80
J102946

J102946

Ships in $2.74
J102947

J102947

Ships in $60.30
A102105-3

A102105-3

Ships in $114.30
J101293

J101293

Ships in $0.05
J102282

J102282

Ships in $0.08
J103196

J103196

Ships in $4.20
A102106-1

A102106-1

Ships in $228.60
J101912

J101912

Ships in $32.40
M101891-1

M101891-1

Ships in $32.00
