• Finish Thompson Pump End AC8SJS4V800B0118 AC8 Series

Image shown may not be actual product

Finish Thompson FTI


0 reviews

Finish Thompson Centrifugal Pump End AC8SJS4V800B0118, Sealed Stainless Steel FTI AC8, 2 x 1-1/2 BSP, FKM O-Ring, 8.00" Impeller


Item: AC8SJS4V800B0118
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals

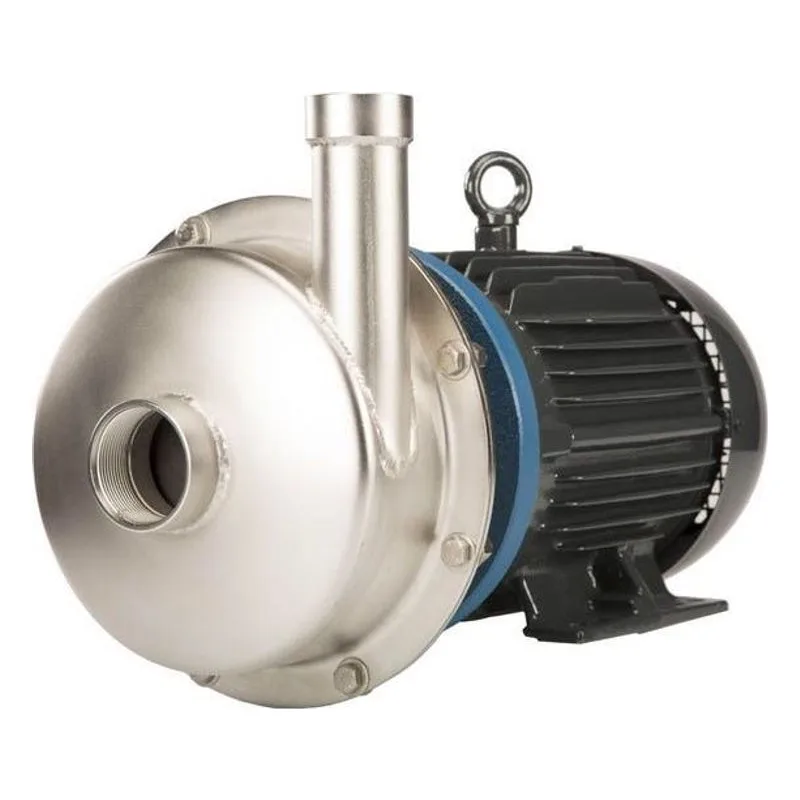

Finish Thompson Centrifugal Pump End AC8SJS4V800B0118, Sealed Stainless Steel FTI AC8, 2 x 1-1/2 BSP, FKM O-Ring, 8.00" Impeller

Base Model NumberAC8
Connections / Discharge (Inches)2 x 1-1/2 BSP
Heads To (Feet)247
Impeller CodeStandard
Impeller Size (Inches)8.00"
Material316 SS
Maximum Flow (GPM)321
Maximum Operating Temperature300°F (149°C)
Maximum Pressure (PSI)120 psi
Motor Frame Size143/184JM
Pressure Rating BAR8.3 bar
Shaft Seal MaterialC/R/V
Spec. Gravityup to 1.8

AC Sealed Metallic Centrifugal Pumps Information

Features & Benefits
AC Series Typical Applications
• Chemical processing
• Plating, photo processing
• Printed circuit boards
• Pharmaceutical
• Waste water treatment

AC Sealed Metallic Centrifugal Pump Features:
• Corrosion resistant 316 stainless steel
• Close coupled
• Back pull out design for easy service
• Compact design with secure V-clamp (304 stainless steel)
• Standard, recessed, or high head impellers
• Bellows Type 21 seals (AC models only)
• ATEX certified (AC models with ATEX motors only)
• FDA compliant (AC models with Buna elastomer only)
• 1.8 specific gravity with no impeller trim
• Maximum temperature: 300°F (149°C)
• Maximum working pressure: 100 psi (6.9 bar)
General Description
Finish Thompson FTI AC Series are rugged, metallic centrifugal pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.


0 Reviews

Add a Review

You need to sign in to add a review.


AP Series Pump Curves


AC4 AC5 AV4 Pump Datasheet


AC6 AC8 AV8 Pump Datasheet


AC4 AC5 Pump Parts Manual

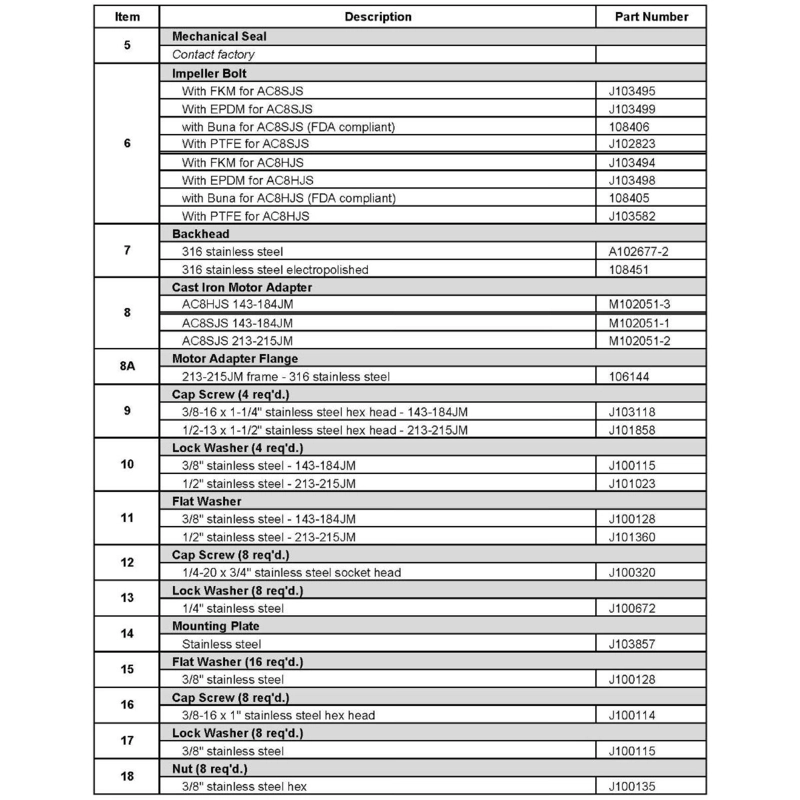

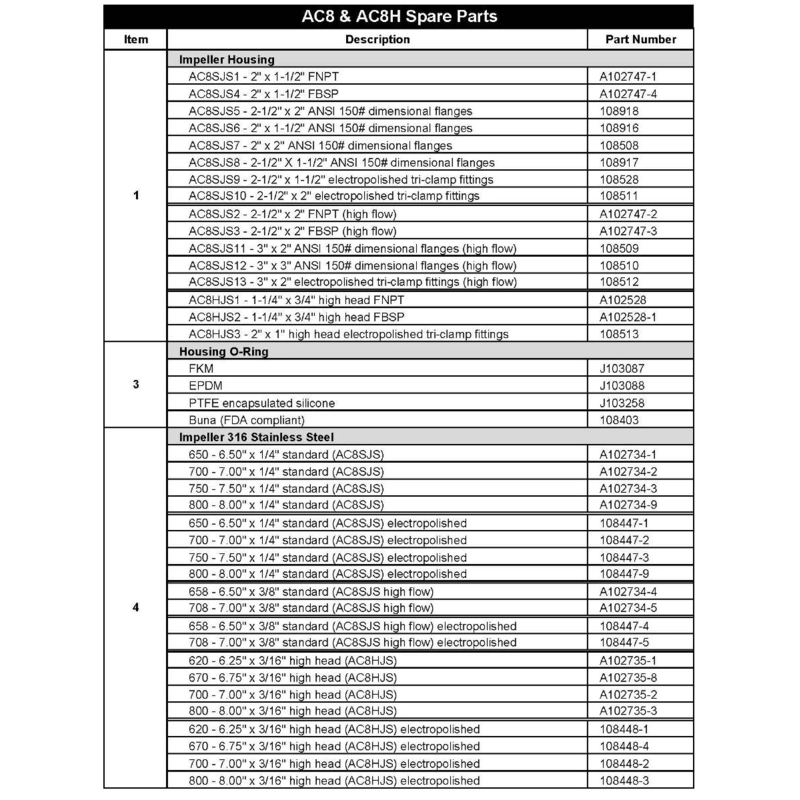

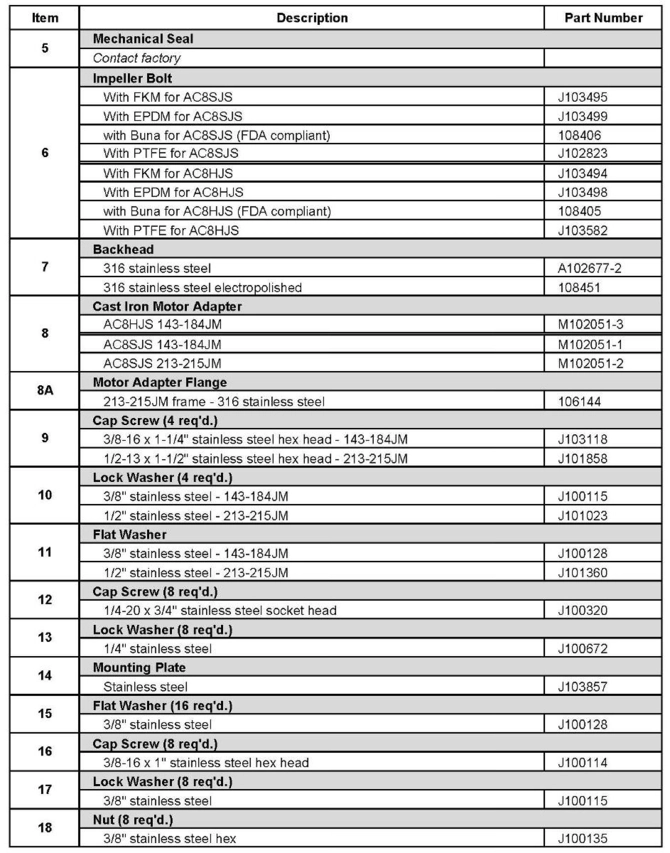

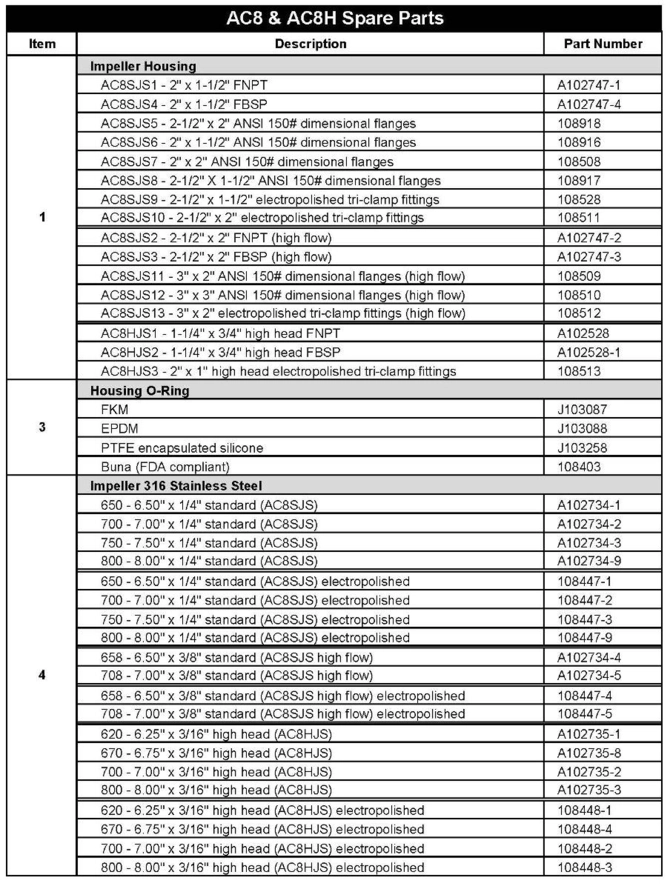

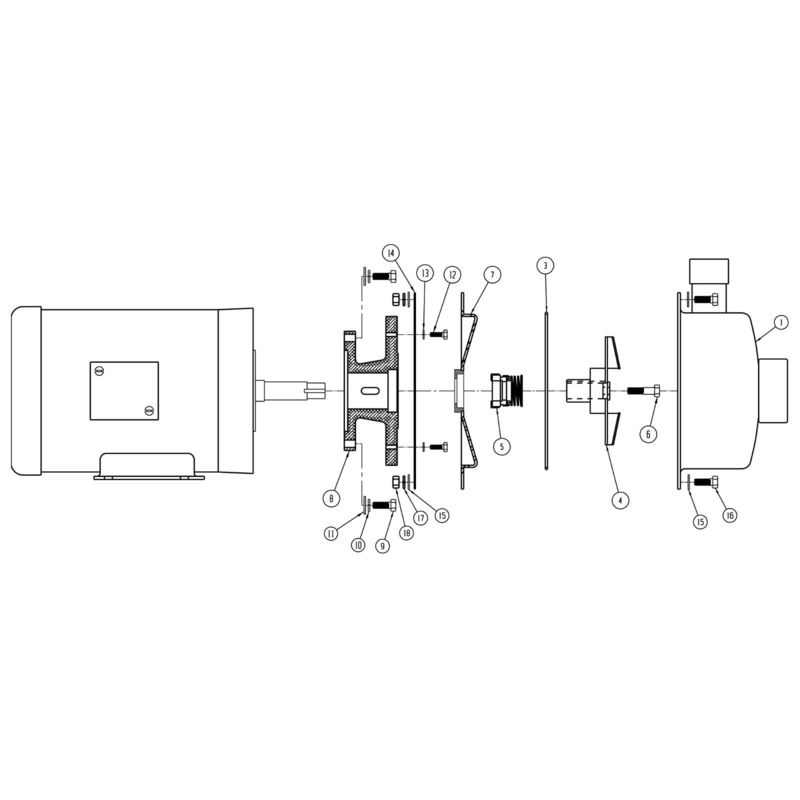

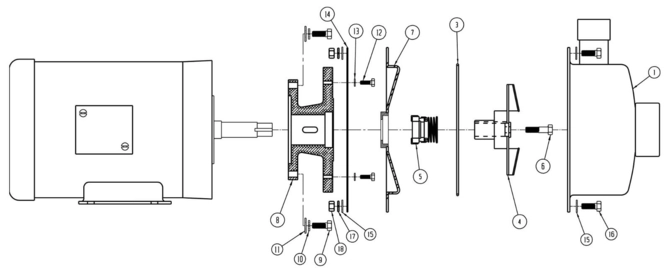

AC6 AC8 Pump Parts Manual


AC6 AC6H AC8 AC8H Pump Parts Metric Manual
