• Finish Thompson AC8HJS1V700B011810 AC8H Pump Series

Image shown may not be actual product

Finish Thompson FTI

AC8HJS1V700B011810

0 reviews

Finish Thompson AC8HJS1V700B011810, FTI AC8H Sealed Stainless Steel Centrifugal Pump, 1-1/4 x 3/4 NPT, 115-230 Volt, 3450 RPM, FKM O-Ring, 1 Phase, 5 HP, 7.00" Impeller

$3,112.00

Item: AC8HJS1V700B011810
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

AC8HJS1V700B011810

Finish Thompson AC8HJS1V700B011810, FTI AC8H Sealed Stainless Steel Centrifugal Pump, 1-1/4 x 3/4 NPT, 115-230 Volt, 3450 RPM, FKM O-Ring, 1 Phase, 5 HP, 7.00" Impeller

Base Model NumberAC8H
Connections / Discharge (Inches)1-1/4 x 3/4 NPT
Heads To (Feet)263
HP5
Hz60
Impeller CodeHigh Head
Impeller Size (Inches)7.00"
Material316 SS
Maximum Flow (GPM)105
MaxImum Operating Temperature300°F (149°C)
Maximum Pressure (PSI)120 psi
Motor5hp/3450/1ph/60Hz/T/184JM/115-230V
Motor Frame Size143/184JM
Phase1
Pressure Rating BAR8.3 bar
Shaft Seal MaterialC/R/V
Spec. Gravityup to 1.8
Speed (RPM)3450
Valve/Seat/O-RingFKM
Voltage115-230

AC Sealed Metallic Centrifugal Pumps Information

Features & Benefits
AC Series Typical Applications
• Chemical processing
• Plating, photo processing
• Printed circuit boards
• Pharmaceutical
• Waste water treatment

AC Sealed Metallic Centrifugal Pump Features:
• Corrosion resistant 316 stainless steel
• Close coupled
• Back pull out design for easy service
• Compact design with secure V-clamp (304 stainless steel)
• Standard, recessed, or high head impellers
• Bellows Type 21 seals (AC models only)
• ATEX certified (AC models with ATEX motors only)
• FDA compliant (AC models with Buna elastomer only)
• 1.8 specific gravity with no impeller trim
• Maximum temperature: 300°F (149°C)
• Maximum working pressure: 100 psi (6.9 bar)
General Description
Finish Thompson FTI AC Series are rugged, metallic centrifugal pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

AC Sealed Metallic Centrifugal Pumps

AP Series Pump Curves

View

AC Sealed Metallic Centrifugal Pumps

AC4 AC5 Pump Parts Manual

View

AC Sealed Metallic Centrifugal Pumps

AC4 AC5 AV4 Pump Datasheet

View

AC Sealed Metallic Centrifugal Pumps

AC6 AC8 Pump Parts Manual

View

AC Sealed Metallic Centrifugal Pumps

AC6 AC8 AV8 Pump Datasheet

View

AC Sealed Metallic Centrifugal Pumps

AC6 AC6H AC8 AC8H Pump Parts Metric Manual

View

Repair Parts for AC8HJS1V700B011810

  • Finish-Thompson-AC8-Exploded-Pump-Parts.jpg
  • Finish-Thompson-AC8-Pump-Parts-1.jpg

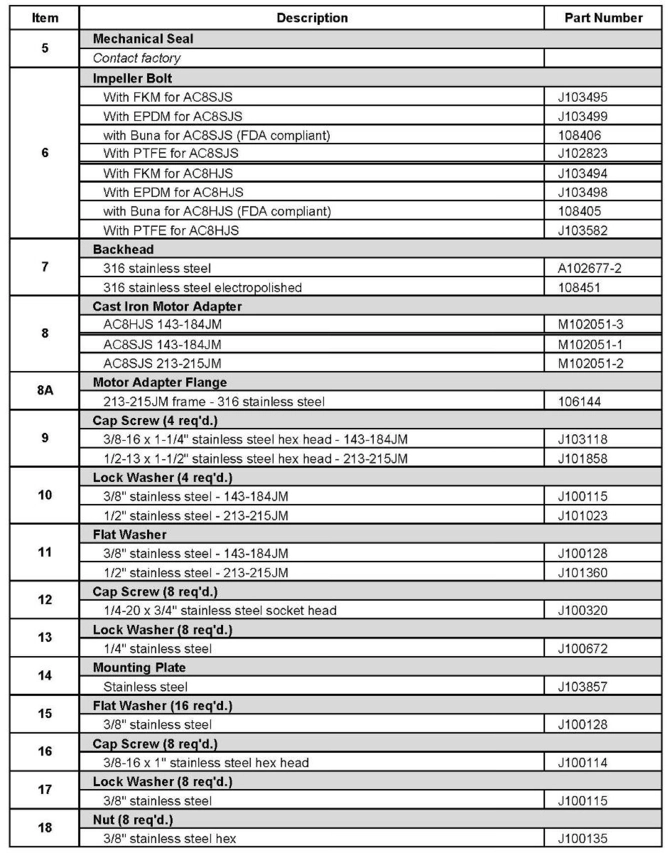

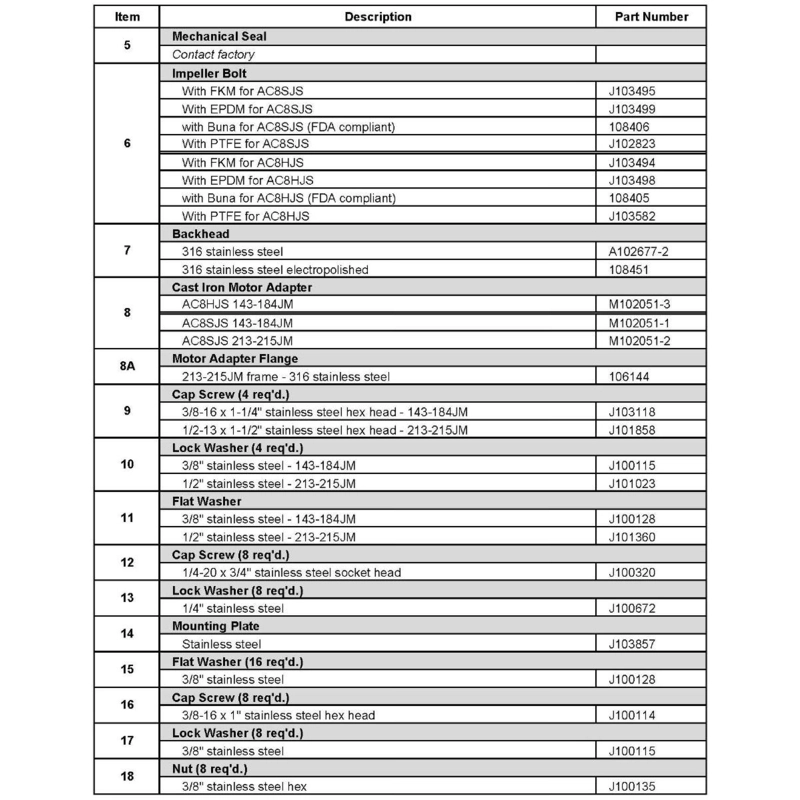

  • Finish-Thompson-AC8-Pump-Parts-2.jpg
Productqty.shippingprice
A102528

A102528

Ships in $790.20
A102735-2

A102735-2

Ships in $494.10
108448-2

108448-2

Ships in $525.60
J103494

J103494

Ships in $9.64
A102677-2

A102677-2

Ships in $465.30
108451

108451

Ships in $496.80
M102051-1

M102051-1

Ships in $284.80
J103118

J103118

Ships in $0.44
J100115

J100115

Ships in $0.11
J100128

J100128

Ships in $0.09
J100320

J100320

Ships in $0.20
J100672

J100672

Ships in $0.04
J103857

J103857

Ships in $153.90
J100128

J100128

Ships in $0.09
0 items selected.Add items to cart
