Finish Thompson FTI AC Sealed Metallic Centrifugal Pumps AC6SJS1V520B011809

Image shown may not be actual product

Finish Thompson FTI

AC6SJS1V520B011809

0 reviews

Finish Thompson AC6SJS1V520B011809, FTI AC6 Sealed Stainless Steel Centrifugal Pump, 1-1/2 x 1-1/4 FNPT, 230-460 Volt, 3450 RPM, FKM O-Ring, 3 Phase, 7 1/2 HP, 5.25" Impeller

$3,400.00

Best Price Guarantee!
680PumpPoints

Item: AC6SJS1V520B011809

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

AC6SJS1V520B011809

Finish Thompson AC6SJS1V520B011809, FTI AC6 Sealed Stainless Steel Centrifugal Pump, 1-1/2 x 1-1/4 FNPT, 230-460 Volt, 3450 RPM, FKM O-Ring, 3 Phase, 7 1/2 HP, 5.25" Impeller

Base Model Number	AC6
Connections / Discharge (Inches)	1-1/2 x 1-1/4 FNPT
Heads To (Feet)	136
HP	7 1/2
Hz	50/60
Impeller Code	Standard
Impeller Size (Inches)	5.25" (5 1/4")
Material	316 Stainless Steel
Maximum Flow (GPM)	261
Maximum Operating Temperature	300°F (149°C)
Maximum Pressure (PSI)	100 psi (6.9 Bar)

Motor	7-1/2hp/3450/3ph/50-60Hz/T/184JM/230-460V
Motor Frame Size	143/184JM
Phase	3
Pressure Rating BAR	6.9 bar
Shaft Seal Material	C/R/V
Spec. Gravity	up to 1.8
Speed (RPM)	3450
Valve/Seat/O-Ring	FKM
Voltage	230/460

AC Sealed Metallic Centrifugal Pumps Information

Features & Benefits
AC Series Typical Applications • Chemical processing • Plating, photo processing • Printed circuit boards • Pharmaceutical • Waste water treatment AC Sealed Metallic Centrifugal Pump Features: • Corrosion resistant 316 stainless steel • Close coupled • Back pull out design for easy service • Compact design with secure V-clamp (304 stainless steel) • Standard, recessed, or high head impellers • Bellows Type 21 seals (AC models only) • ATEX certified (AC models with ATEX motors only) • FDA compliant (AC models with Buna elastomer only) • 1.8 specific gravity with no impeller trim • Maximum temperature: 300°F (149°C) • Maximum working pressure: 100 psi (6.9 bar)
General Description
Finish Thompson FTI AC Series are rugged, metallic centrifugal pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.

Categories

Chemical Delivery / Processing
22853 products
Food & Beverage Services
13449 products
Manufacturing
20389 products
Pharmaceutical / Chemical
15972 products
Plating
23448 products
Sewage / Wastewater
20311 products

0 Reviews

☆
☆
☆
☆
☆

Add a Review

You need to sign in to add a review.

Type	Title		Link
	AC, AV, AK Series Pumps Brochure (2022)		View
	Chemical Processing Applications Flyer (2022)		View
	AC, AV, AK 6 & 8 Series Pumps Datasheet (2022)		View
	AP Series Series Pumps Performance Curves (2022)		View
	AC6 AC8 Series Pumps Installation & Operation Manual (2022)		View

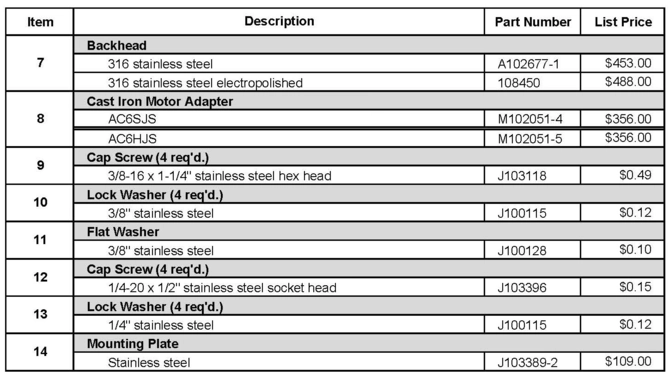

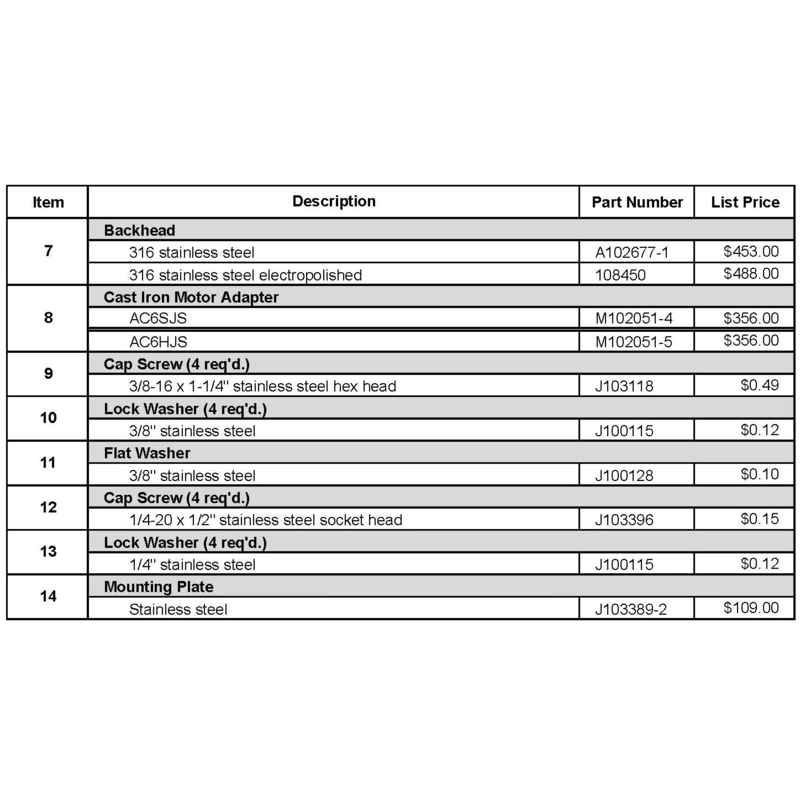

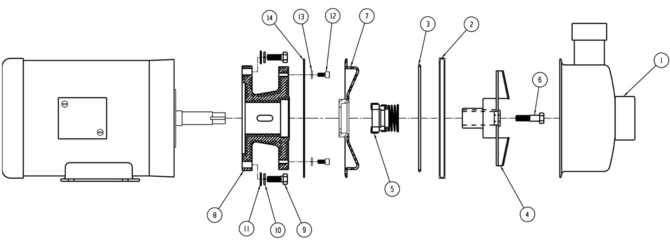

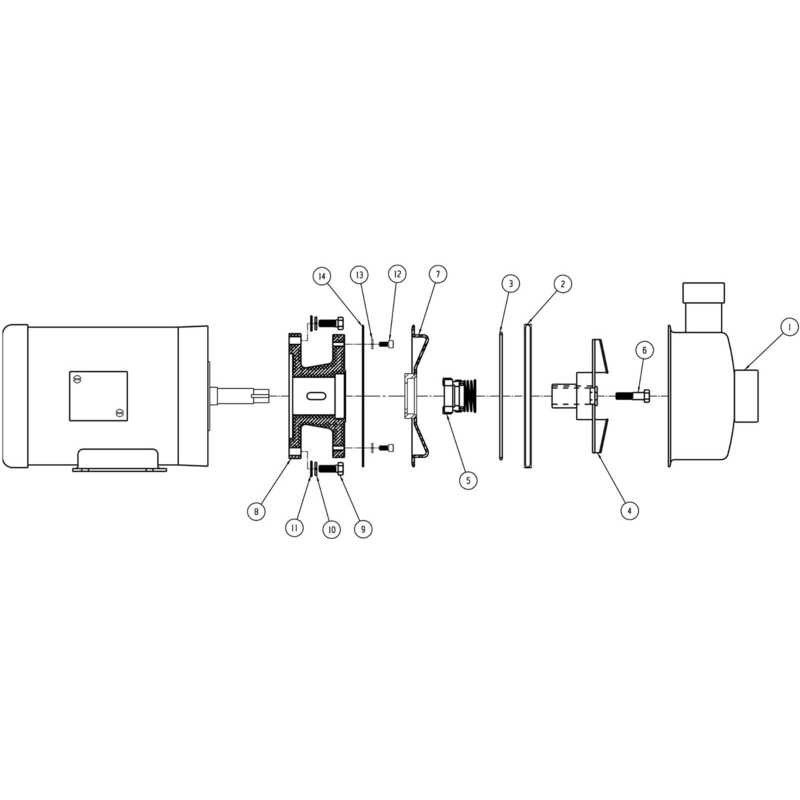

Repair Parts for AC6SJS1V520B011809

Product		qty.	shipping	price
	A102184-1		Ships in	$838.85	Select item
	J103090		Ships in	$126.35	Select item
	J103084		Ships in	$10.12	Select item
	A102734-6		Ships in	$651.70	Select item
	108447-6		Ships in	$694.45	Select item
	J103495		Ships in	$14.28	Select item
	A102677-1		Ships in	$539.60	Select item
	108450		Ships in	$580.45	Select item
	M102051-4		Ships in	$422.75	Select item
	J103118		Ships in	$0.58	Select item
	J100115		Ships in	$0.16	Select item
	J100128		Ships in	$0.11	Select item
	J103396		Ships in	$0.17	Select item
	J100115		Ships in	$0.16	Select item
	J103389-2		Ships in	$131.10	Select item

0 items selected.Add items to cart
