• Finish Thompson Pump End AC5STS8V470B015C AC5 Series

Image shown may not be actual product

Finish Thompson FTI

AC5STS8V470B015C

0 reviews

Finish Thompson Centrifugal Pump End AC5STS8V470B015C, Sealed Stainless Steel FTI AC5, 1-1/4 x 3/4 ANSI 150# , FKM O-Ring, 4.75" Impeller

$1,010.00

Item: AC5STS8V470B015C
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

AC5STS8V470B015C

Finish Thompson Centrifugal Pump End AC5STS8V470B015C, Sealed Stainless Steel FTI AC5, 1-1/4 x 3/4 ANSI 150# , FKM O-Ring, 4.75" Impeller

Base Model NumberAC5
BushingCarbon
Connections / Discharge (Inches)1-1/4 x 3/4 ANSI 150#
Heads To (Feet)88
Impeller CodeStandard
Impeller Size (Inches)4.75"
Material316 SS
Maximum Flow (GPM)145
MaxImum Operating Temperature300°F (149°C)
Maximum Pressure (PSI)100 psi
Motor Frame Size56C
Pressure Rating BAR6.9 bar
Shaft Seal MaterialC/R/V
Spec. Gravityup to 1.8
Valve/Seat/O-RingFKM

AC Sealed Metallic Centrifugal Pumps Information

Features & Benefits
AC Series Typical Applications
• Chemical processing
• Plating, photo processing
• Printed circuit boards
• Pharmaceutical
• Waste water treatment

AC Sealed Metallic Centrifugal Pump Features:
• Corrosion resistant 316 stainless steel
• Close coupled
• Back pull out design for easy service
• Compact design with secure V-clamp (304 stainless steel)
• Standard, recessed, or high head impellers
• Bellows Type 21 seals (AC models only)
• ATEX certified (AC models with ATEX motors only)
• FDA compliant (AC models with Buna elastomer only)
• 1.8 specific gravity with no impeller trim
• Maximum temperature: 300°F (149°C)
• Maximum working pressure: 100 psi (6.9 bar)
General Description
Finish Thompson FTI AC Series are rugged, metallic centrifugal pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.

Categories

0 Reviews

Add a Review

You need to sign in to add a review.

SeriesTypeLink

AC Sealed Metallic Centrifugal Pumps

AP Series Pump Curves

View

AC Sealed Metallic Centrifugal Pumps

AC4 AC5 Pump Parts Manual

View

AC Sealed Metallic Centrifugal Pumps

AC4 AC5 AV4 Pump Datasheet

View

AC Sealed Metallic Centrifugal Pumps

AC6 AC8 Pump Parts Manual

View

AC Sealed Metallic Centrifugal Pumps

AC6 AC8 AV8 Pump Datasheet

View

AC Sealed Metallic Centrifugal Pumps

AC6 AC6H AC8 AC8H Pump Parts Metric Manual

View

Repair Parts for AC5STS8V470B015C

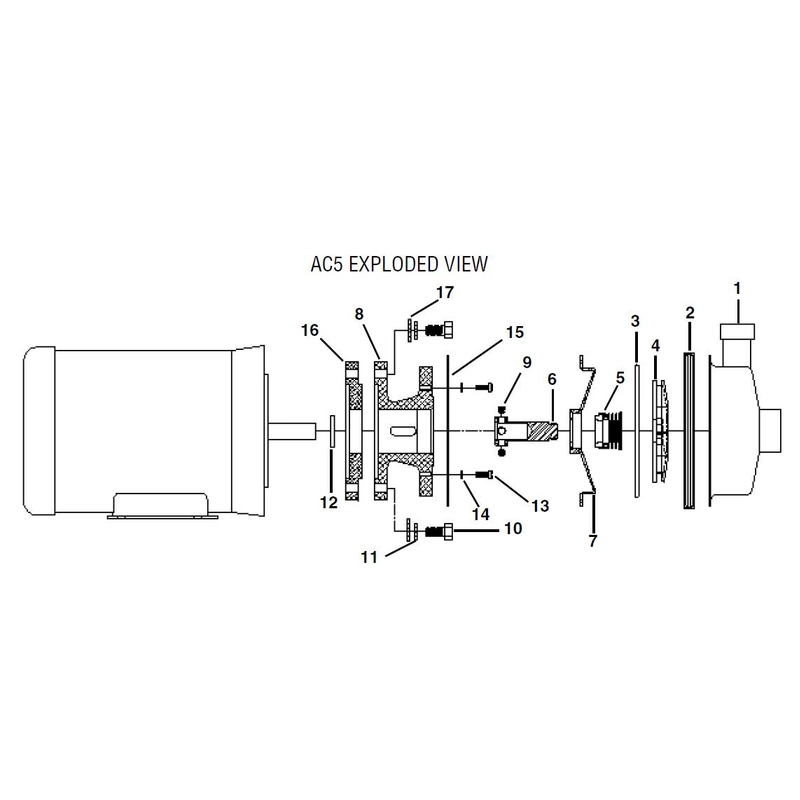

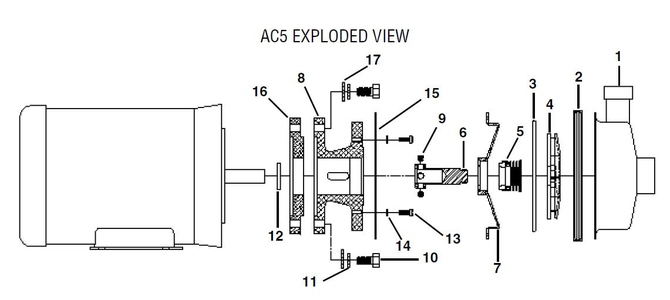

  • Finish-Thompson-AC5-Exploded-Pump-Parts.JPG
  • Finish-Thompson-AC5-Pump-Parts-1.jpg

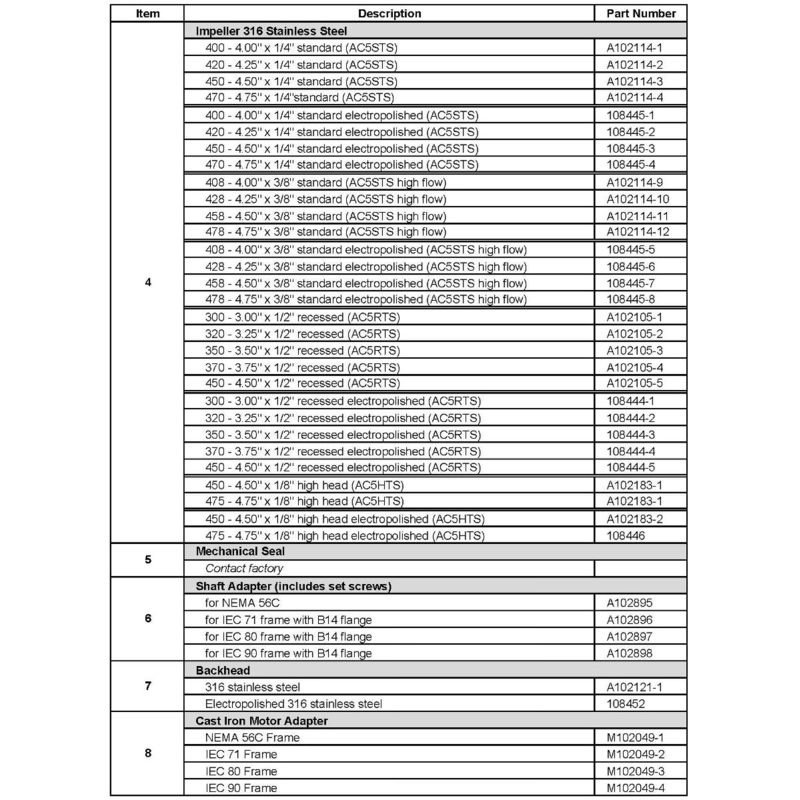

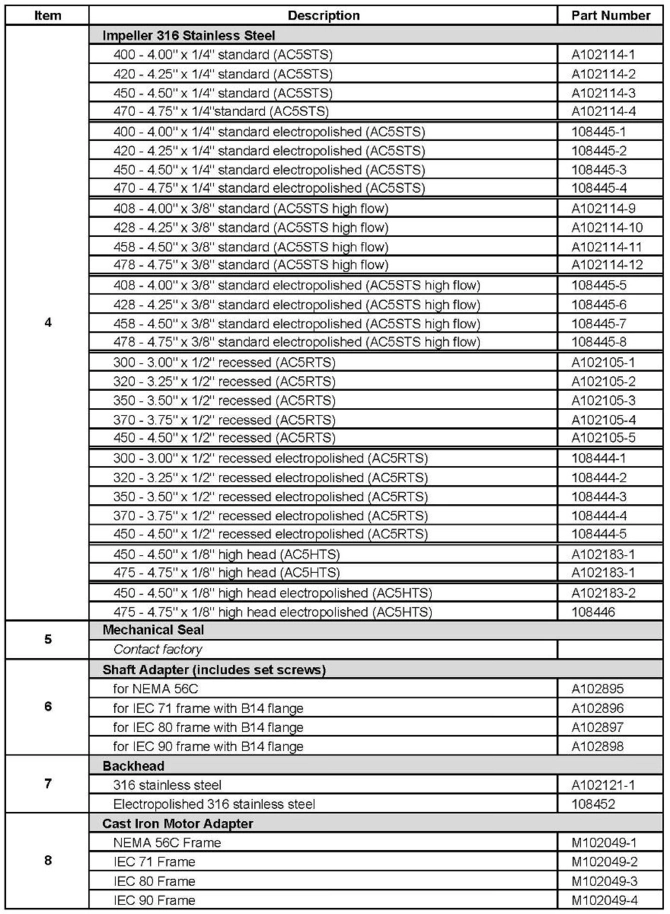

  • Finish-Thompson-AC5-Pump-Parts-2.jpg
  • Finish-Thompson-AC5-Pump-Parts-3.jpg
Productqty.shippingprice
J102947

J102947

Ships in $60.30
J102960

J102960

Ships in 3-5 Days $29.70
A102114-4

A102114-4

Ships in $255.60
108445-4

108445-4

Ships in $287.10
A102895

A102895

Ships in 3-5 DAYS $145.80
A102121-1

A102121-1

Ships in $221.40
108452

108452

Ships in $252.90
M102049-1

M102049-1

Ships in $112.00
A102147

A102147

Ships in $261.90
A102149

A102149

Ships in $122.40
0 items selected.Add items to cart
